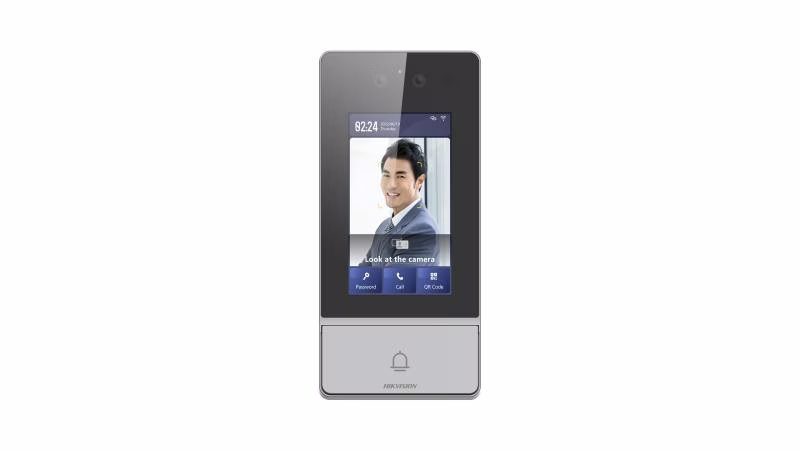

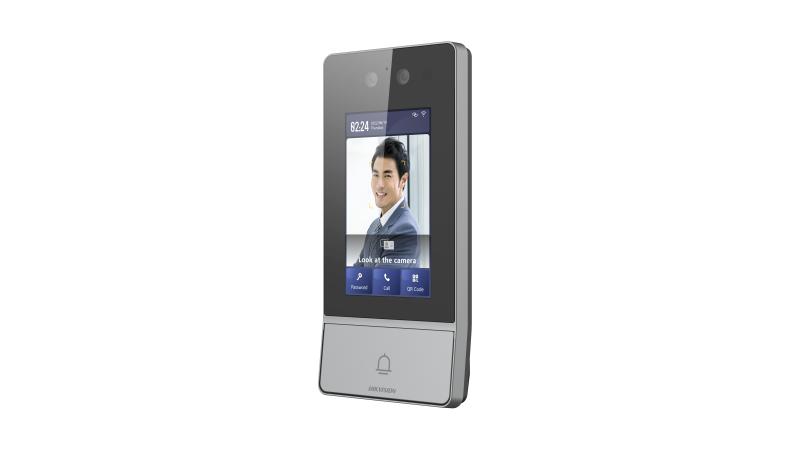

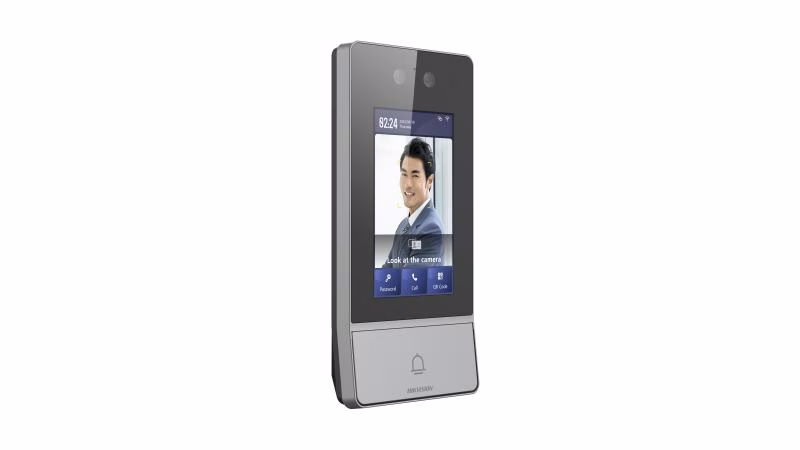

Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Facial Recognition IP Villa Door Station
Model :
SKU : DS-KV9503-WBE1
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
System Specifications
| System Parameters | |
| Operating System | Linux |
| ROM | 4 GB |
| RAM | 1 GB |
| Processor | Embedded high-performance processor |
| Display Parameters | |
| Screen Size | 4.3-inch |
| Operation Method | Capacitive touch screen |
| Type | IPS |
| Resolution | 800 ?? 480 |
| Luminance | 425 cd/m?? |
| Video Parameters | |
| Lens | 2 |
| Resolution | 2 ?? 2 MP |
| FOV | Horizontal: 88??, Vertical: 44?? |
| Wide Dynamic Range (WDR) | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | Main stream and sub stream: H.264 Third stream: H.265 |
| Audio Parameters | |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | G.711u, G.711a, Opus: 64kbps G.722.1, G.726: 32kbps AAC-LD, AAC-LC: 16kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| User Capacity | 20000 |
| Face Capacity | 10000 |
| Card Capacity | 100000 |
| Linked Indoor Station Capacity | 500 |
| Sub Door Station Capacity | 16 |
| Network Parameters | |
| Network Protocol | TCP/IP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Support: 2.0 |
| Authentication | |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Distance | 0.3 to 2 m |
| Face Recognition Accuracy Rate | ??? 99% |
| Face Recognition Duration | < 0.2 s per person |
| Device Interfaces | |
| Alarm Input | 4 (2 exit buttons and 2 door contacts by default) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit Button | 2 |
| RS-485 | 1 |
| TF Card | Reserved |
| Lock Control | 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module |
| Door Contact Input | 2 |
| General | |
| Button | 1 physical button |
| Installation | Surface mounting |
| Weight | Net weight: 0.405 kg Gross weight: 0.752 kg |
| Protective Level | IP65, IK08 |
| Working Temperature | -40 ??C to 60 ??C (-40 ??F to 140 ??F) |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions (W ?? H ?? D) | 182 mm ?? 85 mm ?? 26 mm (7.16" ?? 3.34" ?? 1.01") |
| Power Supply | 12 VDC, 1.5 A, IEEE802.3af, Standard PoE |
| Application Environment | Outdoor |
| Power Consumption | ??? 6 W |
| Languages | English, French, Spanish, Russian, German, Italian, Polish, Turkish, and more |
Specification
System Specifications
| System Parameters | |
| Operating System | Linux |
| ROM | 4 GB |
| RAM | 1 GB |
| Processor | Embedded high-performance processor |
| Display Parameters | |
| Screen Size | 4.3-inch |
| Operation Method | Capacitive touch screen |
| Type | IPS |
| Resolution | 800 ?? 480 |
| Luminance | 425 cd/m?? |
| Video Parameters | |
| Lens | 2 |
| Resolution | 2 ?? 2 MP |
| FOV | Horizontal: 88??, Vertical: 44?? |
| Wide Dynamic Range (WDR) | Support 120 dB |
| Supplement Light | IR light, up to 3 m |
| Video Compression Standard | Main stream and sub stream: H.264 Third stream: H.265 |
| Audio Parameters | |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Compression Standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression Bitrate | G.711u, G.711a, Opus: 64kbps G.722.1, G.726: 32kbps AAC-LD, AAC-LC: 16kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| User Capacity | 20000 |
| Face Capacity | 10000 |
| Card Capacity | 100000 |
| Linked Indoor Station Capacity | 500 |
| Sub Door Station Capacity | 16 |
| Network Parameters | |
| Network Protocol | TCP/IP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Support: 2.0 |
| Authentication | |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Distance | 0.3 to 2 m |
| Face Recognition Accuracy Rate | ??? 99% |
| Face Recognition Duration | < 0.2 s per person |
| Device Interfaces | |
| Alarm Input | 4 (2 exit buttons and 2 door contacts by default) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit Button | 2 |
| RS-485 | 1 |
| TF Card | Reserved |
| Lock Control | 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module |
| Door Contact Input | 2 |
| General | |
| Button | 1 physical button |
| Installation | Surface mounting |
| Weight | Net weight: 0.405 kg Gross weight: 0.752 kg |
| Protective Level | IP65, IK08 |
| Working Temperature | -40 ??C to 60 ??C (-40 ??F to 140 ??F) |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions (W ?? H ?? D) | 182 mm ?? 85 mm ?? 26 mm (7.16" ?? 3.34" ?? 1.01") |
| Power Supply | 12 VDC, 1.5 A, IEEE802.3af, Standard PoE |
| Application Environment | Outdoor |
| Power Consumption | ??? 6 W |
| Languages | English, French, Spanish, Russian, German, Italian, Polish, Turkish, and more |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Security & Surveillance/Video Intercom/Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Fa...
Similar Products
Hikvision DS-KD8003-IME1 KD8 Series Pro Modular Door Station With Brackets, 2MP HD Colorful Camera, Fish eye, IR Supplement, 1 Call physical Button, 2 lock relays, 4-ch alarm input, IP65, 12 VDC or standard PoE,
419.00
EZVIZ EP3x Pro 2K Battery-Powered Video Doorbell, 2K & 1080p Dual Lenses, Solar Panel Included, Two-Way Talk, Free 32 GB eMMC Storage | CS-EP3x Pro
329.00
HP4 Wire-free Peephole Doorbell, 1080p Resolution, 155?? Ultra-wide-angle View, Live View & Two-way Video Call, 4.3-inch Color Screen, Night Vision Up to 3m (10ft), 4600mAh, Black | CS-HP4
279.00
Hikvision DS-KIS604-S(C) Network Video Intercom Kit (Bundle), Network video intercom bundle for villa or house, Stores messages and captured pictures in the TF card
899.00

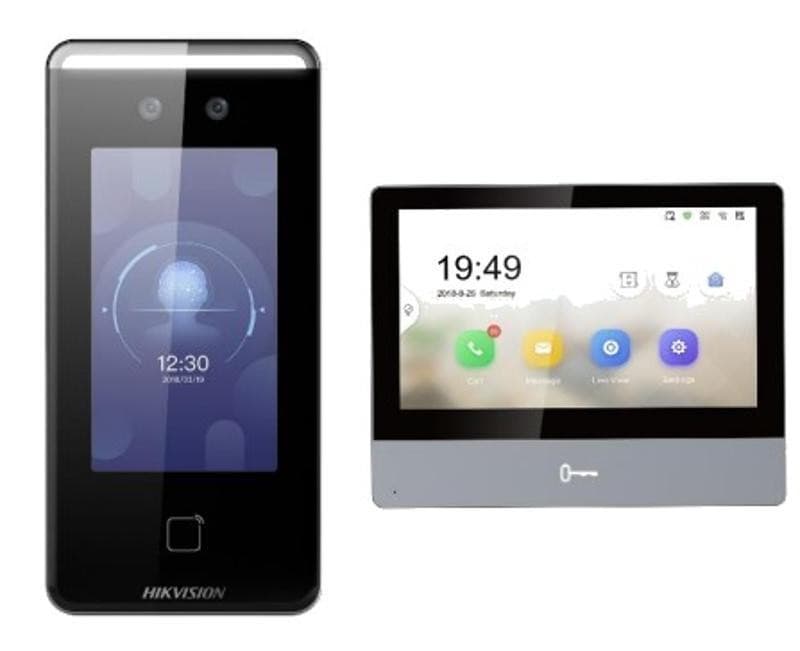

Hikvision DS-KIS901-P Facial Network Intercom Kit (Bundle), MinMoe face recognition terminal and indoor station bundle for villa or commercial, One call button for easier calls, Wi-Fi and PoE
1499.00
Hikvision DS-KH9310-WTE1 Video Intercom Network Indoor Station, 7-inch 1024 ?? 600 Colorful TFT Capacitive touch screen, 1 GB RAM, 4GB ROM, Android OS, Built-in microphone & loudspeaker
899.00
Logitech Rally Bar EU, All-in-one video bar, Graphite, Screen size 5 Inches, Lightweight, with Wireless Charger | 960-001312
11109.00
Hikvision DS-K1T502DBFWX-C Access Control Terminal. Manage access control and intercom functions in one device; IP65 & IK09 protections, Supports (card, fingerprint, PIN, etc.)
609.00
HIKVISION DS-KIS603-P hikvision Video Intercom Villa Door Station Bundle, 7-inch colorful touch screen with resolution 1024 ?? 600, Supports wireless network, Standard PoE
504.00
Hikvision Digital Technology DS-KH6320-WTE1 video intercom system 17.8 cm (7") Black, White | DS-KH6320-WTE1
309.75
HIKVISION DS-KIS602 hikvision Video Intercom Villa Door Station Bundle, 7-inch colorful touch screen with resolution 1024 ?? 600, Supports wireless network, Standard PoE
799.00

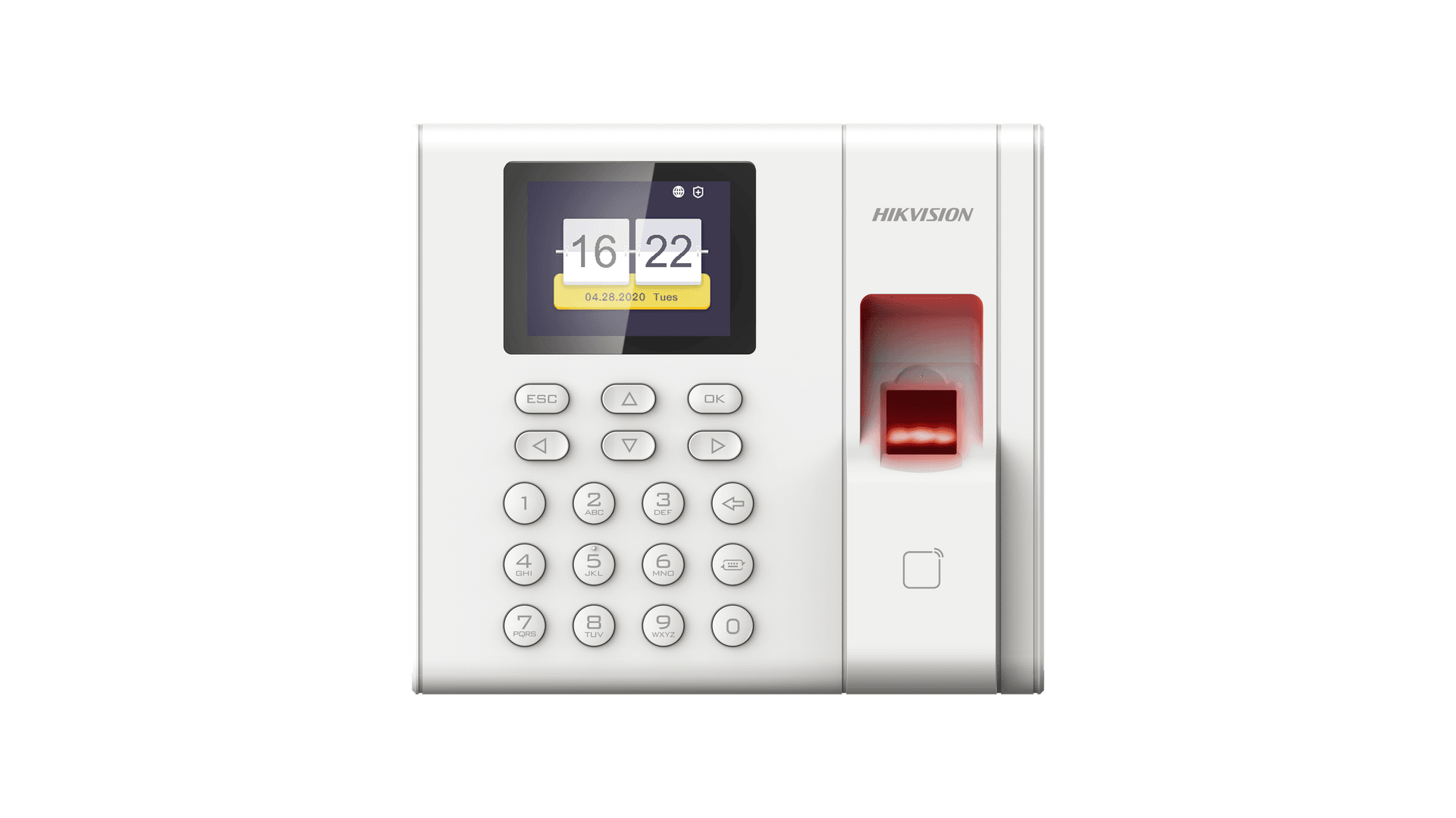

Hikvision DS-K1A8503MF Value Series Fingerprint Time Attendance Terminal + USEWELL RJ 45
