Model :
SKU : DS-PHA64-Kit-WB

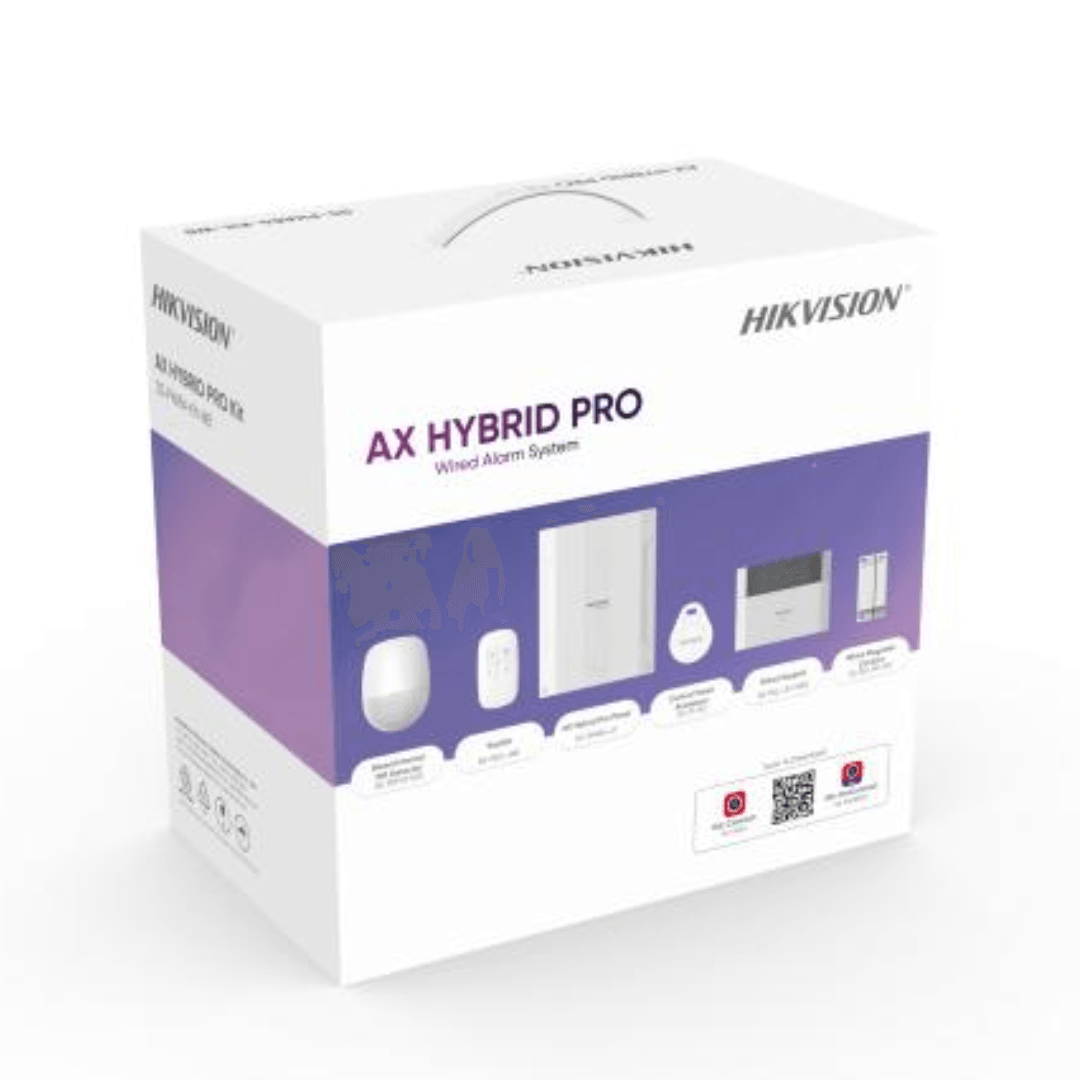

The Hikvision DS-PHA64-Kit-WB(B) AX Hybrid Pro Kit is a professional wired intrusion alarm system designed to deliver advanced security protection for residential, commercial, and industrial environments. Built with Hikvision’s trusted AX Hybrid Pro technology, this intelligent alarm solution provides reliable intrusion detection, real-time monitoring, and scalable security management for modern surveillance and protection systems.
Engineered for high-performance security applications, the AX Hybrid Pro system combines stable wired alarm connectivity with intelligent management features, making it ideal for homes, offices, retail stores, warehouses, banks, schools, and commercial facilities requiring dependable perimeter and intrusion protection.
The DS-PHA64-Kit-WB(B) supports comprehensive alarm monitoring and integrates seamlessly into professional security infrastructures. Designed for flexible deployment, the system enables centralized management of multiple alarm zones while ensuring rapid event detection and response. Its robust wired architecture delivers enhanced reliability, reduced signal interference, and stable long-term operation.
With advanced alarm processing capabilities, the AX Hybrid Pro system provides real-time alerts for unauthorized access, perimeter breaches, and suspicious activity. The platform supports integration with various Hikvision security devices, enabling a complete smart security ecosystem for enhanced property protection.
The system is designed for easy configuration, efficient maintenance, and scalable expansion, making it suitable for both small and large security installations. Its professional-grade performance ensures dependable operation in demanding environments where continuous monitoring is essential.
Ideal for professional installers and advanced security deployments, the Hikvision AX Hybrid Pro alarm kit offers intelligent intrusion protection, reliable wired connectivity, and enterprise-level security management for modern properties.
| Zones | 64 (8 On-board zones, max 8 wired PIRCAM) |
| Area | 32 |
| User | Installer: 1 Administrator: 1 Operator: 62 |
| SMS notification | Support (with GPRS/3G/4G module) |
| Onboard video clips | 4 |
| ARC protocol | ISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC-09: ARC accessible (ADM-CID/SIA-DCS) CSV-IP: Supports CSV-IP ISUP: Supports ISUP 5.0 |
| Programming tools | Web/iVMS-4200/Hik-Partner Pro/Keypad |
| Firmware upgrade | Web/iVMS-4200/Hik-Partner Pro |
| End of Line Resistance | Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K |
| Alarm input | 64 (Including 8 on-board zones) |
| Alarm output | 64 (Including 2 on-board relay outputs and 2 on-board I/O outputs) |
| Power Output | 1. Bell: maximum 12V 1.2A 2. AUX: maximum 12V 1.5A |
| 3/4G on board | Optional |
| GPRS on board | Optional |
| Wi-Fi | 802.11b/g/n (2.4GHz) |
| Bus | 1 Speed-X bus |
| Sounder output | 1 Wired on-board sounder output |
| Tamper-Proof | 1 switch to detect removal from mounting 1 switch to detect front cover open |
| Network interface | 1 RJ45 10M/100M Ethernet interface |
| Power interface | 100 to 240 VAC (on-board power transformer) |
| Power Consumption | 1. 220V power supply With an alarm: 2A, 32W Without an alarm: 250mA, 4W 2. 13.5V battery supply With an alarm: 1.7A, 25W Without an alarm: 200mA, 2.7W |
| Battery type | Lead acid battery (12V 7Ah, battery is not included by default) |
| Battery life span | Up to 36hrs |
| Display | 4 On-board LEDs: 1 AC power LED indicator (Green) 1 System status LED indicator (Green/Red) 1 PSTN status LED indicator (Green/Red) 1 Mobile communication status LED indicator (Green/Red) |
| Operation temperature | -10??C to 40??C |
| Operation humidity | 10% to 90% |
| Shell material | Plastic |
| Color | White |
| Dimension (WxHxD) | 261 mm ?? 199 mm ?? 86.4 mm |
| Weight | 997 g |
| Device management | Tag: 64 Keyfob: 64 Keypad: 8 Wireless sounder: 16 |
