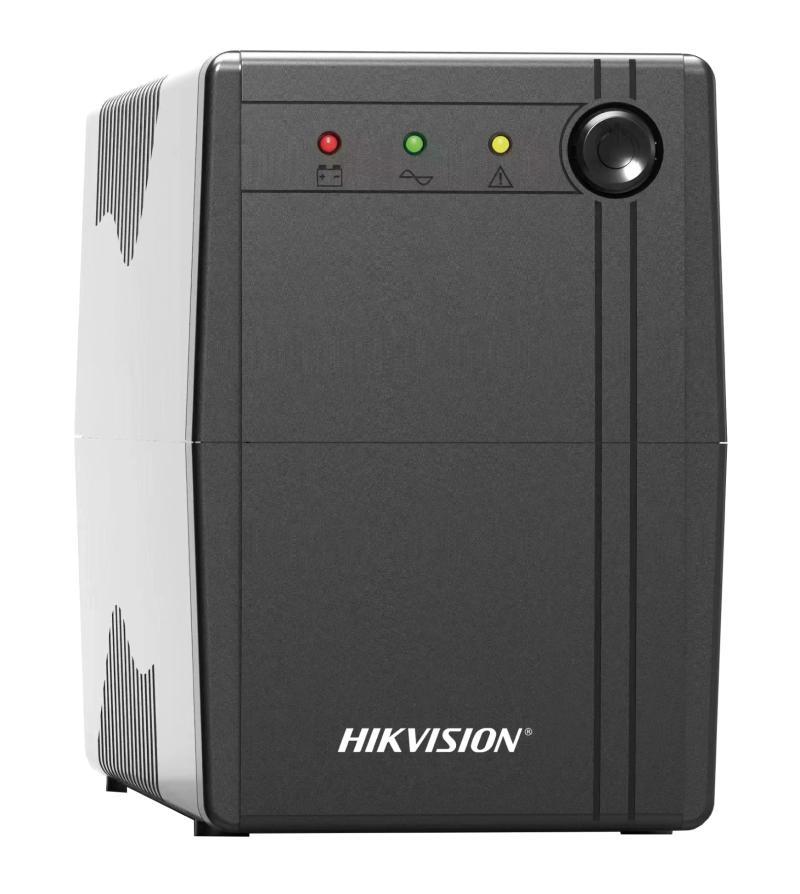

Hikvision DS-UPS600 UPS, 600 VA / 360 W, Built-in AVR, 4-6 hours recover to 90% capacity, Surge protection
Model :
SKU : UPS-HIKVISION 600VA
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-UPS600 UPS, 600 VA / 360 W, Built-in AVR Power
| UPS Capacity | 600 VA / 360 W |
| Input Voltage Range | 85 VAC to 150 VAC |
| Input Frequency | 50/60 Hz self-adaptive |
| Plug Type | Type B (NEMA 5-15) |
| Output Voltage Range | 110 VAC to 125 VAC |
| Output Frequency | 50/60 Hz ?? 0.5 Hz self-adaptive |
| Transfer Time | ??? 10 ms |
| Waveform | PWM |
| Outlet Type | Type B (NEMA 5-15) |
| Outlet Number | Battery outlet*4 & Bypass*2 |
Battery
| Battery Type | 12 V/7 Ah, lead-acid battery |
| Recharge Time | 4-6 hours recover to 90% capacity |
| Typical Backup Time | Run time at 60w: 35 min Run time at 100w: 20 min Run time at 200w: 3 min |
Interface
| Communicate Ports | No |
Protection
| Full Protection | Surge protection, Overload protection, Discharge protection, Overcharge protection |
Indicator
| Display | LED indicator |
| Working Mode (AC Mode) | Solid green |
| Charging Mode (DC Mode) | Solid red |
| Overloading Mode | Flashing yellow |
Alarm
| Charging Mode (DC Mode) | Sounding every 8 seconds |
| Low Battery | Sounding every second |
| Overloading Mode | Sounding every 0.5 seconds |
| Fault | Continuously sounding |
General
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Operating Humidity | 30% to 90% (non-condensing) |
| Dimension | 274 mm ?? 95 mm ?? 139 mm (10.79" ?? 3.74" ?? 5.47") |
| Weight | Approx. 4.2 kg (9.26 lb) |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Hikvision DS-UPS600 UPS, 600 VA / 360 W, Built-in AVR Power
| UPS Capacity | 600 VA / 360 W |
| Input Voltage Range | 85 VAC to 150 VAC |
| Input Frequency | 50/60 Hz self-adaptive |
| Plug Type | Type B (NEMA 5-15) |
| Output Voltage Range | 110 VAC to 125 VAC |
| Output Frequency | 50/60 Hz ?? 0.5 Hz self-adaptive |
| Transfer Time | ??? 10 ms |
| Waveform | PWM |
| Outlet Type | Type B (NEMA 5-15) |
| Outlet Number | Battery outlet*4 & Bypass*2 |
Battery
| Battery Type | 12 V/7 Ah, lead-acid battery |
| Recharge Time | 4-6 hours recover to 90% capacity |
| Typical Backup Time | Run time at 60w: 35 min Run time at 100w: 20 min Run time at 200w: 3 min |
Interface
| Communicate Ports | No |
Protection
| Full Protection | Surge protection, Overload protection, Discharge protection, Overcharge protection |
Indicator
| Display | LED indicator |
| Working Mode (AC Mode) | Solid green |
| Charging Mode (DC Mode) | Solid red |
| Overloading Mode | Flashing yellow |
Alarm
| Charging Mode (DC Mode) | Sounding every 8 seconds |
| Low Battery | Sounding every second |
| Overloading Mode | Sounding every 0.5 seconds |
| Fault | Continuously sounding |
General
| Operating Temperature | 0 ??C to 40 ??C (32 ??F to 104 ??F) |
| Operating Humidity | 30% to 90% (non-condensing) |
| Dimension | 274 mm ?? 95 mm ?? 139 mm (10.79" ?? 3.74" ?? 5.47") |
| Weight | Approx. 4.2 kg (9.26 lb) |
