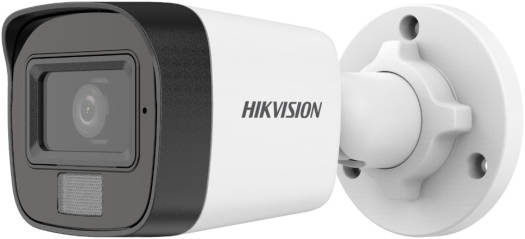

HIKVISIONDUAL LIGHT AUDIO FIXED EXIR BULLET CAMERA, DS-2CE16KOT-LPFS

Camera
Image Sensor3K CMOS
Max. Resolution2960 (H) ?? 1665 (V)
Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360??, Tilt: 0 to 180??, Rotation: 0 to 360??
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 104.9??, vertical FOV: 67.3??, diagonal FOV: 129.8??

3.6 mm, horizontal FOV: 81.3??, vertical FOV: 50.7??, diagonal FOV: 102.4??
Lens MountM12
Illuminator
Supplement Light TypeWhite Light;IR
Supplement Light RangeIR : Up to 25 m

White Light : Up to 20 m

Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

CVI: 4 MP@25 fps/30 fps

CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGCYes

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialPlastic
Dimension138.8 mm ?? ??70 mm (5.47" ?? ??2.76")
WeightApprox. 160 g (0.35 lb.)
Operating Condition-40 ??C to 60 ??C (-40 ??F to 140 ??F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ?? 25%

*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 2.9 W

Approval
ProtectionIP67
