Home/PC Components/Motherboards/MSI PRO Z790-P WIFI Motherboard, Intel 14th/13th/1...
The PRO Z790-P WIFI is engineered for professionals and creators who demand the reliability of the Z790 platform without unnecessary flash. Optimized for Intel’s hybrid architecture, this motherboard provides the robust power delivery and cooling necessary to sustain high clock speeds on i7 and i9 processors. Its 6-layer PCB with thickened copper ensures superior signal integrity, making it a stable foundation for long-term use.
Lightning Gen 5 and Cutting-Edge Storage
Stay ahead of the hardware curve with Lightning Gen 5 PCIe technology. The primary x16 slot offers up to 128GB/s of bandwidth, double the speed of PCIe 4.0, ensuring your system is ready for the most powerful next-generation graphics cards. Storage is equally impressive, featuring four onboard M.2 PCIe 4.0 x4 slots for lightning-fast boot times and massive data throughput, all while being easily manageable through MSI's intuitive BIOS.
Unleash DDR5 Performance

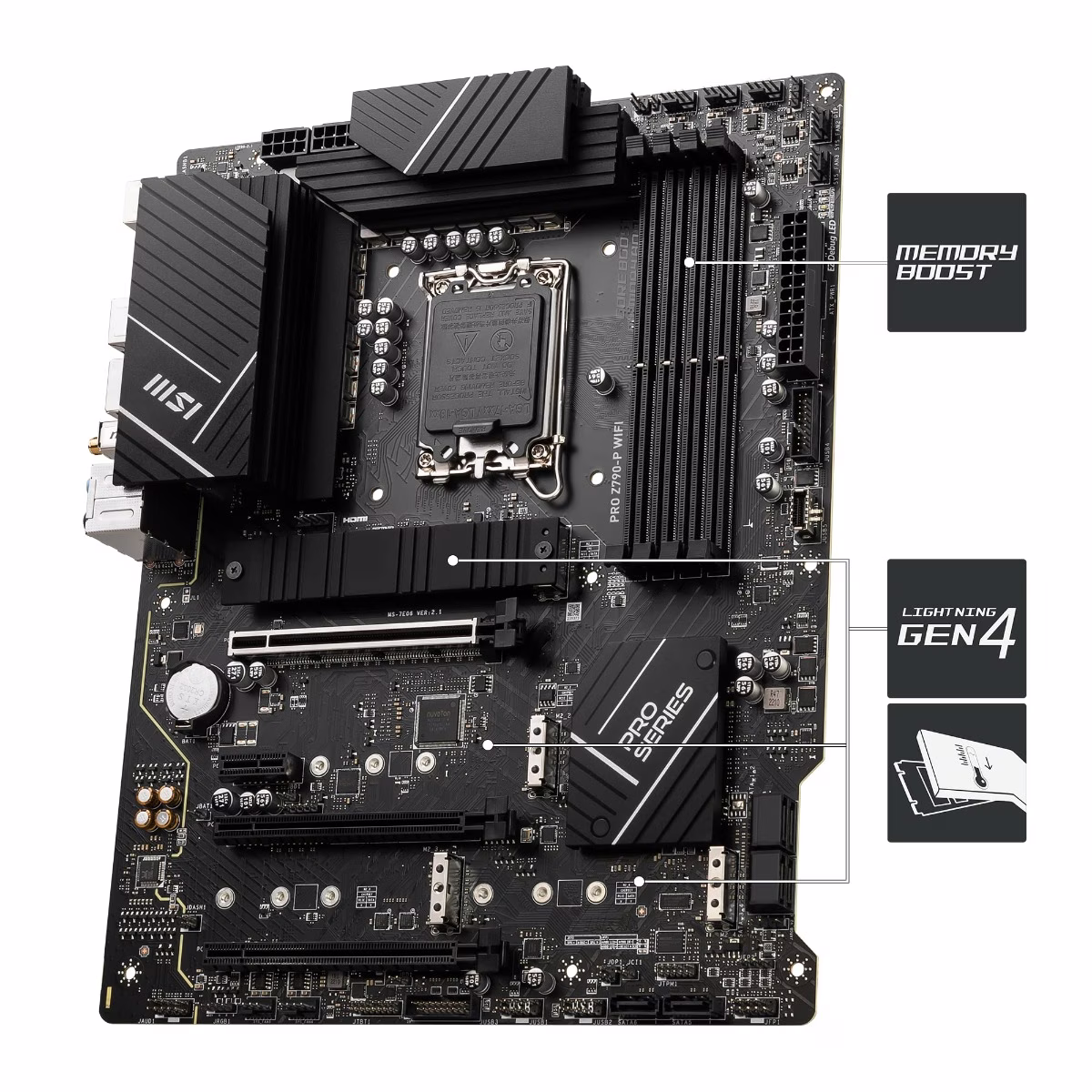

Experience the future of memory with DDR5 support. Utilizing MSI’s exclusive Memory Boost technology, the PRO Z790-P WIFI features isolated circuitry to deliver pure data signals for maximum performance and overclocking stability. With high-frequency XMP profile support, users can easily push their RAM to 7000+ MT/s, significantly improving responsiveness in creative applications and gaming.
Flagship Connectivity: WiFi 6E & 2.5G LAN
Networking speed is essential for modern workflows. This motherboard is equipped with the latest WiFi 6E solution, which operates on the 6GHz spectrum for reduced congestion and lower latency. For the ultimate wired experience, the Intel 2.5Gbps LAN provides a high-speed connection that is 2.5 times faster than standard Gigabit Ethernet, perfect for NAS transfers and lag-free online collaboration.
Why the MSI PRO Z790-P WIFI Stands Out
LGA 1700 Native: Full support for Intel 14th, 13th, and 12th Gen Core processors.

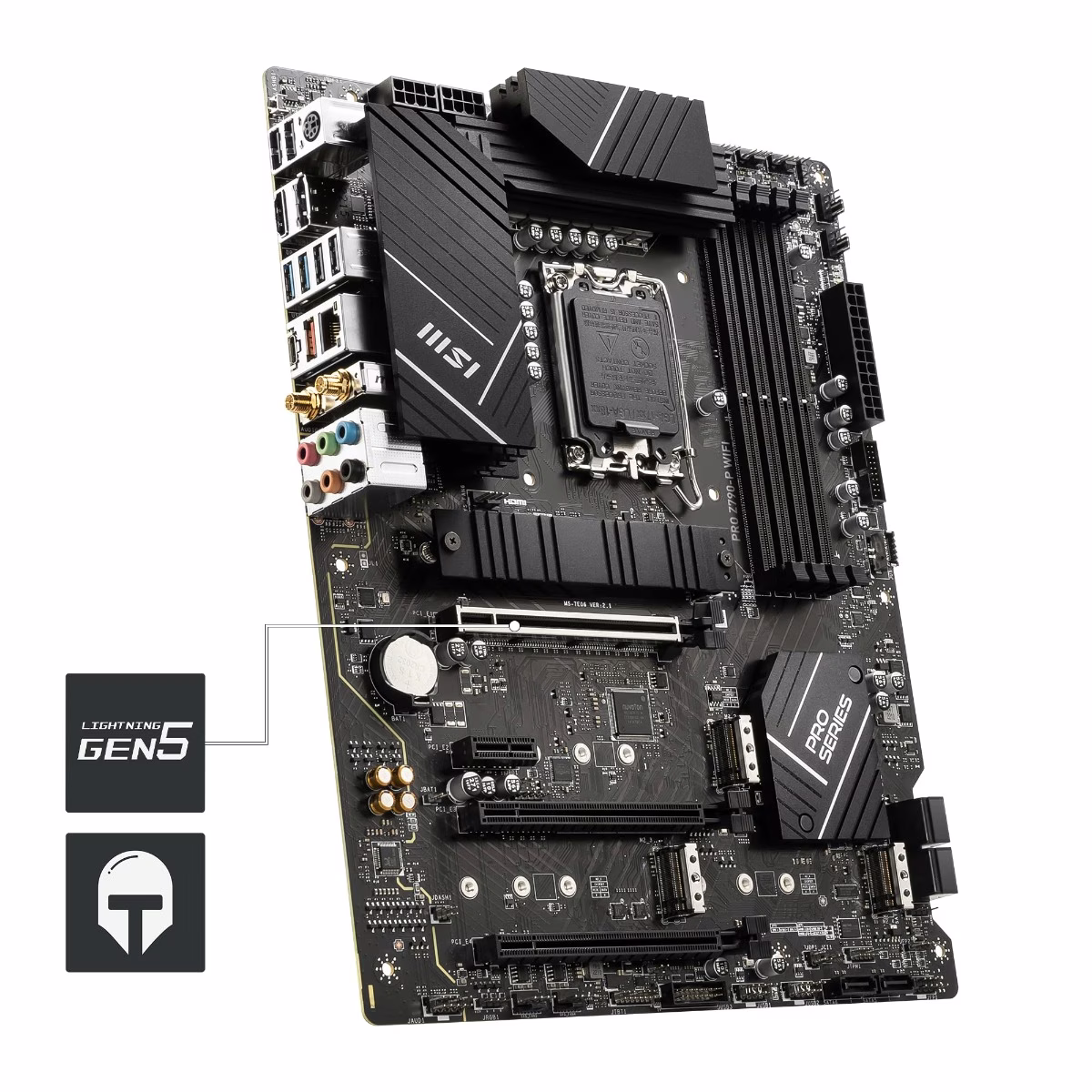

Lightning Gen 5: Future-proof bandwidth for next-generation flagship GPUs.
14+1+1 Power Design: Robust Duet Rail Power System for stable performance.
M.2 Shield Frozr: High-performance thermal solution to prevent SSD throttling.
| Chipset | INTEL Z790 |
|---|---|
| CPU Support | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Socket LGA 1700 |
| Memory | 4x DDR5, Maximum Capacity 256GB
Supports Intel® XMP 3.0 OC, Dual-Channel mode, non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 2.1 with HDR (Max 4K 60Hz*) *Available only on processors featuring integrated graphics. |
| Expansion Slots | 3x PCI-E x16 slots & 1x PCI-E x1 slot - PCI_E1: Gen PCIe 5.0 (Up to x16 from CPU) - PCI_E2: Gen PCIe 3.0 (Up to x1 from Chipset) - PCI_E3: Gen PCIe 4.0 (Up to x4 from Chipset) - PCI_E4: Gen PCIe 3.0 (Up to x1 from Chipset) |
| Storage | 4x M.2 slots & 6x SATA 6G: - M.2_1 (CPU): Up to PCIe 4.0 x4 (22110/2280/2260/2242) - M.2_2 (Chipset): Up to PCIe 4.0 x4 (2280/2260/2242) - M.2_3 (Chipset): Up to PCIe 4.0 x4 / SATA mode (2280/2260/2242) - M.2_4 (Chipset): Up to PCIe 4.0 x4 / SATA mode (2280/2260/2242) |
| RAID | Supports RAID 0, 1, 5, 10 for both SATA and M.2 NVMe storage devices |
| USB | Rear: 1x 20Gbps (Type-C), 1x 10Gbps (Type-A), 2x 5Gbps (Type-A), 4x USB 2.0 Front: 1x 10Gbps (Type-C), 4x 5Gbps (Type-A), 4x USB 2.0 |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN & Wireless | Intel® 2.5Gbps LAN Intel® Wi-Fi 6E (Supports 2.4/5/6GHz up to 2.4Gbps), Bluetooth® 5.3 |
| Internal I/O | Power: 1x 24-pin ATX, 2x 8-pin CPU Fans: 1x CPU, 1x Pump, 6x System Fans Other: 2x Addressable V2 RGB, 1x RGB, TPM 2.0 header, Chassis Intrusion, JDASH, Front Audio |
| Back Panel Ports | DisplayPort, HDMI™, Flash BIOS Button, PS/2 Keyboard/Mouse, 2.5G LAN, Wi-Fi/BT, Audio Connectors, Various USB (2.0, 5Gbps, 10Gbps, 20Gbps) |
| PCB Info & OS | Form Factor: ATX (243.84mm x 304.8mm) OS Support: Windows® 11/10 64-bit |
