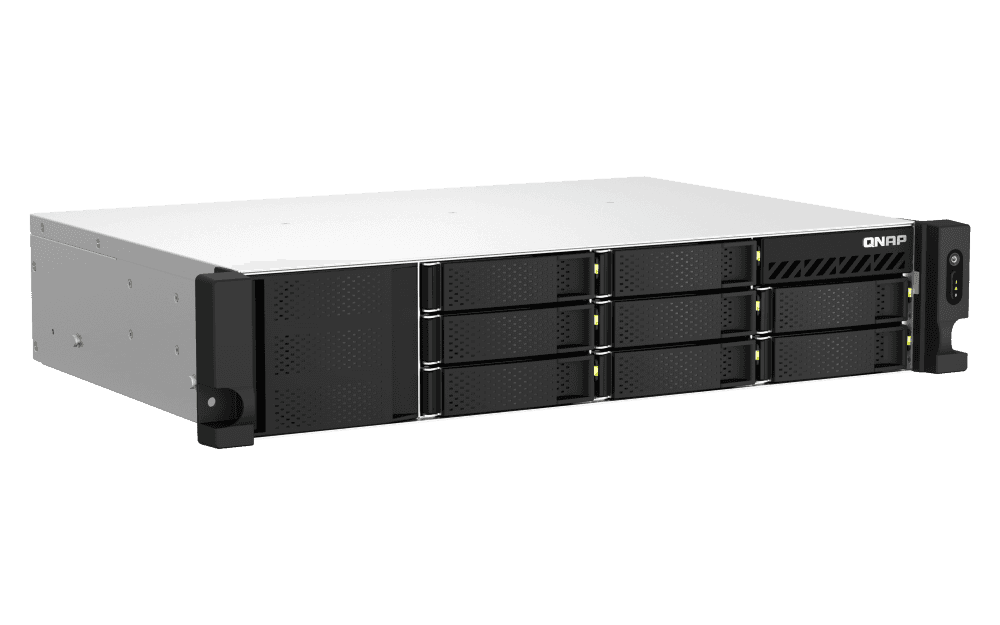

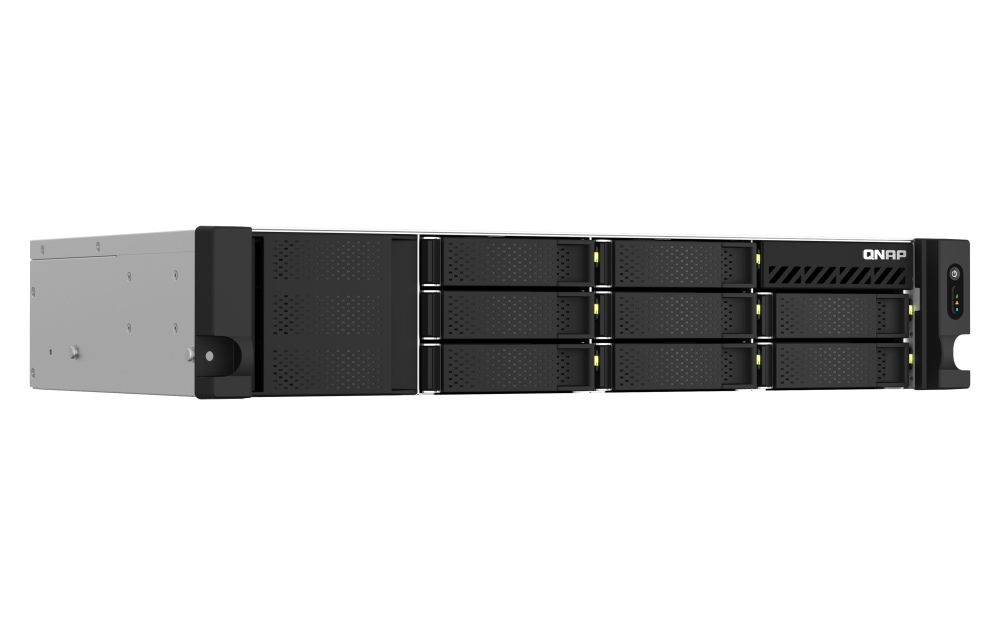

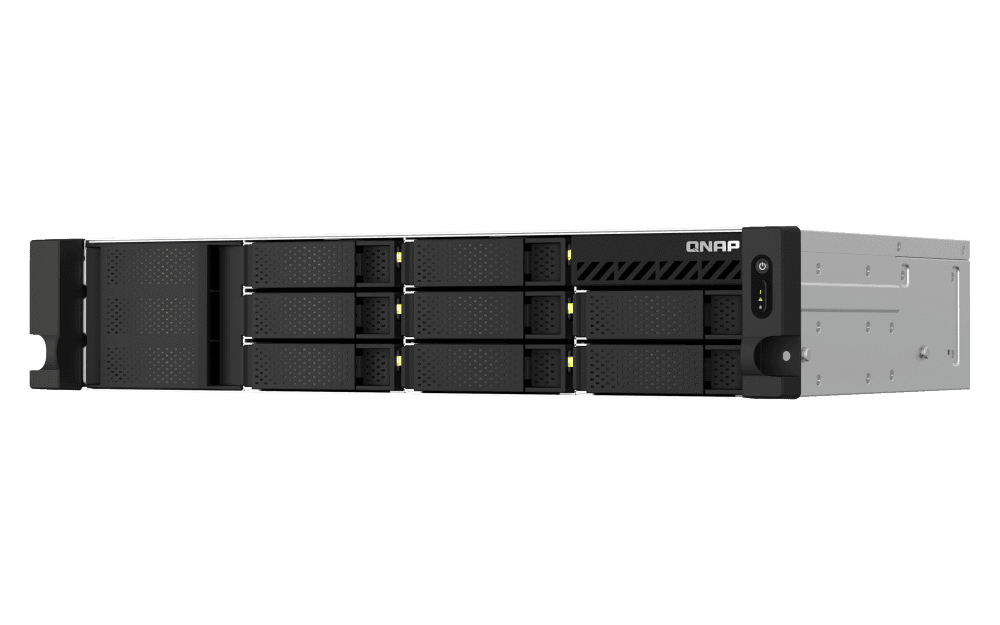

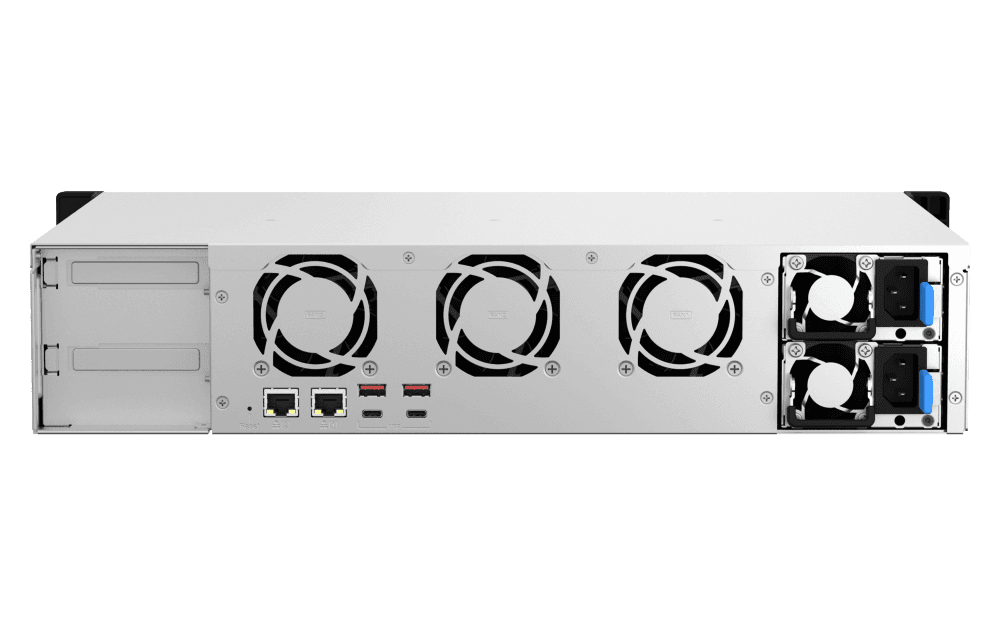

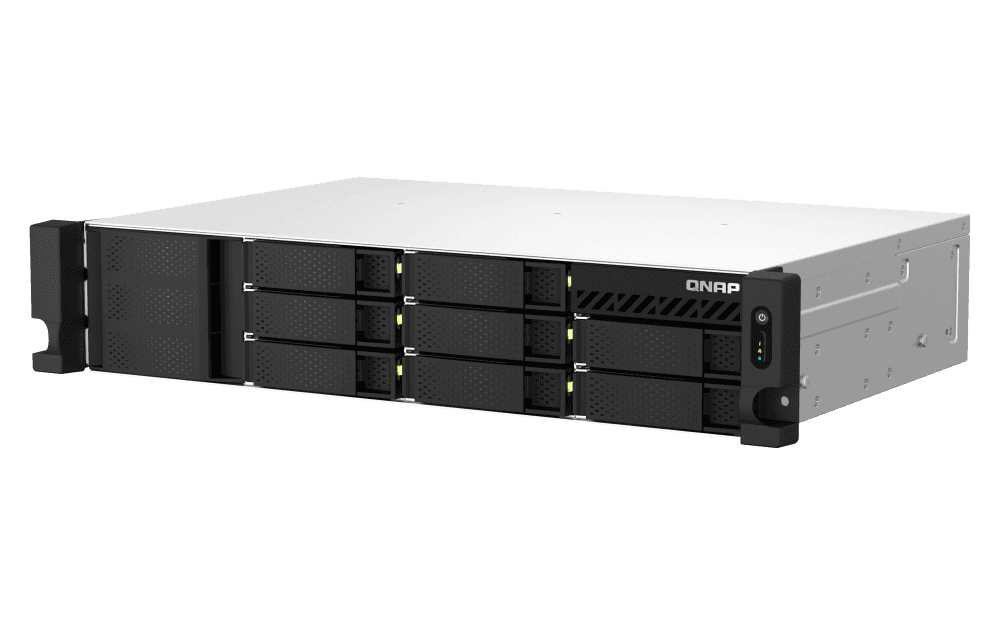

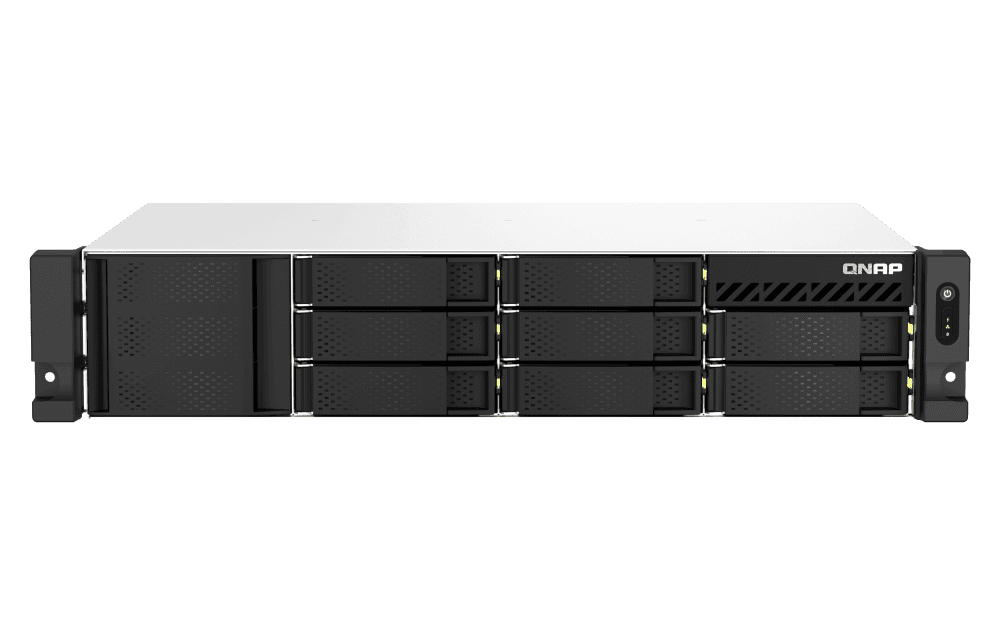

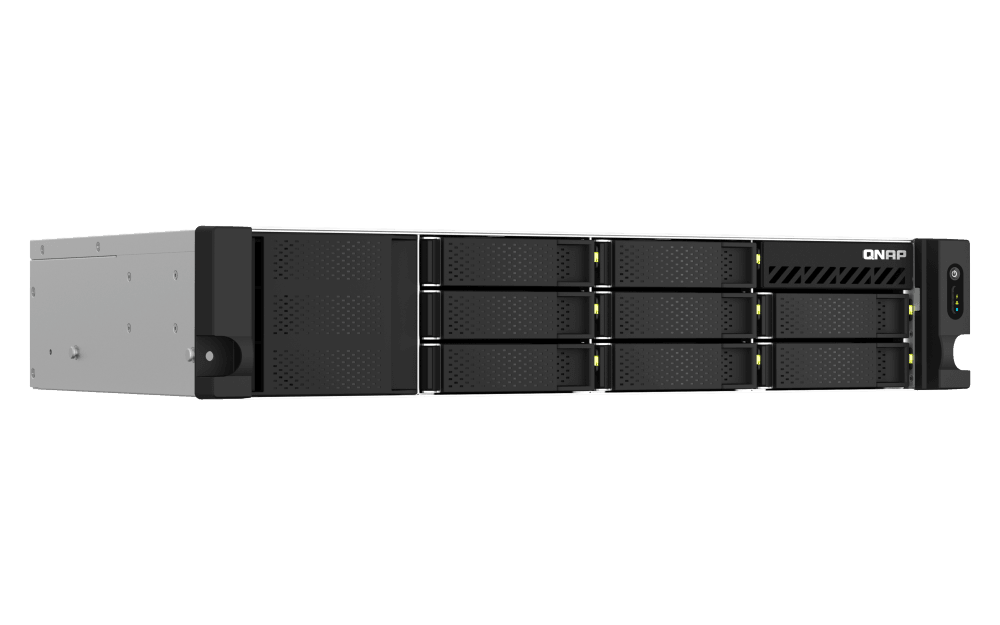

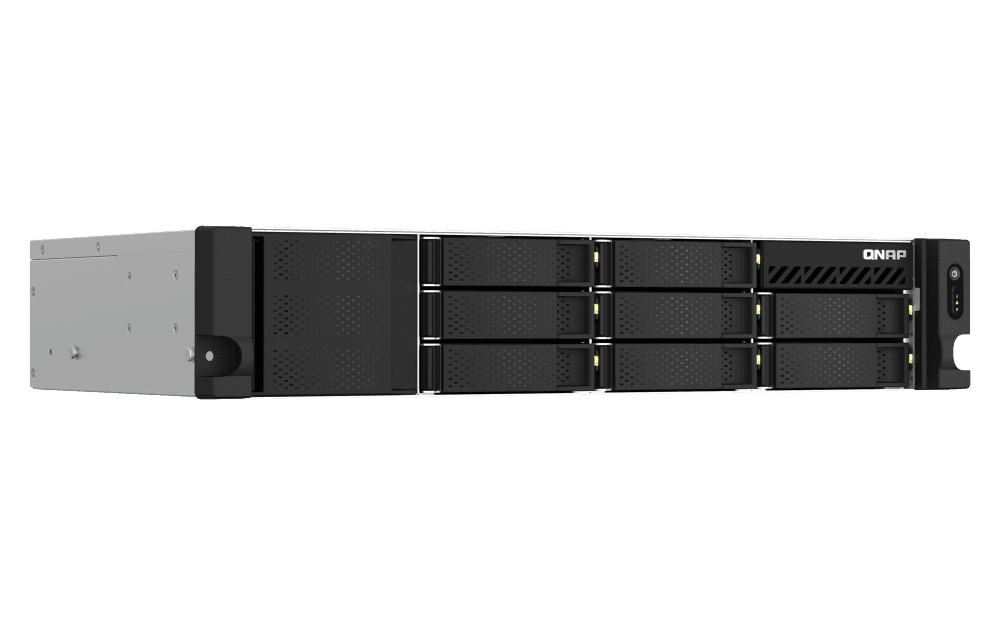

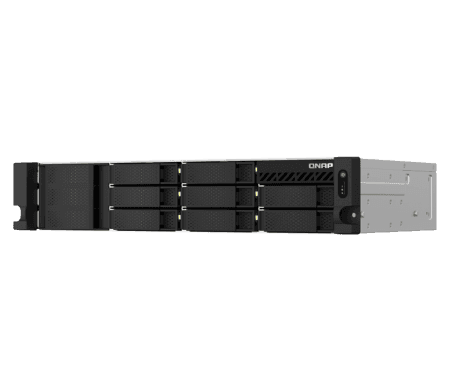

QNAP TS-873AEU-4G (RYZEN 2.2GHZ, 4GB RAM, 8XSATA, 2X2.5GBE, 1XPCIE, 2XM.2 SLOTS, SHALLOW DEPTH) | TS-873AeU-4G
Model :
SKU : QNAP TS-873AeU-RP-4G 8BAY
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
QNAP TS-873AeU-RP: Unleash AMD Power & 2.5GbE in a Compact Rackmount Beast (8 Bays, Ryzen, Redundant PSU)
| TS-873AeU-RP-4G Specifications | |
| CPU | AMD Ryzen??? Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 (Support ECC memory) For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit compatibility list. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to compatibility list. |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) | Yes (Only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot | 1 x PCIe Gen3 x8 Card dimensions for PCIe slot: 210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
| HDMI??? Output | Optional via a PCIe graphics card |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 ?? 432 ?? 297.4 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 9.2 kg |
| Weight (Gross) | 10.7 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 300W PSU(x2), 100 - 240V |
| Power Consumption: HDD Sleep Mode | 32.19 W |
| Power Consumption: Operating Mode, Typical | 58.14 W Tested fully populated with WD10EFRX hard drives. |
| Fan | 3 x 60mm, 12VDC |
| System Warning Buzzer | Yes |
| Standard Warranty | 3 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
Specification
QNAP TS-873AeU-RP: Unleash AMD Power & 2.5GbE in a Compact Rackmount Beast (8 Bays, Ryzen, Redundant PSU)
| TS-873AeU-RP-4G Specifications | |
| CPU | AMD Ryzen??? Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 (Support ECC memory) For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit compatibility list. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to compatibility list. |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) | Yes (Only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot | 1 x PCIe Gen3 x8 Card dimensions for PCIe slot: 210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
| HDMI??? Output | Optional via a PCIe graphics card |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 ?? 432 ?? 297.4 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 9.2 kg |
| Weight (Gross) | 10.7 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 300W PSU(x2), 100 - 240V |
| Power Consumption: HDD Sleep Mode | 32.19 W |
| Power Consumption: Operating Mode, Typical | 58.14 W Tested fully populated with WD10EFRX hard drives. |
| Fan | 3 x 60mm, 12VDC |
| System Warning Buzzer | Yes |
| Standard Warranty | 3 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
