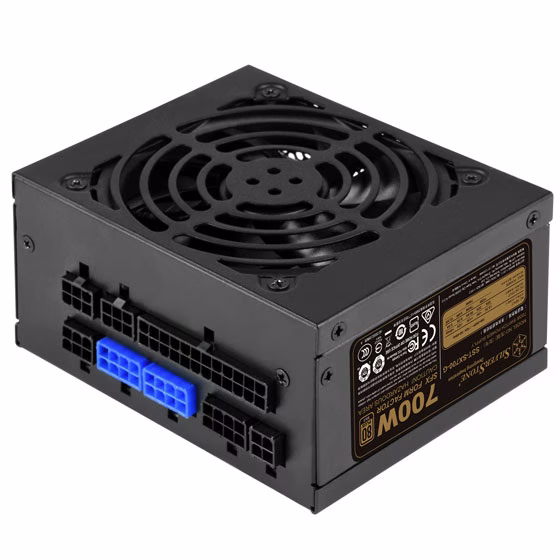

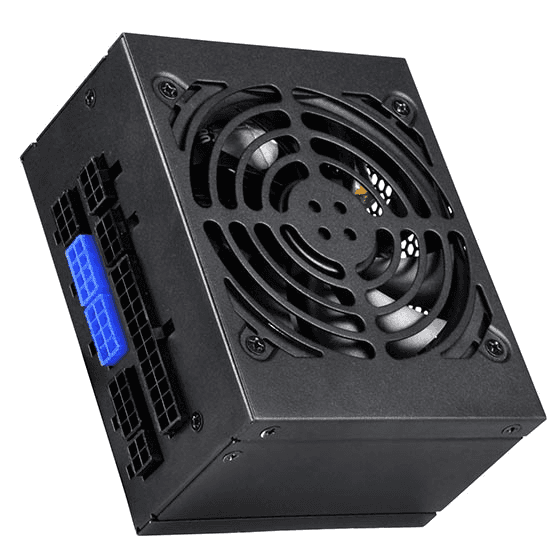

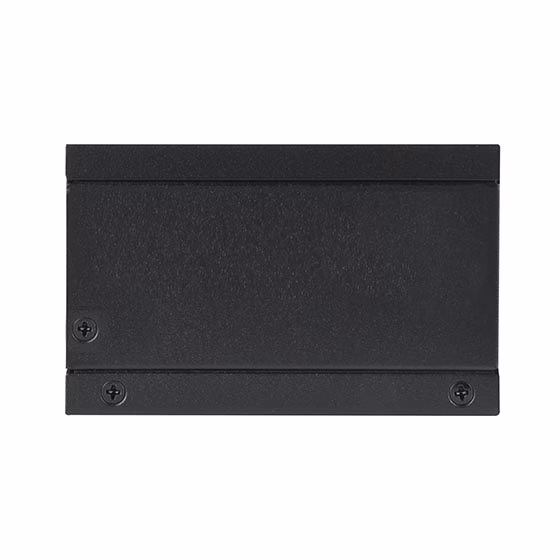

SilverStone SX700-G SFX Fully Modular 700W 80 PLUS Gold Power Supply, Active PFC, Silent FDB Fan, Black | SST-SC700-G
Model :
SKU : PS-SILVERS SX700 SFFF
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.

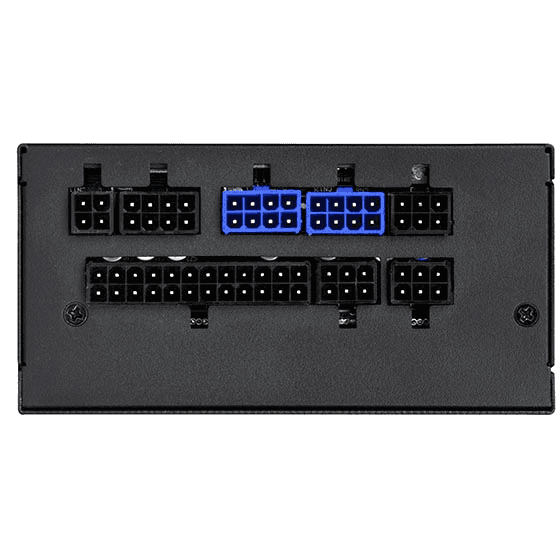

This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
Specification
| Product No. | SST-SX700-G |
| Color | Black (Lead-Free Paint) |
| Max. DC Output | 700W |
| Power Density | 882W per liter |
| Load Range | Output: +3.3V, +5V, +12V, +5VSB, -12V Max. (Amps): 22A, 22A, 58.4A, 2.5A, 0.3A Min. (Amps): 0A each Range (%): ±3%, ±3%, ±3%, ±5%, ±10% Line Regulation (%): ±1% each Ripple (mVp-p): 50mV, 50mV, 120mV, 50mV, 120mV |
| Combined +3.3V & +5V | 110W |
| Combined +12V | 700W |
| Input Voltage | 90V ~ 264V |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF > 0.9 at full load) |
| Efficiency | 87% ~ 90% at 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating Temperature | 0°C ~ 40°C |
| Protection | Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
| Connectors | V1.0 1 x 24 / 20-Pin motherboard connector (300mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (400mm) 2 x 8 / 6-Pin PCIe connector (400mm / 150mm) 2 x 8 / 6-Pin PCIe connector (550mm / 150mm) 6 x SATA connector ("300mm / 200mm / 100mm" x 2) 3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm) 1 x 4-Pin Floppy connector (100mm) V1.1 1 x 24 / 20-Pin motherboard connector (300mm) *1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm) 2 x 8 / 6-Pin PCIe connector (400mm / 150mm) 2 x 8 / 6-Pin PCIe connector (550mm / 150mm) 6 x SATA connector ("300mm / 200mm / 100mm" x 2) 3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm) 1 x 4-Pin Floppy connector (100mm) |

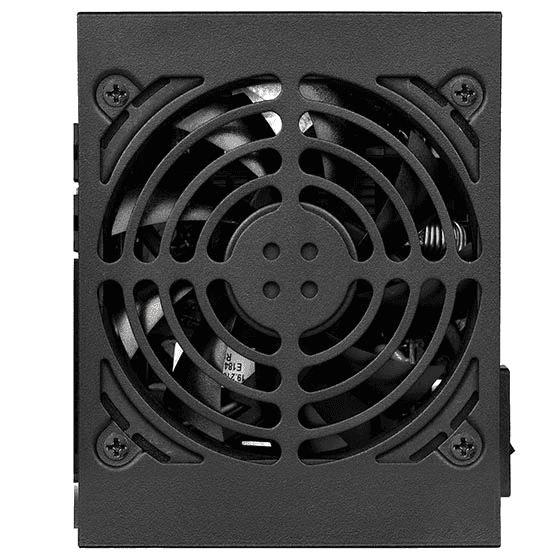

| Cooling System | Single 92mm FDB fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Gold |
| Form Factor | SFX |
| Dimension (W x H x D) | 125 mm x 63.5 mm x 100 mm |
| Weight | 1.4 kg |
| Other | GPU Support list |
