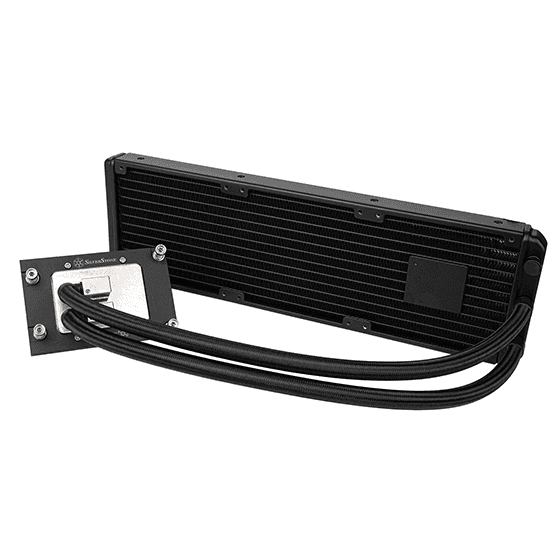

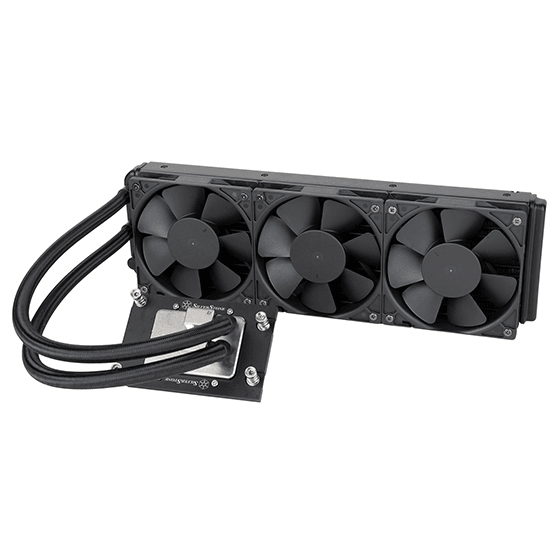

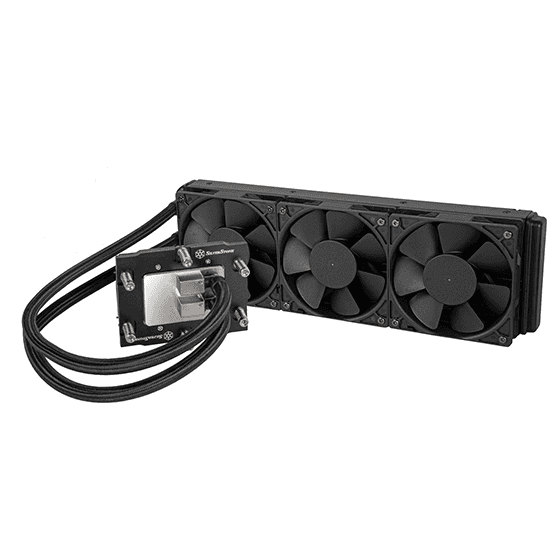

SilverStone Technology XE360-TR5 360mm All-in-One Liquid Cooler for AMD TR5 / SP6, SST-XE360-TR5-20.2 inches, Computer Liquid Cooler, AIO Coolern | XE360-TR5 (SUPPORT WRX90E TRX50
Model : SilverStone XE360
SKU : COOLER SILVERS XE360-TR5
Type :TRX50
About this item
Description
Optimum cooling guaranteed!

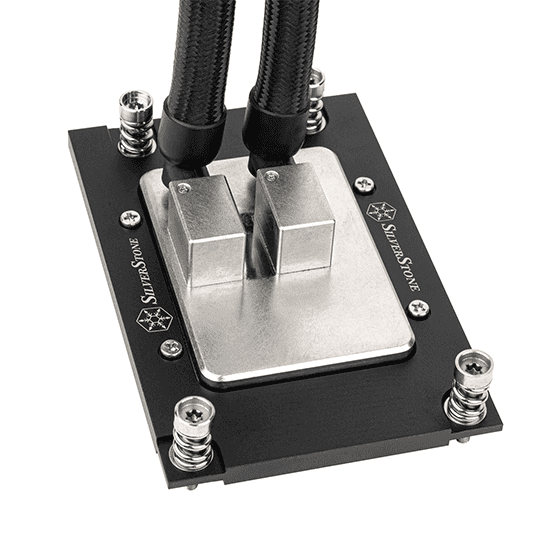

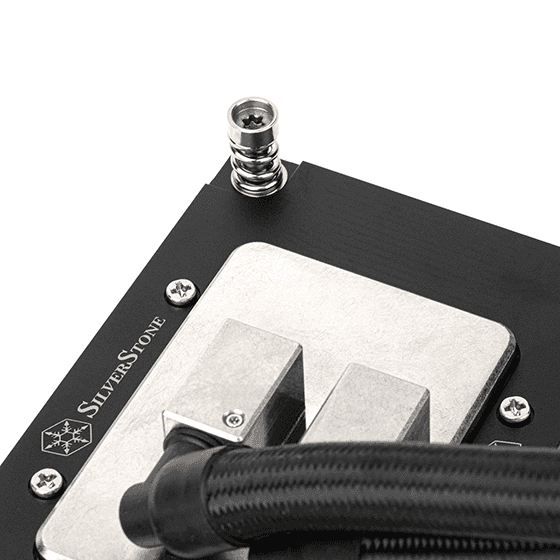

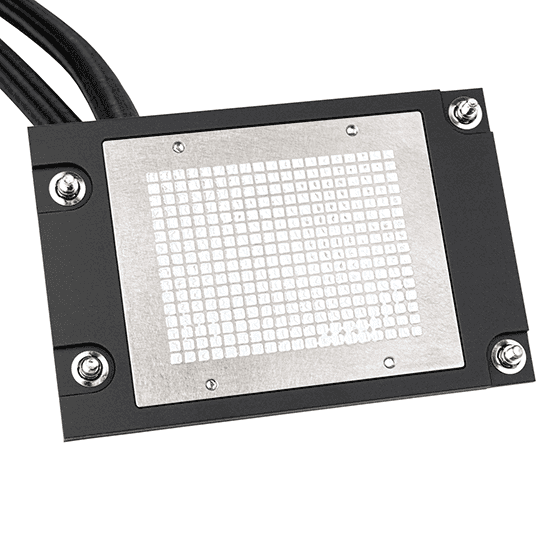

The water block is constructed with nickel-plated copper, incorporated with a copper base active cooling surface to ensure full coverage of process cores on Zen 4-based Ryzen Threadripper 7000 series CPUs.
Unique pump placement
Unique pump placement

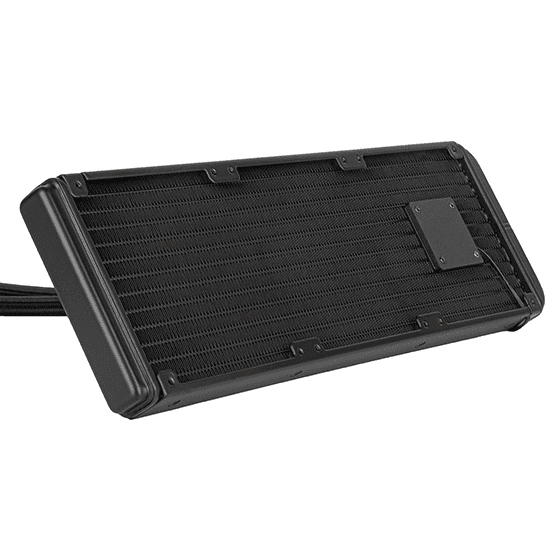

A three phase, six pole motor integrated within the radiator to reduce the pumps overall output noise level
Specification
Specification
| Water Block | |
|---|---|
| Pump | |
| Radiator | |
| Tube | |
| Fan | |
| Model No. | SST-XE360-TR5 |
| Application | AMD Socket sTR5/SP6/sWRX9/sWRX8/sTRX4/TR4/SP3 |
| Dimension | 79mm (W) × 25mm (H) × 119mm (D) 3.11" (W) × 0.98" (H) × 4.69" (D) |
| Material | Copper base with aluminum body |
| Motor Speed | 4,000 ±10% RPM |
| Rated Voltage | 12V |
| Rated Current | 0.38A |
| Connectors | 3 pin |
| Dimension | 120mm (W) × 28mm (H) × 394mm (D) 4.72" (W) × 1.1" (H) × 15.5" (D) |
| Material | Aluminum |
| Length | 460mm |
| Material | Rubber |
| Dimension | 120mm (W) × 25mm (H) × 120mm (D) 4.72" (W) × 0.98" (H) × 4.72" (D) |
| Speed | 600 ~ 2,800 RPM |
| Noise Level | 46 dBA |
| Rated Voltage | 12V |
| Max Airflow | 87.72 CFM |
| Max Air Pressure | 3.09 mmH₂O |
| Connector | 4 pin PWM |
* Please confirm that the header supplying power to the pump has a stable 12V voltage. It is recommended to disable the PWM/DC mode of this header from the motherboard BIOS, or set it to full speed.
