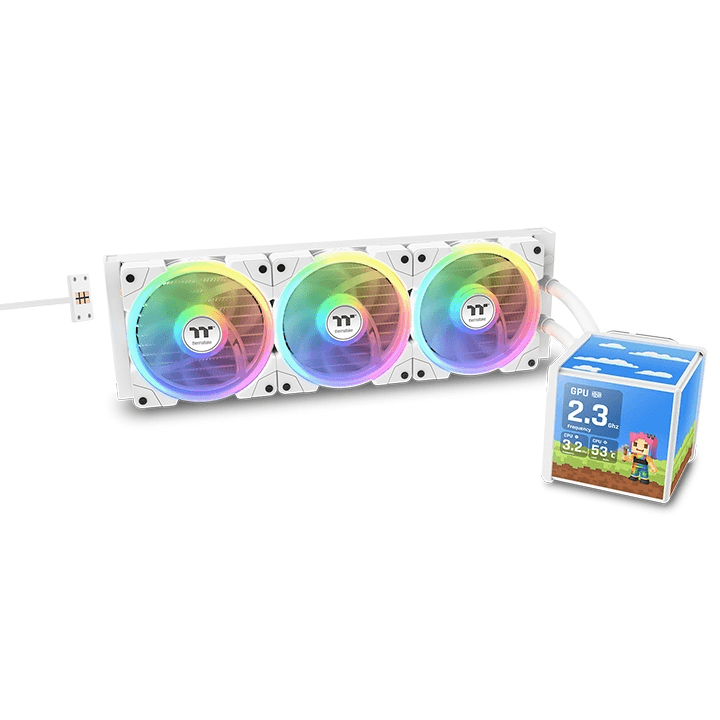

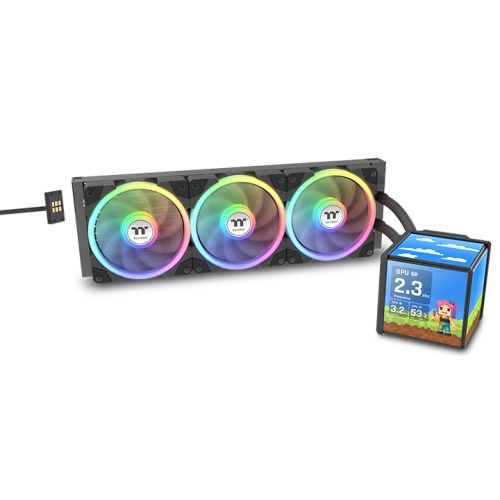

Thermaltake MINECUBE 360 Ultra ARGB Sync Snow AIO Liquid Cooler, Patented Quad-LCD Cube Display, SWAFAN EX MagForce 2.0, 360mm Liquid Cooler, Black | CL-W481-PL12SW-A
Model : MINECUBE
SKU : COOL THERMA MINECUB 360 B
Color :
Black
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
A New Dimension of Cooling: MINECUBE 360 Ultra ARGB Sync
The MINECUBE 360 Ultra is designed to be the focal point of any high-end build. By utilizing a unique cube-shaped water block with screens on four sides, Thermaltake provides a panoramic view of your system's vitals and personalized content from any angle.

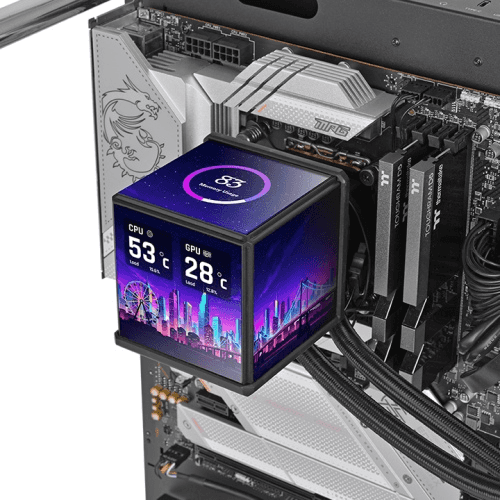

Patented Quad-LCD Cube Display: Break away from flat screens. The MINECUBE features four 3.95” TFT-LCDs (720x720 px each) that surround the pump block.
- Independent Control: Show different system stats (Temp, Frequency, Load) on each side.
- Panoramic Illustration: Combine all four screens to display a single, wrap-around expansive animation or image.
- 360° Visibility: Whether your PC is on your left, right, or center, the cube ensures your personalized content is always visible.

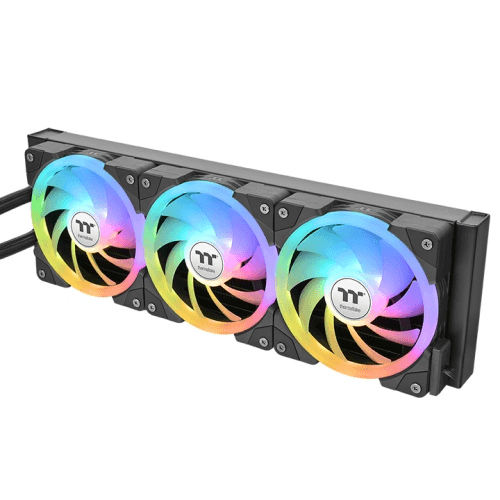

SWAFAN EX with MagForce 2.0 Technology:
Magnetic Quick Connect: The MagForce 2.0 design uses magnetic pogo-pin connectors to snap fans together instantly. This drastically reduces the number of cables, requiring only one cable for the entire 360mm radiator.

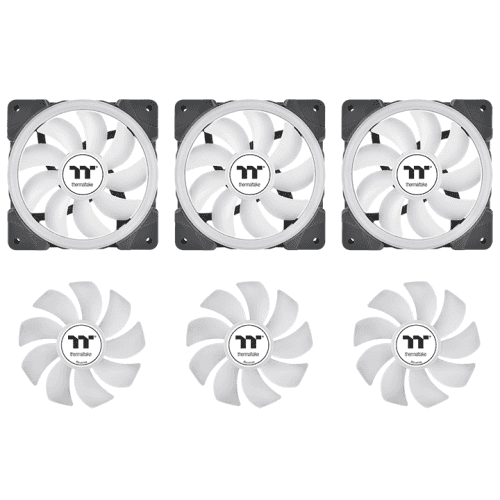

Swappable Fan Blades: Customize your airflow without compromising aesthetics. Switch between Standard and Reverse fan blades to ensure you always see the dual-ring RGB lighting, regardless of whether the fans are set to intake or exhaust.

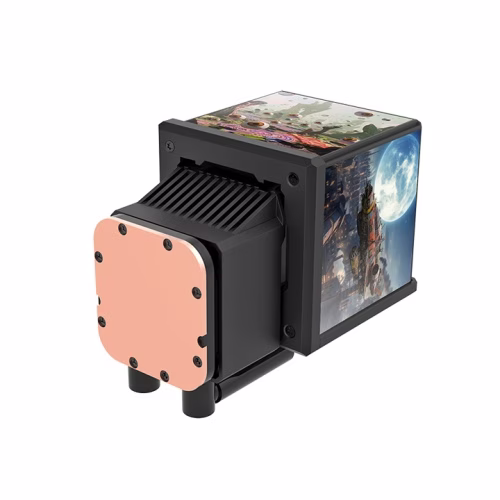

Integrated VRM Cooling: The MINECUBE pump block includes a built-in 3500 RPM cooling fan. This dedicated fan provides direct airflow to the motherboard's VRMs (Voltage Regulator Modules) and M.2 SSD slots near the CPU, ensuring total system stability during heavy overclocking.
Elite Performance (360W TDP): With a high-speed PWM pump (up to 3300 RPM) and a premium copper base plate, the MINECUBE 360 Ultra is rated to handle up to 360W TDP. It is fully compatible with the latest Intel LGA 1851/1700 and AMD AM5 processors, keeping even the hottest chips cool under pressure.
Specification
| P/N | CL-W481-PL12SW-A |
| Pump | Motor Speed: PWM 1500 ~ 3300 RPM Rated Voltage: 12V Rated Current: 0.43A Power Input: 5.16W |
| Pump Fan | Fan Speed: 3500 RPM Rated Voltage: 12V Rated Current: 0.06A Power Input: 0.72W Noise Level: 20 dB-A Air Flow: 6.8 CFM Static Pressure: 1.5 mm-H₂O |
| CPU Display | Display Type: 3.95" TFT-LCD x 4 Display Resolution: 720 × 720 (RGB) px Rated Voltage: 5V Rated Current: 1.2A Power Input: 6W |
| Display Support | Interface: Micro USB to USB (9-PIN) System Compatibility: Windows 10 / Windows 11 |
| Water Block | Copper |
| Fan | Dimension: 120 × 120 × 25 mm Fan Speed: PWM 500 ~ 2000 RPM Rated Voltage: 12V / 5V Rated Current: 0.27A & 0.72A (one fan) Power Input: 3.24W & 3.6W (one fan) Air Flow: • Standard Fan Blade: 57.11 CFM (one fan) • Reverse Fan Blade: 56.26 CFM (one fan) Static Pressure: • Standard Fan Blade: 2.39 mm-H₂O (one fan) • Reverse Fan Blade: 2.02 mm-H₂O (one fan) Noise Level: • Standard Fan Blade: 30.6 dB-A (one fan) • Reverse Fan Blade: 32.5 dB-A (one fan) |
| Tube | Length: 460 mm Material: Rubber |
| Radiator | Dimension: 396 × 120 × 27 mm Material: Aluminum |
| CPU Compatibility | Intel: LGA 2066 / 2011-3 / 2011 / 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 AMD: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1 |
| TDP | 360W |
