Model : Thermaltake TR200 Micro-ATX Case
SKU : ATX-THERMALTA TR200 WS W

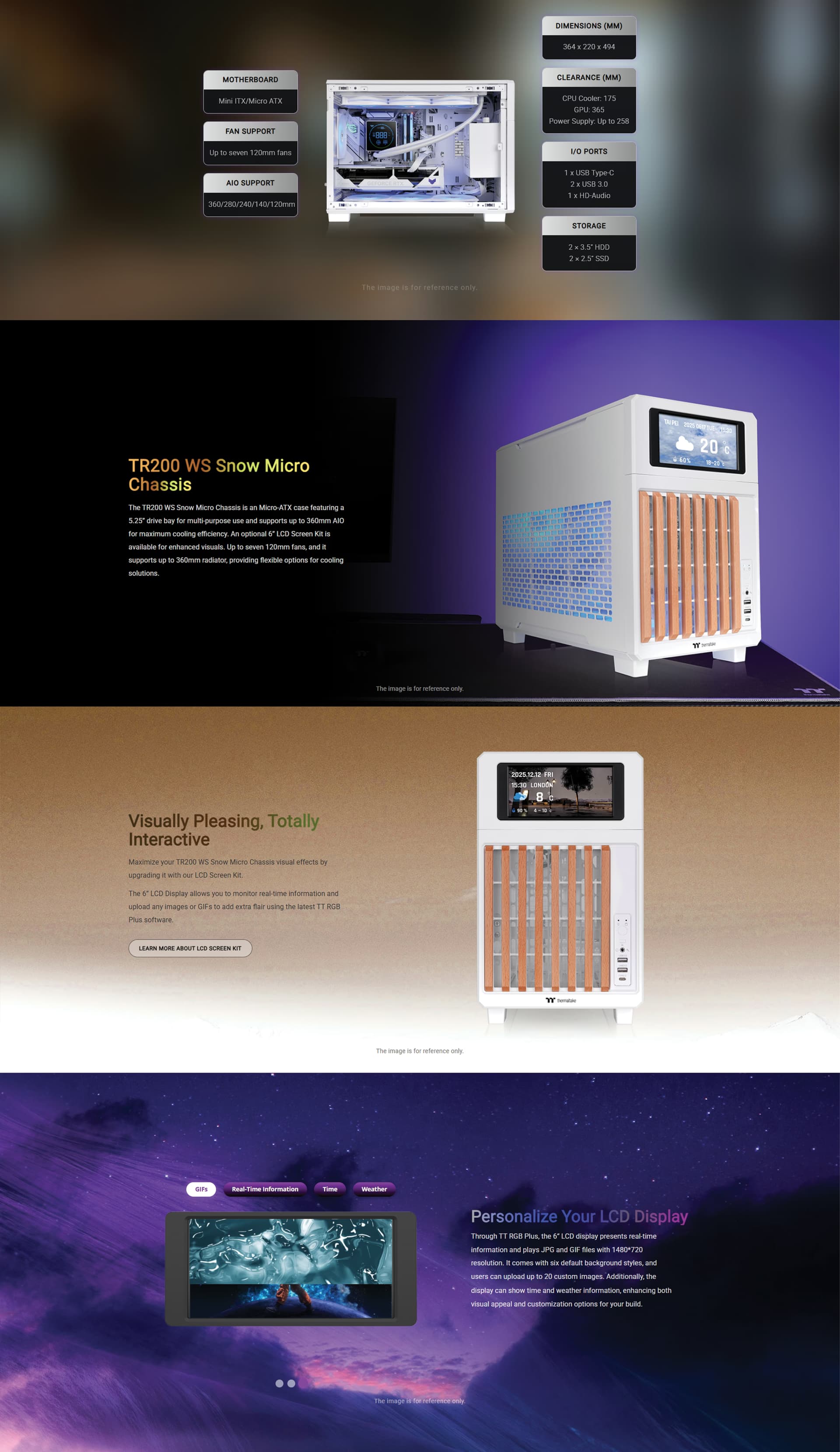

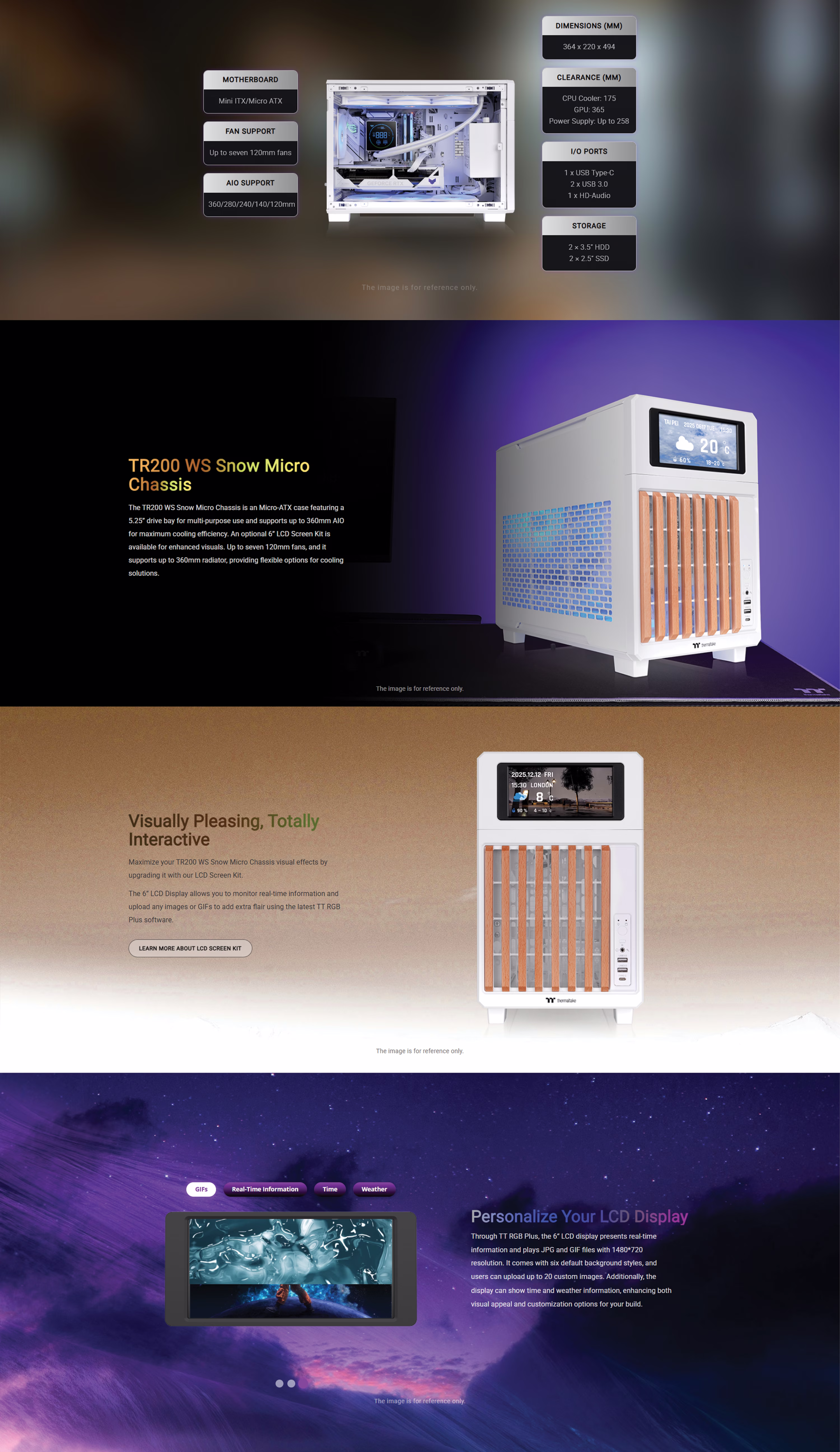

Finding a compact Micro-ATX case for an all-white "Snow Edition" build that doesn't compromise on cooling or aesthetics can be incredibly difficult. The Thermaltake TR200 WS Snow completely redefines the small-form-factor segment. By combining a highly ventilated, pristine white SPCC steel frame with a sophisticated wood-accented front panel, it looks just as stunning in a creative studio as it does on a competitive streaming desk.
Performance / Technology
Thermal management is the core philosophy behind the TR200 WS. It supports up to seven 120mm fans—three on the top, three on the bottom, and one pre-installed 120mm standard white exhaust fan at the rear. The case is flanked by fine dust filters on the top, bottom, and side panels, guaranteeing that your high-end components receive massive airflow without choking on dust buildup over time.
Design & Deployment Strategy
The inclusion of a 5.25" external drive bay is a massive advantage for creators who still rely on Blu-Ray burners, high-end audio DACs, or dedicated front-panel card readers. Deployment Tip: If you plan to utilize the 5.25" bay for a disc drive, we highly recommend pairing your CPU with a high-end air cooler (up to 175mm tall) or a 240mm AIO, as a 360mm AIO will no longer physically fit at the top of the chassis alongside the drive.
Why This Product Stands Out
The Thermaltake TR200 WS Snow stands out by offering a rare combination of modern luxury design (wood trim), an ultra-clean white aesthetic, extreme cooling capacity (360mm AIO support), and legacy hardware integration (5.25" bay). It provides DIY builders with a level of internal layout flexibility rarely seen in the Micro-ATX form factor.
Feature | Specification |
|---|---|
Model & Part Number | TR Series Micro Case | P/N: CA-11L-00S6NN-WS |
Case Type | Micro Case |
Material & Panel | SPCC (Steel Panel) |
Motherboard Support | Mini ITX (6.7” x 6.7”), Micro ATX (9.6” x 9.6”) |
Expansion Slots | 5 |
Drive Bays | 2x 3.5" + 1x 5.25" OR 2x 2.5" + 1x 3.5" + 1x 5.25" |
I/O Ports | 1x USB 3.1 (Gen 2) Type-C, 2x USB 3.0, 1x HD Audio |
Included Cooling | Rear: 1x 120mm Standard Fan (1400rpm, 23.2 dBA) |
Fan Support | Top: Up to 3x 120mm or 2x 140mm Bottom: Up to 3x 120mm Rear: 1x 120mm |
Radiator Support (AIO) | Top: Up to 360mm or 280mm Rear: 1x 120mm |
Clearances | CPU Cooler: 175mm VGA Length: 365mm PSU Length: 258mm (Standard PS2 PSU optional) |
Physical Dimensions | 364 x 220 x 494 mm (14.33 x 8.66 x 19.45 inch) |
