Thermaltake View 270 Plus WS ARGB Snow Panoramic ATX Mid Tower, Wood Edition, 3x ARGB Lite Fans, E-ATX Support, White | CA-1Y7-00M6WN-WS
Model : VIEW 270
SKU : ATX-THERMA VIEW 270 +WS W
The Thermaltake View 270 Plus WS ARGB Snow is a stunning panoramic ATX mid-tower chassis designed to be the centerpiece of any setup. Featuring pillar-less tempered glass on the front and left sides, it offers a 270-degree view of your internal components, beautifully framed by stylish natural wood accents. This "Snow" edition comes pre-installed with three 120mm ARGB Lite fans, including two reverse fans on the motherboard side to provide high-performance intake without sacrificing the clean visual of the fan blades. With support for up to an E-ATX motherboard, a 360mm radiator, and large GPUs up to 420mm, it perfectly blends organic design with high-end power.
Description
Natural Aesthetics Meets Panoramic Views: View 270 Plus WS ARGB Snow
The View 270 Plus WS ARGB Snow is part of Thermaltake's "Wood Series," bringing a touch of warm, organic texture to the crisp "Snow White" aesthetic. This chassis is perfect for users looking to build a high-performance PC that complements a clean, modern home or office interior.

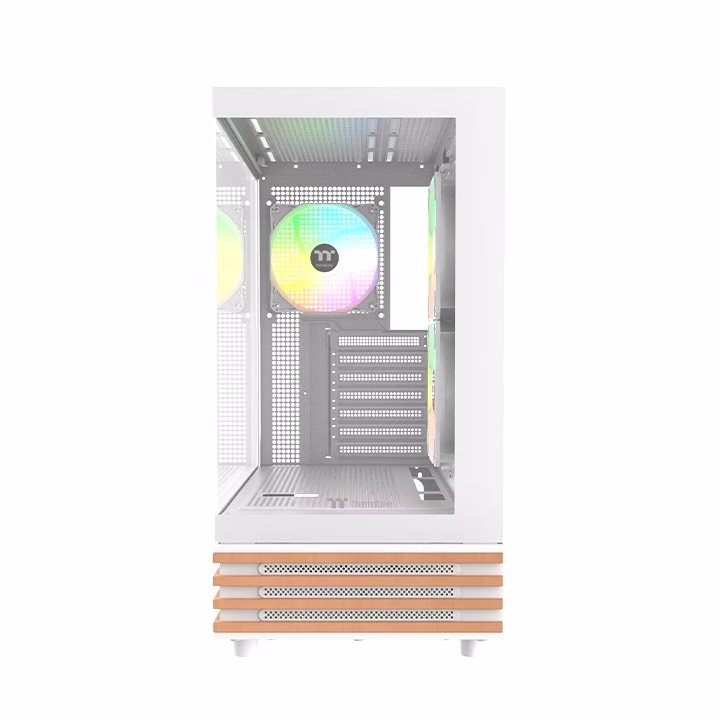

270-Degree Panoramic Glass Design: Engineered for ultimate visibility, the pillar-less design features two 4mm tempered glass panels that meet seamlessly at the corner. This provides an unobstructed view of your liquid cooling, RGB lighting, and hardware from multiple angles, creating a "fish tank" effect for your PC.
Elegant Wood Accents: The View 270 Plus WS stands out with its integrated wood trim along the base and side. This unique design element softens the industrial look of the chassis, offering a sophisticated "furniture-like" appearance that distinguishes it from traditional gaming cases.
Optimized Cooling and Reverse Fan Technology:

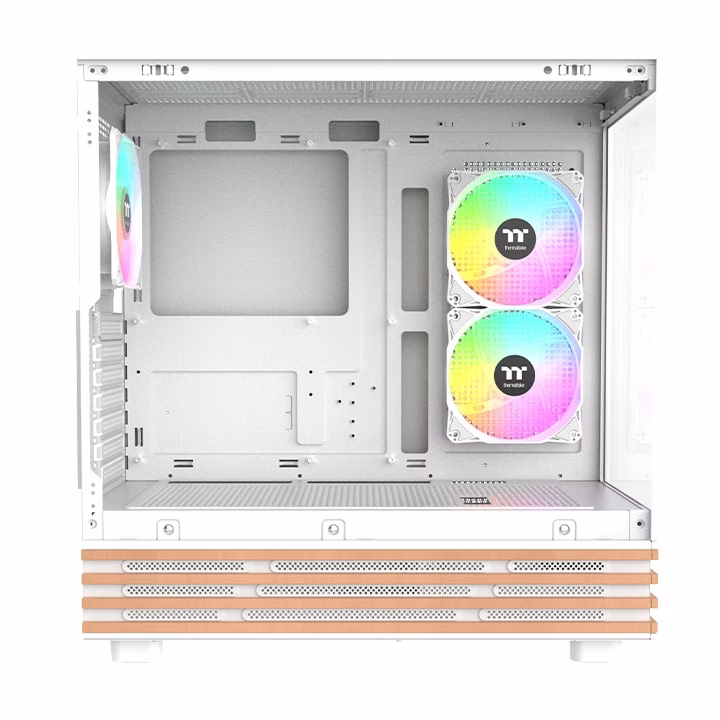

- Clean Side Intake: Comes with 2 x 120mm ARGB Lite Reverse Fans pre-installed on the motherboard side. These fans pull cool air into the system while keeping the "pretty" side of the fan blades visible through the glass.

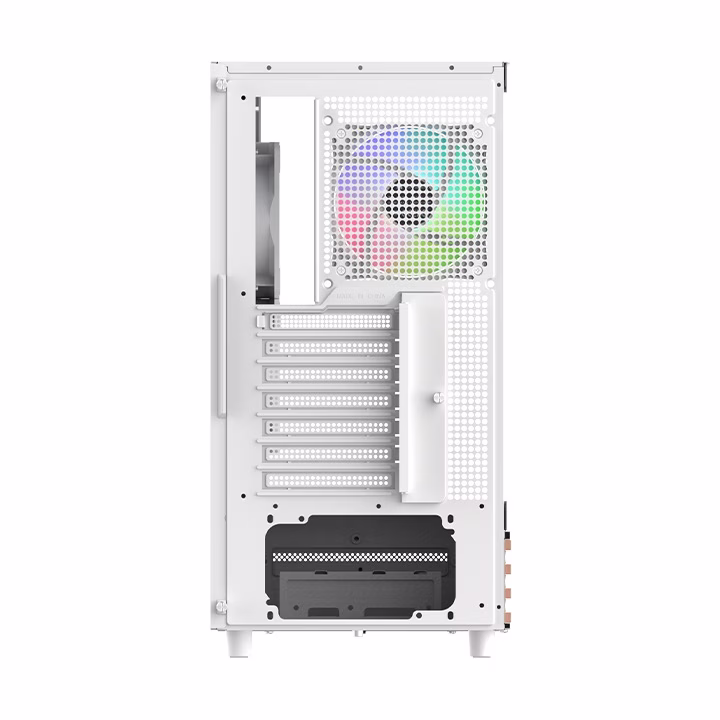

- Effective Exhaust: A matching 1x 120mm ARGB Lite Fan at the rear ensures heat is quickly exhausted from the main chamber.
- Exceptional Expansion: Supports up to a 360mm radiator on the top and up to nine 120mm fans in total, including three dedicated slots on the PSU cover for direct GPU cooling.
Spacious Hardware Compatibility:
- Motherboard Versatility: Fits everything from Mini-ITX up to E-ATX (12" x 13") motherboards.
- Massive GPU Room: Supports the latest high-end graphics cards with lengths up to 420mm.
- Tall Air Coolers: With a 180mm CPU cooler clearance, it comfortably houses even the largest flagship air cooling towers
Specification
Thermaltake View 270 Plus WS ARGB – Technical Specifications
| Part Number (P/N) | CA-1Y7-00M1WN-WS |
| Series | View |
| Model | View 270 Plus WS ARGB |
| Case Type | Mid Tower |
| Dimensions (H x W x D) | 456 x 230 x 454 mm (17.95 x 9.1 x 17.9 inch) |
| Panel | Tempered Glass x 2 |
| Color | Black |
| Material | SPCC |
| Pre-installed Cooling System | Right (Intake): 120 x 120 x 25 mm ARGB Lite Reverse Fan (1000 RPM, 21.9 dBA) x 2 Rear (Exhaust): 120 x 120 x 25 mm ARGB Lite Fan (1000 RPM, 22.3 dBA) x 1 |
| Drive Bays | 2 x 3.5” + 1 x 2.5” or 2 x 2.5” |
| Expansion Slots | 7 |
| Motherboard Support | Mini-ITX (6.7” x 6.7”) Micro-ATX (9.6” x 9.6”) ATX (12” x 9.6”) E-ATX (12” x 13”) |

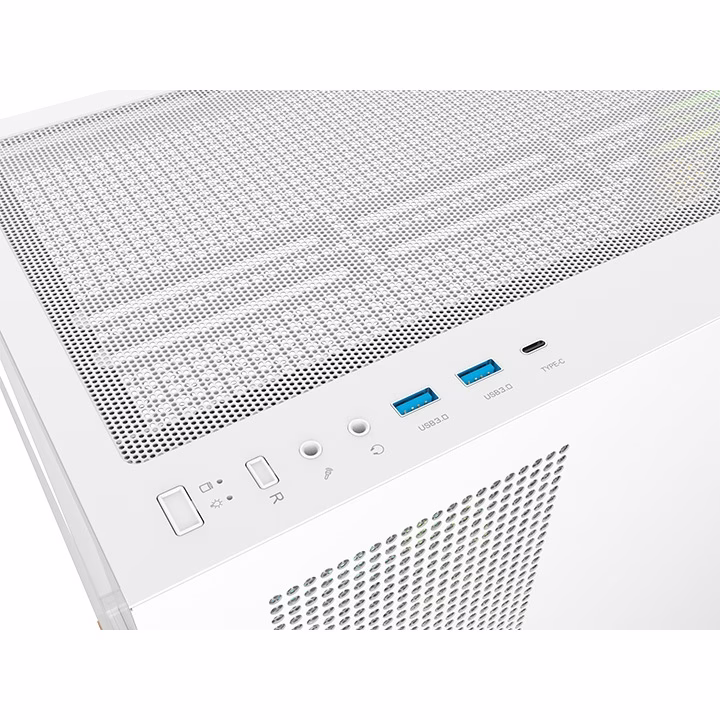

| I/O Ports | USB 3.2 Gen 2 Type-C x 1 USB 3.0 x 2 HD Audio x 1 |
| Power Supply Support | Standard PS2 PSU (Optional) |
| Fan Support | Top: 3 x 120mm / 2 x 140mm Right (Motherboard Side): 2 x 120mm Rear: 1 x 120mm / 1 x 140mm Power Cover: 3 x 120mm |
| Radiator Support | Top: 360 / 240 / 120 mm Rear: 120 mm |
| Clearance | CPU Cooler Height: up to 180mm VGA Length: up to 420mm PSU Length: up to 280mm (HDD cage front) PSU Length: up to 250mm (HDD cage back) |
