Model :
SKU : WR-TPLIN ARCHER MR505 4G+

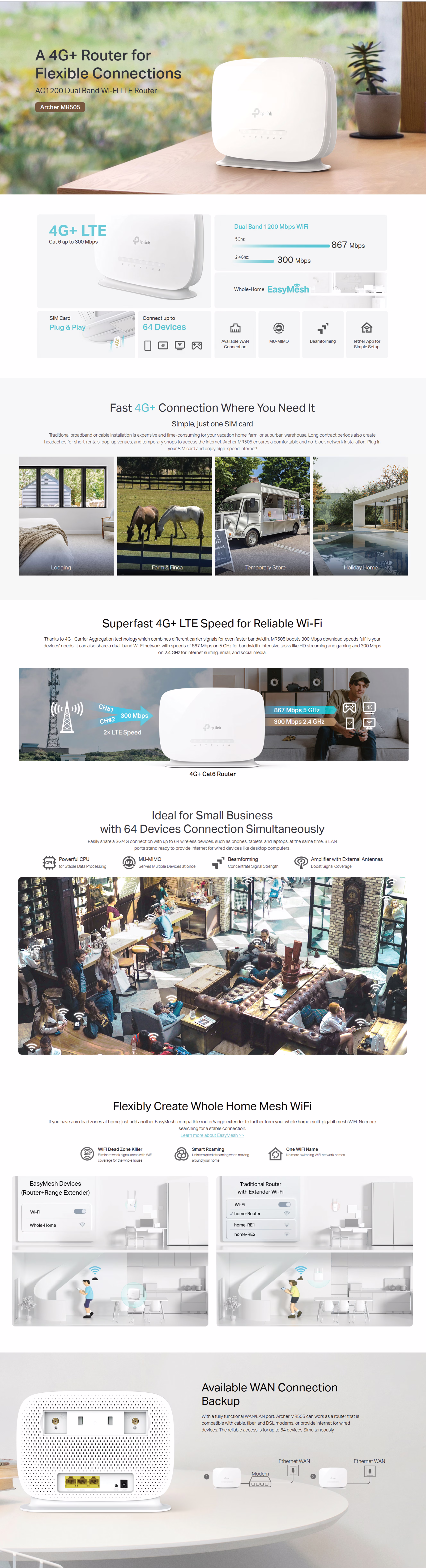

Archer MR505
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device.
Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can't get a 4G connection
Easy setup and management all by Tether app
Feature | Specification |
|---|---|
Model | Archer MR505 (from Package Content) |
Interface | 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface |
Power Supply | 12V / 1.5A |
Dimensions (W x D x H) | 212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in) |
Antenna | 2 Detachable External LTE Antennas |
Wireless Standards | 5 GHz: IEEE 802.11a/n/ac 2.4 GHz: IEEE 802.11b/g/n |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm, 11ac HT20: -73 dBm, 11ac HT40: -68 dBm, 11ac HT80: -64 dBm, 11n HT20: -77 dBm, 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm, 11n HT20: -72 dBm, 11n HT40: -69 dBm |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
WAN Failover | Yes |
Wireless Security | 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
Transmission Power | 2.4 GHz: < 20 dBm 5 GHz: < 23 dBm |
Network Type (4G/3G) | FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz) |
Quality of Service (QoS) | Prioritizes network traffic by device |
Security / Firewall | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering |
WAN Type | Dynamic IP / Static IP / PPPoE / PPTP (Dual Access) / L2TP (Dual Access) |
Management Features | TP-Link Cloud, Local Management, Remote Management |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | TP-Link, DynDns, NO-IP |
VPN Server | PPTP VPN, OpenVPN |
Parental Controls | URL Filtering, Time Controls |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
Certification | CE, RoHS |
Package Content | 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505, 1.5m Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Environment | Operating Temp: 0℃ ~ 40℃ (32℉ ~ 104℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
