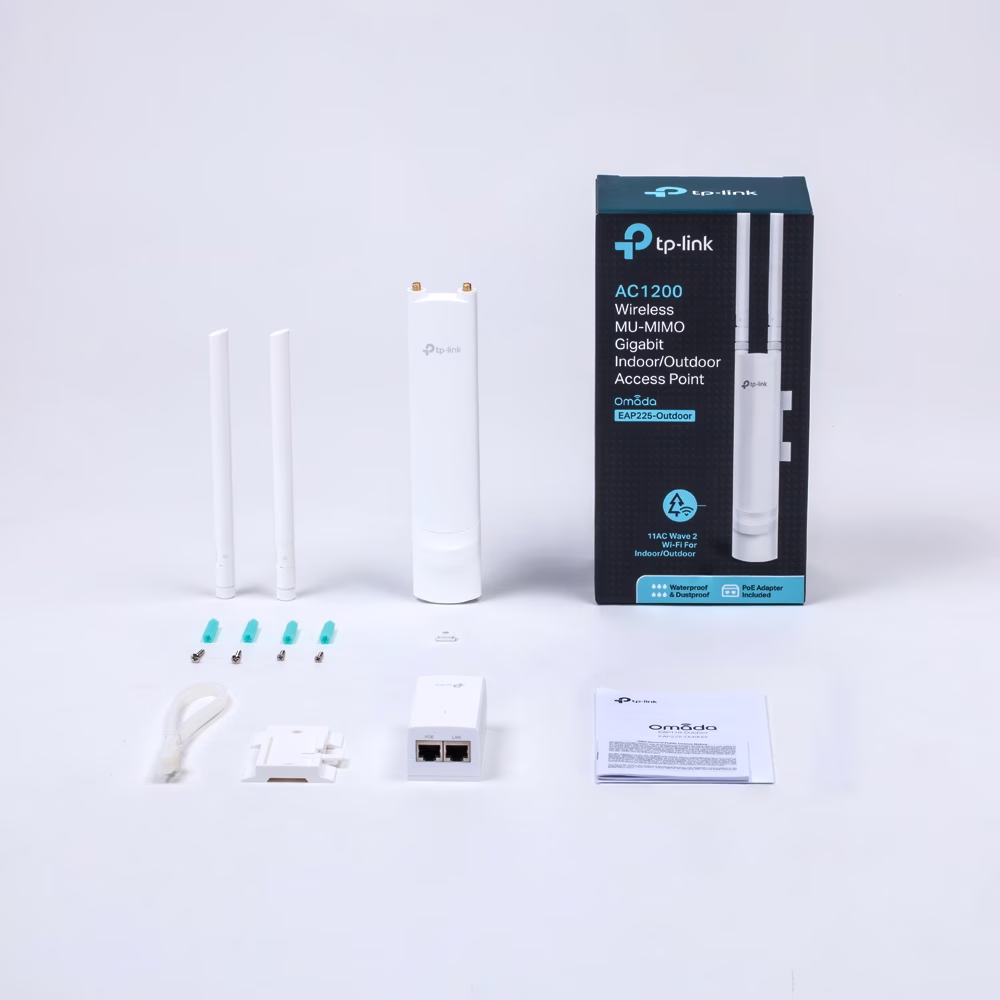

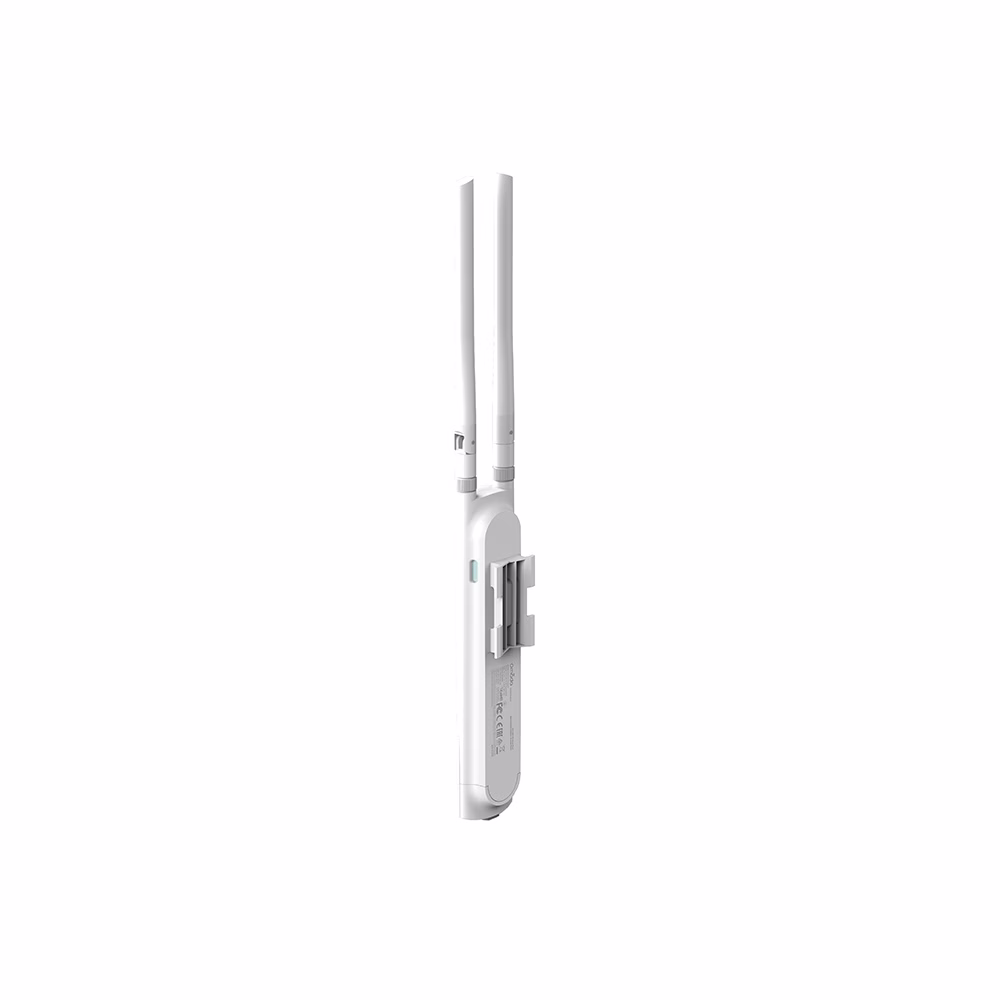

TP-Link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Model :
SKU : WAP-TPLINK EAP225 OUTDDOR
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Wireless Access Point Specifications
| Feature | Details |
|---|---|

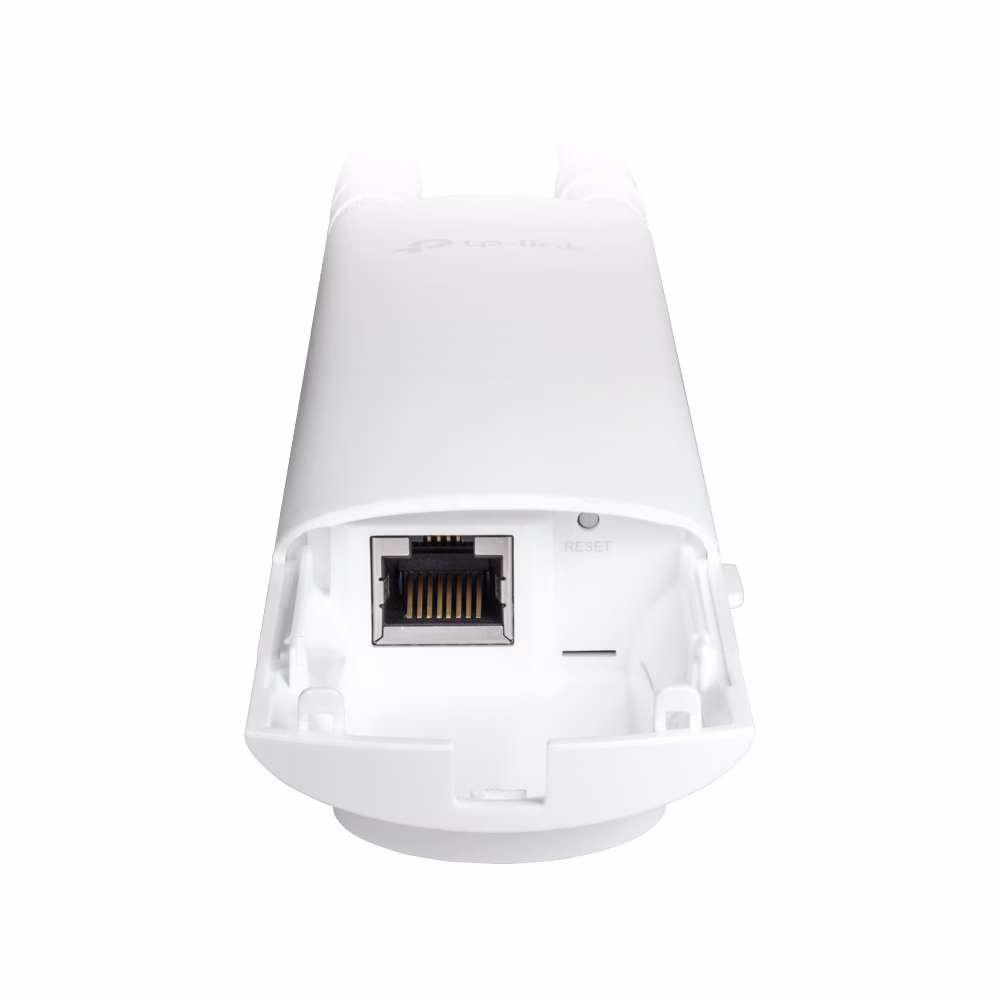

| Interface | Gigabit Ethernet (RJ-45) Port ?? 1 (Supports 802.3af PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3af/A PoE, 24V Passive PoE (+4,5 pins; -7,8 pins, PoE Adapter Included) |
| Power Consumption | 10.5W |
| Dimensions (W ?? D ?? H) | 215.7 ?? 45 ?? 37.7 mm (without antenna & mounting kit) 403.8 ?? 90.7 ?? 55.2 mm (with antenna & mounting kit) |
| Antenna | 2.4GHz: 2 ?? 3dBi, 5GHz: 2 ?? 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole / Wall Mounting (Kits included) |
| Wireless Client Capacity | 220+** |
| Concurrent Clients | 220+** |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G: 6.5 Mbps to 867 Mbps, 2.4G: 78 Mbps to 300 Mbps 802.11n: 6.5 Mbps to 300 Mbps 802.11g: 6 to 54 Mbps 802.11b: 1 to 11 Mbps 802.11a: 6 to 54 Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16, 8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, MAC Address Filtering, Wireless Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support |
| Transmission Power | CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP) FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz) |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300, OC200), Omada Software Controller |
| Cloud Access | Yes |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
Specification
Wireless Access Point Specifications
| Feature | Details |
|---|---|
| Interface | Gigabit Ethernet (RJ-45) Port ?? 1 (Supports 802.3af PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3af/A PoE, 24V Passive PoE (+4,5 pins; -7,8 pins, PoE Adapter Included) |
| Power Consumption | 10.5W |
| Dimensions (W ?? D ?? H) | 215.7 ?? 45 ?? 37.7 mm (without antenna & mounting kit) 403.8 ?? 90.7 ?? 55.2 mm (with antenna & mounting kit) |
| Antenna | 2.4GHz: 2 ?? 3dBi, 5GHz: 2 ?? 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole / Wall Mounting (Kits included) |
| Wireless Client Capacity | 220+** |
| Concurrent Clients | 220+** |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G: 6.5 Mbps to 867 Mbps, 2.4G: 78 Mbps to 300 Mbps 802.11n: 6.5 Mbps to 300 Mbps 802.11g: 6 to 54 Mbps 802.11b: 1 to 11 Mbps 802.11a: 6 to 54 Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16, 8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication, Access Control, MAC Address Filtering, Wireless Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support |
| Transmission Power | CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP) FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz) |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300, OC200), Omada Software Controller |
| Cloud Access | Yes |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
