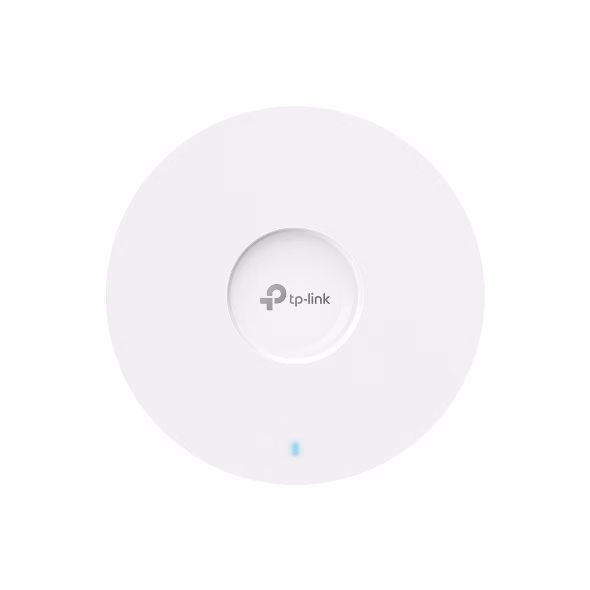

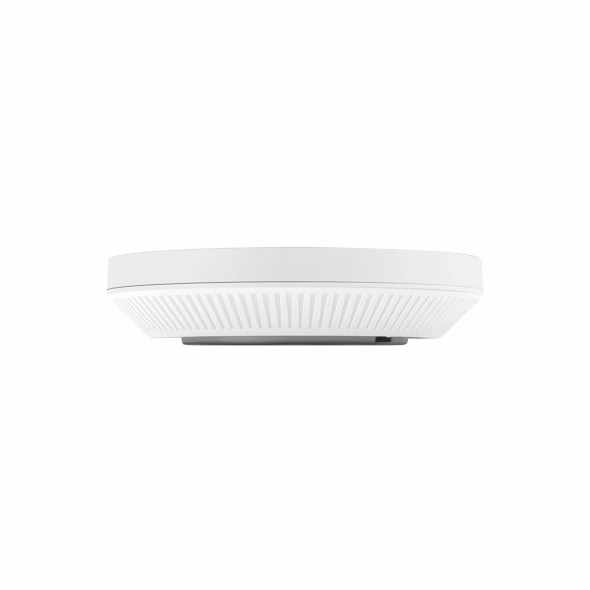

Home/Access Points & Bridges/tp-link EAP613 AX1800 Ceiling Mount WiFi 6 Access ...
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.???
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.??
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.??
PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
Ultra-Slim Design: ??160 mm ?? 33.6 mm elegant design brings more agility.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.??
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
| Interface | 1?? Gigabit Ethernet (RJ-45) Port |
| Button | Reset |
| Power Supply | ??? 802.3at PoE ??? 48 V Passive PoE ??? 12 V / 1 A DC (Power Adapter IS NOT included) |
| Power Consumption | 11.0W (For PoE); 9.9W (For DC) |
| Dimensions (W x D x H) | V2 and above: 6.3 ?? 6.3 ?? 1.3 in (160 ?? 160 ?? 33.6 mm) |
| Antenna Type | Internal Omni Antenna ??? 2.4 GHz: 2?? 4 dBi ??? 5 GHz: 2?? 5 dBi |
| Mounting | ??? Ceiling /Wall Mounting (Kits included) ??? Junction Box Mounting |
| Coverage | 115??? (1250 ft??)*** |
| Wireless Client Capacity | 250+** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | ??? 5 GHz: Up to 1201 Mbps ??? 2.4 GHz: Up to 574 Mbps |
| Wireless Security | ??? Captive Portal Authentication?? ??? Access Control ??? Wireless Mac Address Filtering ??? Wireless Isolation Between Clients ??? SSID to VLAN Mapping ??? Rogue AP Detection ??? 802.1X Support ??? WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | ??? CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) ??? FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| Omada App | Yes |
| Centralized Management | ??? Omada Cloud-Based Controller ??? Omada Hardware Controller OC300 ??? Omada Hardware Controller OC200 ??? Omada Software Controller |
| Cloud Access | Yes, through ??? OC300 ??? OC200 ??? Omada Software Controller ??? Omada Cloud-Based Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| Certification | CE, FCC, RoHS |
| Package Contents | ??? EAP613 ??? Ceiling/Wall Mounting Kits ??? Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment | ??? Operating Temperature: 0???40 ??? (32???104 ???) ??? Storage Temperature: -40???70 ??? (-40???158 ???) ??? Operating Humidity: 10???90% RH non-condensing ??? Storage Humidity: 5???90% RH non-condensing |
