tp-link EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point, Omada SDN
Model :
SKU : WAP-TPLINK EAP655-WALL
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a
single stream with HE160‡
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption
Seamless Roaming
Uninterrupted streaming when moving between APs§

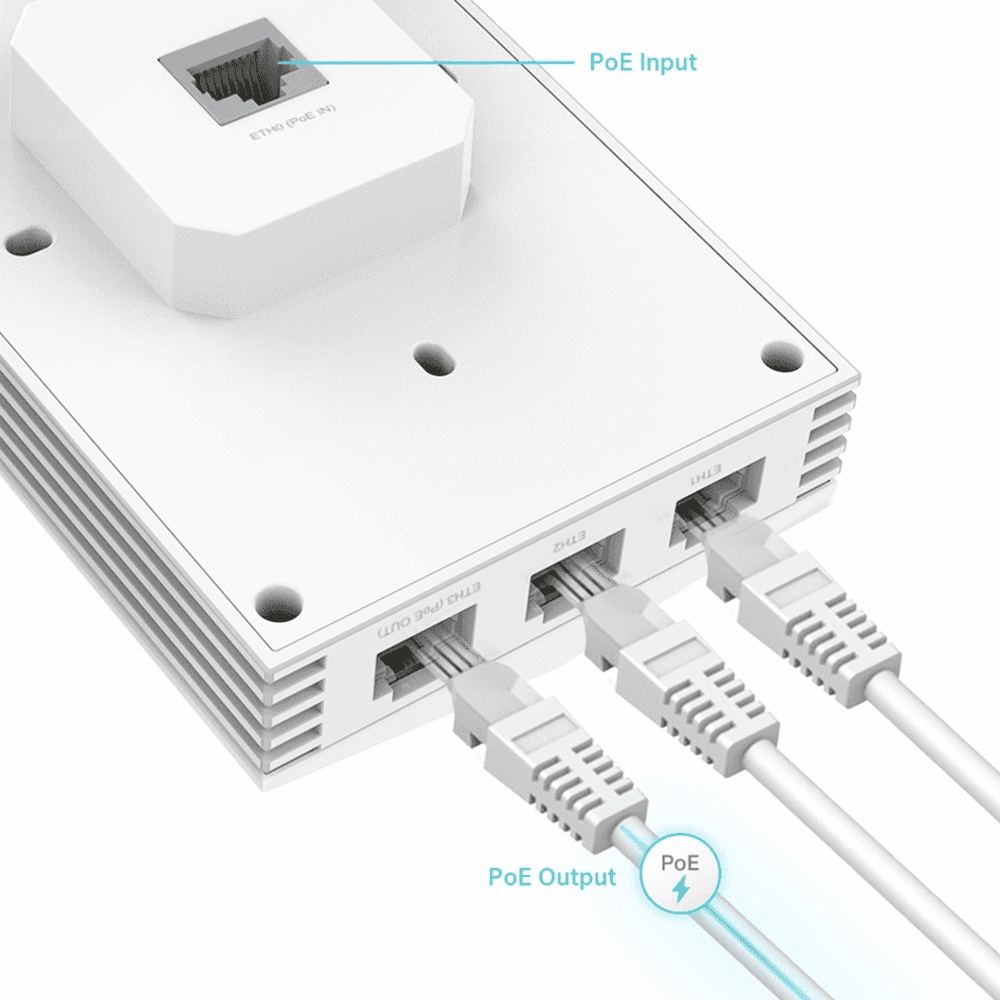

Four Gigabit Ports
Three downlink gigabit ports, one with PoE pass-through
802.3af/at PoE Support
Flexible and convenient deployment
Quick, Simplified Installation
Compatible with 86 mm & EU & US standard junction box
Specification
Hardware Features
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, requires 802.3at PoE+ input) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3af/at PoE |
| Max. Power Consumption | • EU: 12W (802.3at PoE, PoE Out off) • US: 12.6W (802.3at PoE, PoE Out off) |
| Dimensions (W × D × H) | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
| Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi |
| Mounting | Wall Plate Mounting (Kits included) |
Wireless Features
| Coverage | 50㎡ (600 ft²) *** |
| Concurrent Clients | 100+ △ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 per band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (dBm) • QoS (WMM) • Seamless Roaming § • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static/Dynamic IP |
| Wireless Security | • Captive Portal Authentication § • Access Control • MAC Address Filtering • Wireless Isolation • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm (2.4GHz), <23 dBm (5GHz band1 & 2), <26 dBm (5GHz band3) • FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz) |
Management Features
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes (requires OC300, OC200, Cloud-Based, or Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes (requires Omada Cloud-Based Controller) |
Others
| Certification | FCC, RoHS |
| Package Content | • AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux |
| Environment | • Operating Temp: 0–40 ℃ (32–104 ℉) • Storage Temp: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH (non-condensing) • Storage Humidity: 5–90% RH (non-condensing) |
