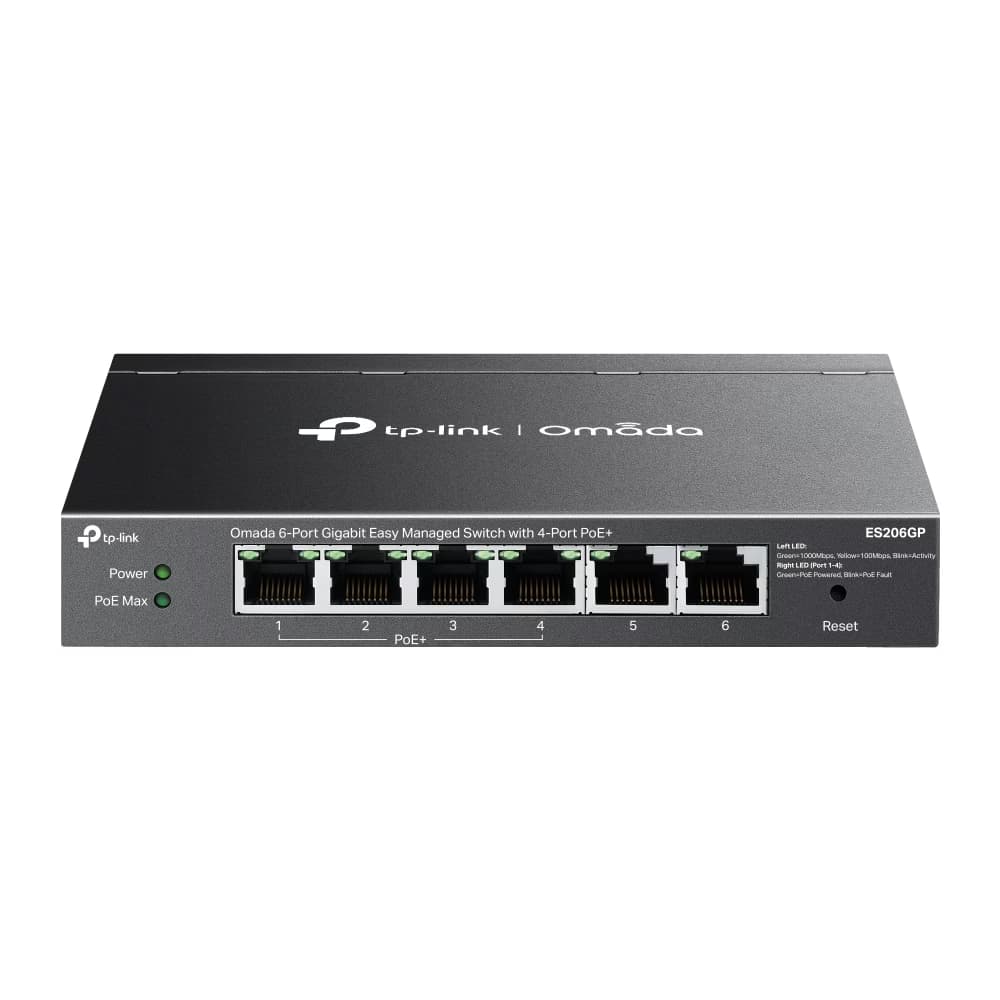

TP-Link Omada ES206GP 6-Port Gigabit Easy Managed PoE+ Switch, 65W Budget,250m Long Range, Cloud Managed
189.00Home/Networking/Commercial Networking/Switches/TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ Manag...

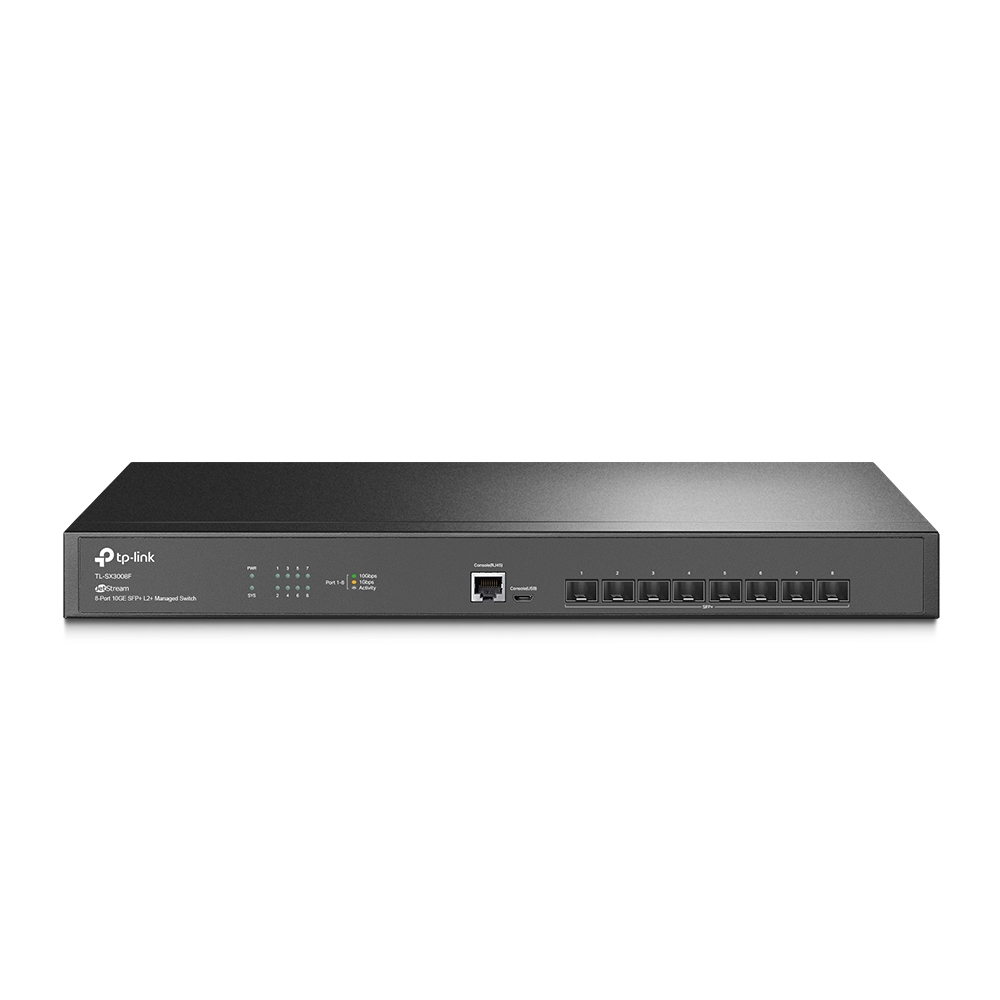

TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ Managed Switch, L2+ Static Routing, Omada SDN, Fanless Silent Design
Model :
SKU : NS-TPLINK SX3008F 8P 10GE
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
10G Fiber Connectivity for the Modern Enterprise
The TL-SX3008F is built for businesses that have outgrown traditional Gigabit networking. By providing eight dedicated 10G SFP+ slots, this switch enables ultra-fast fiber uplinks and high-speed connections to servers and storage, ensuring your network infrastructure never becomes a bottleneck.
Centralized Management with Omada SDN: The TL-SX3008F is a core component of the Omada Software Defined Networking (SDN) platform. It allows for 100% centralized cloud management, enabling IT administrators to manage the entire network across different sites from a single interface. Enjoy the convenience of the Omada App for on-the-go monitoring and Zero-Touch Provisioning to deploy hardware without the need for on-site technical staff.
Enterprise-Grade L2+ and L3 Features: This switch goes beyond basic connectivity with Static Routing, which helps route internal traffic more efficiently to conserve network bandwidth. Advanced management capabilities include a comprehensive Command Line Interface (CLI), SNMP, and RMON. With Dual Image support, you can perform firmware updates with a safety net, reducing potential downtime during maintenance.
Robust Security & Quality of Service: Keep your data secure with a suite of advanced security strategies, including IP-MAC-Port Binding, ACLs, Port Security, and 802.1X Authentication. To ensure your business-critical applications run smoothly, the TL-SX3008F features L2/L3/L4 QoS and IGMP Snooping, prioritizing voice and video traffic to prevent stuttering during important conference calls or surveillance monitoring.
Silent and Reliable Design: Unlike many high-speed enterprise switches, the TL-SX3008F features a fanless design. This allows for completely silent operation, making it suitable for mounting in open-plan offices, retail spaces, or noise-sensitive environments. The rack-mountable metal casing ensures durability and easy integration into standard 19-inch server racks.
Specification
8-Port 10GE SFP+ Managed Switch Specifications

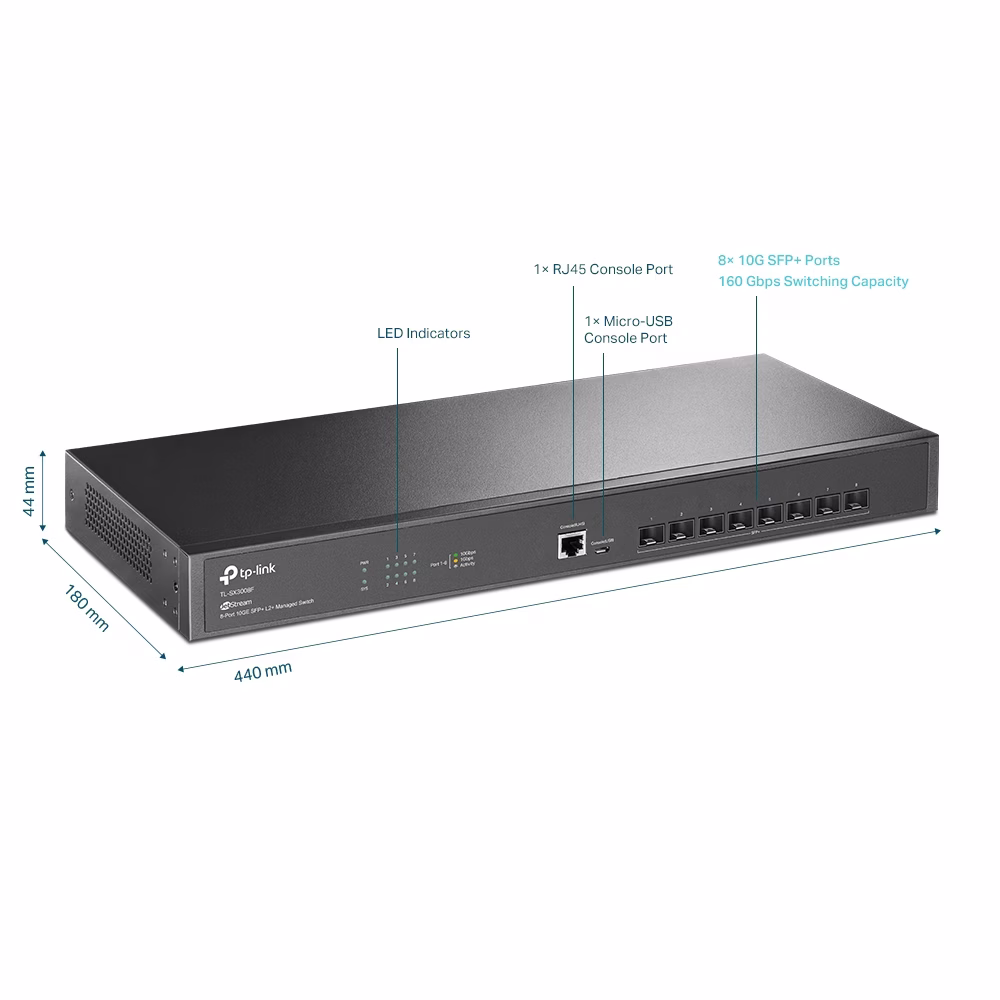

| Interface | 8 × 10GE SFP+ Slots 1 × RJ45 Console Port 1 × Micro-USB Console Port |
| Fan Quantity | Fanless |
| Power Supply | 100–240 V AC ~ 50/60 Hz |
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 15.46 W (220 V / 50 Hz) |
| Max Heat Dissipation | 52.75 BTU/hr (220 V / 50 Hz) |
| Switching Capacity | 160 Gbps |
| Packet Forwarding Rate | 119.04 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service (QoS) | 8 Priority Queues, 802.1p CoS / DSCP Scheduling: SP / WRR / SP+WRR Bandwidth Control, Flow Actions (Mirror, Redirect, Rate Limit, QoS Remark) |
| L3 Features | IPv4/IPv6 Interfaces, Static Routing (48 Routes) Static ARP (128 Entries), Proxy ARP, Gratuitous ARP DHCP Server, DHCP Relay (Interface/VLAN), DHCP L2 Relay |
| L2 & L2+ Features | Link Aggregation (Static, 802.3ad LACP – 8 Groups) STP / RSTP / MSTP with Security Features Loopback Detection, 802.3x Flow Control, HOL Prevention Port / CPU Mirroring |
| L2 Multicast | IGMP v1/v2/v3 Snooping, Fast Leave, Querier, Authentication MLD v1/v2 Snooping, MVR, Multicast Filtering |
| Advanced Features | Omada Controller Support (OC200 / OC300 / Software / Cloud) Device Discovery, Batch Configuration & Firmware Upgrade Network Monitoring, Event Warnings, Unified Configuration, ZTP |
| VLAN | VLAN Group (Up to 4K), 802.1Q Tagged VLAN MAC VLAN, Protocol VLAN, Private VLAN, GVRP QinQ (Port-Based / Selective), Voice VLAN |
| Access Control List (ACL) | Time-based, MAC, IP, IPv6, Combined & Packet Content ACL Policy Actions: Mirror, Redirect, Rate Limit, QoS Remark |
| Security | IP/MAC/Port Binding, DHCP Snooping, ARP Inspection DoS Defense, Port Security, Storm Control, 802.1X, AAA HTTPS (SSL/TLS), SSH, IP/Port/MAC Access Control |
| IPv6 | Dual Stack IPv4/IPv6, IPv6 Routing & ND ICMPv6, DHCPv6, IPv6 ACL IPv6 Management Services |
| Management | Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3, RMON LLDP / LLDP-MED, Dual Image & Configuration CPU Monitoring, Cable Diagnostics, System Log |
| Omada App | Yes (Controller Required) |
| Centralized Management | Omada Cloud-Based Controller, OC300, OC200, Software Controller |
| Cloud Access | Yes (Controller Required) |
| Zero-Touch Provisioning | Yes (Omada Cloud-Based Controller Required) |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SF3008F Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| System Requirements | Windows, macOS, NetWare, UNIX, Linux |
| Operating Environment | Operating Temp: 0–45 ℃ (32–113 ℉) Storage Temp: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH Storage Humidity: 5–90% RH |
