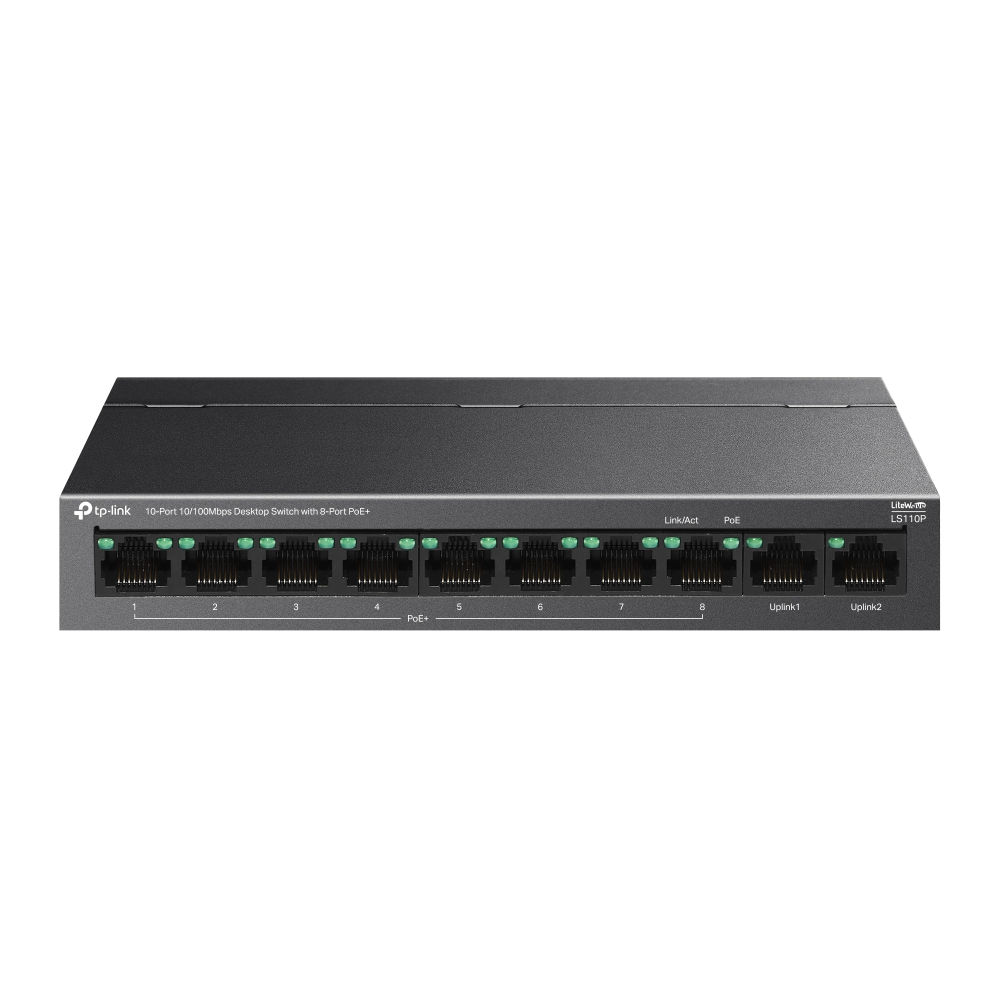

tp-link LS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Model :

SKU : NS-TPLINK LS110P 10P POE+

About this item

  • 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*

  • 2× 10/100 Mbps Non-PoE Ports

  • 96 W total PoE budget*

  • Up to 250 m (820ft) data and power transmitting range under Extend Mode**

  • Isolation Mode allows one-click client traffic separation for higher security and performance

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

  • Simply plug and play for instant connectivity with no configuration required.

  • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

  • Desktop / Wall-mounting

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

The LS110P is a 10-Port 10/100Mbps Desktop Switch with 8 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 96 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**. Featuring Isolation Mode & PoE Auto Recovery, LS110P is ideal for surveillance scenarios.

Specification

HARDWARE FEATURES

Standards and ProtocolsIEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Interface10× 10/100 Mbps RJ45 Ports with 8 PoE+ Ports (Port 1 to Port 8)
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5 or above cable (maximum 100m)
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)
LEDPower, Link/Act, PoE Status
Packet Forwarding Rate1.488 Mpps
PoE Ports (RJ45)Standard: 802.3 af/at compliant
PoE Ports: Port 1-8
Power Supply: 96 W
Dimensions (W × D × H)6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max. Power Consumption99.6 W
Max. Heat Dissipation338.64 BTU/h

PERFORMANCE

Switching Capacity2 Gbps
Packet Buffer Memory768 KB
Advanced FeaturesExtend Mode (Ports 1-8)
Isolation Mode (Ports 1-8)
PoE Auto Recovery (Ports 1-8)
Jumbo Frame2 KB

SOFTWARE FEATURES

MAC Address Table2K
Transmission MethodStore-And-Forward

OTHERS

Package ContentSwitch, Power Adapter, Rubber Feet, Installation Guide
CertificationsCE, RoHS
EnvironmentOperating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
