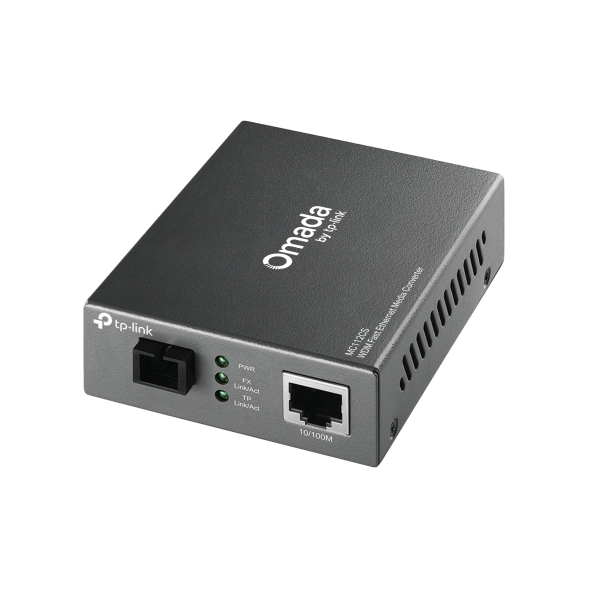

tp-link MC112CS 10/100Mbps WDM Media Converter, Extends fiber distance up to 20km
Model :
SKU : MC-TPLINK MC112CS WDM
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
tp-link MC112CS 10/100Mbps WDM Media Converter, Extends fiber distance up to 20km Specifications
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u |
| Basic Function | Adopts WDM technology, Half/Full-Duplex transfer mode for FX port, Extends fiber distance up to 20km |
| Ports | 1 100M SC/UPC port, 1 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm Tx/1550nm Rx |
| WDM TX | 1310nm |
| WDM RX | 1550nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.18W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | ??? Media Converter MC112CS ??? Power Adapter ??? Installation Guide |
| Environment | Operating Temperature: 0???~40??? (32???~104???) Storage Temperature: -40???~70??? (-40???~158???) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Specification
tp-link MC112CS 10/100Mbps WDM Media Converter, Extends fiber distance up to 20km Specifications
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u |
| Basic Function | Adopts WDM technology, Half/Full-Duplex transfer mode for FX port, Extends fiber distance up to 20km |
| Ports | 1 100M SC/UPC port, 1 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm Tx/1550nm Rx |
| WDM TX | 1310nm |
| WDM RX | 1550nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100?? STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.18W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | ??? Media Converter MC112CS ??? Power Adapter ??? Installation Guide |
| Environment | Operating Temperature: 0???~40??? (32???~104???) Storage Temperature: -40???~70??? (-40???~158???) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
