TP-Link Omada EAP615-Wall AX1800 WiFi 6 Wall Plate Access Point, Gigabit Ports, PoE Pass-Through, Cloud Managed
Model :
SKU : WAP-TPLINK EAP615 AX1800-
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Discreet Design, Gigantic Performance: EAP615-Wall WiFi 6

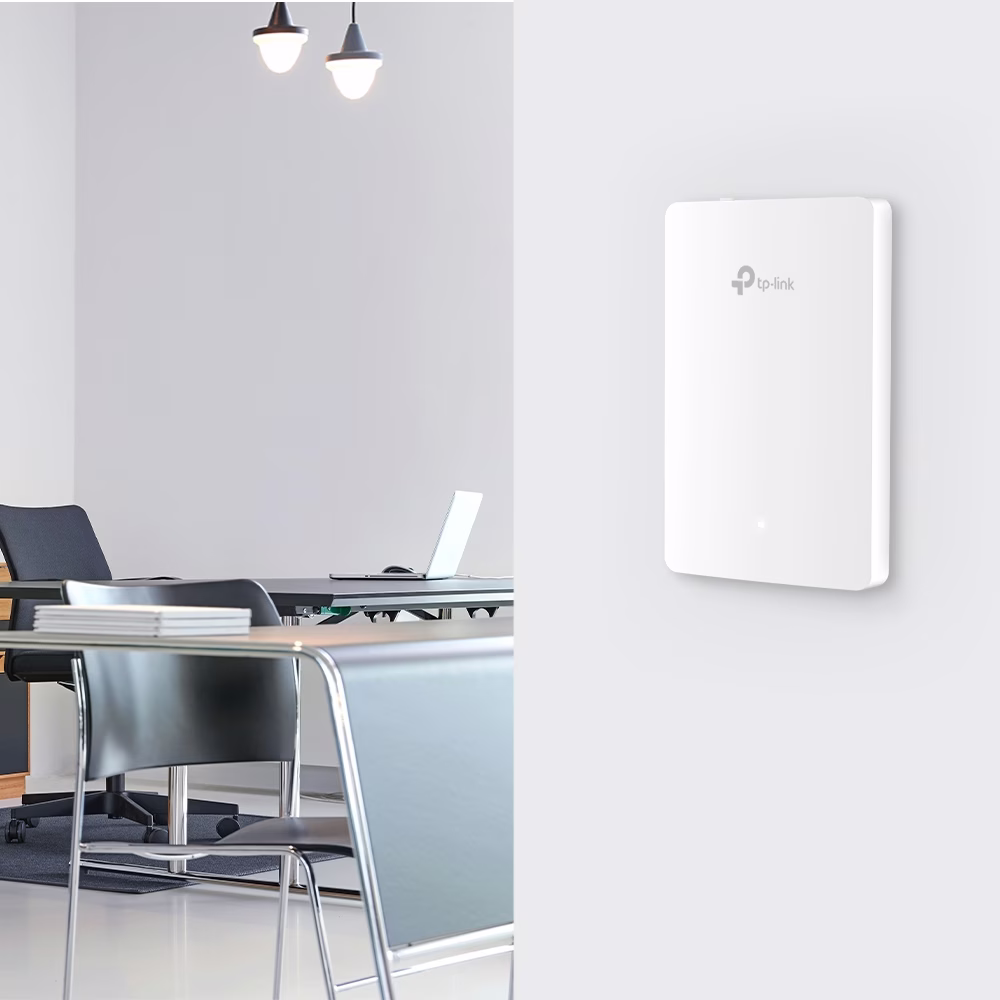

The EAP615-Wall is the ultimate solution for hospitality and residential projects where aesthetics and performance are equally critical. By installing directly into a wall plate, it provides localized, high-strength WiFi 6 signals to every room, eliminating the coverage gaps often found with hallway-mounted equipment.

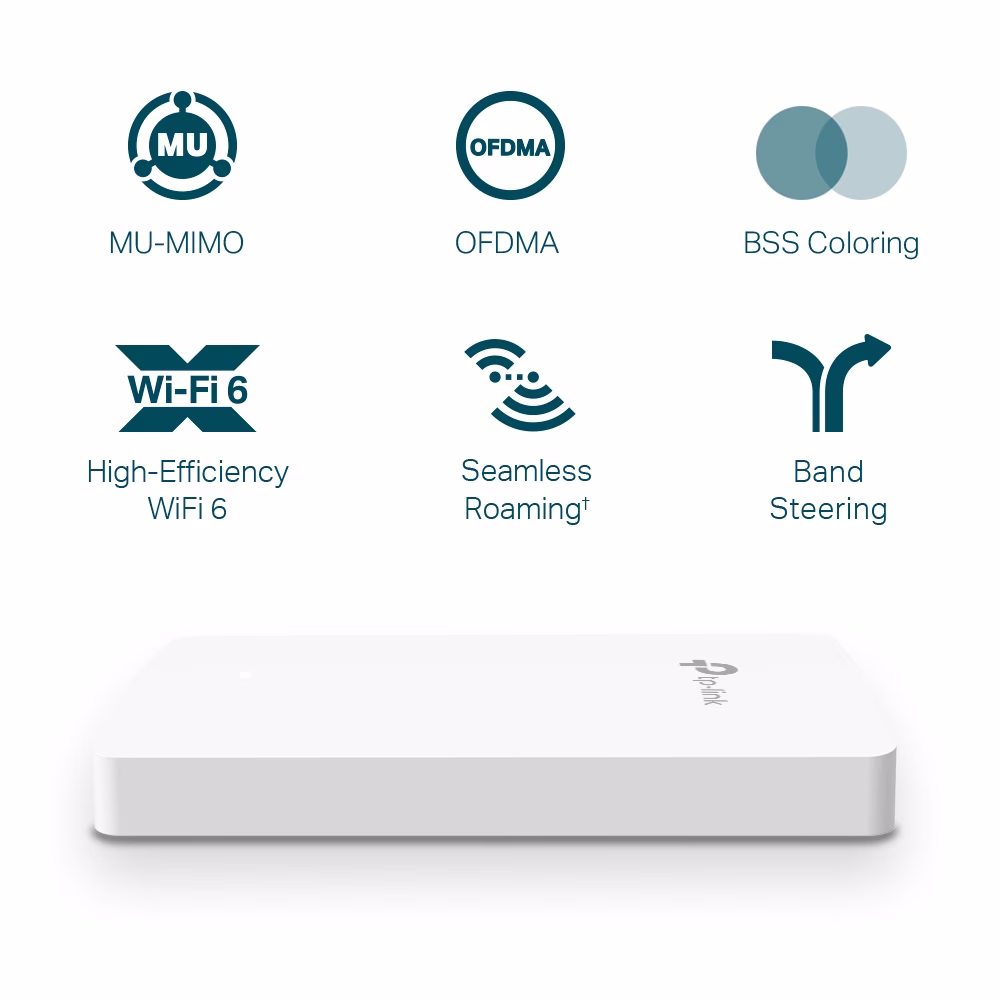

Superior WiFi 6 Experience: Experience the benefits of WiFi 6 (802.11ax), including faster speeds, reduced latency, and higher capacity. With 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, users can enjoy seamless 4K streaming and lag-free gaming. Advanced features like MU-MIMO and Beamforming ensure that multiple devices receive dedicated, high-strength signals simultaneously.

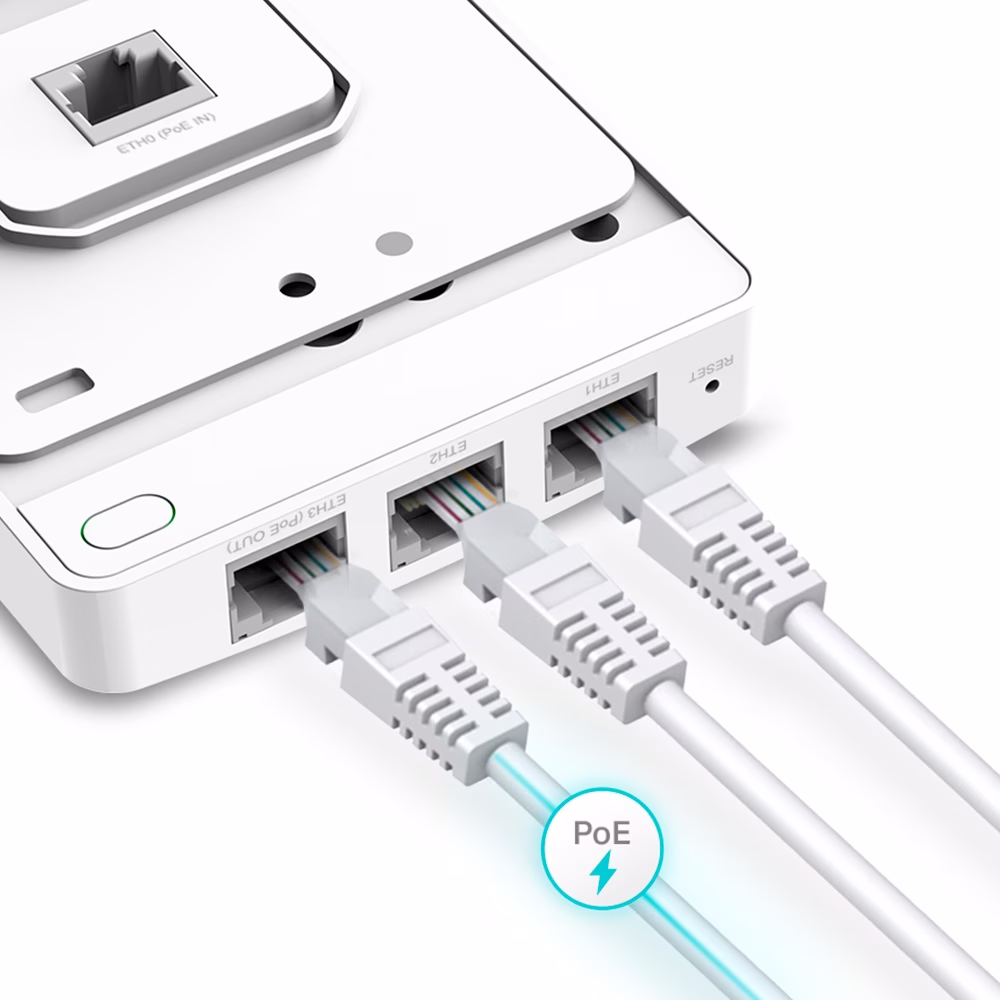

Integrated Gigabit Switching & PoE Pass-Through: Beyond wireless, the EAP615-Wall acts as a versatile in-room switch. It features three Gigabit downlink ports to connect smart TVs, computers, or game consoles. When powered by an 802.3at PoE+ source, one downlink port provides PoE pass-through (up to 13W), simplifying the deployment of IP phones or additional sensors by removing the need for local power outlets.
Cloud Management & Enterprise Security: Manage your entire network with ease using the Omada SDN platform. The EAP615-Wall supports centralized cloud management, allowing for remote troubleshooting and configuration via the Omada App. Enhance guest experiences with a customizable captive portal (SMS/Voucher authentication) while keeping the network secure with WPA3 encryption, VLAN support, and rogue AP detection.

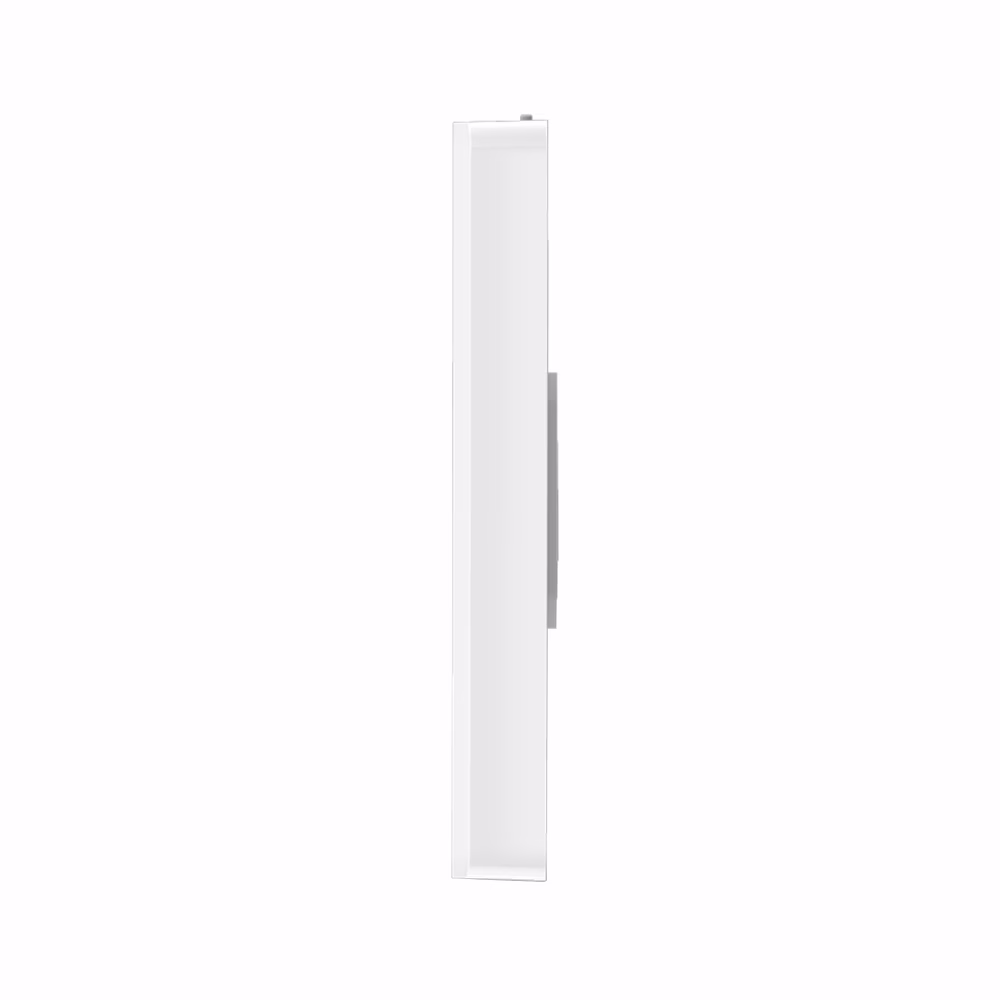

Ultra-Slim & Easy Installation: Designed to be non-intrusive, the EAP615-Wall is only 20mm thick, making it one of the thinnest wall-plate APs on the market. It is compatible with standard 86 mm, EU, and US junction boxes, ensuring a clean, professional finish that complements any modern interior decor
Specification
Wireless Access Point Specifications
| HARDWARE FEATURES | |
|---|---|
| WIRELESS FEATURES | |
| MANAGEMENT FEATURES | |
| OTHERS | |
| Interface | Uplink: 1 × 10/100/1000 Mbps Ethernet Port Downlink: 3 × 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. PoE OUT requires 802.3at PoE+ input. Maximum PoE pass-through power: 13 W (EU) / 12 W (US), based on laboratory testing.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af / 802.3at PoE |
| Max. Power Consumption | EU: 10 W (802.3at PoE, PoE Out Off) US: 11.5 W (802.3at PoE, PoE Out Off) |
| Dimensions (W × D × H) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 × Dual-Band Antennas 2.4 GHz: 2 × 3 dBi 5 GHz: 2 × 4 dBi |
| Mounting | Wall Plate Mounting |
| Coverage | 50 m² (600 ft²) △ |
| Concurrent Clients | 120+ △ |
| Wireless Standards | IEEE 802.11ax / ac / n / g / b / a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | 16 SSIDs (Up to 8 per band) Enable / Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (dBm) QoS (WMM) Omada Mesh † Seamless Roaming (802.11k/v/r) † Beamforming MU-MIMO Rate Limit Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP / Dynamic IP |
| Wireless Security | Captive Portal Authentication † Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA / WPA2 / WPA3 Personal & Enterprise |
| Transmission Power | CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, Band 1, EIRP) FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz, Band 1) < 21 dBm (5 GHz, Band 4) |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Requires Omada Controller) |
| Email Alerts | Yes |
| LED Control | On / Off |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local / Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP / HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| Certification | CE, FCC, RoHS |
| Package Content | EAP615-Wall Installation Guide Mounting Kit |
| System Requirements | Windows XP / Vista / 7 / 8 / 10 / 11, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH (Non-condensing) Storage Humidity: 5–90% RH (Non-condensing) |
