Adarc Computer established in the year 2007, has emerged as a major constituent of the IT Re-distribution industry in every part of UAE. Currently, Adarc Computer is the authorized dealer of global leading brands.
Connect us:
Shop by Category
Model :
SKU : WAP-TPLINK EAP727 BE5000
EAP727

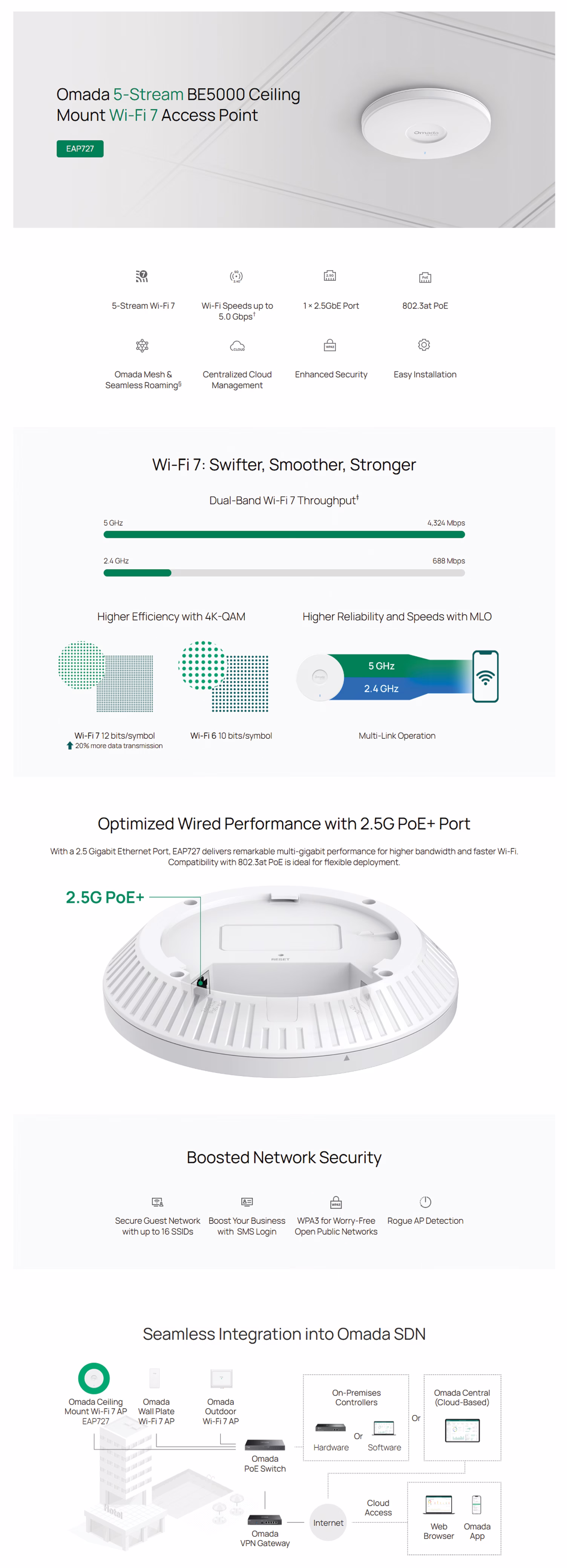

Omada BE5000 Ceiling Mount Wi-Fi 7 Access Point
5-Stream Dual-Band Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.†
1× 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.‡
Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming. §
More Connections and Wider Coverage: Supports 250+ concurrent connections** and covers up to 2,000 ft² (185 m²)* for reliable and extensive wireless connectivity.
Feature | Specification |
|---|---|
Model | EAP727 (from Package Content) |
Omada App | Yes (Omada App V5.0 and above) |
Centralized Management | Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller |
Cloud Access | Yes (Requires Omada Controller) |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging | Local / Remote Syslog (Yes) |
SSH | Yes |
Web-based Management | Yes |
Interface | 1× 2.5 Gbps Ethernet Port |
Button | Reset |
Power Supply | 802.3at PoE / 12V/1.5A DC (Note: DC Power adapter is not included. DC interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.) |
Weight | 0.47 kg (1.04 lb) |
Dimensions (W x D x H) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
Antenna | 2.4 GHz: 2 × 4 dBi
5 GHz: 3 × 6 dBi |
Bluetooth | 1 × 4 dBi (peak gain), internal antenna |
Mounting | Ceiling / Wall / Junction Box Mounting (Kits included), T-Bar Mounting (Kits included) |
Max. Power Consumption | PoE: 15.6 W DC: 14.1 W |
Coverage | 2,000 ft² (185 m²)* |
Concurrent Clients | 510+** |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be (WiFi 7 ready) |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 2.4 GHz: 688 Mbps 5 GHz: 4324 Mbps |
Wireless Functions | MLO‡, 4K-QAM‡, Seamless Roaming, 160 MHz Bandwidth‡, Mesh§, OFDMA‡, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs: 16 (8 on each band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static IP/Dynamic IP, Radius Accounting, MAC Authentication |
Wireless Security | Captive Portal Authentication§, Access Control, MAC Filter, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmission Power | 2.4 GHz: 7-20 dBm (EIRP) 5 GHz (U-NII-1 & U-NII-2A): 9-24 dBm (EIRP) 5 GHz (U-NII-2C): 9-30 dBm (EIRP) |
Certification | FCC / CE / VCCI / JRF / ICES |
Package Content | EAP727, Installation Guide, Mounting Kit |
Environment | Operating Temp: 0℃ to +40℃ (32℉ to +104℉) Storage Temp: -40℃ to +70℃ (-40℉ to +158℉) Operating Humidity: 10% to 90% (non-condensing) Storage Humidity: 5% to 90% (non-condensing) Altitude (Operating/Storage): Up to +2000 m (6561 feet) |
