TP-Link Omada ES206GP 6-Port Gigabit Easy Managed PoE+ Switch, 65W Budget,250m Long Range, Cloud Managed
Model :
SKU : NS-TPLINK ES206GP 6P POE
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Professional Power & Smart Management: Omada ES206GP
The TP-Link Omada ES206GP is designed to meet the rigorous demands of modern small-to-medium business networks. By combining Gigabit speeds with intelligent PoE+ power delivery and cloud accessibility, it serves as a reliable backbone for security systems and wireless infrastructures.
Advanced PoE+ for Surveillance Excellence: Equipped with four 802.3af/at-compliant PoE+ ports, the ES206GP delivers up to 30W per port with a total 65W power budget. It features PoE Auto Recovery, which automatically detects and reboots unresponsive PD devices (like frozen IP cameras), ensuring 24/7 uptime without manual intervention. For large-scale installations, the 250m Long-Range Mode allows you to deploy cameras at great distances without needing additional extenders.
Centralized Cloud Management: As part of the Omada Software Defined Networking (SDN) platform, the ES206GP offers 100% centralized management. Whether you are on-site or remote, you can monitor port status, configure schedules, and troubleshoot the network via the Omada App or web-based GUI. Features like Zero-Touch Provisioning (ZTP) allow for rapid deployment across multiple locations with minimal effort.
Optimized Traffic & Enhanced Security: The ES206GP provides robust Layer 2 features to keep your data flowing efficiently. IGMP Snooping ensures multicast streams (like IPTV or video feeds) only reach the intended devices, preventing network congestion. 802.1Q VLAN and Port Isolation allow you to segment sensitive data or isolate camera feeds for enhanced security. Additionally, 802.1p/DSCP QoS ensures that latency-sensitive traffic, such as voice and video, receives top priority.
Silent, Durable, and Reliable: Designed for versatile placement, the ES206GP features a fanless design for completely silent operation in offices or retail spaces. The durable metal casing and ±6kV surge protection safeguard the internal components against harsh environmental factors and electrical spikes, ensuring a long product lifespan
Specification
ES206GP Gigabit Smart PoE Switch Specifications
| Interface | 6 × 10/100/1000 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE & 802.3at PoE+) Auto-Negotiation / Auto MDI / MDIX |
| Fan Quantity | Fanless |

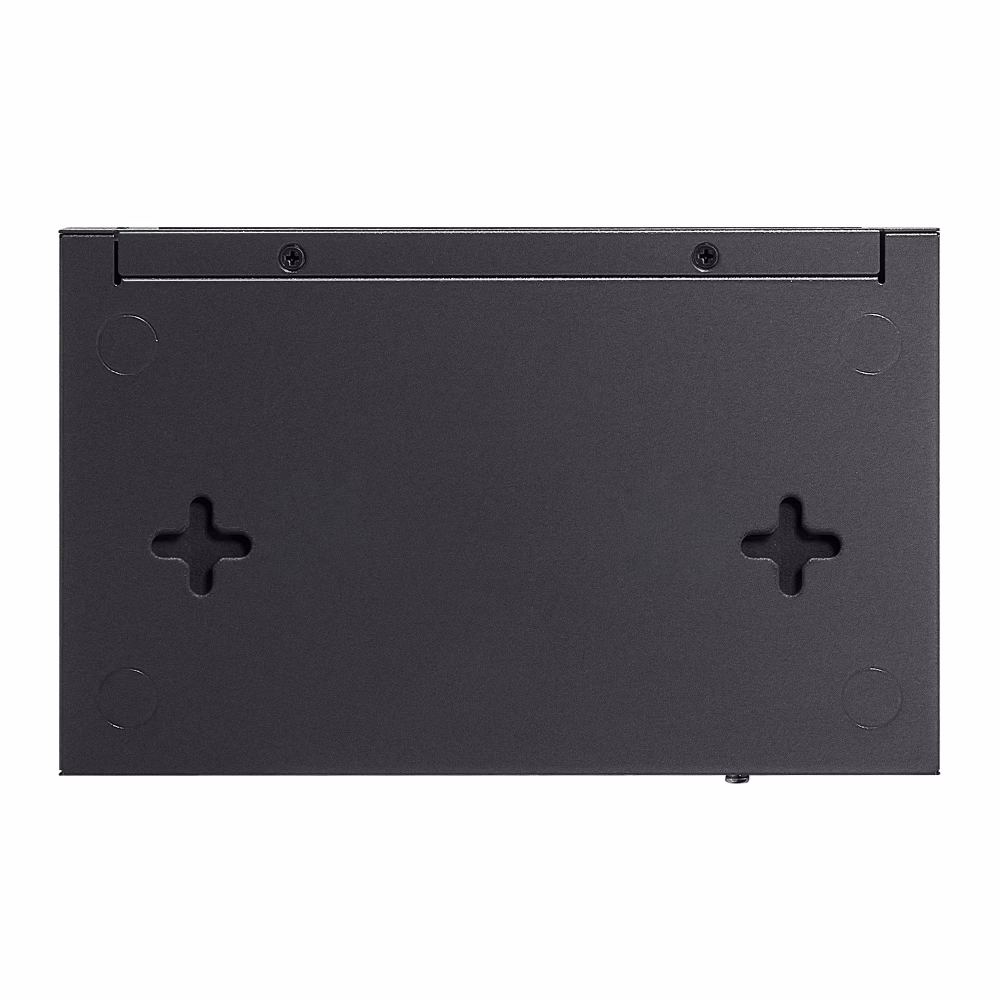

| Installation | Desktop, Wall Mount |
| Physical Security Lock | Yes |

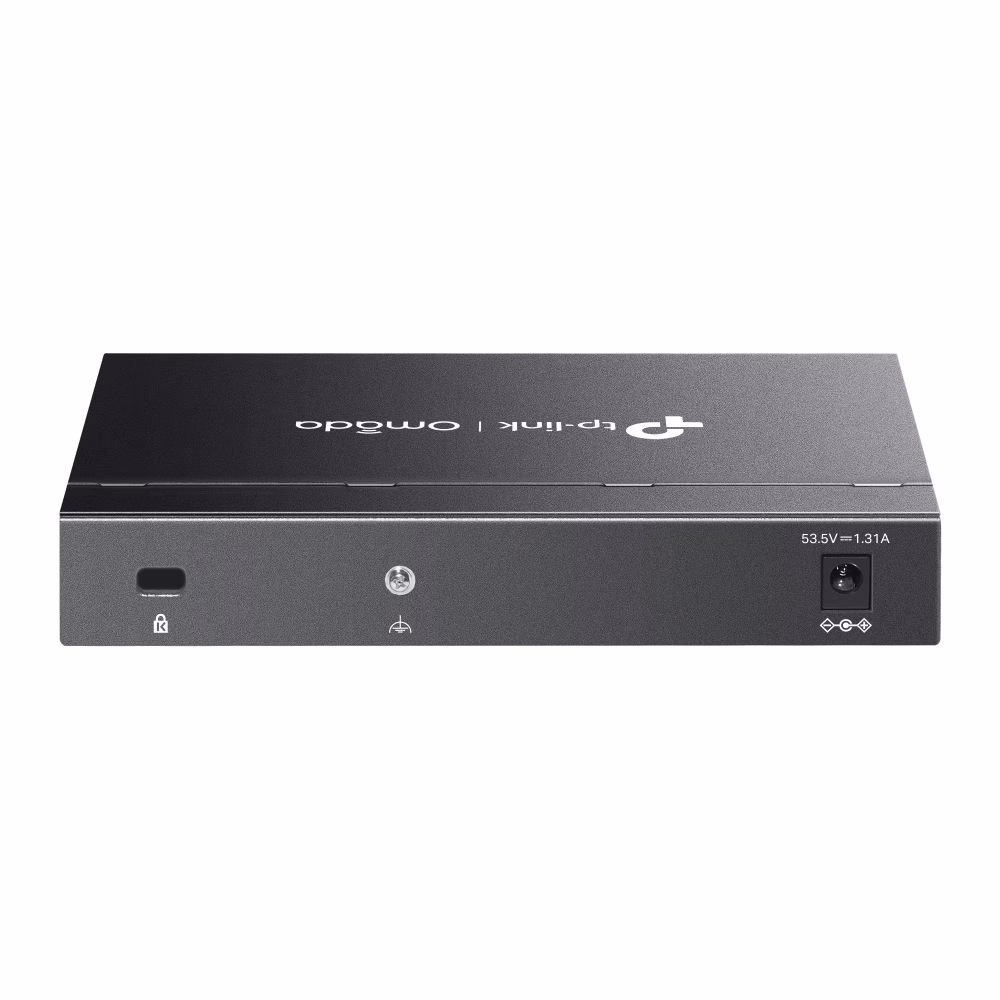

| Power Supply | DC Power Adapter (Output: 53.5VDC / 1.31A) |
| PoE Ports (RJ45) | Standard: 802.3af PoE / 802.3at PoE+ PoE Ports: 4 PoE Budget: 65W total, 30W max per port Fast PoE, Perpetual PoE, PoE Auto Recovery Up to 250 m PoE transmission distance |
| Dimensions (W × D × H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6 kV |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service (QoS) | Port-based / 802.1p / DSCP QoS 8 Priority Queues WRR Scheduling, Queue Weight Config Bandwidth Control, Storm Control |
| L2 Features | Static Link Aggregation, Loop Prevention, 802.3x Flow Control Port Mirroring (One-to-One, Many-to-One) Port Statistics, 802.1ab LLDP |
| L2 Multicast | IGMP Snooping (v1 / v2 / v3), Fast Leave |
| VLAN | MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN Max 32 VLAN Groups, 4K VID |
| Transmission Method | Store-and-Forward |
| Omada App | Yes (Controller Required) |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes (Controller Required) |
| Zero-Touch Provisioning | Yes (Omada Cloud-Based Controller Required) |
| Management Features | Web-based GUI, DHCP Client, Cable Diagnostics Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrade |
| Certification | FCC, CE, RoHS |
| Package Contents | ES206GP, Power Adapter, Power Cord, Rubber Feet, Installation Guide |
| Operating Environment | Operating Temp: -5℃ to 40℃ (23℉ to 104℉) Storage Temp: -40℃ to 70℃ (-40℉ to 158℉) Operating Humidity: 10%–90% RH Storage Humidity: 5%–90% RH |
