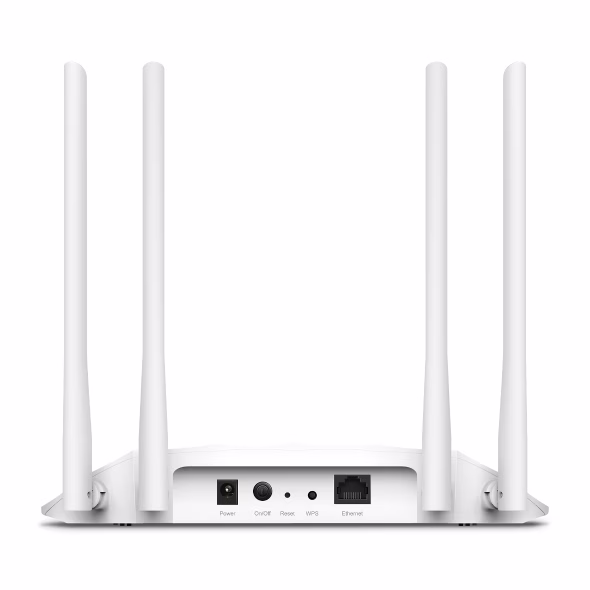

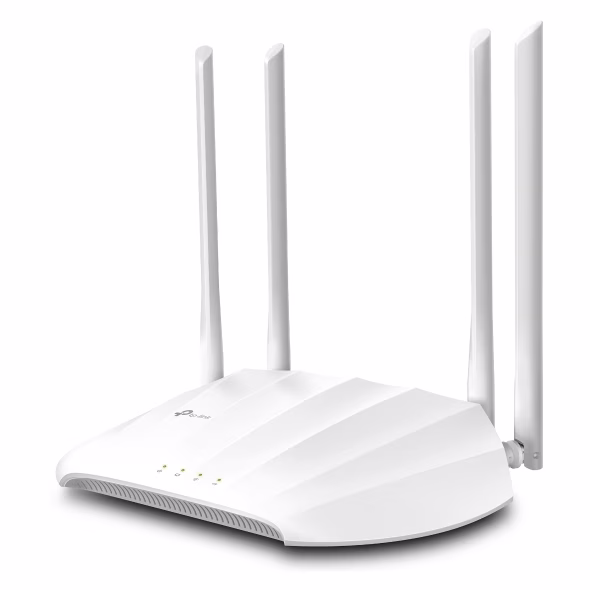

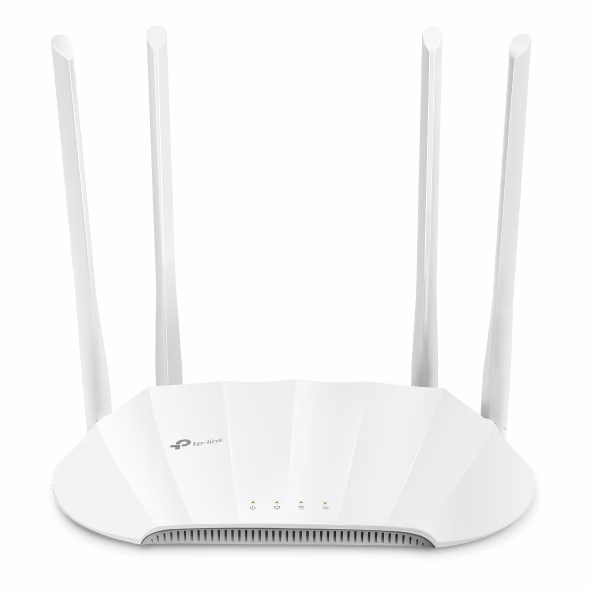

tp-link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point, 1.8 Gbps Dual Band, Boosted Coverage
Model :
SKU : WAP-TPLIN TL-WA1801 WIFI6
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
tp-link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point, 1.8 Gbps Dual Band, Boosted Coverage Specifications
| Interface | 1 Gigabit Port (Supports Passive PoE) |
| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 48V/0.375A |
| Dimensions (W x D x H) | 8.9??5.7??1.5 in (225??145.5??37mm) |
| Antenna Type | 4 Antennas |
| Wireless Standards | IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
| Reception Sensitivity |
5GHz: 11a 6Mbps: -97dbm 11a 54Mbps: -76dbm 11ac VHT20_MCS0: -96dbm 11ac VHT20_MCS8: -72dbm 11ac VHT40_MCS0: -93dbm 11ac VHT40_MCS9: -67dbm 11ac VHT80_MCS0: -90dbm 11ac VHT80_MCS9: -63dbm 11ax HE20_MCS0: -96dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -93dbm 11ax HE40_MCS11: -61dbm 11ax HE80_MCS0: -90dbm 11ax HE80_MCS11: -60dbm 2.4GHz: 11g 6Mbps: -96dbm 11a 54Mbps: -75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -72dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0: -95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm |
| Transmit Power | FCC: <30dBm (2.4 GHz & 5.15 GHz~5.825 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control |
| Wireless Security | WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions |
| Quality of Service | WMM |
| Operating Modes | Access Point, Range Extender, Client, Multi-SSID |
| System Tools | SNMP, Ping Watchdog |
| DHCP | Server, DHCP Client List |
| Protocols | IPv4, IPv6 |
| Certification | FCC, RoHS |
| Package Contents | Wireless Access Point TL-WA1801, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide, PoE Power Injector |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Environment | Operating Temperature: 0??C ~ 40??C (32??F ~ 104??F), Operating Humidity: 10%~90% non-condensing |
Specification
tp-link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point, 1.8 Gbps Dual Band, Boosted Coverage Specifications
| Interface | 1 Gigabit Port (Supports Passive PoE) |
| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 48V/0.375A |
| Dimensions (W x D x H) | 8.9??5.7??1.5 in (225??145.5??37mm) |
| Antenna Type | 4 Antennas |
| Wireless Standards | IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
| Reception Sensitivity |
5GHz: 11a 6Mbps: -97dbm 11a 54Mbps: -76dbm 11ac VHT20_MCS0: -96dbm 11ac VHT20_MCS8: -72dbm 11ac VHT40_MCS0: -93dbm 11ac VHT40_MCS9: -67dbm 11ac VHT80_MCS0: -90dbm 11ac VHT80_MCS9: -63dbm 11ax HE20_MCS0: -96dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -93dbm 11ax HE40_MCS11: -61dbm 11ax HE80_MCS0: -90dbm 11ax HE80_MCS11: -60dbm 2.4GHz: 11g 6Mbps: -96dbm 11a 54Mbps: -75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -72dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0: -95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm |
| Transmit Power | FCC: <30dBm (2.4 GHz & 5.15 GHz~5.825 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control |
| Wireless Security | WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions |
| Quality of Service | WMM |
| Operating Modes | Access Point, Range Extender, Client, Multi-SSID |
| System Tools | SNMP, Ping Watchdog |
| DHCP | Server, DHCP Client List |
| Protocols | IPv4, IPv6 |
| Certification | FCC, RoHS |
| Package Contents | Wireless Access Point TL-WA1801, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide, PoE Power Injector |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Environment | Operating Temperature: 0??C ~ 40??C (32??F ~ 104??F), Operating Humidity: 10%~90% non-condensing |
