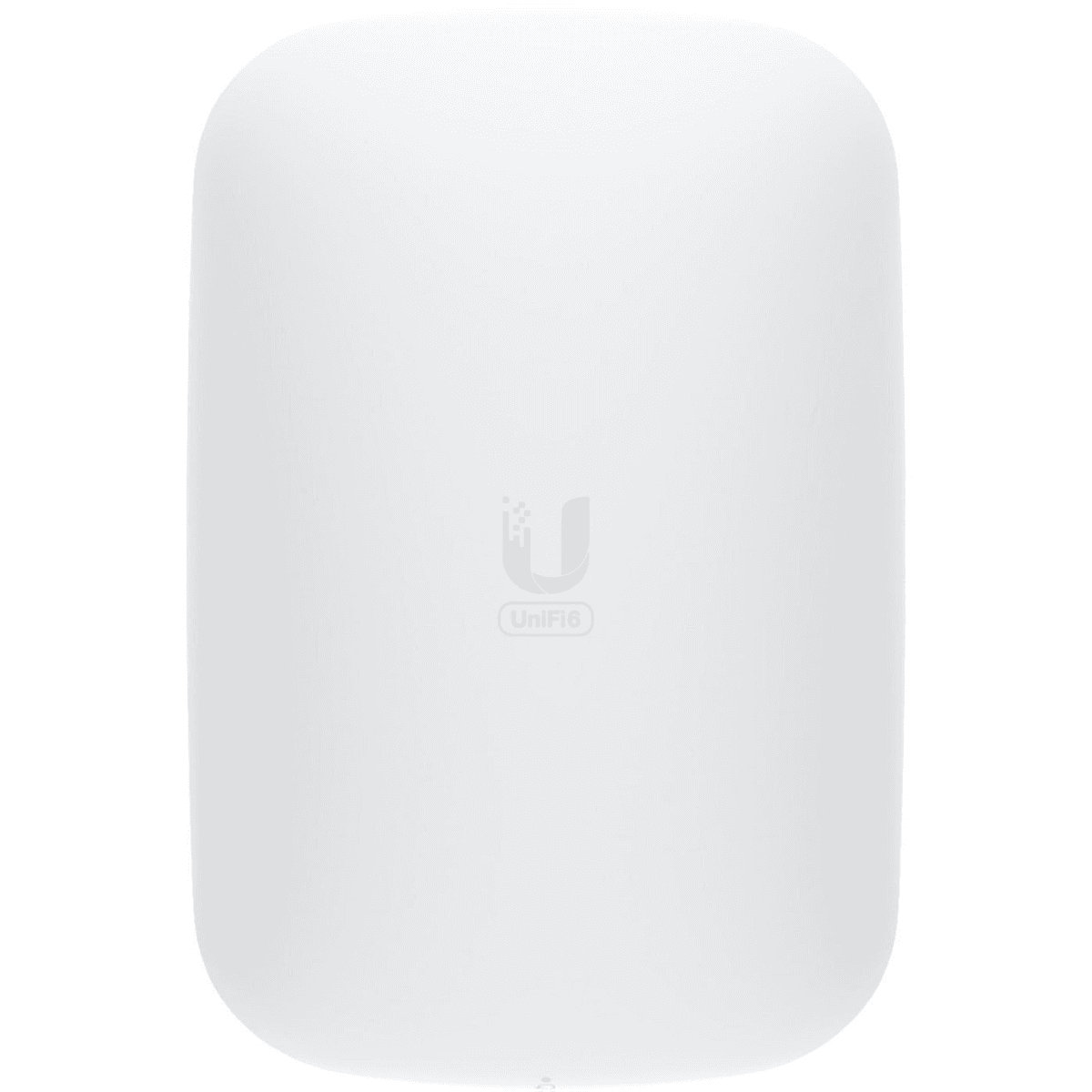

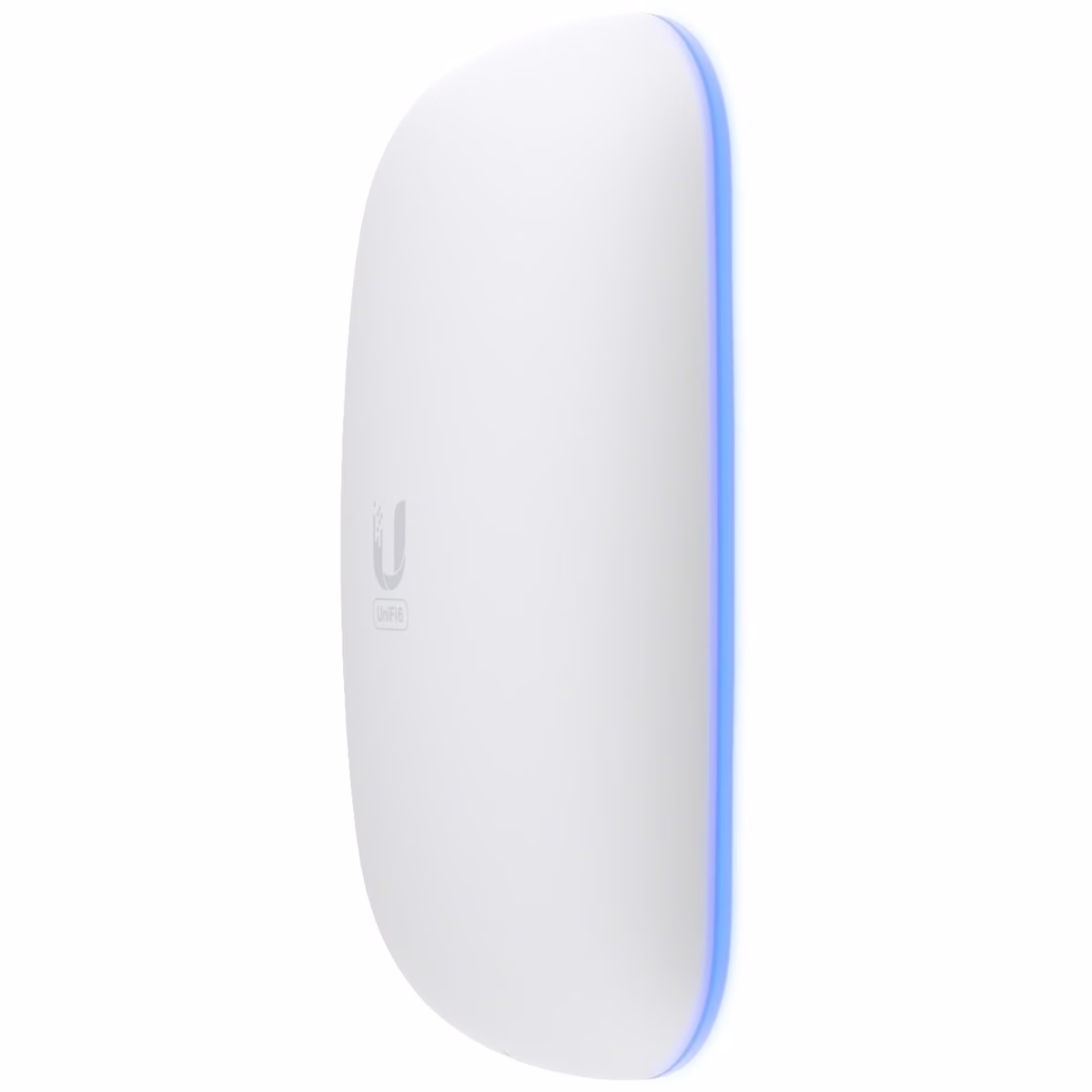

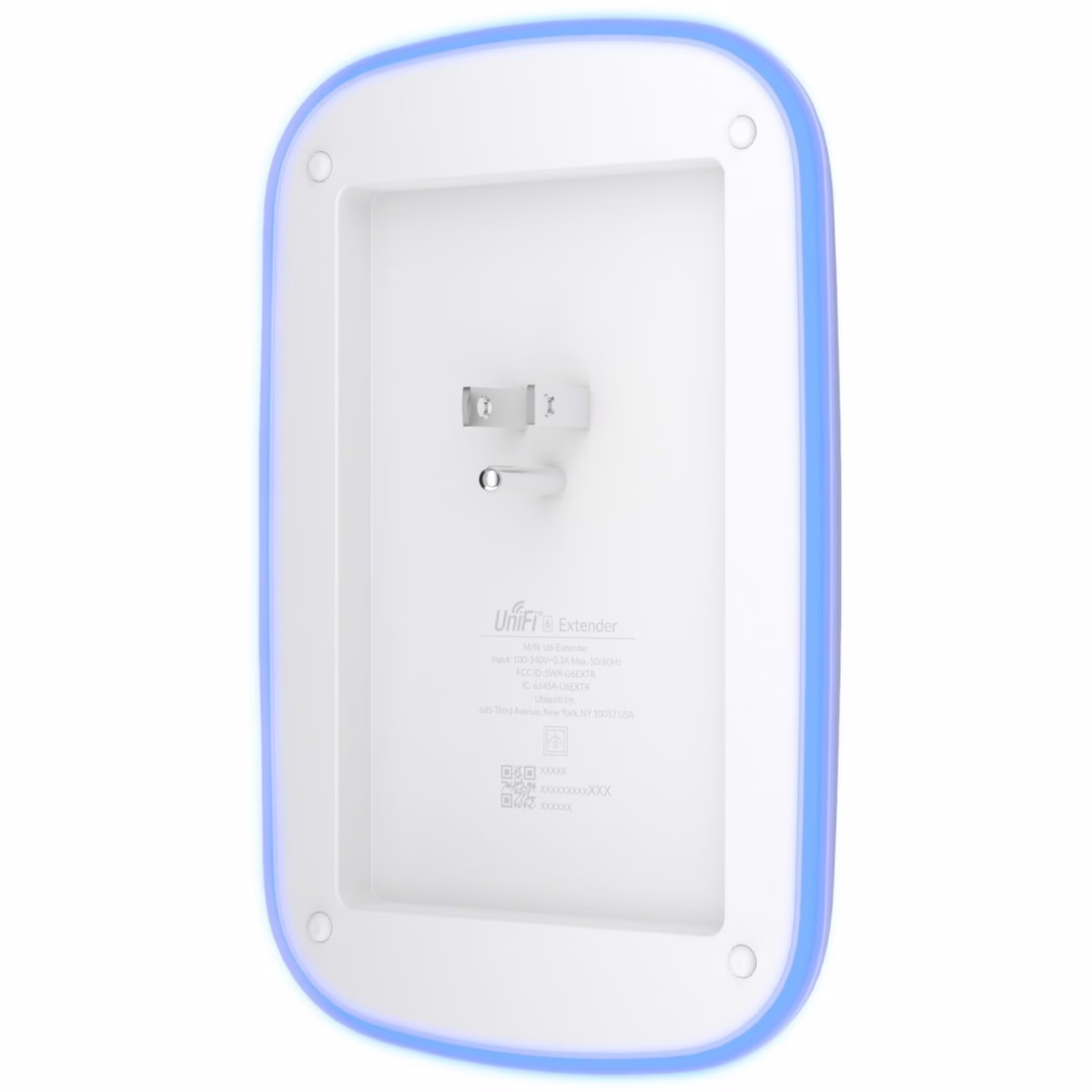

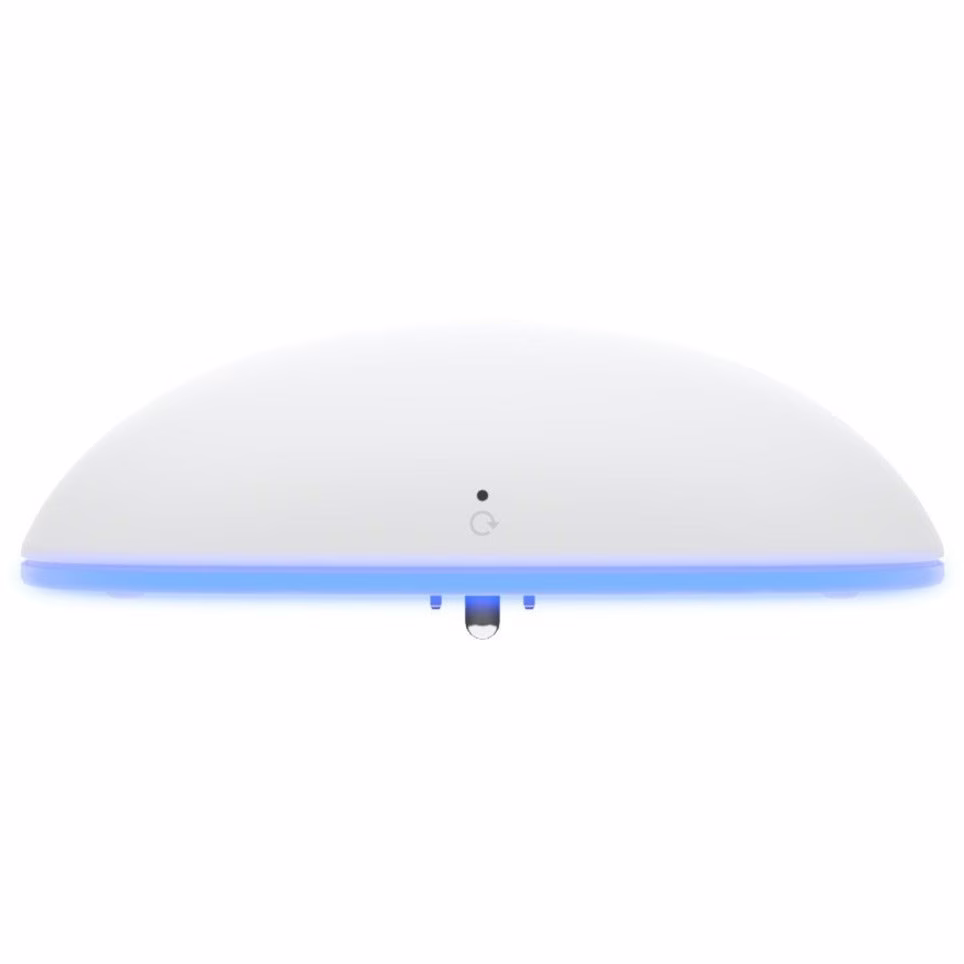

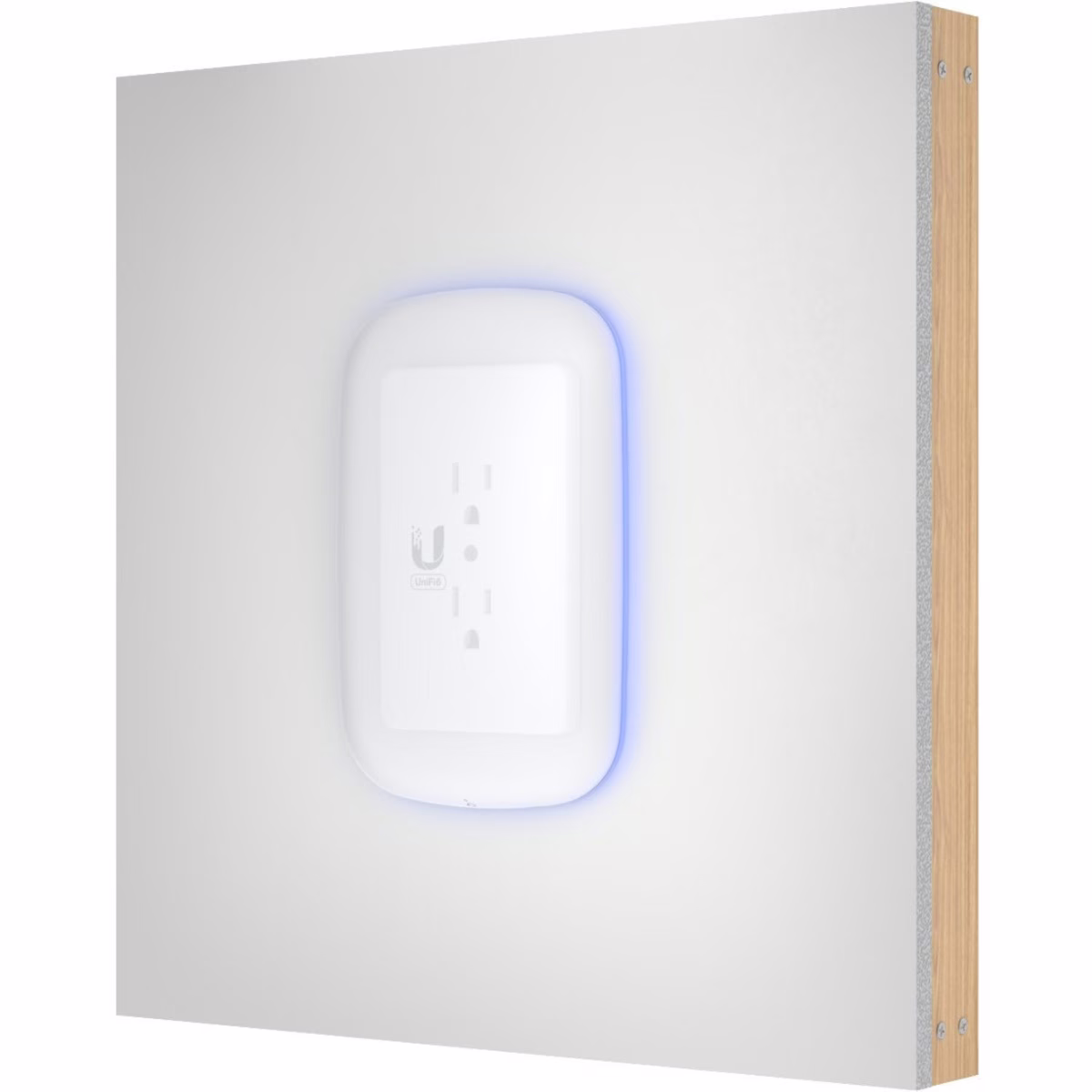

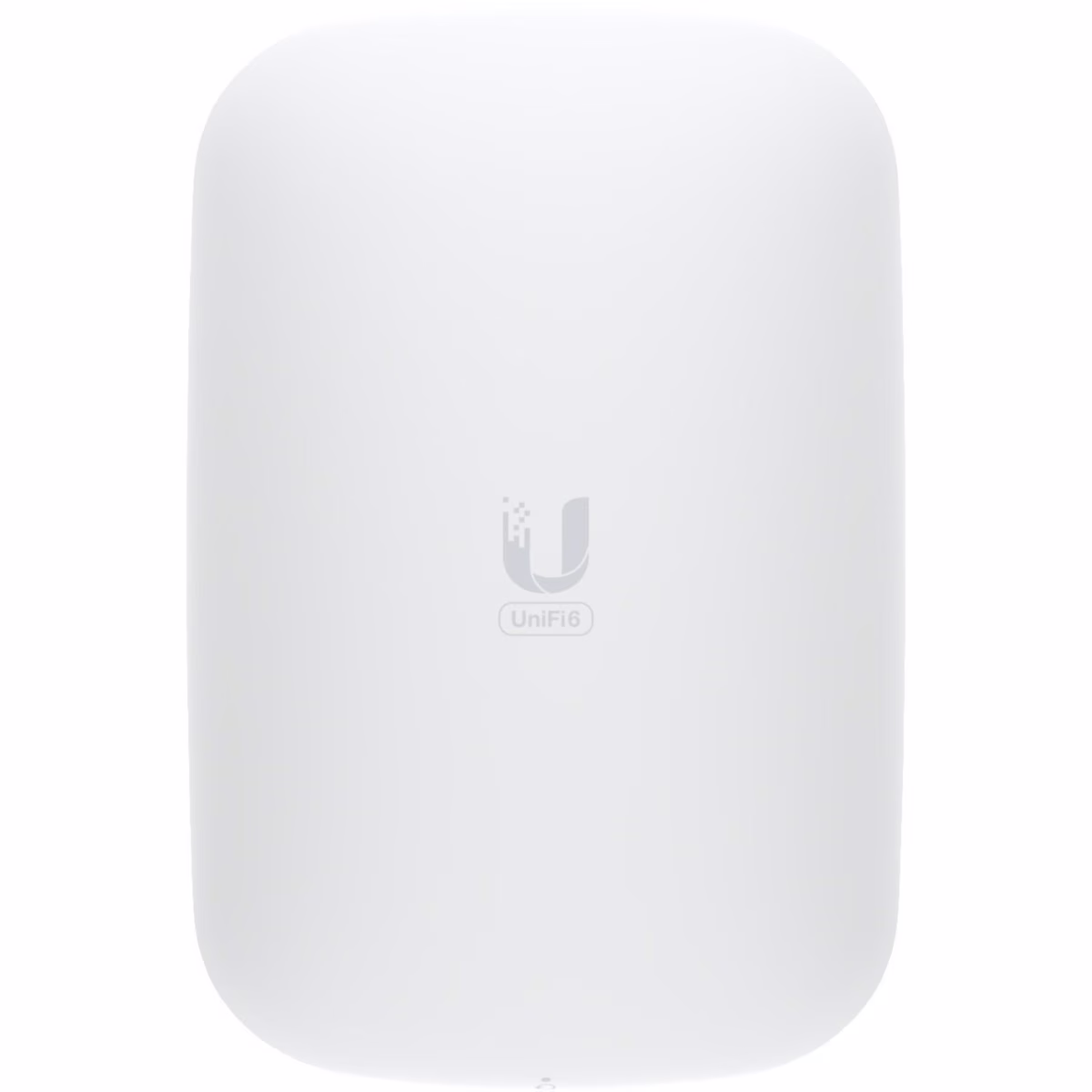

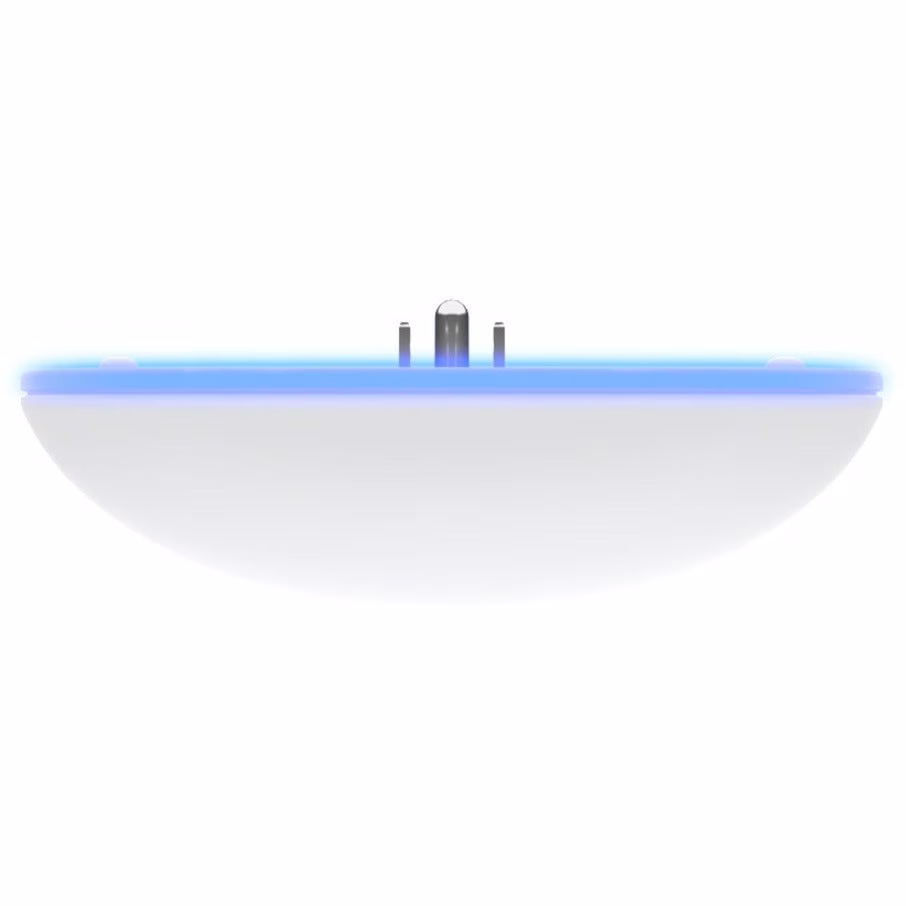

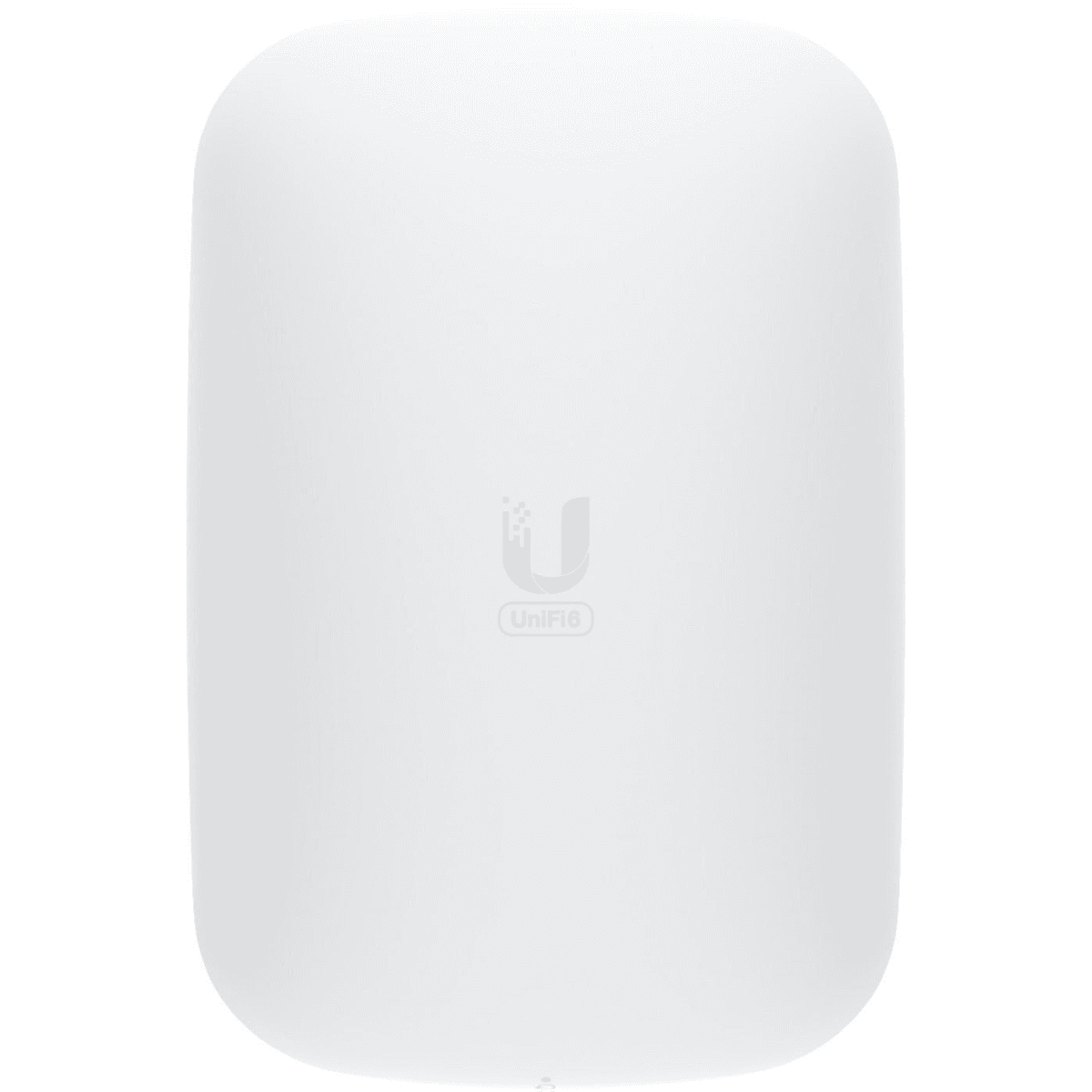

Ubiquiti Networks UniFi Access Point U6 Dual-Band Range Extender, WiFi 6, Up to 4.8 Gb/s Throughput, Outlet Plug-in, Manage via UniFi Mobile App, White | U6-Extender
Model :
SKU : UNIFI U6-Extender
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Gateway Device Specifications
| Mechanical | |
|---|---|
| Dimensions | US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3") EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1") |
| Weight | US: 290 g (10.2 oz) EU: 340 g (12 oz) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Management Interface | Bluetooth |
| Power Method | Universal AC input, 100???240V AC, 0.3A Max., 50/60 Hz |
| Supported Voltage Range | 110???240V AC |
| Max. Power Consumption | 11W |
| Max. TX Power | 2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: ??? |
| MIMO | 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz: ??? |
| Max. Data Rate | 2.4 GHz: 573.5 Mbps (BW40) 5 GHz: 4.8 Gbps (BW160) 6 GHz: ??? |
| Antenna Gain | 2.4 GHz: 5 dBi 5 GHz: 6 dBi 6 GHz: ??? |
| LEDs | White/blue |
| Button | Factory Reset |
| Ambient Operating Temperature | -10 to 50?? C (14 to 122?? F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.5.55 and later |
Specification
Gateway Device Specifications
| Mechanical | |
|---|---|
| Dimensions | US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3") EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1") |
| Weight | US: 290 g (10.2 oz) EU: 340 g (12 oz) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Management Interface | Bluetooth |
| Power Method | Universal AC input, 100???240V AC, 0.3A Max., 50/60 Hz |
| Supported Voltage Range | 110???240V AC |
| Max. Power Consumption | 11W |
| Max. TX Power | 2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: ??? |
| MIMO | 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz: ??? |
| Max. Data Rate | 2.4 GHz: 573.5 Mbps (BW40) 5 GHz: 4.8 Gbps (BW160) 6 GHz: ??? |
| Antenna Gain | 2.4 GHz: 5 dBi 5 GHz: 6 dBi 6 GHz: ??? |
| LEDs | White/blue |
| Button | Factory Reset |
| Ambient Operating Temperature | -10 to 50?? C (14 to 122?? F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.5.55 and later |
