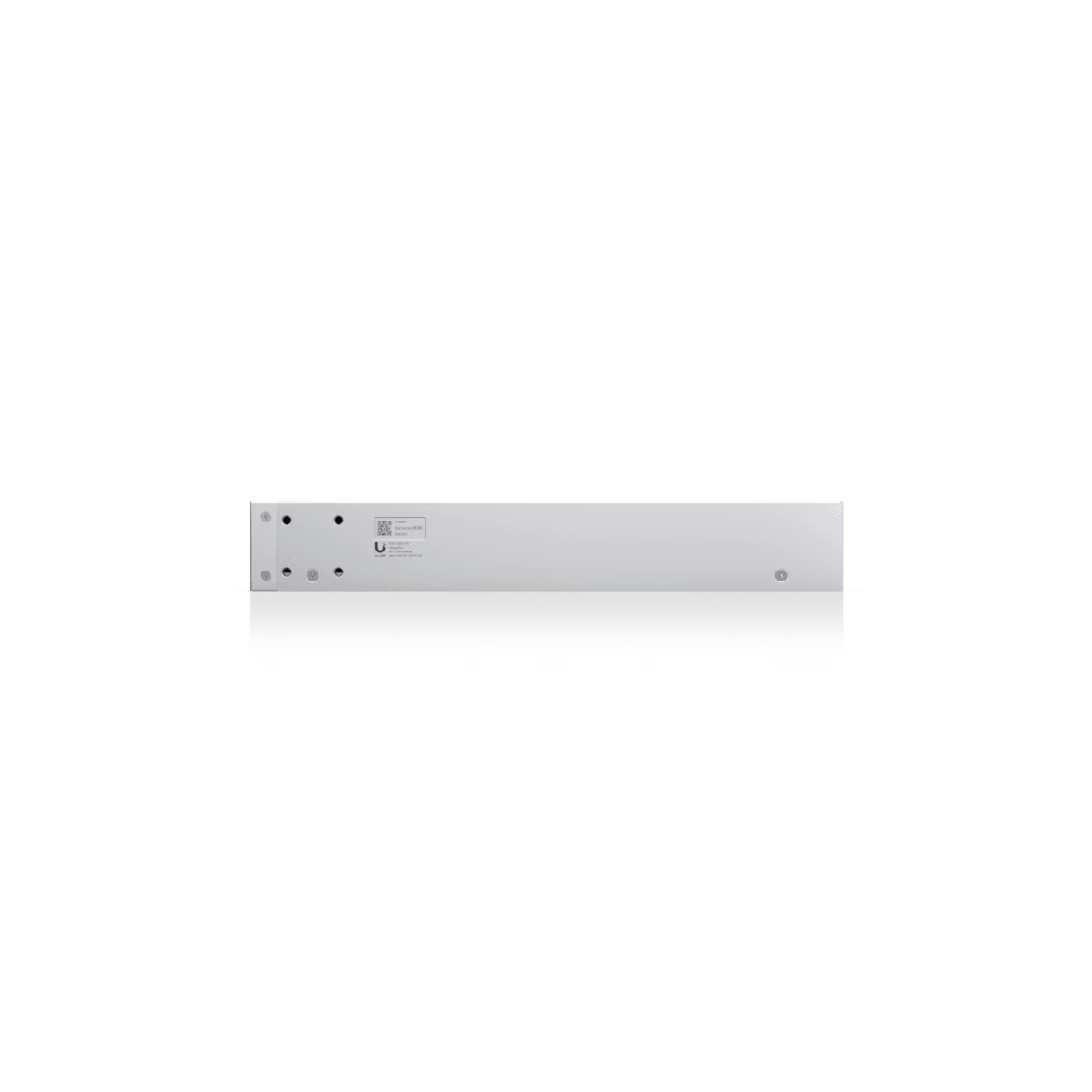

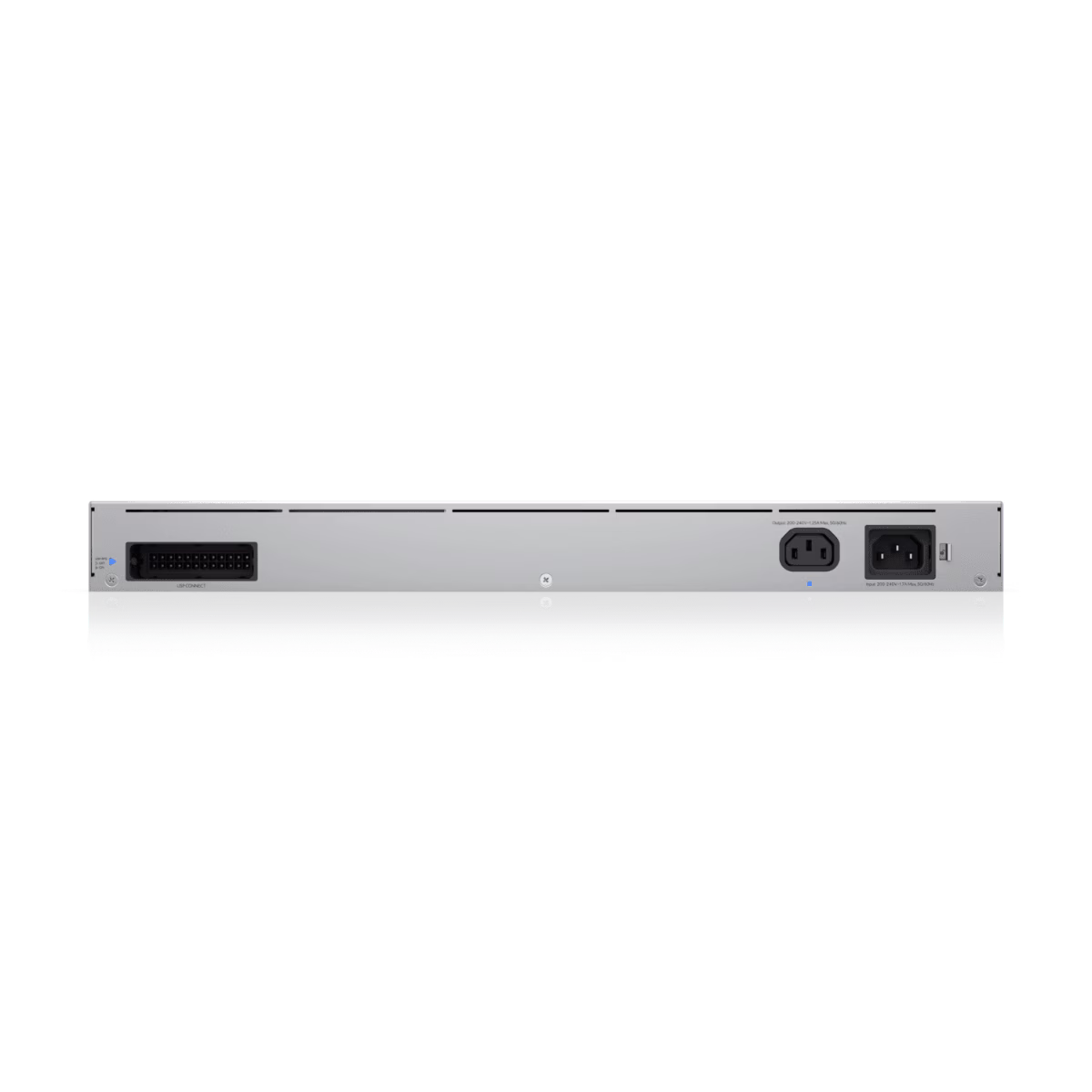

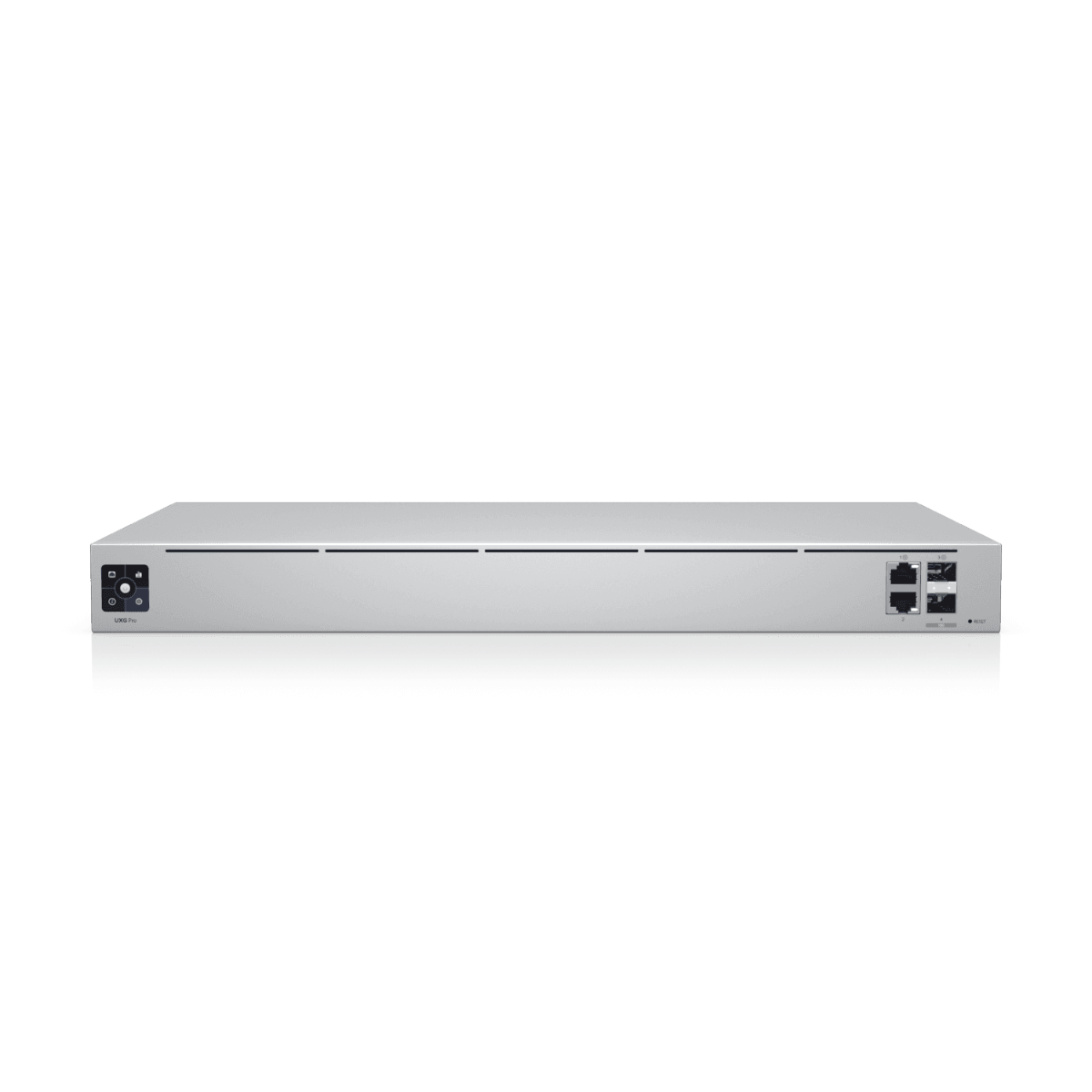

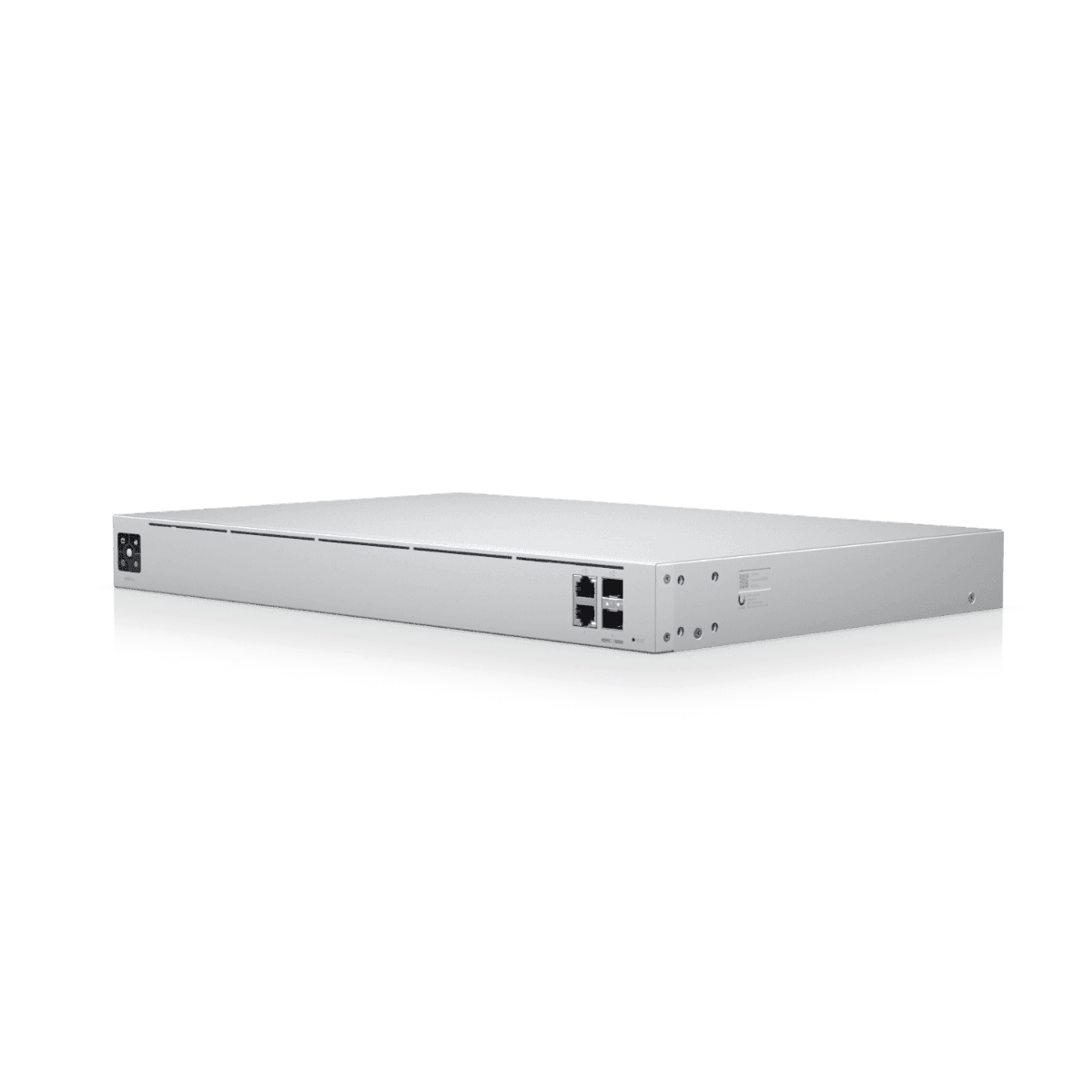

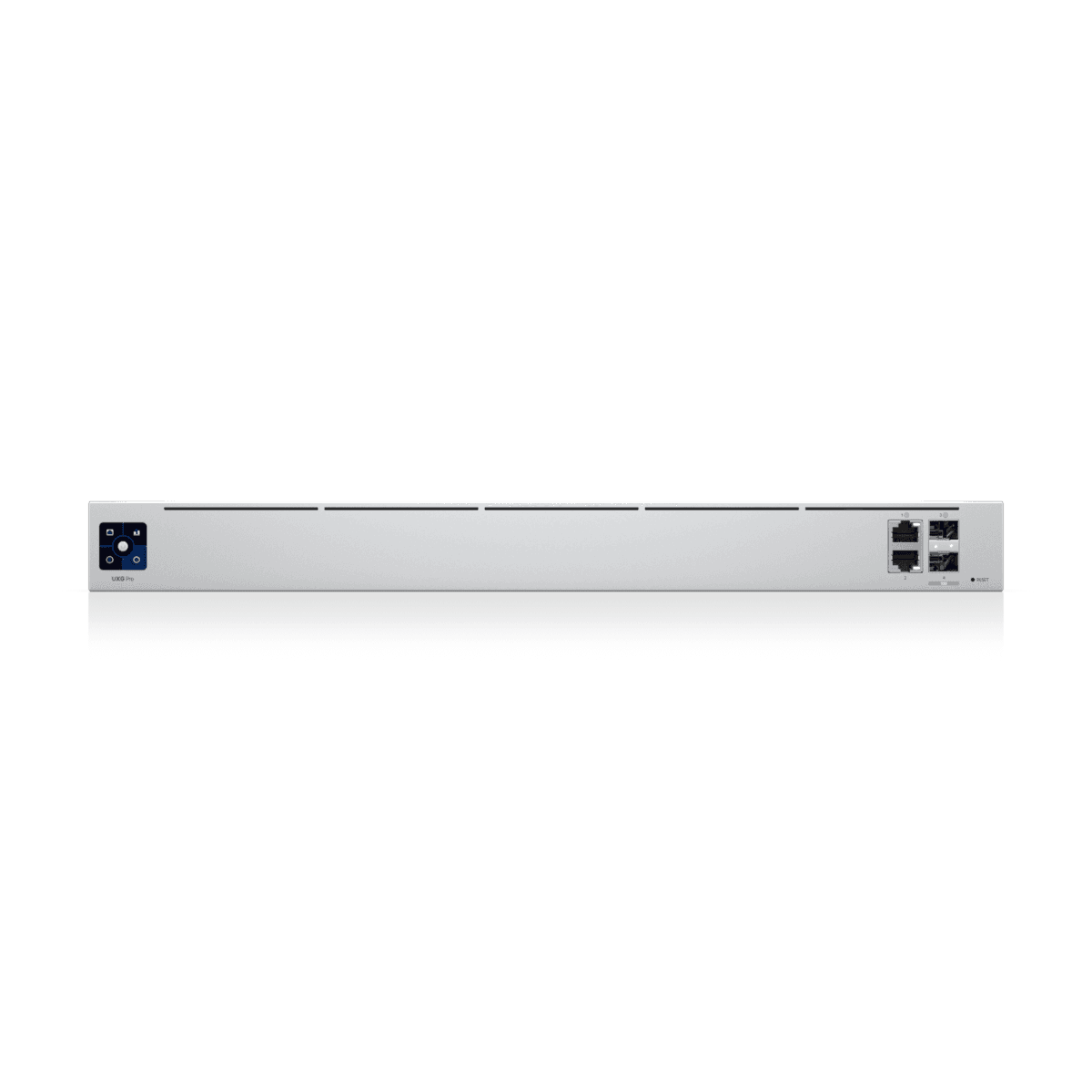

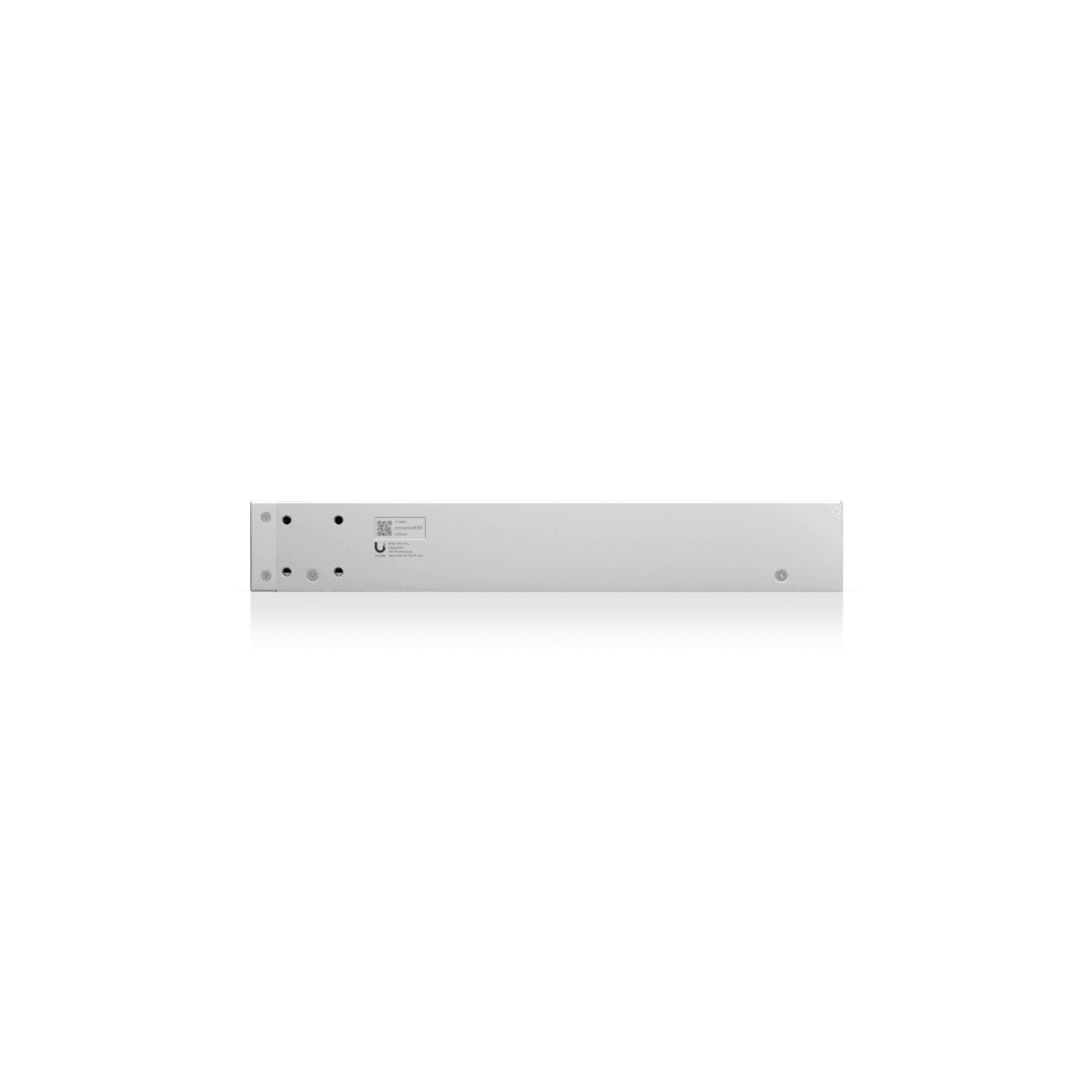

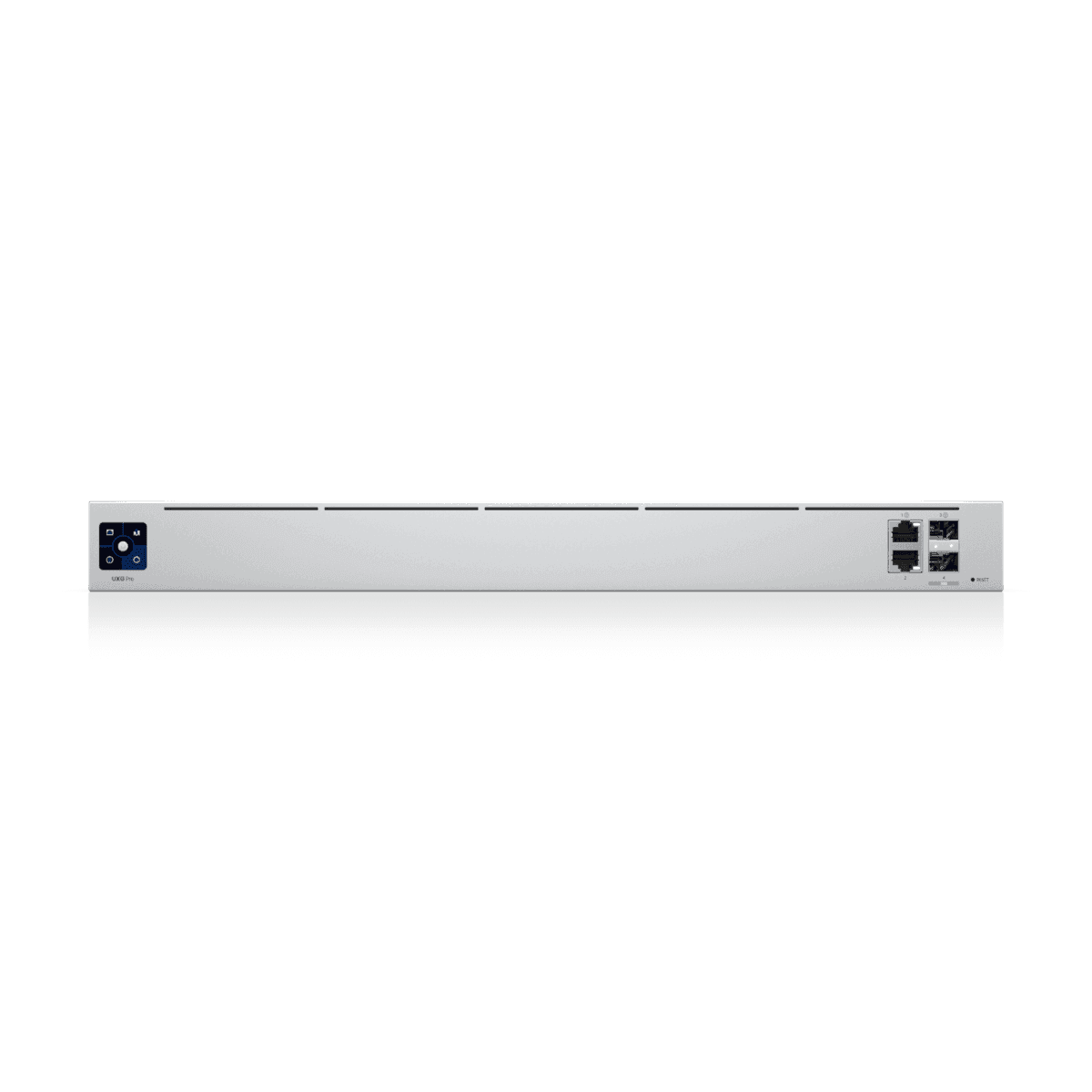

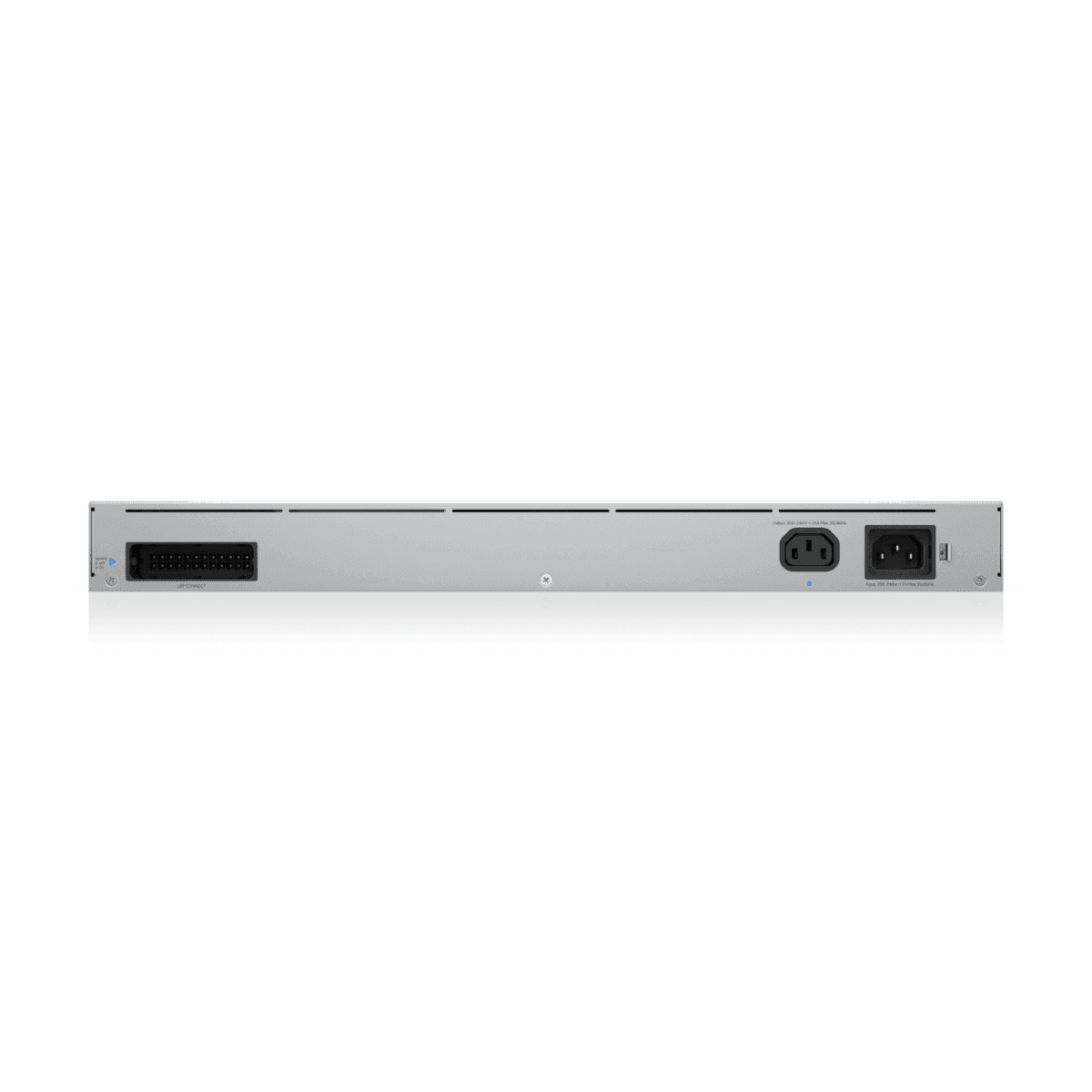

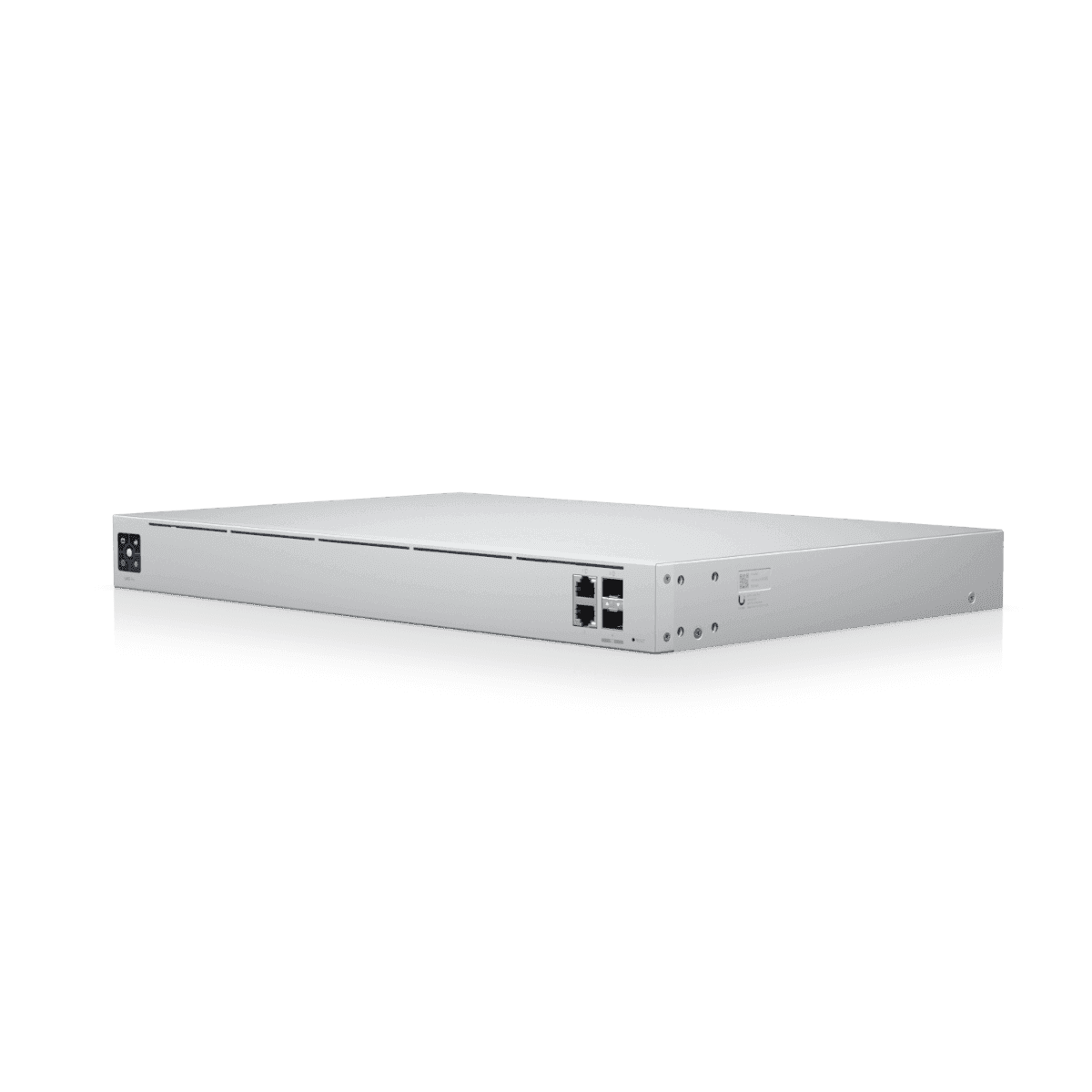

Unifi Gateway Pro 10G multi-WAN independent Gateway, UniFi Power Backup support designed to protect large-scale networks | UXG-Pro
Model :
SKU : UNIFI UXG-PRO-EU
About this item
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+* and (1) GbE WAN port
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
UniFi Enterprise Gateway (Rack-Mount) Specifications
Overview
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Form Factor | Rack mount (1U) |
| Max. WAN Ports | 3 |
| Default WAN Ports | 1 x 10G SFP+, 1 x GbE RJ45 |
| Port Layout | 2 x 10G SFP+ (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Redundancy | DC Power Backup |
Security Features
- Stateful Firewall
- Application-Aware Layer 7 Firewall
- DPI & Traffic Identification
- Zone-Based Firewall Filtering (Regions, Domains, Apps)
- Content Filtering
- Intrusion Prevention (IPS/IDS)
- Ad Blocking
- IDS/IPS Signatures: 55,000+ (with CyberSecure)
VPN & SD-WAN Features
- License-Free SD-WAN
- Site-to-Site VPN (Site Magic, IPsec, OpenVPN, WireGuard, L2TP)
- Teleport Zero-Configuration VPN
- VPN Client Support (OpenVPN, WireGuard)
Advanced Networking Features
- Multi-WAN Load Balancing
- Dynamic Routing (OSPF)
- Advanced QoS
- Multicast DNS (mDNS)
- Advanced NAT (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT)
- Integrated RADIUS Server with RADIUS over TLS (RadSec)
- LTE Backup Support (UniFi LTE)
- Internet Quality & Outage Reporting
Hardware Specifications
| Max. Power Consumption | 30W |
| Power Method | US: Universal AC input, 125V AC, 2.7A Max., 60 Hz RPS DC input, 11.5V DC, 2.87A Worldwide: Universal AC input, 200???240V AC, 1.7A Max., 50/60 Hz RPS DC input, 11.5V DC, 2.87A |
| Power Supply | AC/DC, Internal, 50W |
| Supported Voltage Range | 100???240V AC |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| System Memory | 2 GB |
| Weight | 3.4 kg (7.5 lb) |
| Enclosure Material | Front panel: Aluminum CNC, Top/Base: SGCC Steel |
| LCM Display | 1.3" Touchscreen |
Management & Indicators
| Management | Ethernet |
| LED Indicators | Ethernet: ??? SFP+: ??? RPS: ??? AC Outlet: ??? |
| Reset Button | 1 x Factory Reset |
| ESD/EMP Protection | Air: ??15kV, Contact: ??8kV |
| Ambient Operating Temperature | -10 to 40??C (14 to 104??F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Software
| Application Requirements | UniFi Network version 8.3.32 and later |
