Model :

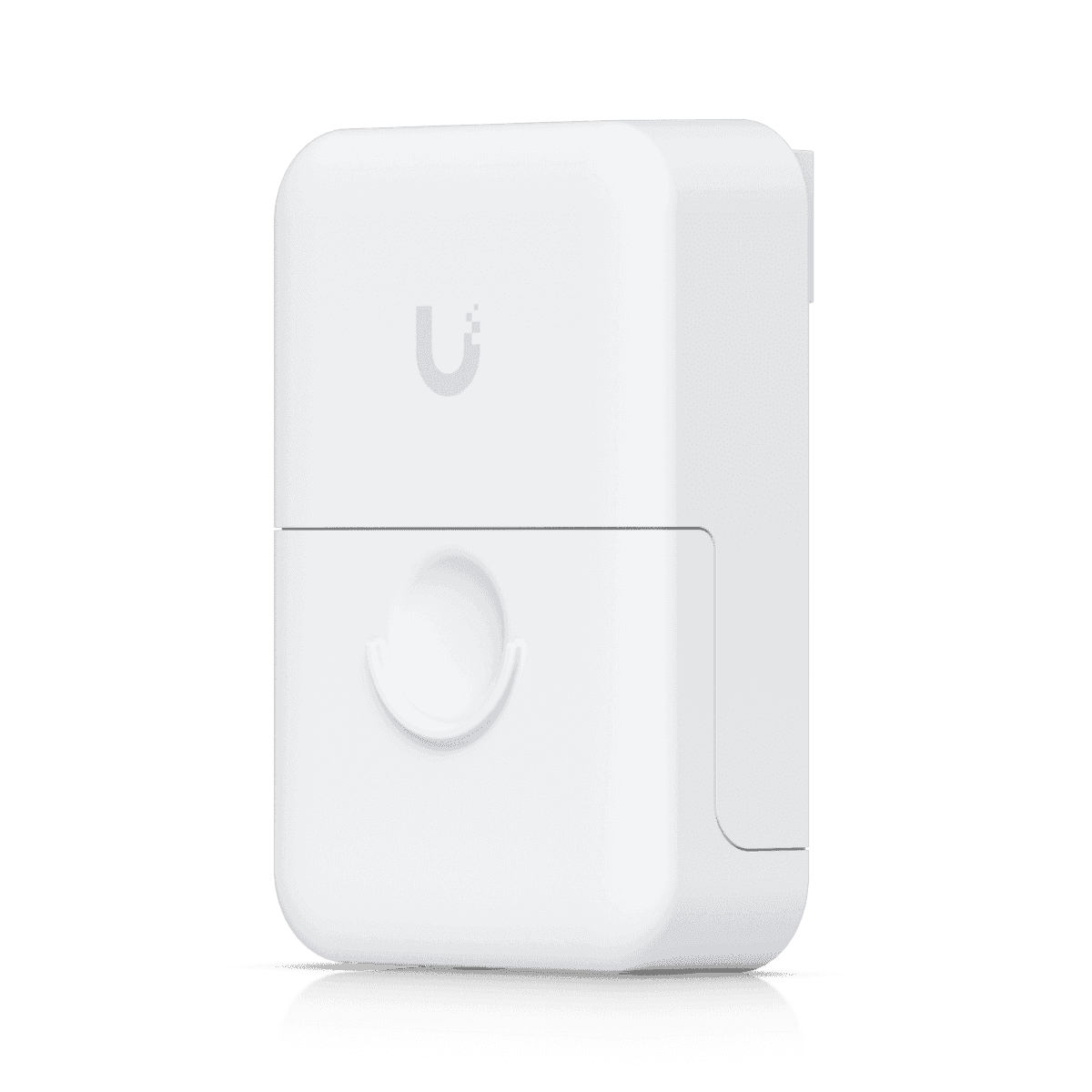

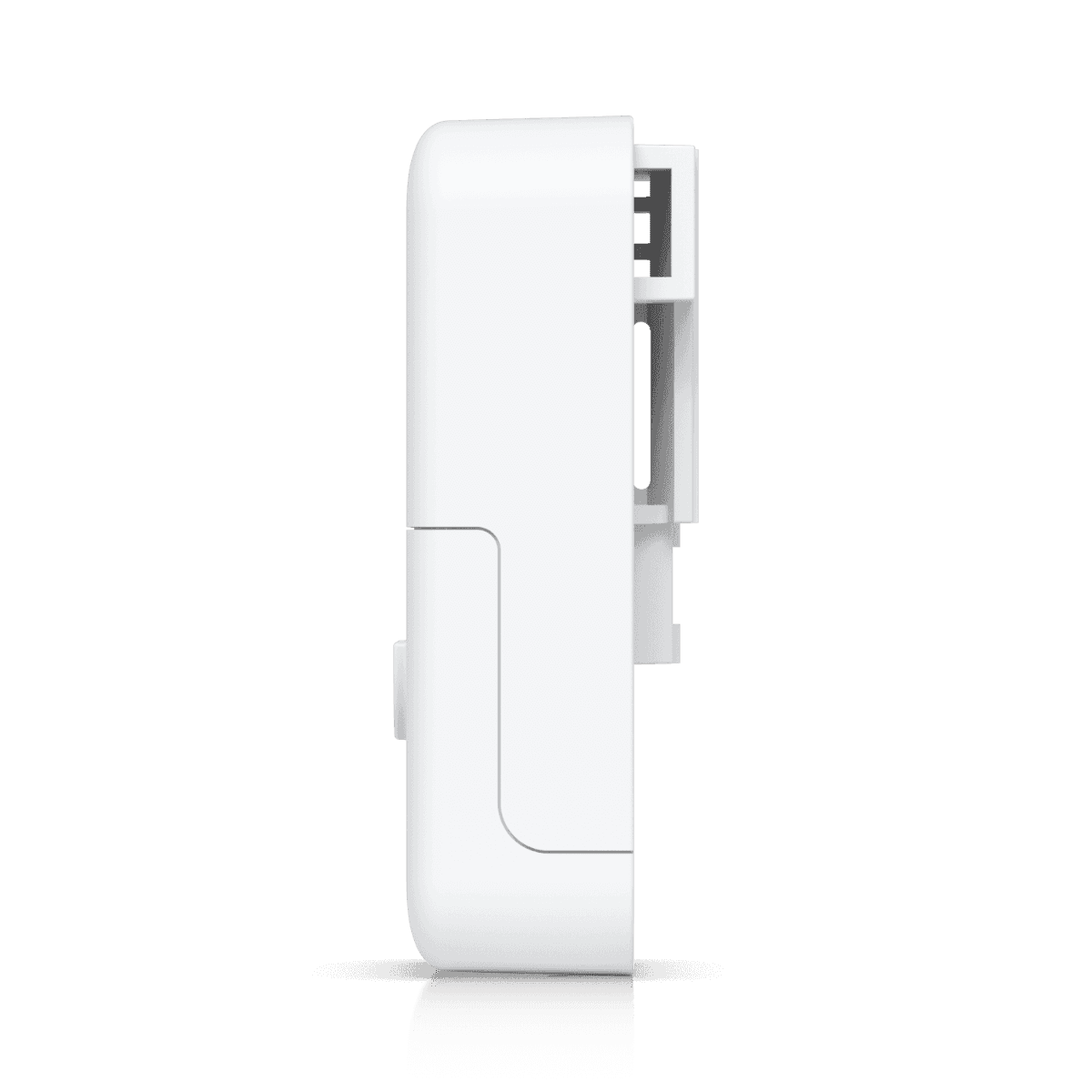

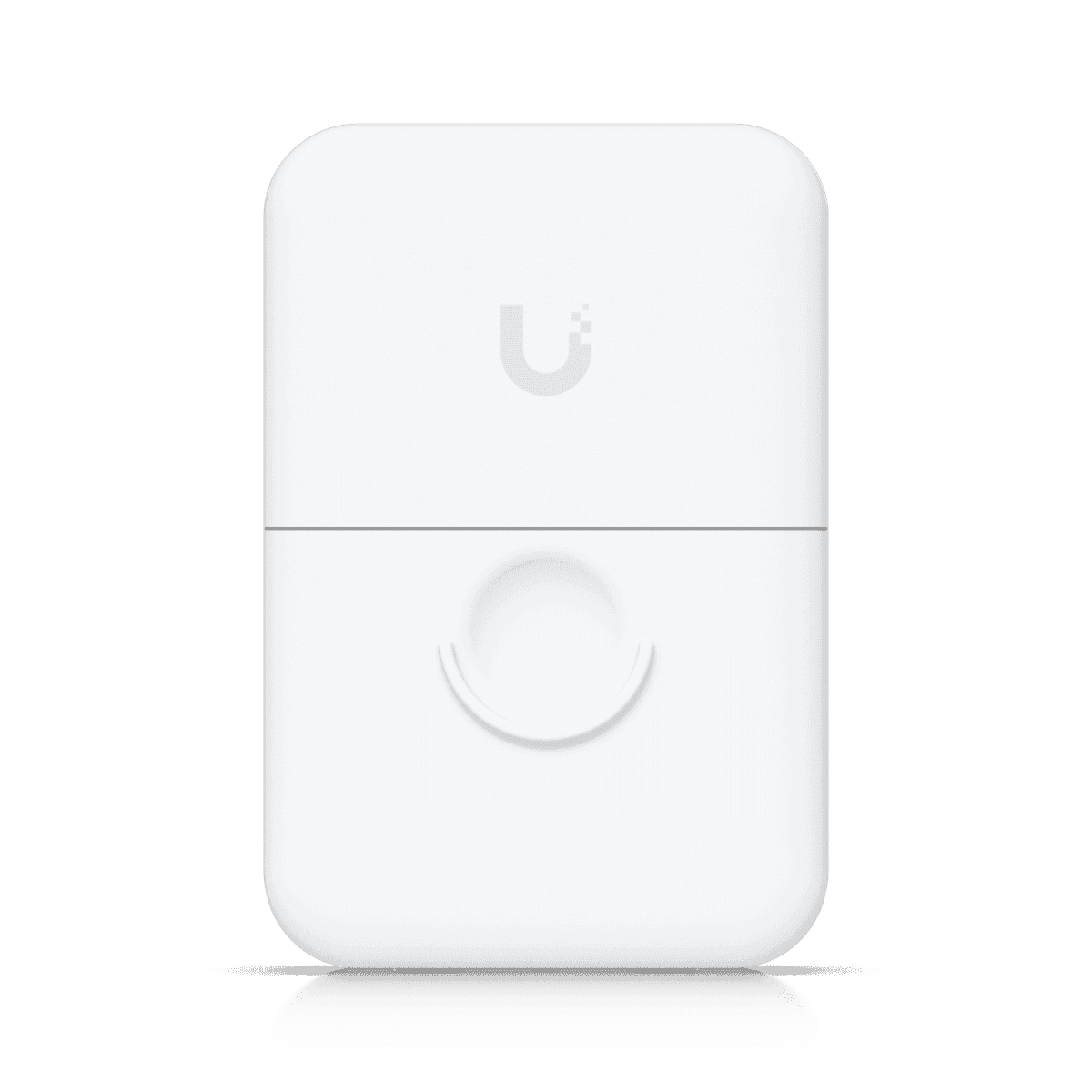

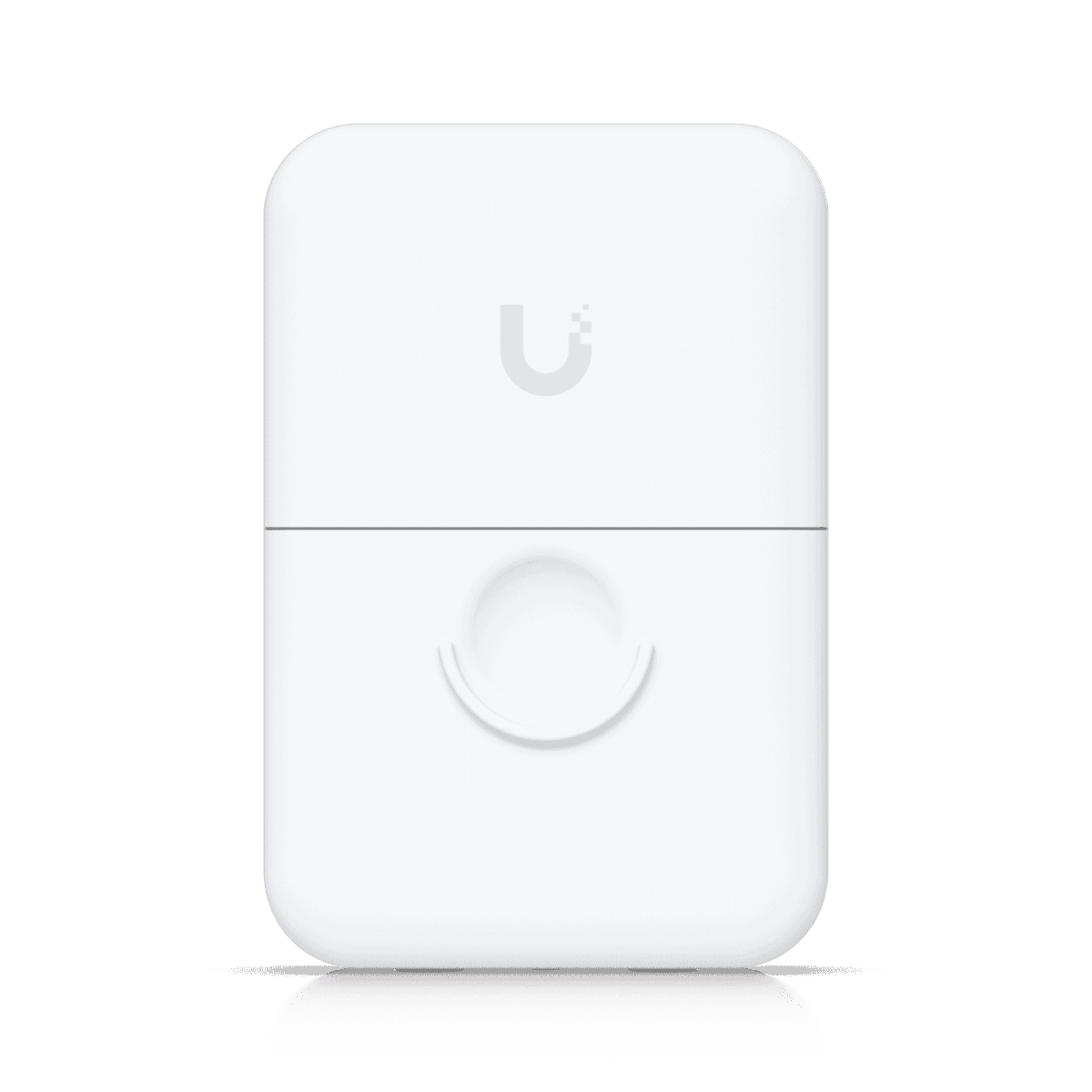

SKU : UNIFI ETH-SP-G2
ESD protection for outdoor high-speed networks.
Outdoor Ethernet cables acts as unintentional "antennas" for electrostatic discharge and lightning-induced surges. The ETH-SP-G2 acts as a high-speed barrier, identifying harmful voltage spikes and clamping them before they reach your expensive network hardware. It supports Gigabit Ethernet speeds and is fully compatible with both PoE and non-PoE network segments, making it a universal shield for almost any outdoor networking setup.
Rugged, Weather-Resistant Design

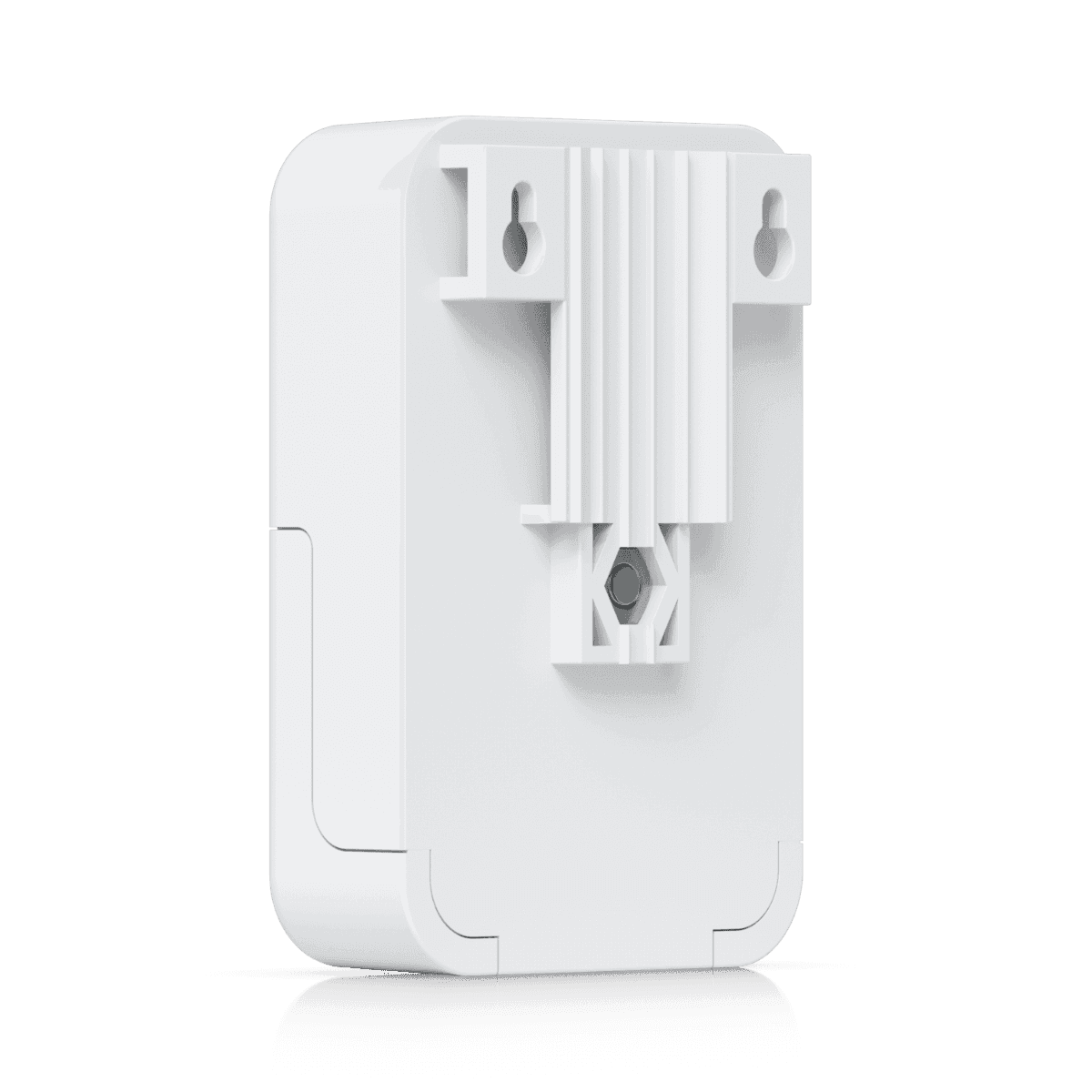

Engineered for the demands of outdoor deployment, the G2 model features a compact, weather-resistant casing that resists mechanical stress and environmental elements. Its small footprint allows for easy mounting near the equipment or at the point of cable entry into a structure. It is designed to be a "set-it-and-forget-it" component that provides vital infrastructure protection without requiring active maintenance.
Code Compliance and Reliability
In many regions, building codes require outdoor network installations to have surge protection at the point of building entry to prevent fires or equipment destruction. The ETH-SP-G2 is designed to meet these requirements easily and reliably. By installing two protectors per cable run, you create a tiered defense strategy: the outdoor protector absorbs the brunt of the surge near the device, while the secondary protector at the entry point ensures any remaining transient voltage is neutralized before entering your home or business network.
| Mechanical | |
|---|---|
| Hardware | |
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 80 g (2.8 oz) |
| Weatherproofing | IPX5 |

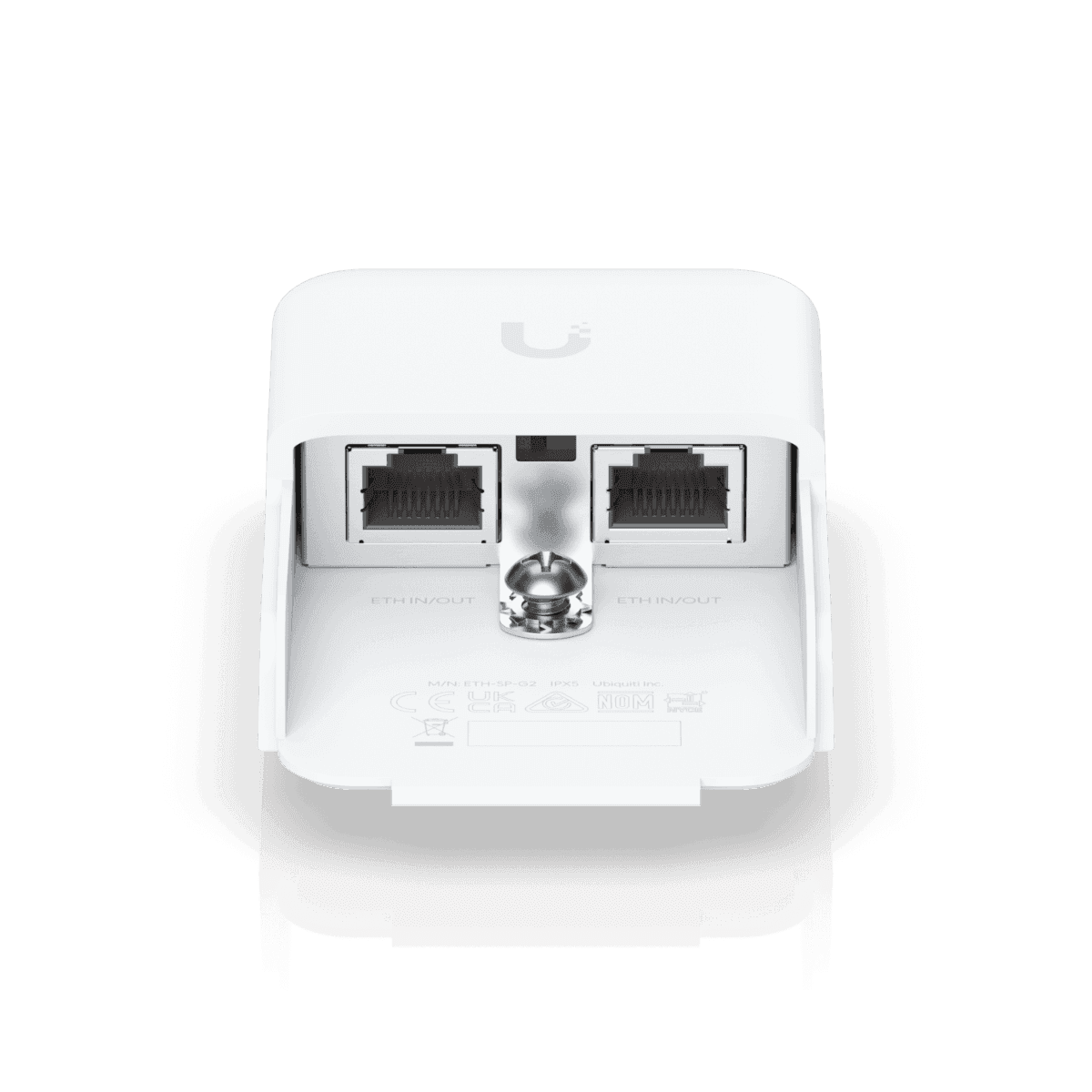

| Networking interface | (2) RJ45 female connectors |
| ESD/EMP protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/s |
| DC spark-over voltage | 90V @ 100V/s |
| Max. impulse spark-over voltage | 700V @ 1kV/s |
| Discharge Current | 10kA+ |
| Max. insulation resistance | 1G ohm @ 50V |
| Max. capacitance | 1.0 pF @ 1 MHz |
| Data line protection | Up to 2.5 Gbps |
| PoE support | Yes |
| Shock and vibration certification | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -30 to 65 C (-22 to 149 F) |
| Ambient operating humidity | 10 to 90% noncondensing |
