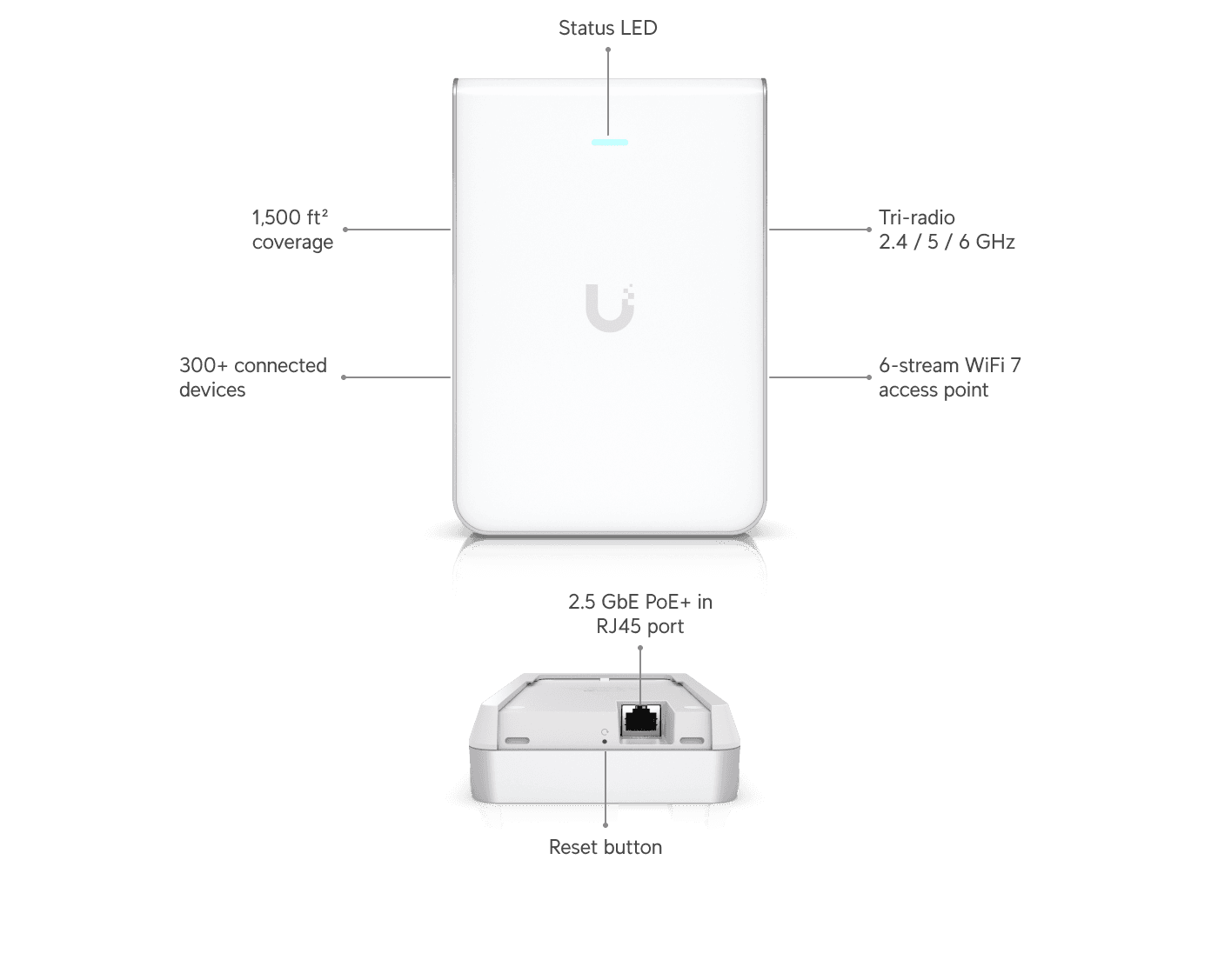

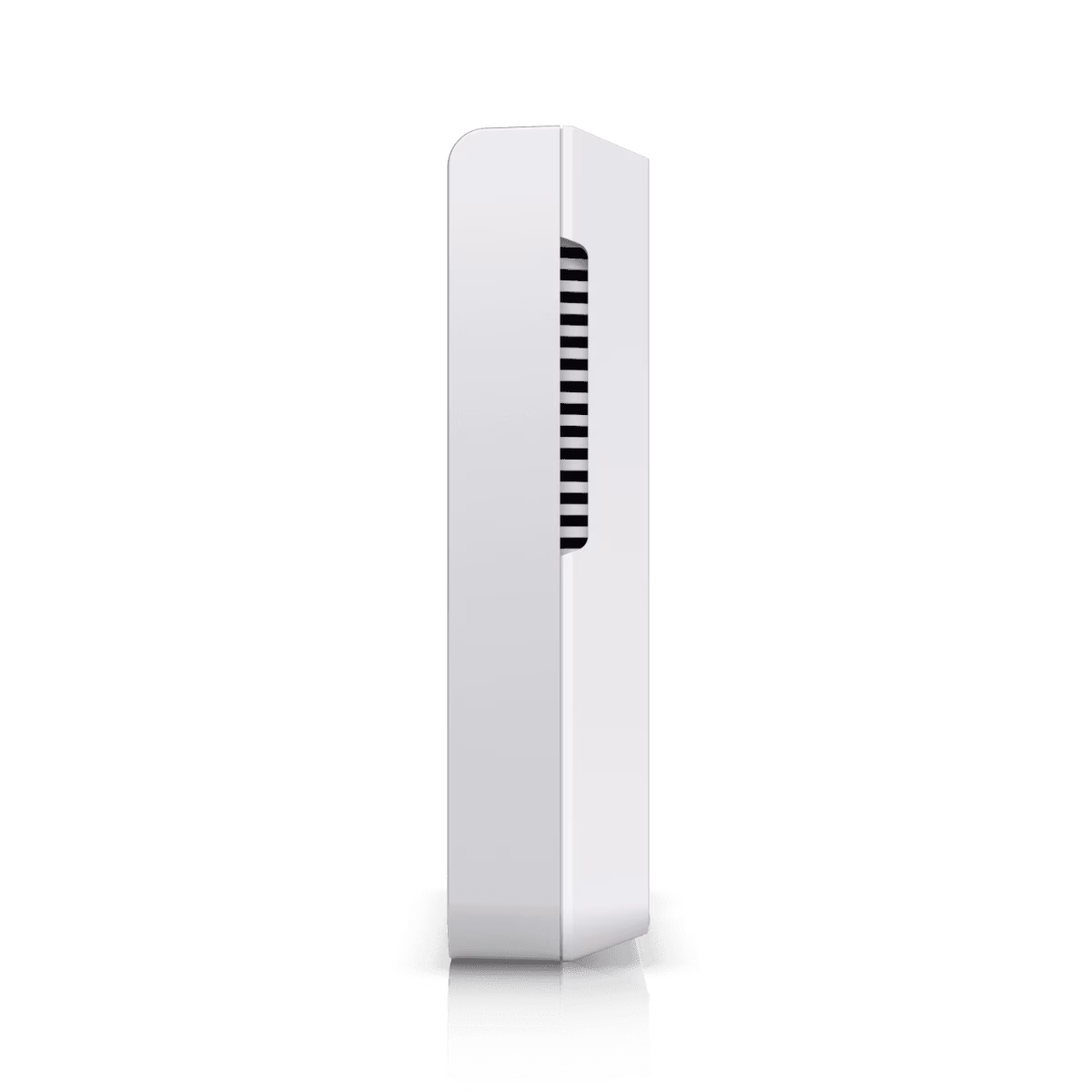

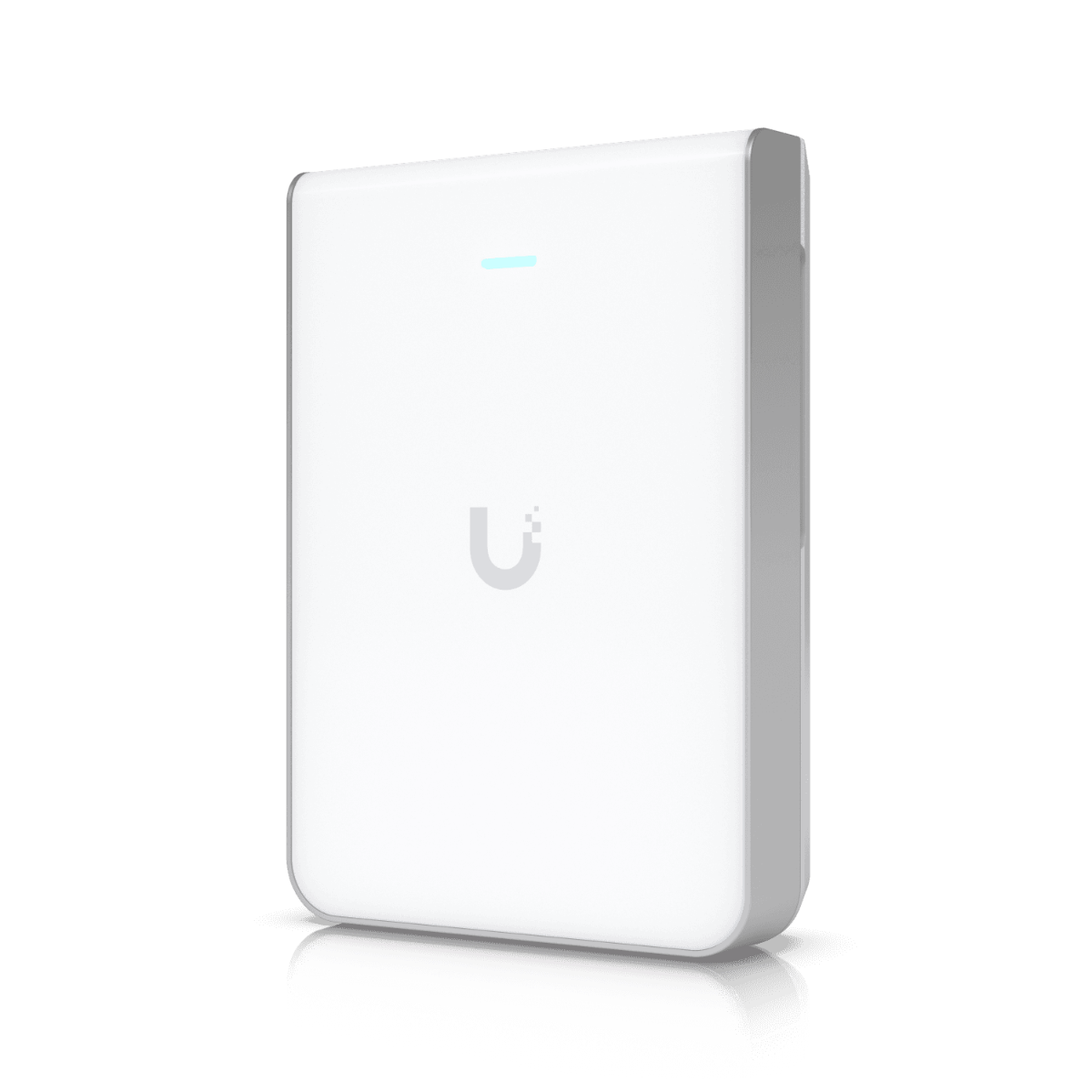

Ubiquiti U7 Pro Wall Access Point, WiFi 7 with 6 GHz Support, 6 Spatial Streams, Up to 5.7 Gbps Max Data Rate, 2 x 2 (DL/UL MU-MIMO) Feature, White | U7-Pro-Wall
Model :
SKU : WAP-UNIFI U7-Pro-Wall WI7
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
WiFi 7 Access Point Specifications
| General Information | |
|---|---|
| Performance | |
| Supported Data Rates | |
| Features | |
| Hardware Information | |
| Environmental Information | |
| Software Requirements | |
| Certifications | |
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") |
| Weight | 580 g (1.3 lb) |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m?? (1,500 ft??) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Wall (Mount Included) |
| Power Method | PoE+ |
| MIMO (6 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (5 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate (6 GHz) | 5.8 Gbps (BW320) |
| Max. Data Rate (5 GHz) | 4.3 Gbps (BW240) |
| Max. Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain (6 GHz) | 6 dBi |
| Antenna Gain (5 GHz) | 5 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power (6 GHz) | 23 dBm |
| Max. TX Power (5 GHz) | 26 dBm |
| Max. TX Power (2.4 GHz) | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps |
| 802.11n | 6.5 Mbps to 300 Mbps |
| Wireless Meshing | ??? |
| Band Steering | ??? |
| 802.11v BSS Transition Management | ??? |
| 802.11r Fast Roaming | ??? |
| 802.11k Radio Resource Management (RRM) | ??? |
| Advanced Radio Management | ??? |
| Passpoint (Hotspot 2.0) | ??? |
| Captive Hotspot Portal | Custom Branding Landing Page |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 44???57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| LEDs | System (White/Blue) |
| Operating Frequency (US/CA) | 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz |
| Operating Frequency (Worldwide) | 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 60?? C (-22 to 140?? F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application Requirements | UniFi Network (Version 8.1.113 and later) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ??? |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Networking/Home Networking/Access Points & Bridges/Ubiquiti U7 Pro Wall Access Point, WiFi 7 with 6 G...
Similar Products
TP-Link Omada EAP653 UR AX3000 Ceiling Mount WiFi 6 Access Point, 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
299.00

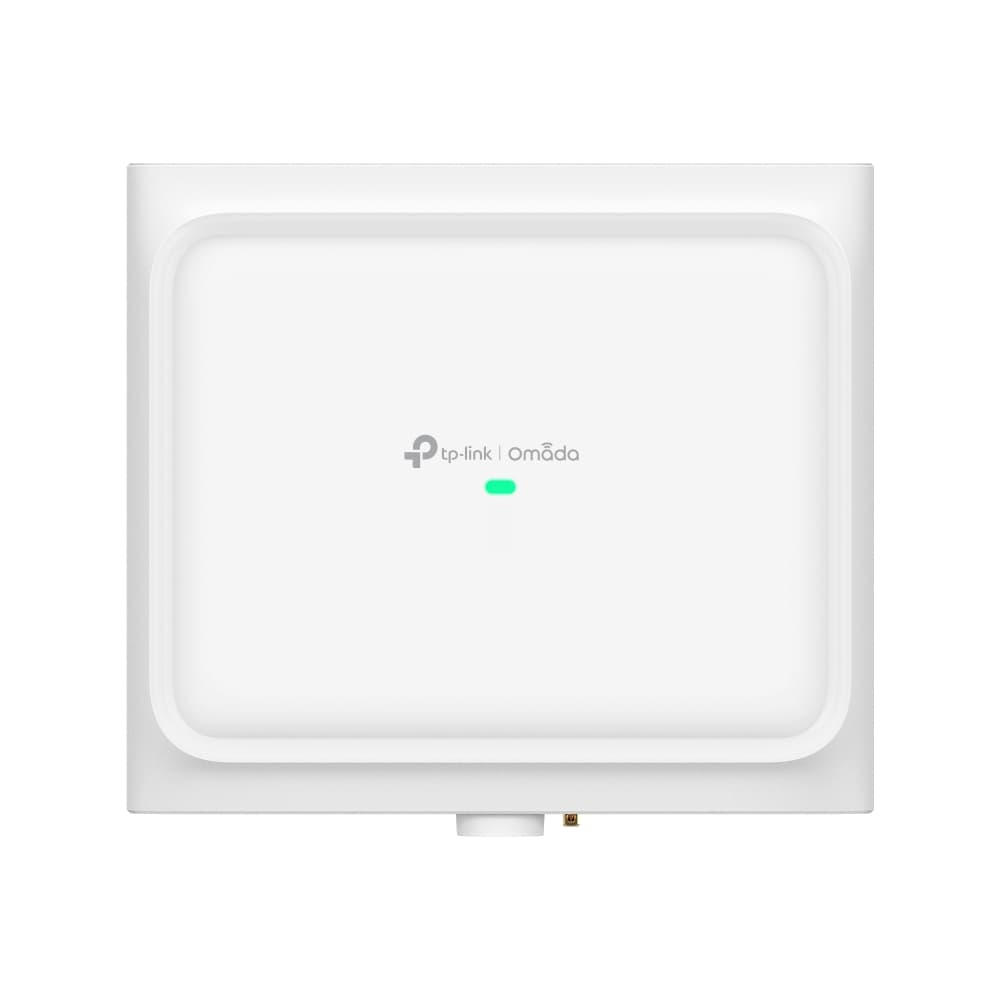

tp-link EAP772-Outdoor Omada Tri-Band Omnidirectional BE9300 Indoor/Outdoor WiFi 7 Access Point
689.00

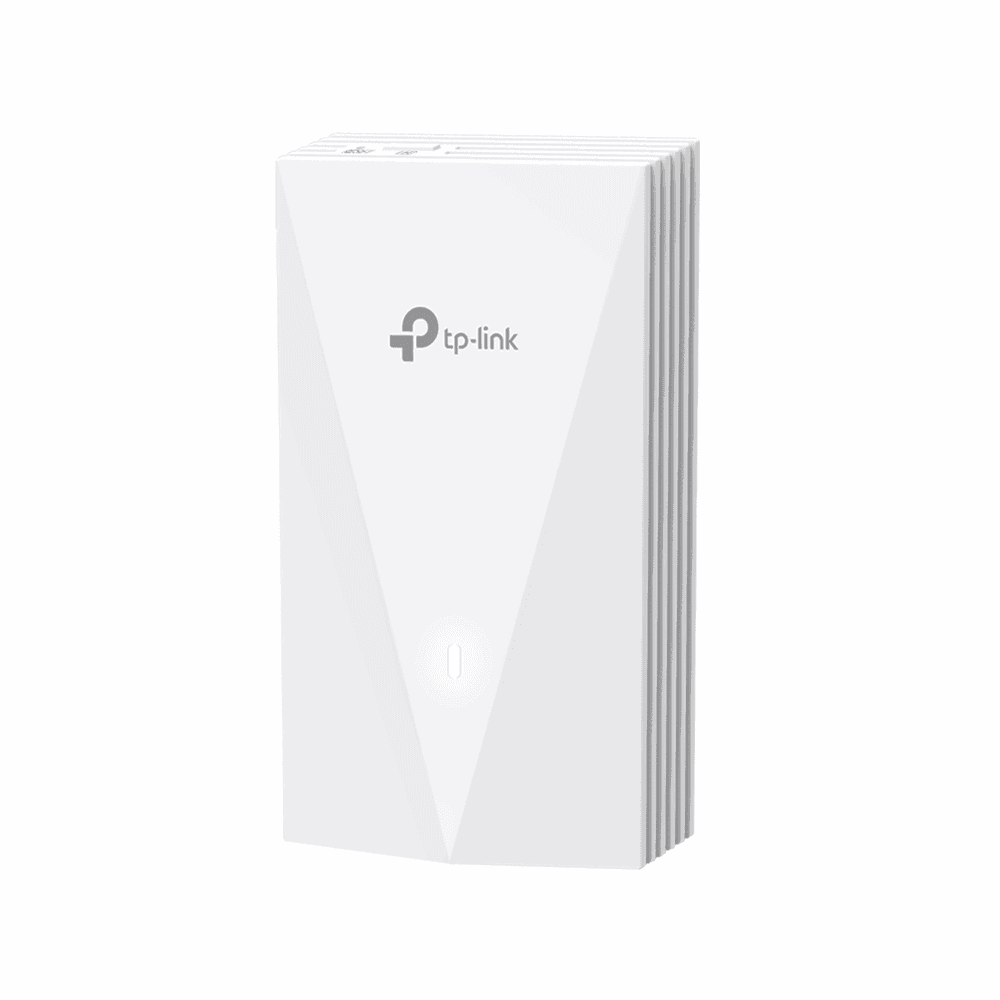

tp-link EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point, Omada SDN
255.15
Ruijie RG-RAP72Pro, Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point, Hotel, Office, etc.
509.00
Ruijie RG-RAP62-OD, AX3000 Wi-Fi 6 Indoor/Outdoor Versatile Access Point, Open Dining Area, Corridor Wi-Fi, Backyard, Pool & Jacuzzi
429.00
New Arrival
Ruijie RG-RAP1261, Reyee Wi-Fi 6 AX3000 Ultra-Thin Wall Plate Access Point, Hotel, Home, Office, etc.
308.99
Ruijie Reyee Wireless RG-RAP2260(E) AX3200 Wi-Fi 6 Multi-Gigabit Ceiling Mount Indoor Access Point
499.00
tp-link EAP610-Outdoor AX1800 Indoor/Outdoor WiFi 6 Omada Access Point, Delivers dual-band speeds of up to 1.8 Gbps
429.00

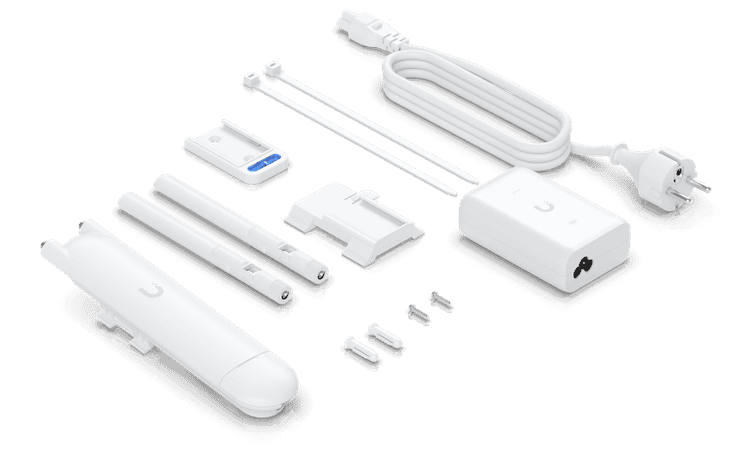

Unifi AC Mesh UAP-AC-M indoor/outdoor WiFi 5 Access Point, 4x spatial streams & optional external antenna support for directional coverage.
399.00
Unifi Swiss Army Knife UK-Ultra Compact, indoor/outdoor Access Point, WiFi 5, PoE, Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included)
399.00
tp-link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point, 1.8 Gbps Dual Band, Boosted Coverage
189.00
tp-link EAP723 BE3600 Ceiling Mount Wi-Fi 7 Access Point, Dual-Band (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)
429.00

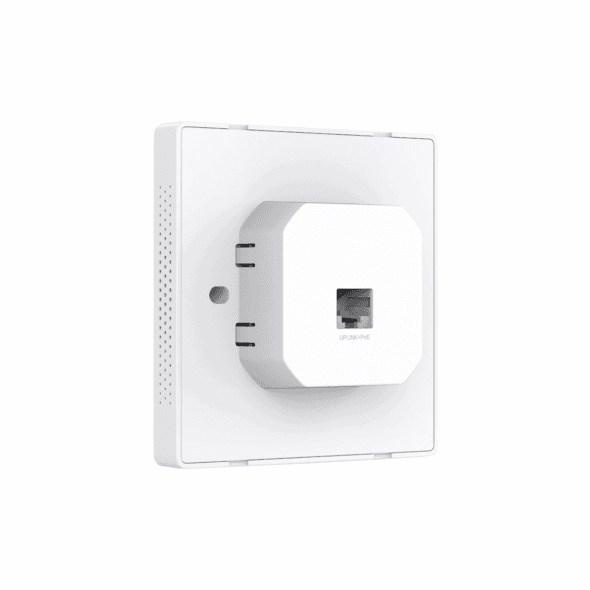

tp-link EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point, 2 Gigabit Ethernet ports (1?? uplink + 1?? downlink)
199.00

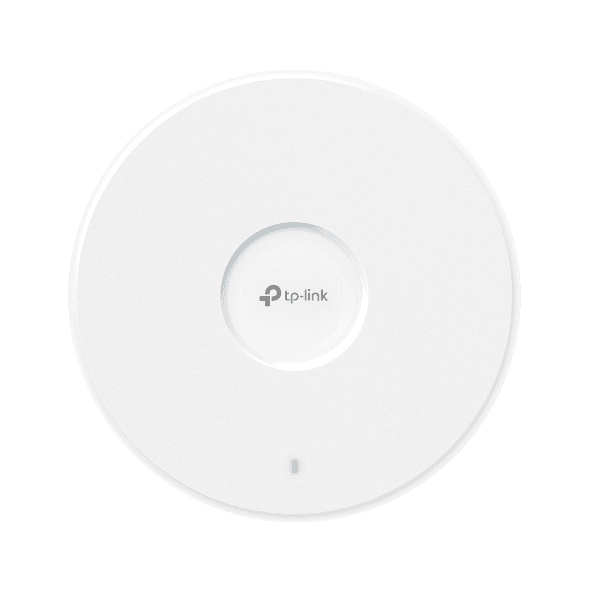

tp-link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, Tri-Band, 1x 2.5G Port, Low Latency and Interference
582.99

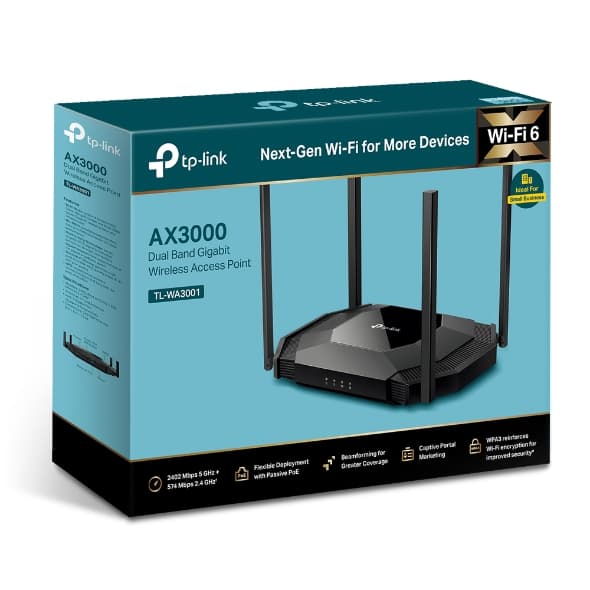

tp-link TL-WA3001 AX3000 Gigabit Wi-Fi 6 Access Point, WiFi 6 Speed for 4K Streaming, Dual Band WiFi
285.00
tp-link EAP613 AX1800 Ceiling Mount WiFi 6 Access Point, Omada Mesh, Ultra-Slim Design, 5 GHz Up to 1201 Mbps, 2.4 GHz Up to 574 Mbps
269.85
TP-Link Access Point Dual Band AC1200 | TL-WA1201
132.00
Ubiquiti Networks UniFi Access Point U6 Dual-Band Range Extender, WiFi 6, Up to 4.8 Gb/s Throughput, Outlet Plug-in, Manage via UniFi Mobile App, White | U6-Extender
610.00
Hikvision DS-3WF0BC-2NT 2.4 GHz 300 Mbps 200 m Elevator Wireless Bridge, Up to 200 mtr, Built-in 7dBi 2x2 MIMO Antenna, Real-Time Alarm Push
294.00
HPE Aruba Networking AP???505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus Acess Point | R2H28A
819.00
Unifi Swiss Army Knife Compact indoor/outdoor Accesspoint, WiFi 5, 4 spatial streams, 115 m?? (1,250 ft??) coverage, 200+ connected devices, Versatile wall, ceiling, and pole mounting | UK-Ultra
359.00
Unifi U6 Mesh Pro Indoor/outdoor WiFi 6 AP with 4 spatial streams, Integrated super antenna, Gigabit passthrough port | U6-Mesh-Pro
799.00

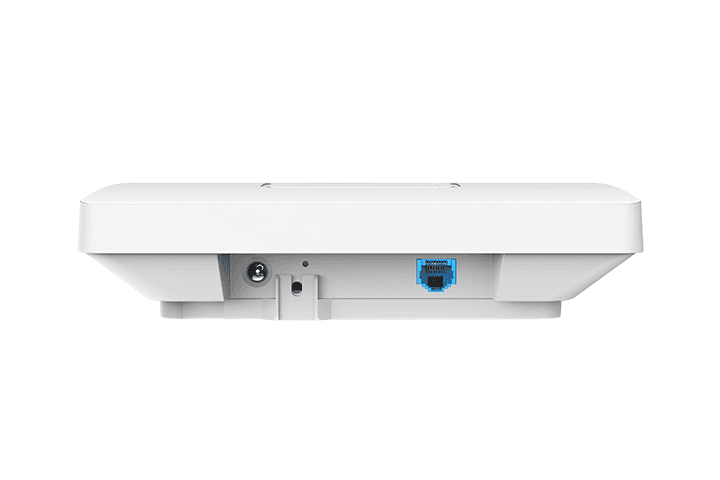

IP-COM W63AP AC1200 Wave 2 Gigabit 2.4 GHz, 5 GHz, Access Point | W63AP
