Unifi AC Mesh UAP-AC-M indoor/outdoor WiFi 5 Access Point, 4x spatial streams & optional external antenna support for directional coverage.
Model :
SKU : WAP-UNIFI AC MESH
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Unifi AC Mesh UAP-AC-M indoor/outdoor WiFi 5 Access Point, 4x spatial streams & optional external antenna support for directional coverage. WiFi 5 Access Point Specifications

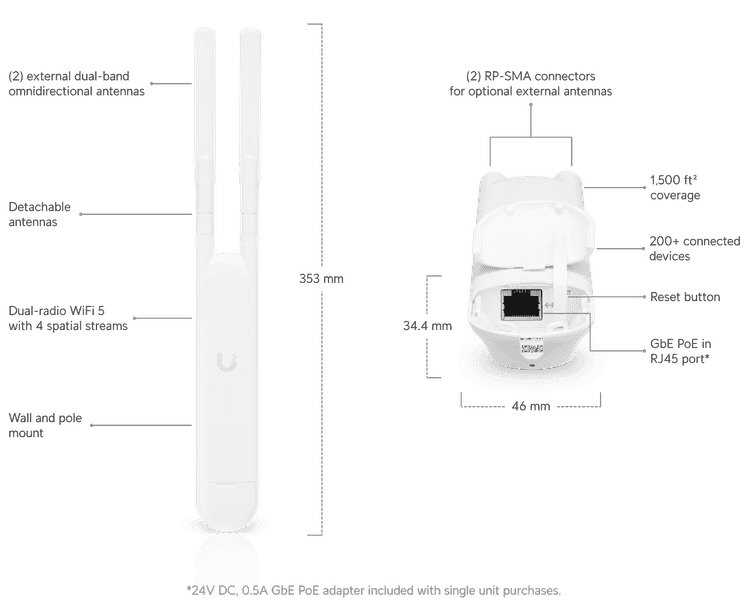

| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m?? (1,500 ft??) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE |
| MIMO (5 GHz) | 2 x 2 (DL MU-MIMO) |
| MIMO (2.4 GHz) | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate (5 GHz) | 867 Mbps (BW80) |
| Max. Data Rate (2.4 GHz) | 300 Mbps (BW40) |
| Antenna Gain (5 GHz) | 4 dBi |
| Antenna Gain (2.4 GHz) | 3 dBi |
| Max. TX Power (5 GHz) | 20 dBm |
| Max. TX Power (2.4 GHz) | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11ac (WiFi 5): 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Advanced Features |
Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k RRM, Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Hotspot Portal, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication, Guest Network Isolation, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
| Max. Power Consumption | 8.5W |
| Includes PoE Adapter | Yes |
| Supported Voltage Range | 44???57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Pole Mount Diameter | 1???3" (25???76 mm) |
| Management | Ethernet, Bluetooth |
| Enclosure Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UKCA |
| Operating Frequency |
US/CA: 2400 - 2472 MHz, 5150 - 5250 MHz, 5250 - 5350 MHz, 5470 - 5725 MHz, 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz |
| Ambient Operating Temperature | -30 to 70?? C (-22 to 158?? F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application Requirements | UniFi Network Version 6.0.45 and later |
Specification
Unifi AC Mesh UAP-AC-M indoor/outdoor WiFi 5 Access Point, 4x spatial streams & optional external antenna support for directional coverage. WiFi 5 Access Point Specifications
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m?? (1,500 ft??) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE |
| MIMO (5 GHz) | 2 x 2 (DL MU-MIMO) |
| MIMO (2.4 GHz) | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate (5 GHz) | 867 Mbps (BW80) |
| Max. Data Rate (2.4 GHz) | 300 Mbps (BW40) |
| Antenna Gain (5 GHz) | 4 dBi |
| Antenna Gain (2.4 GHz) | 3 dBi |
| Max. TX Power (5 GHz) | 20 dBm |
| Max. TX Power (2.4 GHz) | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11ac (WiFi 5): 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Advanced Features |
Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, 802.11k RRM, Advanced Radio Management, Passpoint (Hotspot 2.0), Captive Hotspot Portal, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication, Guest Network Isolation, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
| Max. Power Consumption | 8.5W |
| Includes PoE Adapter | Yes |
| Supported Voltage Range | 44???57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Pole Mount Diameter | 1???3" (25???76 mm) |
| Management | Ethernet, Bluetooth |
| Enclosure Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UKCA |
| Operating Frequency |
US/CA: 2400 - 2472 MHz, 5150 - 5250 MHz, 5250 - 5350 MHz, 5470 - 5725 MHz, 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz |
| Ambient Operating Temperature | -30 to 70?? C (-22 to 158?? F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application Requirements | UniFi Network Version 6.0.45 and later |
