Unifi Dream Router 7 Desktop 10G Cloud Gateway, Integrated WiFi 7, PoE switch, MicroSD storage, Full UniFi application support | UDR7 (15W)
Model :
SKU : UNIFI DREAM ROUTER 7
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Unifi Dream Router 7 Desktop 10G Cloud Gateway, Integrated WiFi 7, PoE switch, MicroSD storage, Full UniFi application support | UDR7 (15W) Specifications
Overview

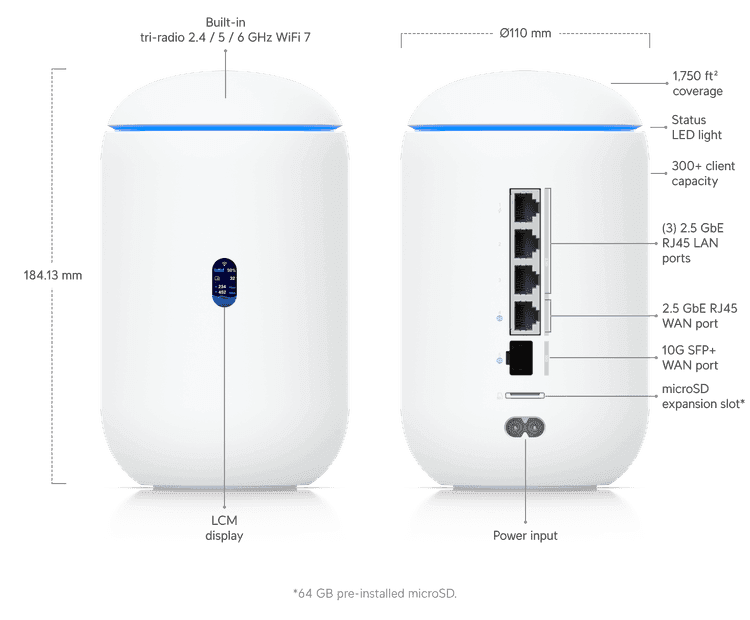

| Dimensions | ??110 x 184.1 mm (??4.3 x 7.3") |
| Form Factor | Compact desktop |
| Coverage Area | 160 m?? (1,750 ft??) |
| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 30+ |
| Managed Cameras | HD: 5 / 2K: 2 / 4K: 1 |
| Simultaneous Users Connected | 300+ |
WAN / Networking
| Max. WAN Ports | 4 |
| Default WAN Ports | 1 x 10G SFP+, 1 x 2.5 GbE RJ45 |
| Port Layout | 4 x 2.5 GbE RJ45 (1 PoE), 1 x 10G SFP+ |
| IDS/IPS Throughput | 2.3 Gbps |
| MAC Address Table Size | 2,000 |
Security Features
- Stateful Firewall
- Application-Aware Layer 7 Firewall
- DPI & Traffic Identification
- Zone-Based Firewall Filtering (Regions, Domains, Apps)
- Content Filtering
- Intrusion Prevention (IPS/IDS)
- Ad Blocking
- IDS/IPS Signatures: 20,000+ (with CyberSecure)
- VLAN/Subnet-based Traffic Segmentation
VPN & SD-WAN Features
- License-Free SD-WAN
- Site-to-Site VPN (Site Magic, IPsec, OpenVPN, WireGuard, L2TP)
- Identity Endpoint One-Click VPN
- Teleport Zero-Configuration VPN
- VPN Client Support (OpenVPN, WireGuard)
Advanced Networking Features
- Multi-WAN Load Balancing
- Dynamic Routing (OSPF)
- Advanced QoS
- Multicast DNS (mDNS)
- Advanced NAT (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT)
- Integrated RADIUS Server with RADIUS over TLS (RadSec)
- LTE Backup Support (UniFi LTE)
- Internet Quality & Outage Reporting
- Policy-Based WAN & VPN Routing
- Customizable DHCP Server
- IPv6 ISP Support
- IGMP Proxy
Integrated WiFi 7
| WiFi Standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, 6E, 7) |
| Throughput | 6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| MIMO | 6 GHz: 2x2 MU-MIMO 5 GHz: 2x2 MU-MIMO 2.4 GHz: 2x2 MU-MIMO |
| Antenna Gain | 6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 5 dBi |
| Max TX Power | 6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max BSSIDs | 4 per radio |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
Supported Data Rates
| WiFi 7 (802.11be) | 7.3 Mbps ??? 5.7 Gbps |
| WiFi 6/6E (802.11ax) | 7.3 Mbps ??? 2.4 Gbps |
| WiFi 5 (802.11ac) | 6.5 Mbps ??? 1.7 Gbps |
| WiFi 4 (802.11n) | 6.5 Mbps ??? 600 Mbps |
| 802.11a/g | 6 ??? 54 Mbps |
| 802.11b | 1 ??? 11 Mbps |
Hardware Specifications
| NVR Storage | Pre-installed 64GB microSD |
| Expansion Slot | MicroSD |
| PoE Budget | 15.4W |
| Max Power Consumption | 26W (excluding PoE output) |
| Power Supply | AC/DC Internal 50W |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management Interfaces | Ethernet, Bluetooth |
| Reset Button | Factory Reset |
| ESD Protection | Air: ??8kV, Contact: ??4kV |
| Operating Temperature | -10 to 40??C (14 to 104??F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Software
| VLAN Support | 802.1Q |
| Guest Traffic Isolation | Yes |
| Application Requirements | UniFi Network version 9.0.108 and later |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Unifi Dream Router 7 Desktop 10G Cloud Gateway, Integrated WiFi 7, PoE switch, MicroSD storage, Full UniFi application support | UDR7 (15W) Specifications
Overview
| Dimensions | ??110 x 184.1 mm (??4.3 x 7.3") |
| Form Factor | Compact desktop |
| Coverage Area | 160 m?? (1,750 ft??) |
| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 30+ |
| Managed Cameras | HD: 5 / 2K: 2 / 4K: 1 |
| Simultaneous Users Connected | 300+ |
WAN / Networking
| Max. WAN Ports | 4 |
| Default WAN Ports | 1 x 10G SFP+, 1 x 2.5 GbE RJ45 |
| Port Layout | 4 x 2.5 GbE RJ45 (1 PoE), 1 x 10G SFP+ |
| IDS/IPS Throughput | 2.3 Gbps |
| MAC Address Table Size | 2,000 |
Security Features
- Stateful Firewall
- Application-Aware Layer 7 Firewall
- DPI & Traffic Identification
- Zone-Based Firewall Filtering (Regions, Domains, Apps)
- Content Filtering
- Intrusion Prevention (IPS/IDS)
- Ad Blocking
- IDS/IPS Signatures: 20,000+ (with CyberSecure)
- VLAN/Subnet-based Traffic Segmentation
VPN & SD-WAN Features
- License-Free SD-WAN
- Site-to-Site VPN (Site Magic, IPsec, OpenVPN, WireGuard, L2TP)
- Identity Endpoint One-Click VPN
- Teleport Zero-Configuration VPN
- VPN Client Support (OpenVPN, WireGuard)
Advanced Networking Features
- Multi-WAN Load Balancing
- Dynamic Routing (OSPF)
- Advanced QoS
- Multicast DNS (mDNS)
- Advanced NAT (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT)
- Integrated RADIUS Server with RADIUS over TLS (RadSec)
- LTE Backup Support (UniFi LTE)
- Internet Quality & Outage Reporting
- Policy-Based WAN & VPN Routing
- Customizable DHCP Server
- IPv6 ISP Support
- IGMP Proxy
Integrated WiFi 7
| WiFi Standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, 6E, 7) |
| Throughput | 6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| MIMO | 6 GHz: 2x2 MU-MIMO 5 GHz: 2x2 MU-MIMO 2.4 GHz: 2x2 MU-MIMO |
| Antenna Gain | 6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 5 dBi |
| Max TX Power | 6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max BSSIDs | 4 per radio |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
Supported Data Rates
| WiFi 7 (802.11be) | 7.3 Mbps ??? 5.7 Gbps |
| WiFi 6/6E (802.11ax) | 7.3 Mbps ??? 2.4 Gbps |
| WiFi 5 (802.11ac) | 6.5 Mbps ??? 1.7 Gbps |
| WiFi 4 (802.11n) | 6.5 Mbps ??? 600 Mbps |
| 802.11a/g | 6 ??? 54 Mbps |
| 802.11b | 1 ??? 11 Mbps |
Hardware Specifications
| NVR Storage | Pre-installed 64GB microSD |
| Expansion Slot | MicroSD |
| PoE Budget | 15.4W |
| Max Power Consumption | 26W (excluding PoE output) |
| Power Supply | AC/DC Internal 50W |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management Interfaces | Ethernet, Bluetooth |
| Reset Button | Factory Reset |
| ESD Protection | Air: ??8kV, Contact: ??4kV |
| Operating Temperature | -10 to 40??C (14 to 104??F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
Software
| VLAN Support | 802.1Q |
| Guest Traffic Isolation | Yes |
| Application Requirements | UniFi Network version 9.0.108 and later |
