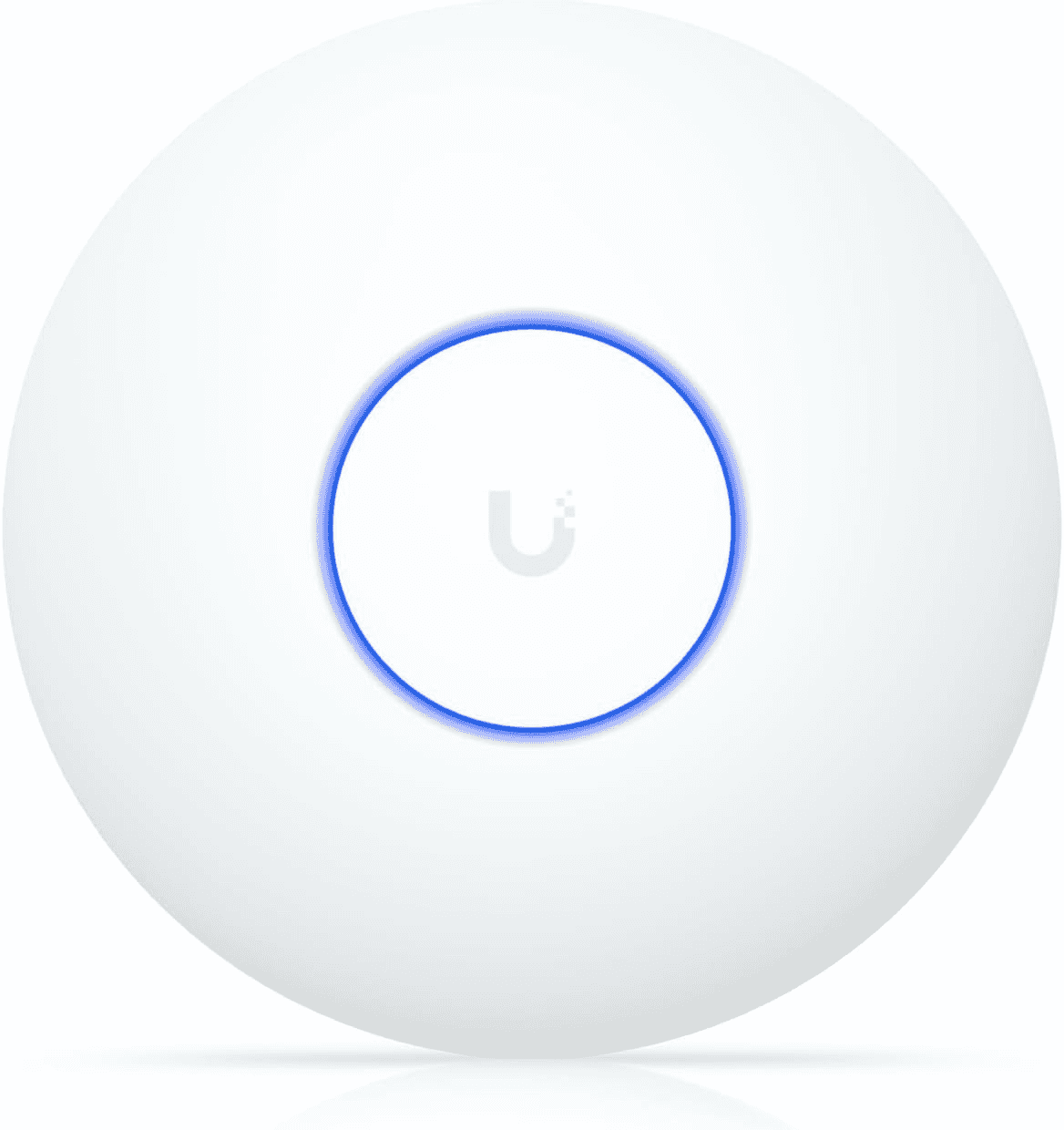

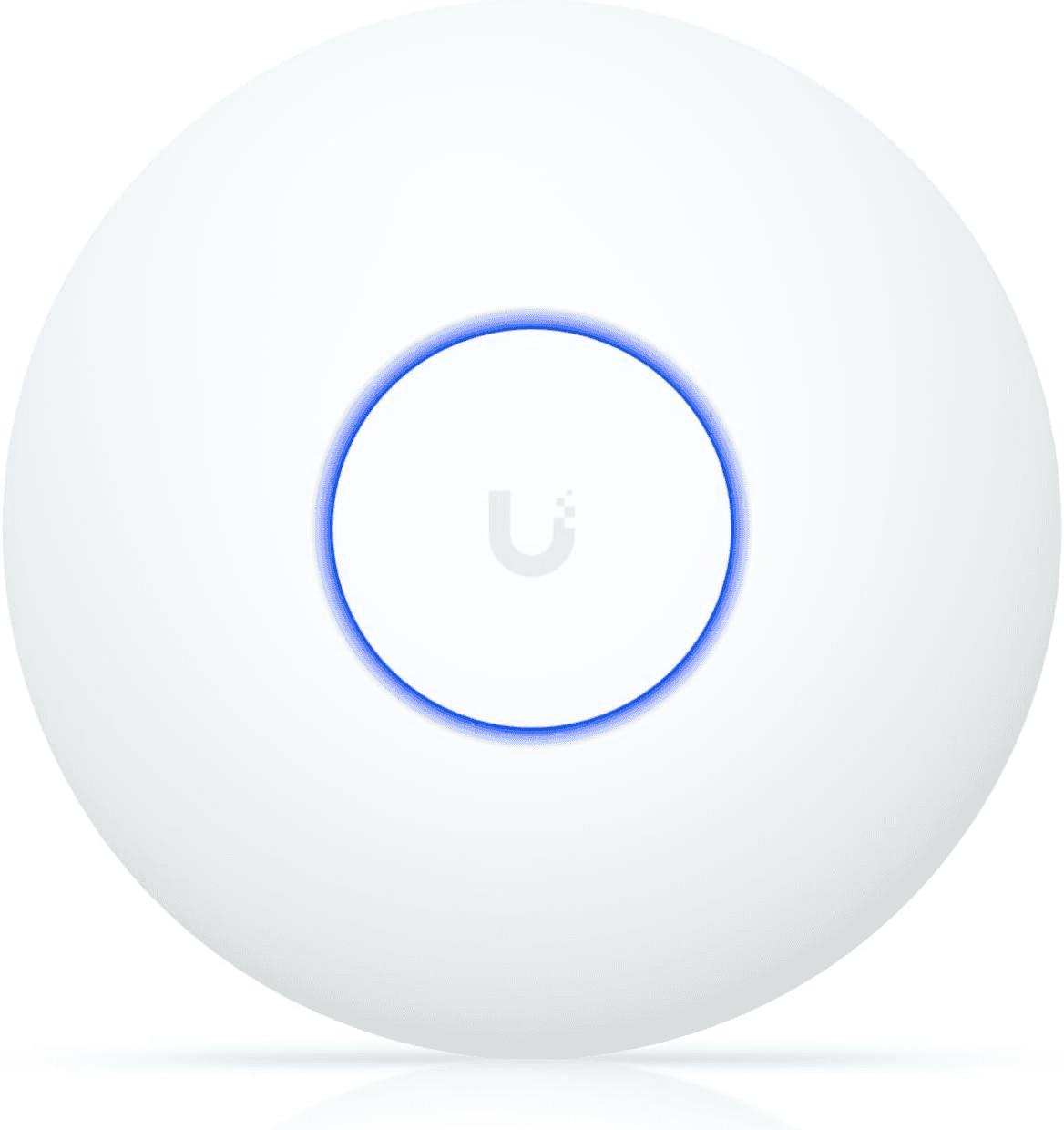

Unifi U7 Lite Compact, ceiling-mounted WiFi 7 Access Point, 4x spatial streams and 2.5 GbE uplink.
Model :
SKU : WAP-UNIFI U7-Lite WIFI 7
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification

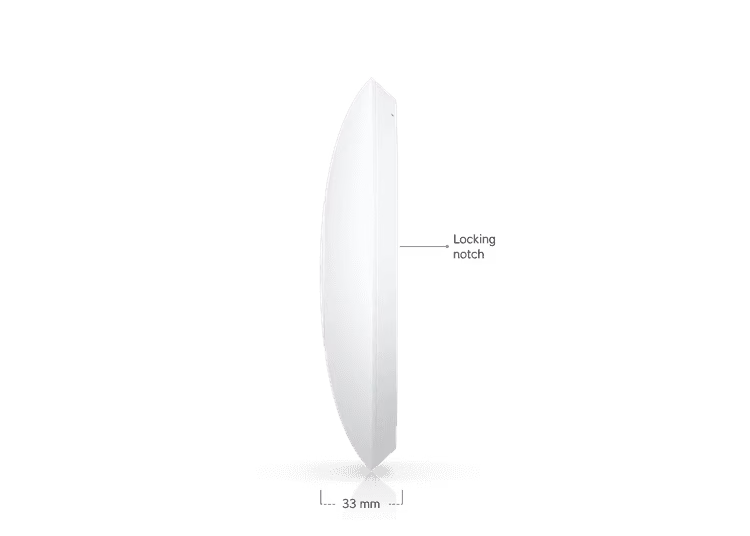

| Dimensions | ??171.5 x 33 mm (??6.8 x 1.3") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m?? (1,250 ft??) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE |
Performance
| MIMO | 2 x 2 (DL/UL MU-MIMO for both 5 GHz and 2.4 GHz) |
|---|---|
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 24 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps 802.11n: 6.5 Mbps to 300 Mbps |
Features
| Wireless Meshing | ??? |
|---|---|
| Band Steering | ??? |
| Fast Roaming (802.11r) | ??? |
| Radio Resource Management (802.11k) | ??? |
| BSS Transition (802.11v) | ??? |
| Advanced Radio Management | ??? |
| Passpoint (Hotspot 2.0) | ??? |
| Captive Portal with Branding | ??? |
| Authentication | Voucher, Payment, External Portal, Password |
| Client & Network Management | Guest Isolation, PPSK, Speed Limiting, Device Isolation, WiFi Schedules |
| RADIUS Support | RadSec, Dynamic VLAN |
Hardware
| Max. Power Consumption | 13W |
|---|---|
| Voltage Range | 42.5???57V DC |
| Networking Interface | 1 ?? 2.5 GbE RJ45 |
| Weight | 313 g (11 oz) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LED Indicators | System: White/Blue |
| Channel Bandwidth | HT/VHT/HE/EHT 20/40/80/160/240 MHz |
| NDAA Compliant | ??? |
| Certifications | CE, FCC, IC |
| Operating Temp. | -30 to 40??C (-22 to 104??F) |
| Humidity | 5 to 95% noncondensing |
Software
| Controller Requirement | UniFi Network v9.0.114 or later |
|---|---|
| Mobile App Support | iOS??? 10.20.2+, Android??? 10.21.7+ |
