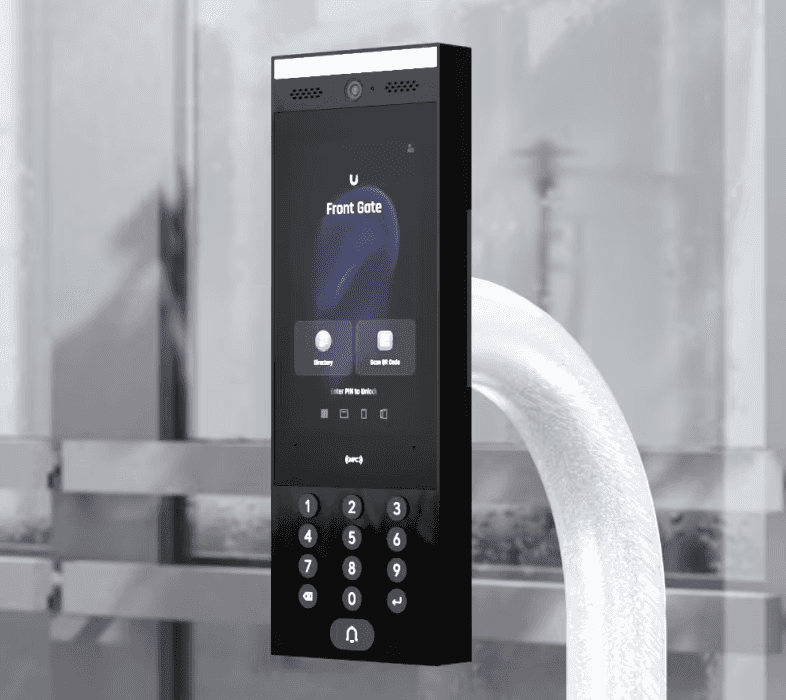

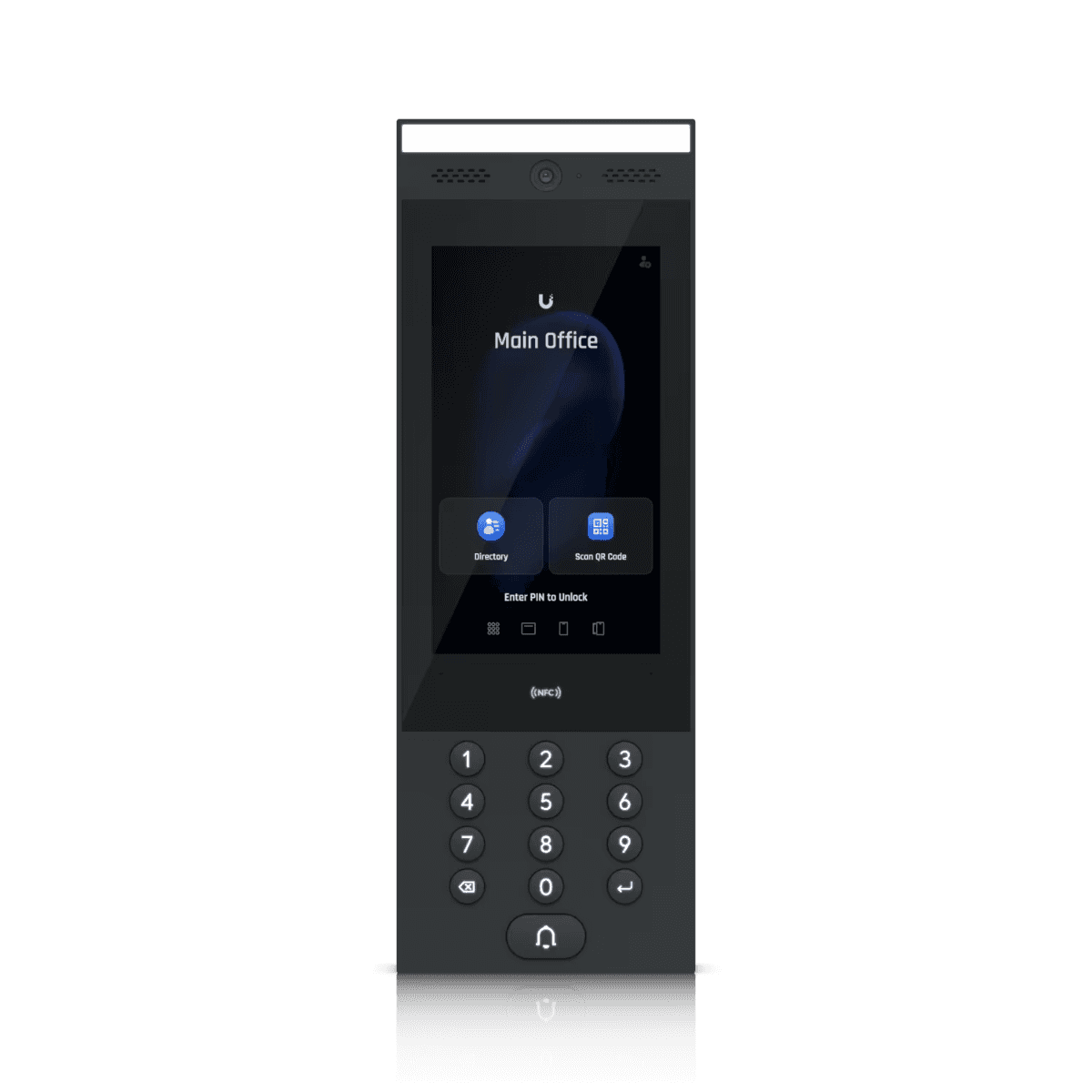

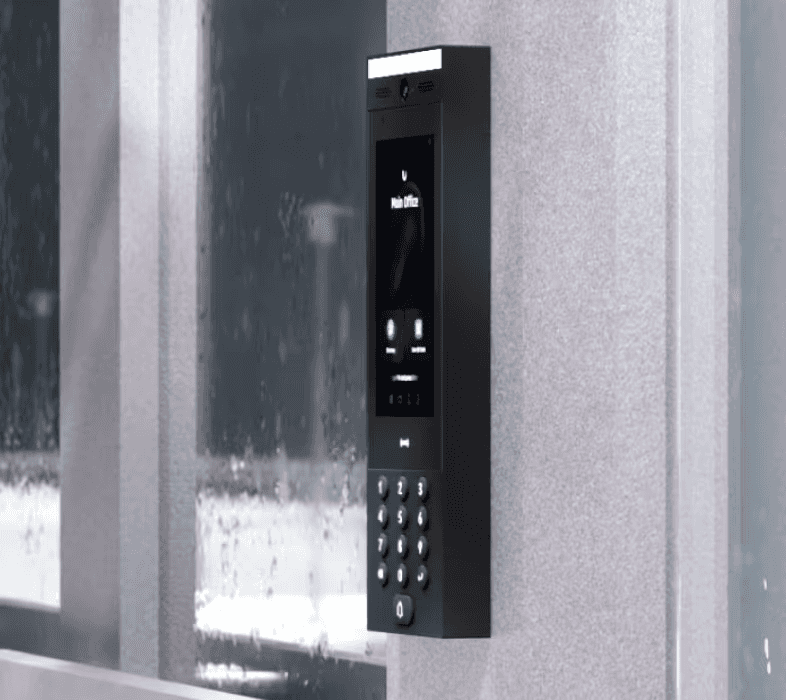

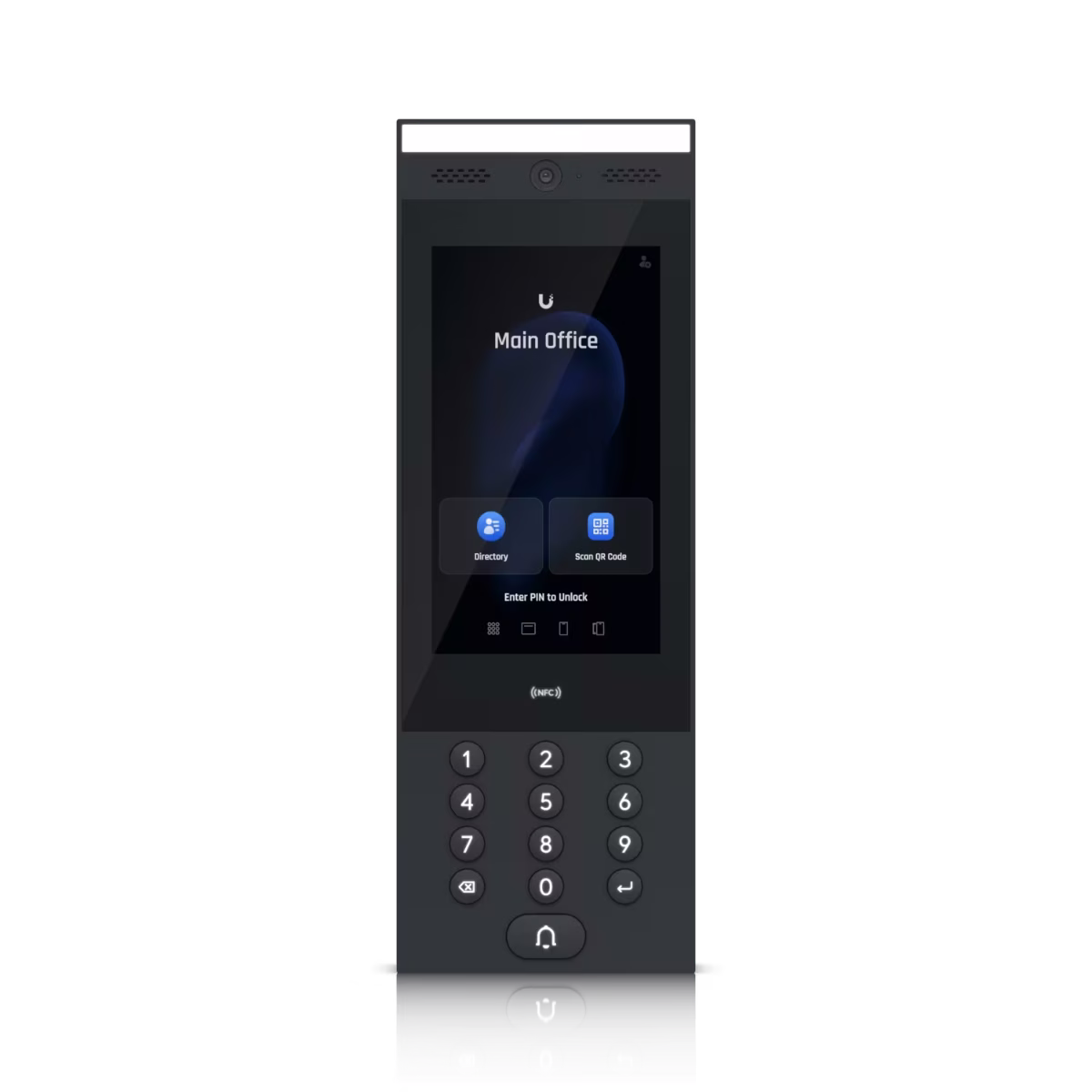

Unifi UA-Intercom Indoor/outdoor Intercom Terminal, Managing Residential & Commercial Building Entry Requests
Model :
SKU : UNIFI-UA-Intercom
About this item
Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
Directory and doorbell to request entry
Pairs with multiple UniFi Intercom Viewers for remote access control
Connects to UniFi Access Hub series using PoE
Weatherproof (outdoor exposed -30 to 60?? C)
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Unifi UA-Intercom Indoor/outdoor Intercom Terminal, Managing Residential & Commercial Building Entry Requests Specifications
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |

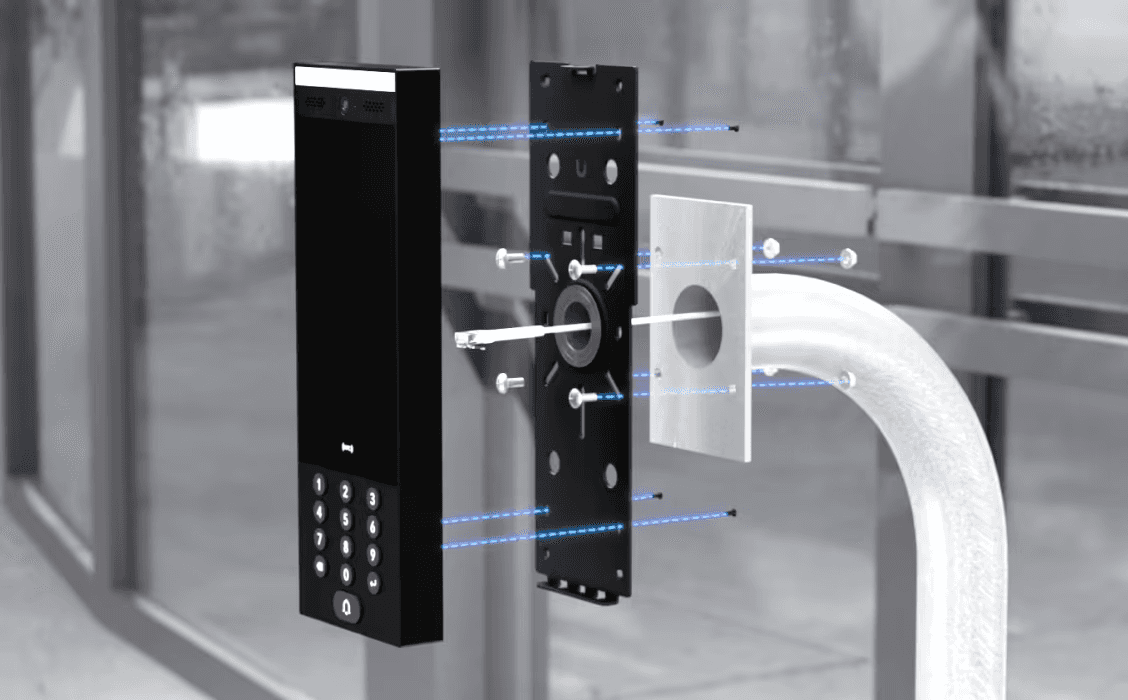

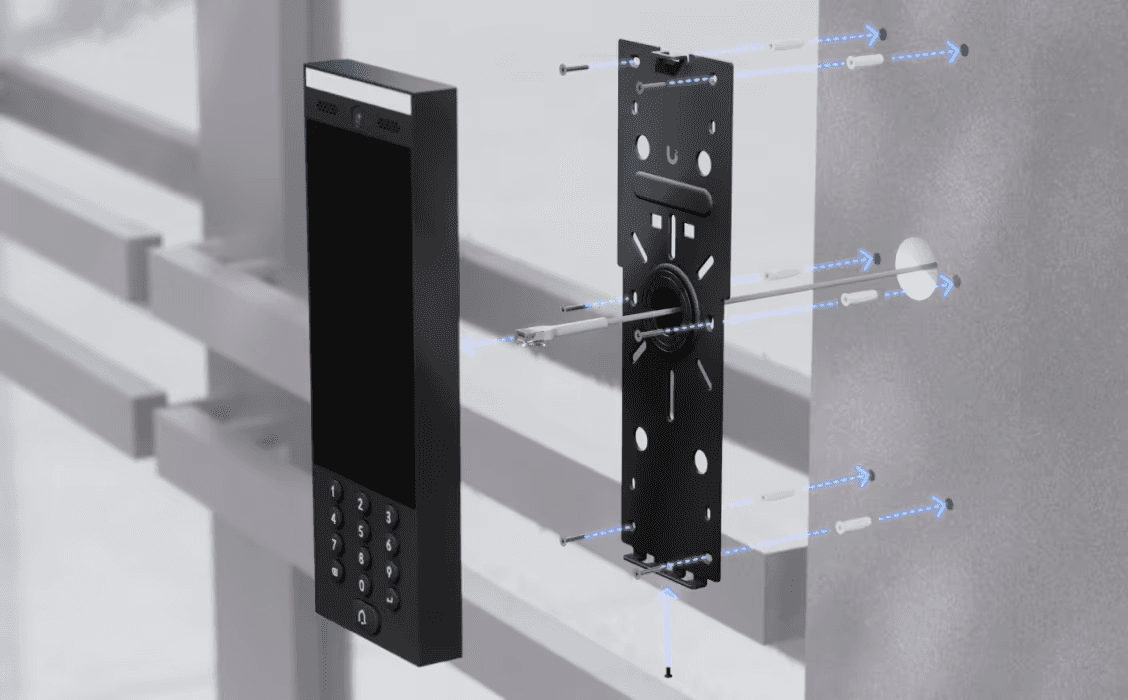

| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle mount, flush mount (Optional) Sunshield kit (Optional) |
| Weatherproofing | IP65 |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | Bluetooth 4.2 NFC |
| Power Method | PoE |
| Power Supply Standards | UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported Voltage Range | 48V DC |
| Max. Power Consumption | 13W |
| ESD/EMP Protection | Air: ??15kV, Contact: ??8kV |
| Sensors | Proximity sensor ALS sensor |
| Camera View Angle | H: 79.4??, V: 97.5??, D: 118.2?? |
| Display | 177 mm (7") diagonal Resolution: 1024 x 600 (16:9) Display Luminance: Max. 1000 nits (typical) |
| Touch Screen Technology | Capacitive multi-touch |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 2W |
| LEDs | Amber |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa??? (ID only) NFC Forum tags T1T, T2T, T3T, T4T, and T5T |
| Ambient Operating Temperature | Device: -30 to 60?? C (-22 to 140?? F) Display: -25 to 60?? C (-13 to 140?? F)* *Display turns off outside this range; other functions remain operational. |
| Operating Environment | Outdoor use |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software Information | Check software version at UniFi Access |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. |
| Power Cabling Requirements | Minimum: Cat 5e Conductor Gauge: 26 AWG (patch cords), 24 AWG (horizontal/riser cable) |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number and Issue Date | UA-Intercom, V01 |
| Management Application | UniFi Access: Version 1.22.17 and later |
Specification
Unifi UA-Intercom Indoor/outdoor Intercom Terminal, Managing Residential & Commercial Building Entry Requests Specifications
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle mount, flush mount (Optional) Sunshield kit (Optional) |
| Weatherproofing | IP65 |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | Bluetooth 4.2 NFC |
| Power Method | PoE |
| Power Supply Standards | UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported Voltage Range | 48V DC |
| Max. Power Consumption | 13W |
| ESD/EMP Protection | Air: ??15kV, Contact: ??8kV |
| Sensors | Proximity sensor ALS sensor |
| Camera View Angle | H: 79.4??, V: 97.5??, D: 118.2?? |
| Display | 177 mm (7") diagonal Resolution: 1024 x 600 (16:9) Display Luminance: Max. 1000 nits (typical) |
| Touch Screen Technology | Capacitive multi-touch |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 2W |
| LEDs | Amber |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa??? (ID only) NFC Forum tags T1T, T2T, T3T, T4T, and T5T |
| Ambient Operating Temperature | Device: -30 to 60?? C (-22 to 140?? F) Display: -25 to 60?? C (-13 to 140?? F)* *Display turns off outside this range; other functions remain operational. |
| Operating Environment | Outdoor use |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software Information | Check software version at UniFi Access |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. |
| Power Cabling Requirements | Minimum: Cat 5e Conductor Gauge: 26 AWG (patch cords), 24 AWG (horizontal/riser cable) |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number and Issue Date | UA-Intercom, V01 |
| Management Application | UniFi Access: Version 1.22.17 and later |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Security & Surveillance/Access Control/Unifi UA-Intercom Indoor/outdoor Intercom Terminal...
Similar Products
Hikvision DS-KV6113-WPE1(C) POE/Wifi Villa Door Station, 2 MP camera with IR supplement
349.00
Hikvision DS-K1T807MBFWX-E1 Pro Fingerprint Access Control Terminal, With Touch Buttons, 2.4-inch LCD screen, Supports Bluetooth, Card
359.00
Hikvision DS-K1201AMF Fingerprint Reader & Card Reader, Built-in buzzer, Watchdog Program, Tamper-proof function
249.00
Hikvision DS-K1T642MW Pro Series Face Recognition Terminals, 4.3" Capacitive Touchscreen, Supports ISAPI & ISUP5.0 protocol
829.00
ZKTeco F35 Standalone Biometric Access Control Terminal, 2.4" TFT Color LCD Screen (720*1280), Camera 2MP, Fingerprint / Card / Password (Physical Touch Keypad ), Linux
829.00
Unifi CloudKey+, Includes full UniFi application suite for device management, Pre-installed 1TB SSD, Connect and power using PoE, Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only | UCK-G2-SSD
924.00
Hikvision DS-KIS213 4 Wire HD Kits Intercom System, 7" LCD TFT Screen, Built-In Omnidirectional Microphone & Loudspeaker, Supports Up to 1280 x 720 @ 60fps, Black & White
289.00
Hikvision DS-K4SL500MKW Pro Smart Door Locks, Card, Mechanical key, In-line lock cylinder, Aluminum alloy, Support Door Opening info, Alarm Message Upload. Hikvision Door Lock, No Remote Control
569.00
EZVIZ DL04 Pro Smart Deadbolt Lock, 2.4 GHz Wi-Fi, Fingerprint Unlocking, Remote EZVIZ App Unlocking & Controls, Supports Emergency Power Supply (Type-C) | CS-DL04 Pro
319.00
EZVIZ DL50FVS Face Recognition Smart Lock, Face Recognition with Dual-Lens 3D Structured Light, Built-In Security Chip for Local Processing, Remote EZVIZ App Controls & Alerts, Built-In Smart Door Viewer, 4-Inch IPS Color Screen
1050.00

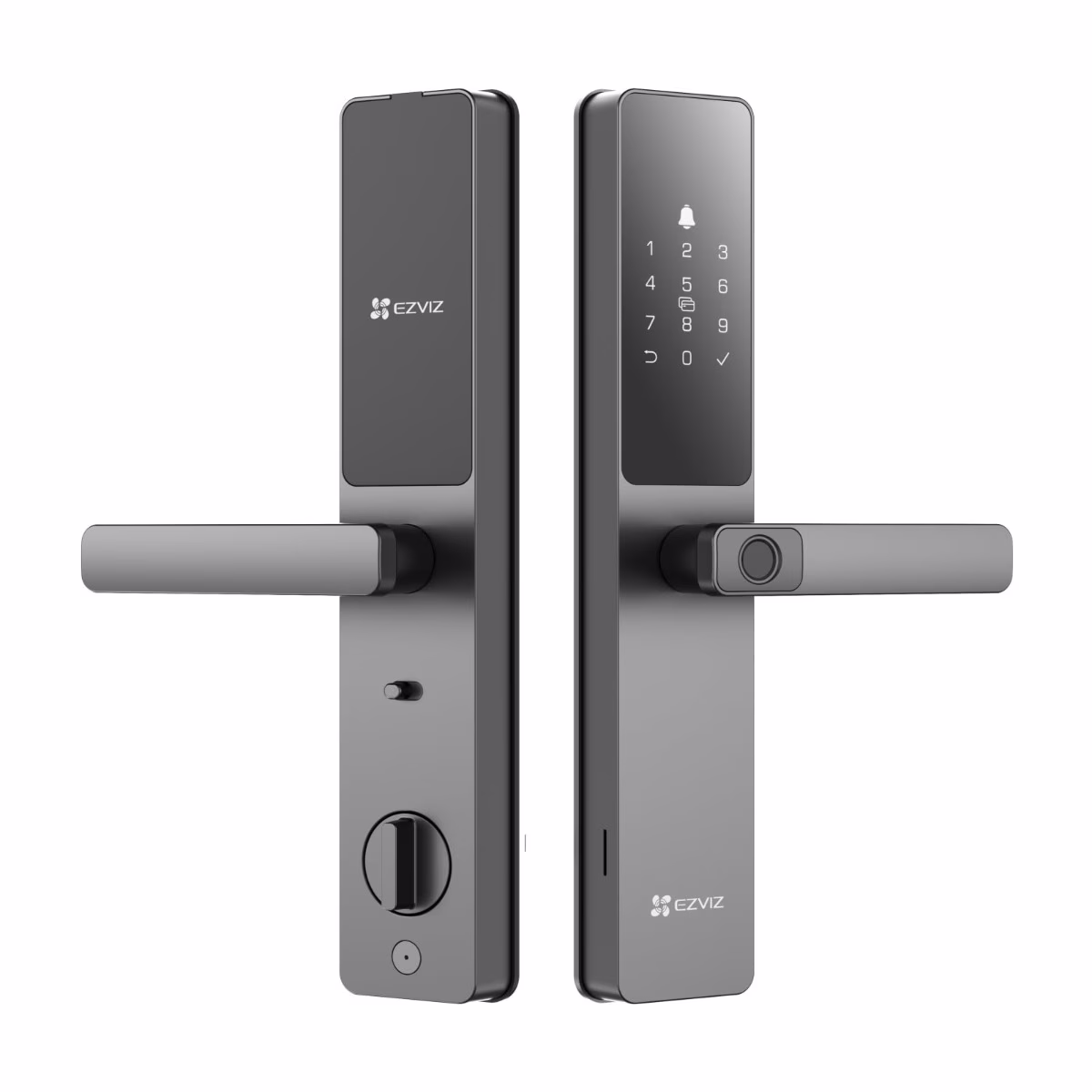

EZVIZ Smart Lock DL05, 7-in-1 Keyless Entry Door Lock, with Fingerprint Access – Secure Keyless Entry, Multiple Unlock Options, Instant Alerts, Weather-Resistant, Child Safety Privacy Control, Black | CS-DL05
