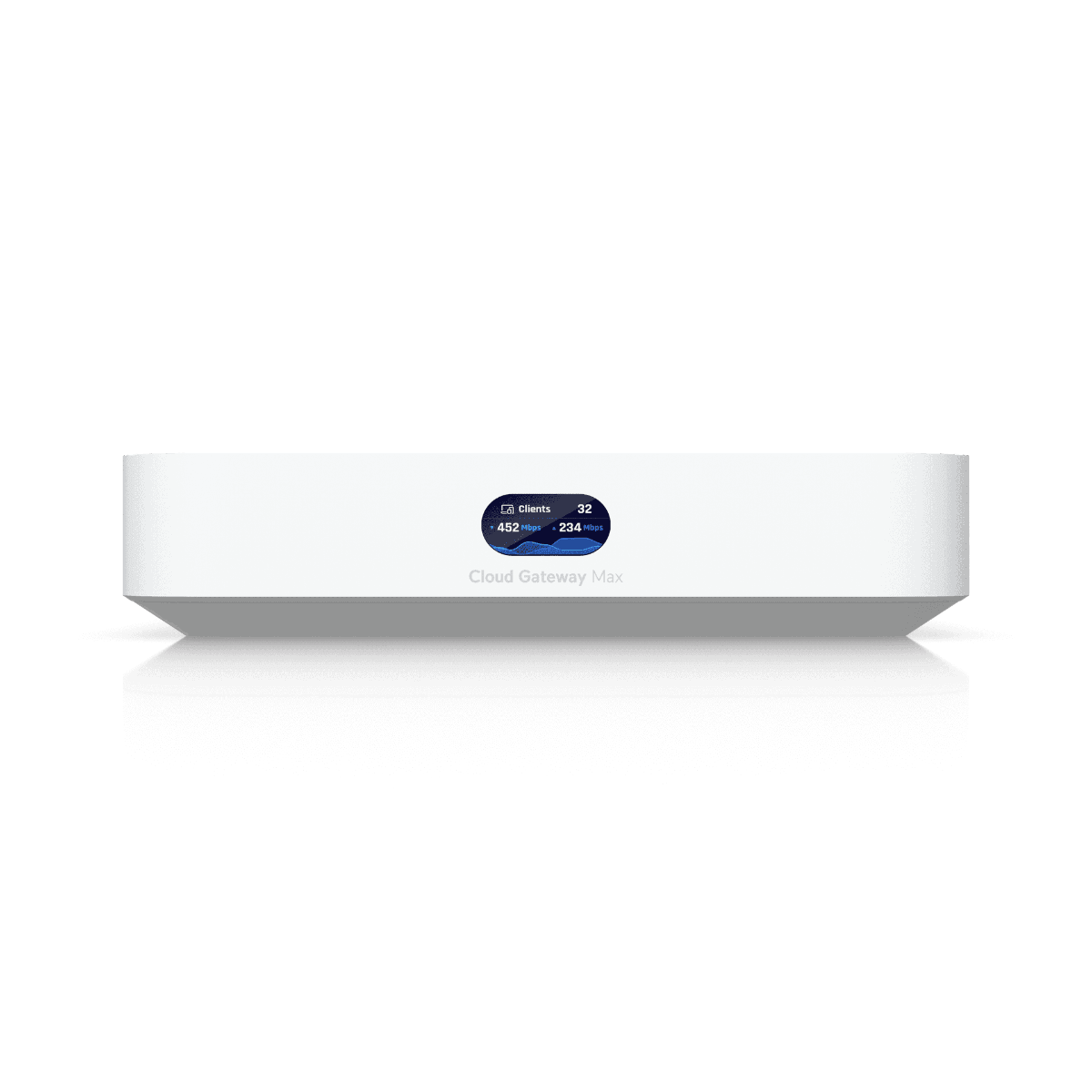

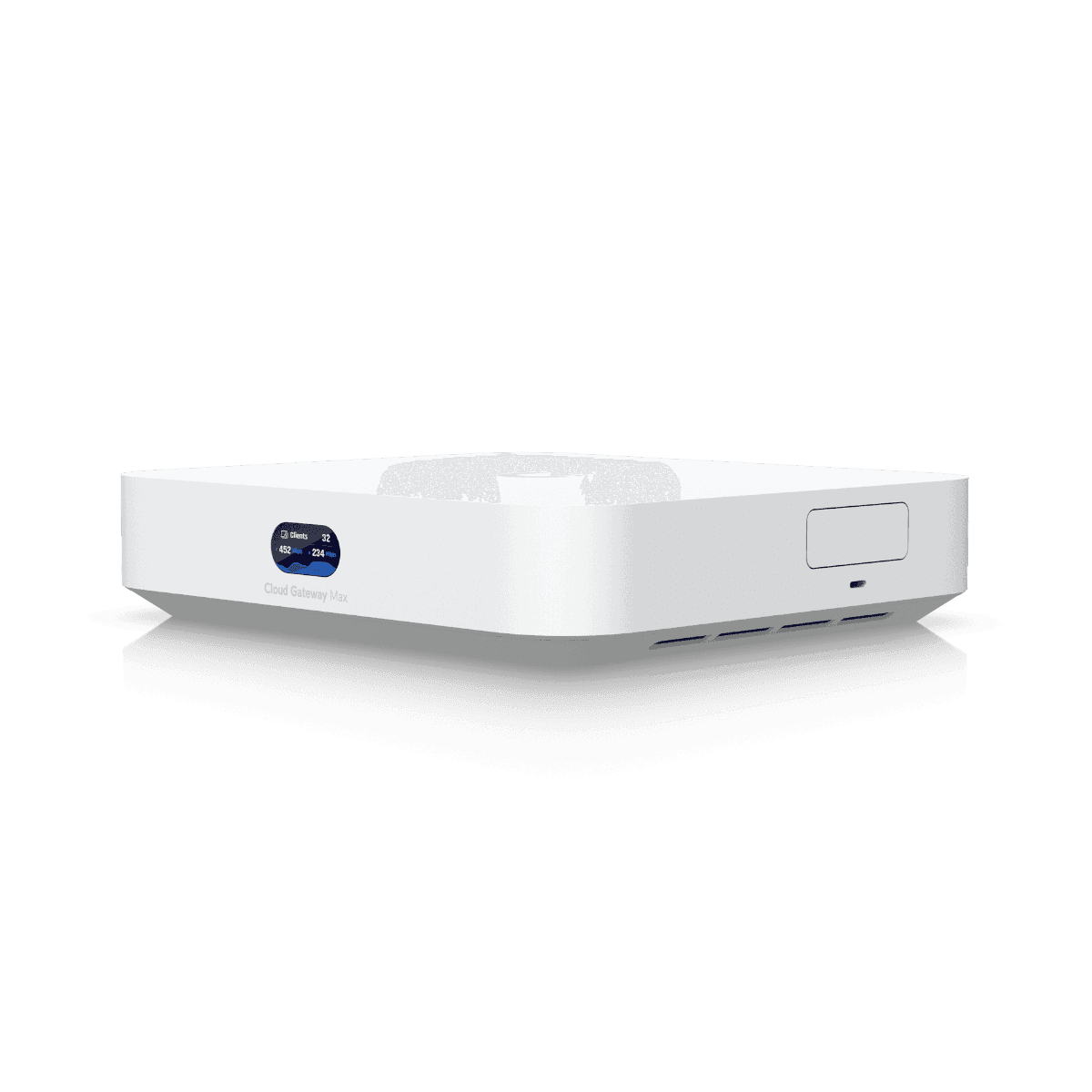

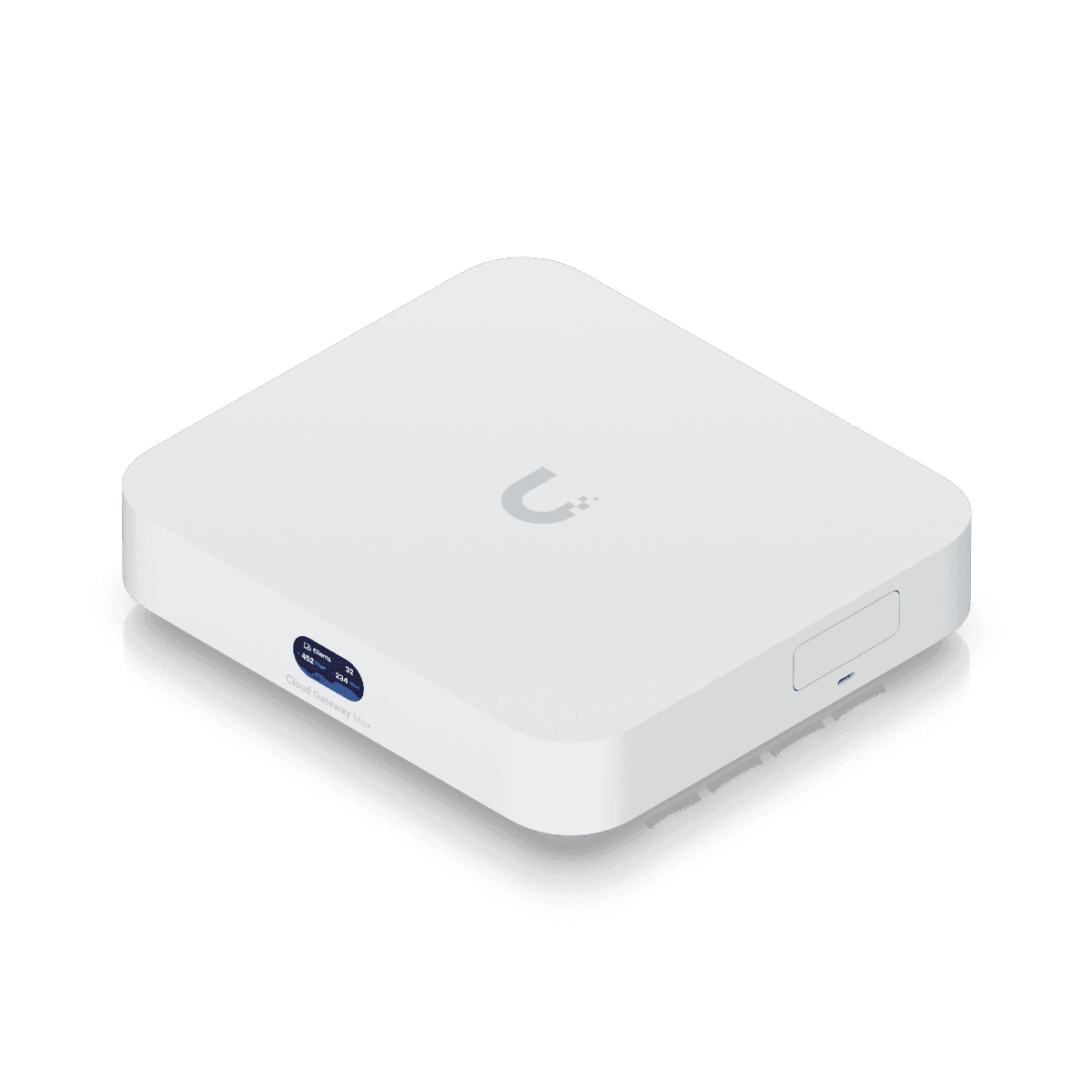

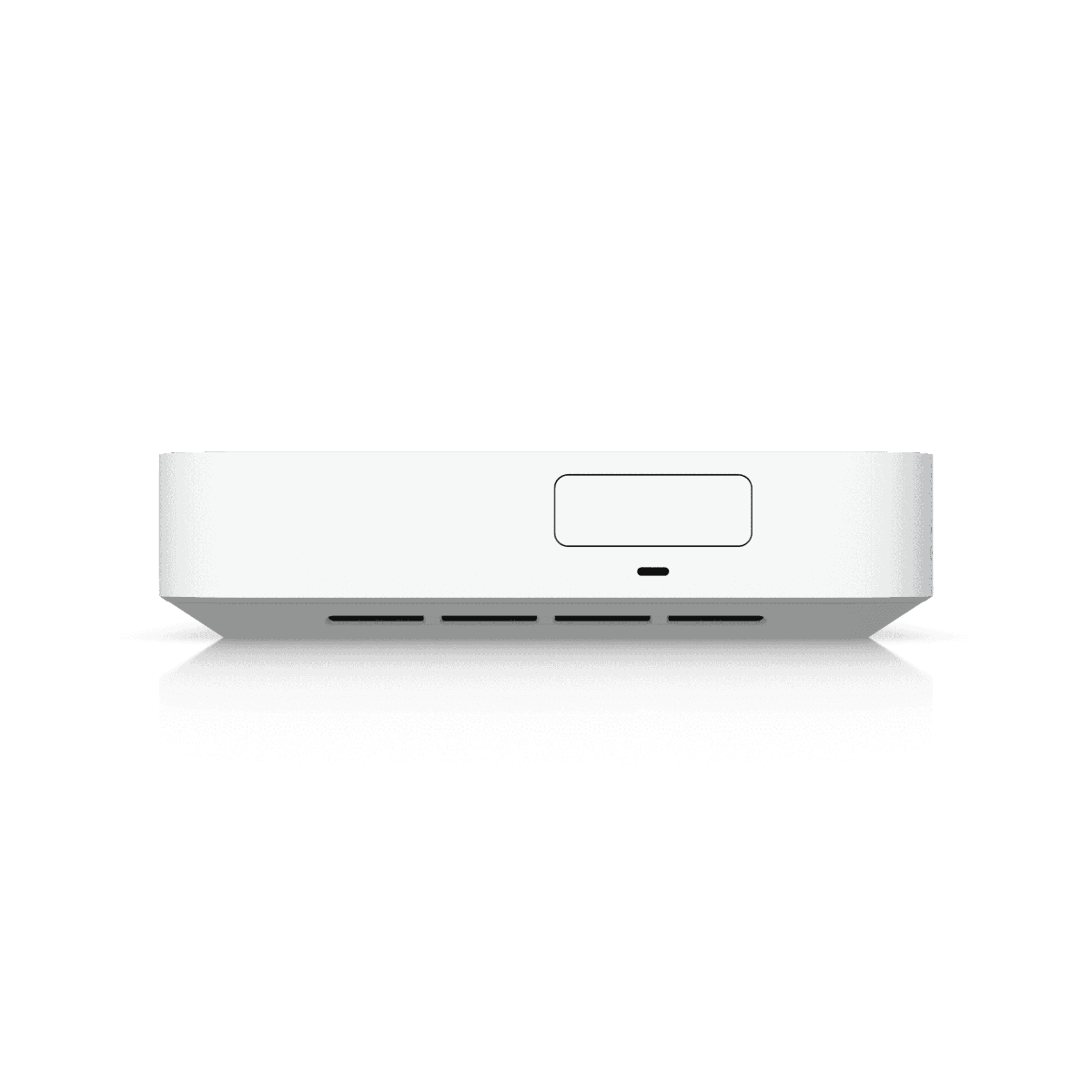

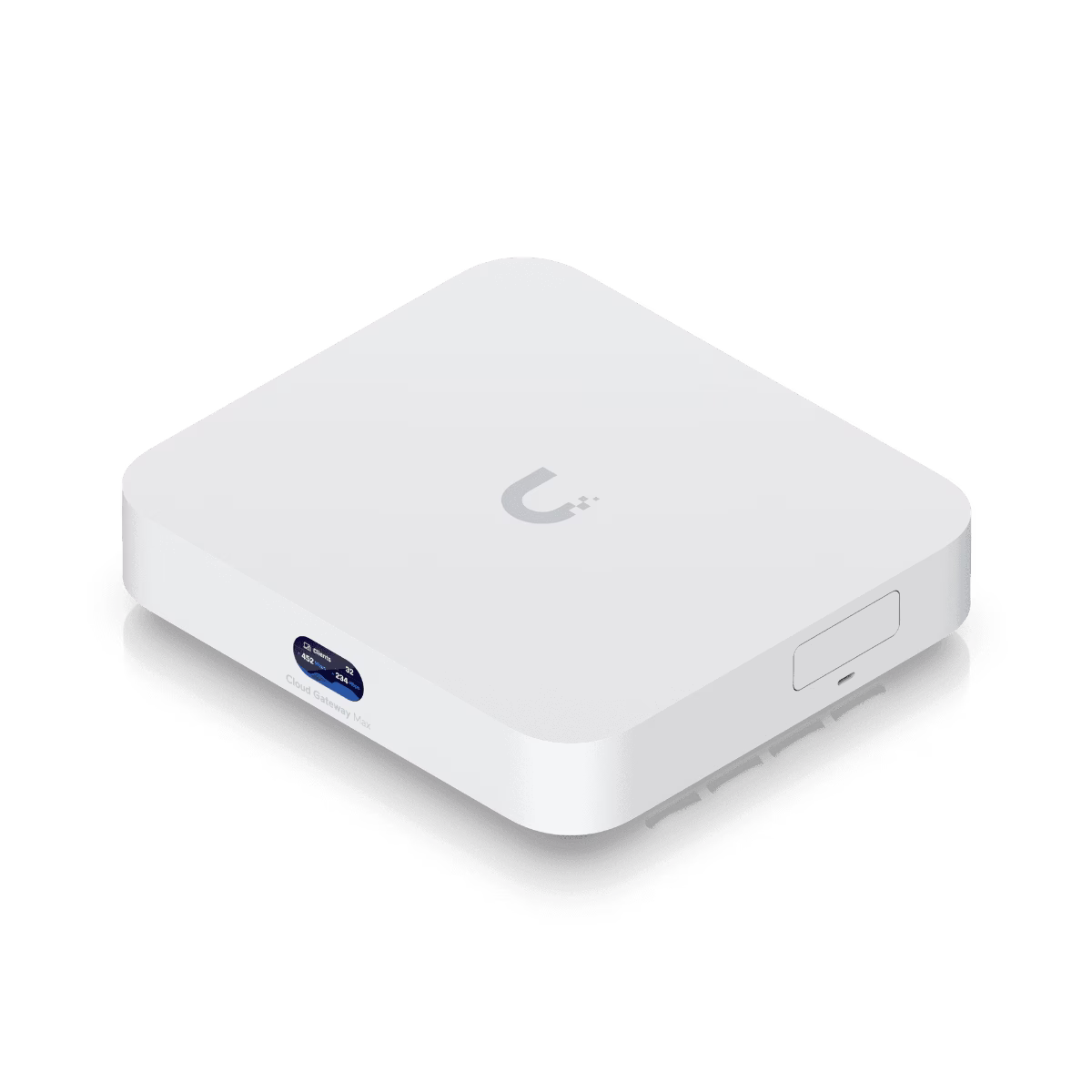

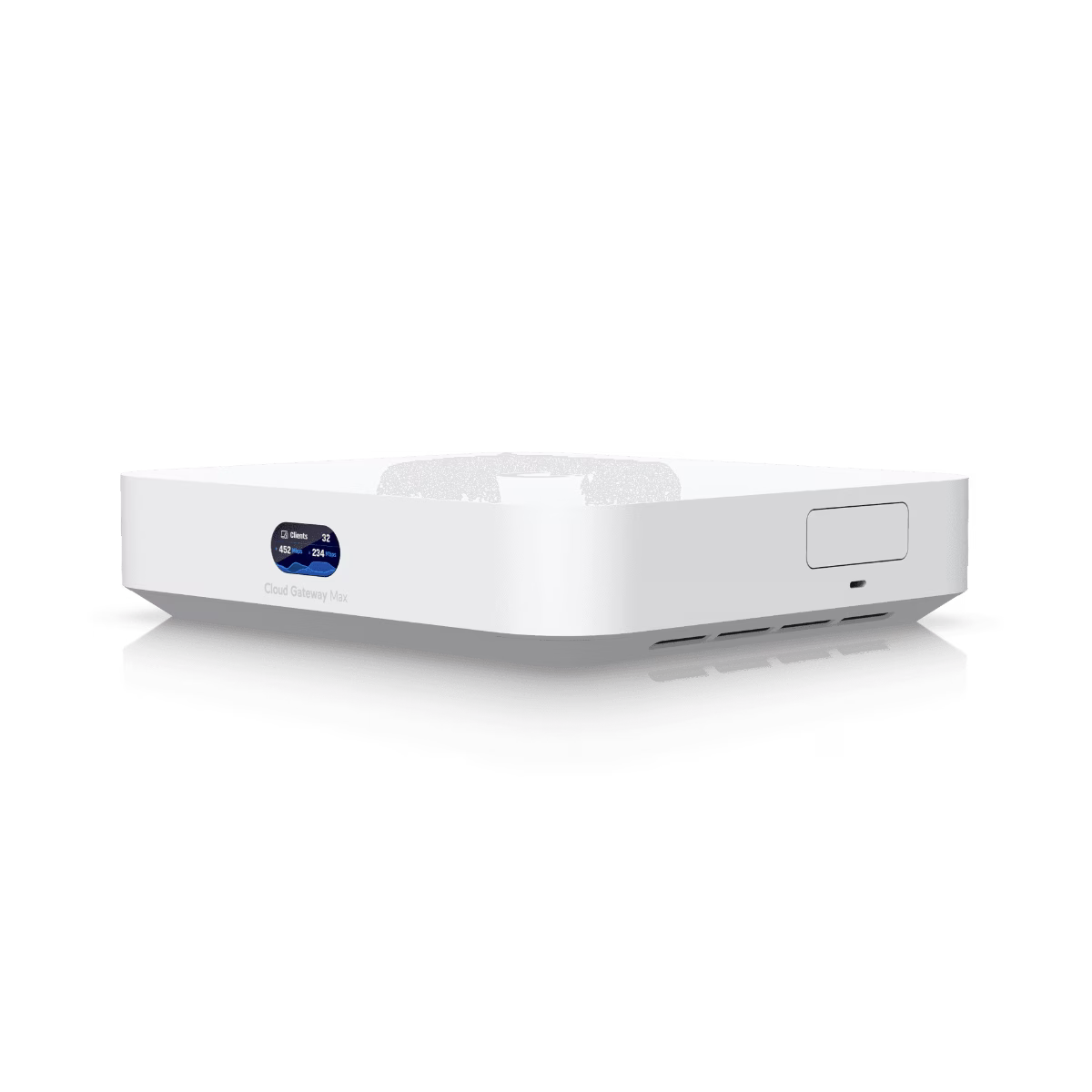

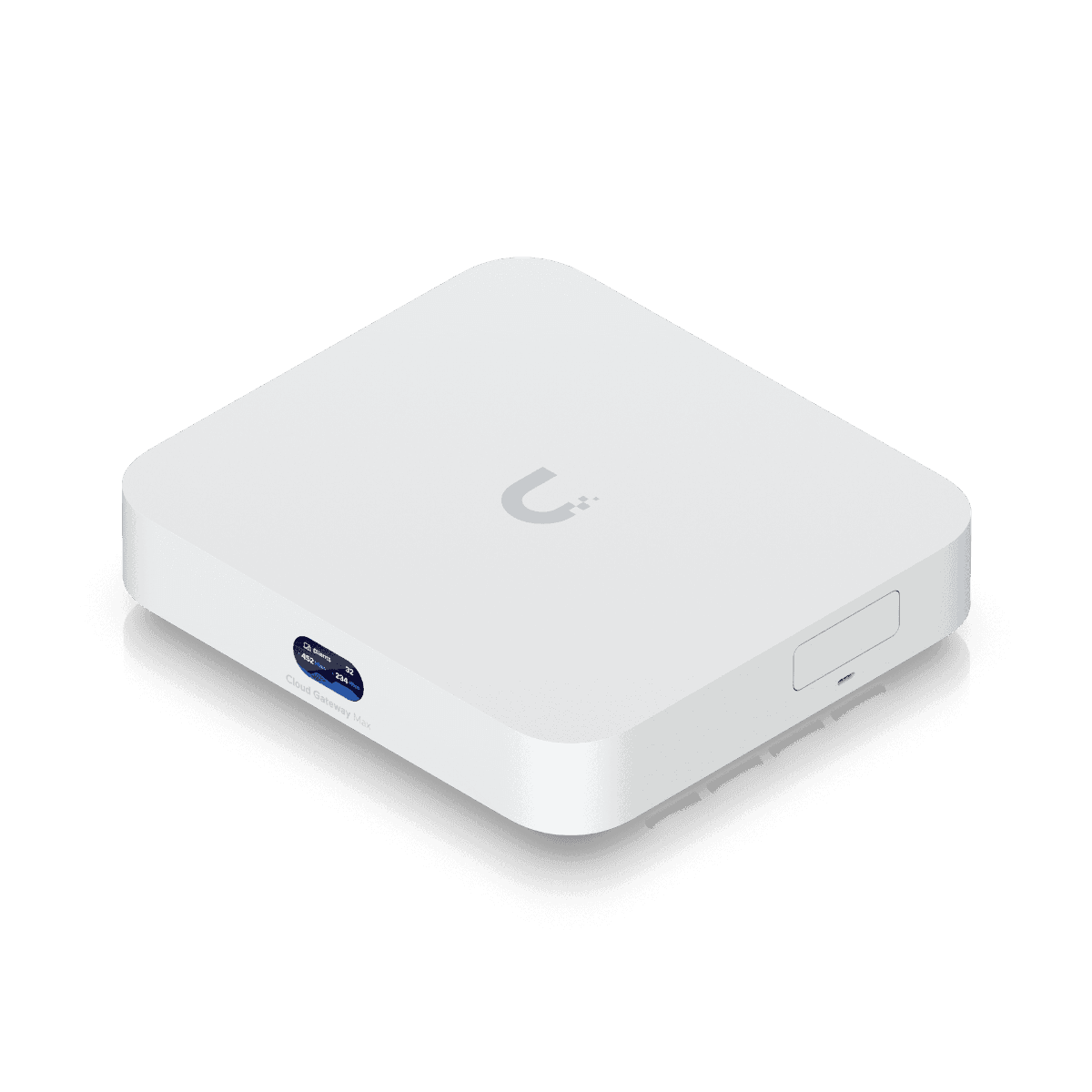

Unifi UCG-Max Compact 2.5G Cloud Gateway, 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, selectable NVR storage
Model :
SKU : UNIFI UCG-Max CLOUD GATEW
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
Unifi Cloud Gateway Max Compact 2.5G Cloud Gateway, 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, selectable NVR storage | UCG-Max Specifications
| Overview | |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |

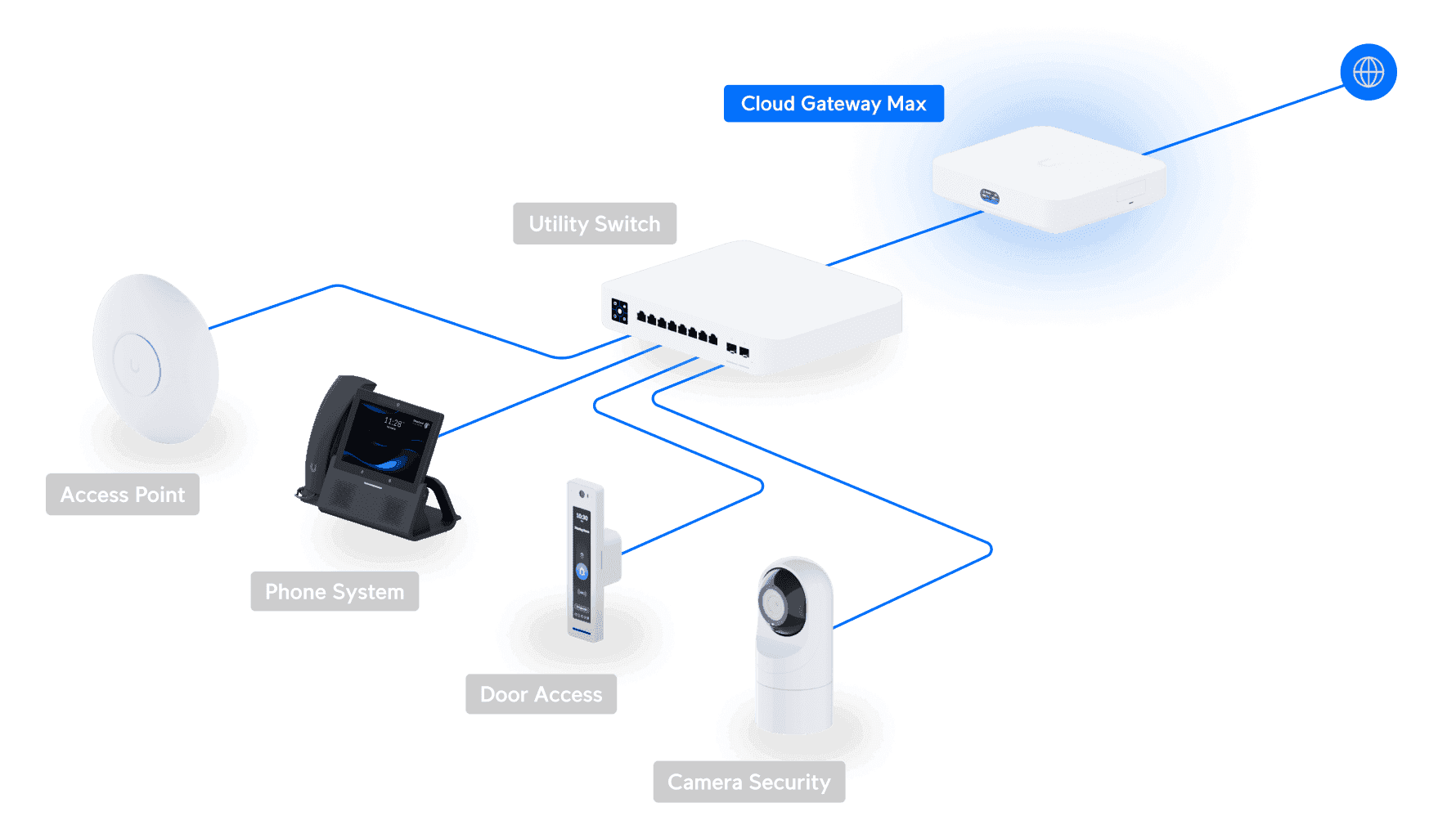

| UniFi Application Suite | Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓ |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (15) HD, (8) 2K, (5) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

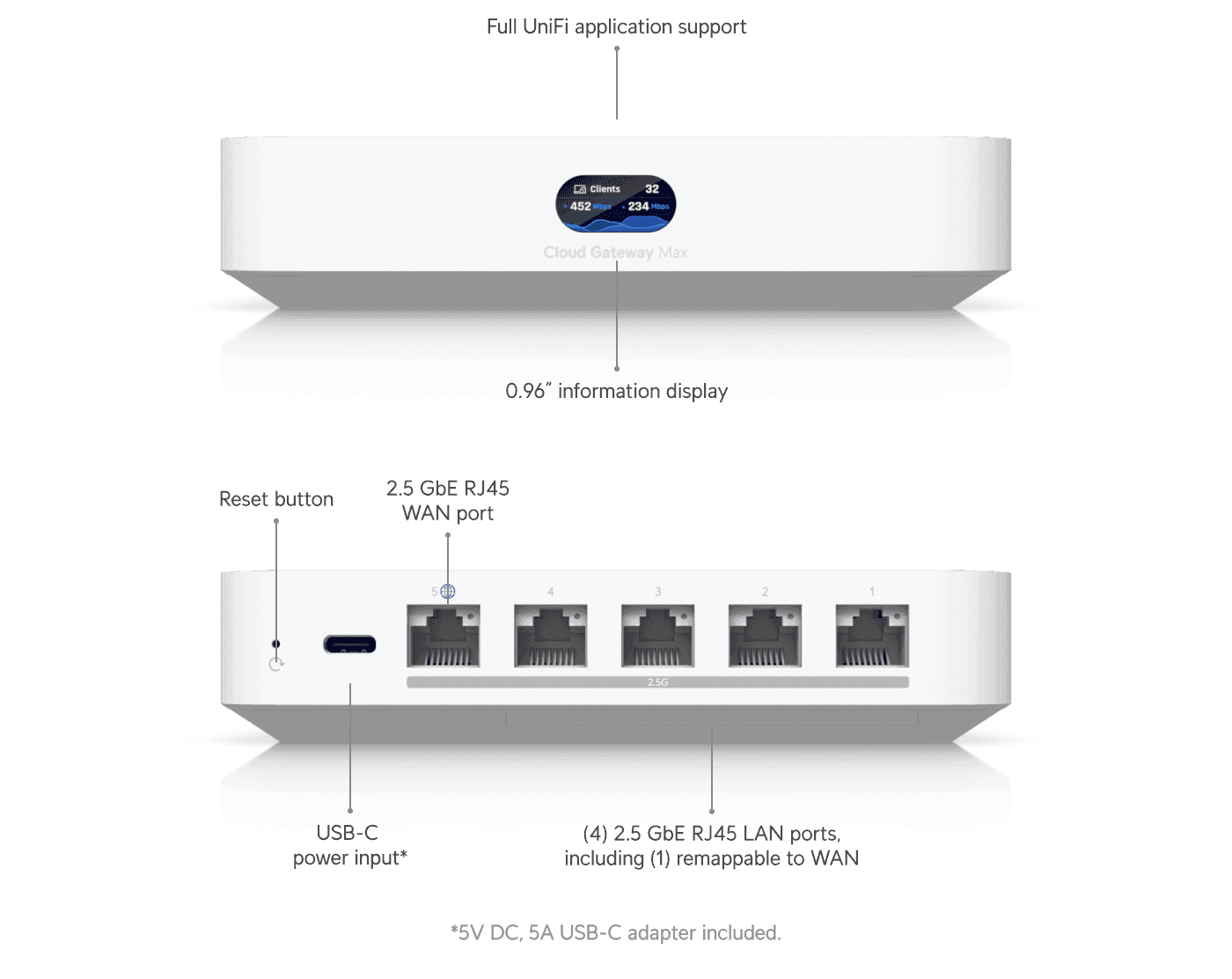

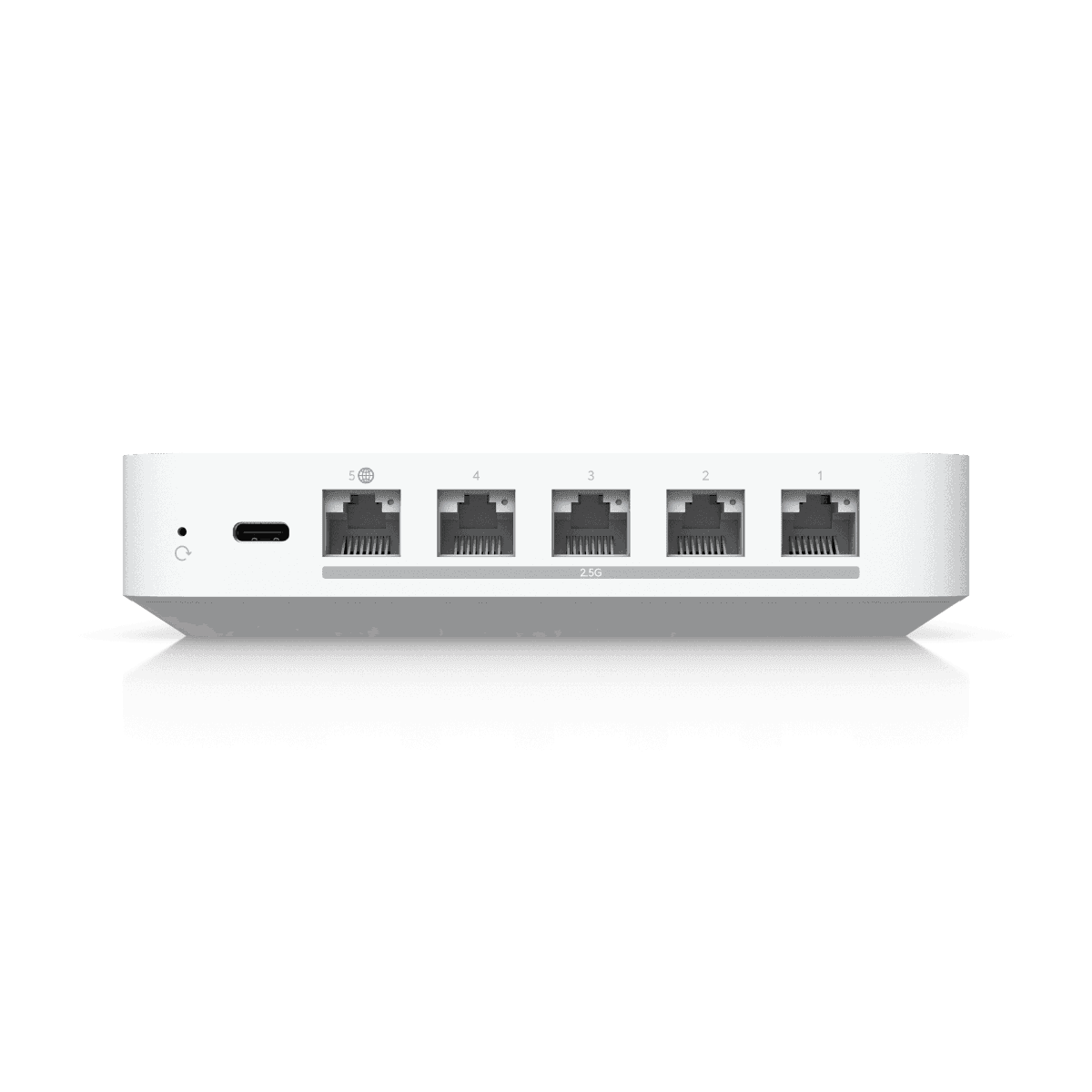

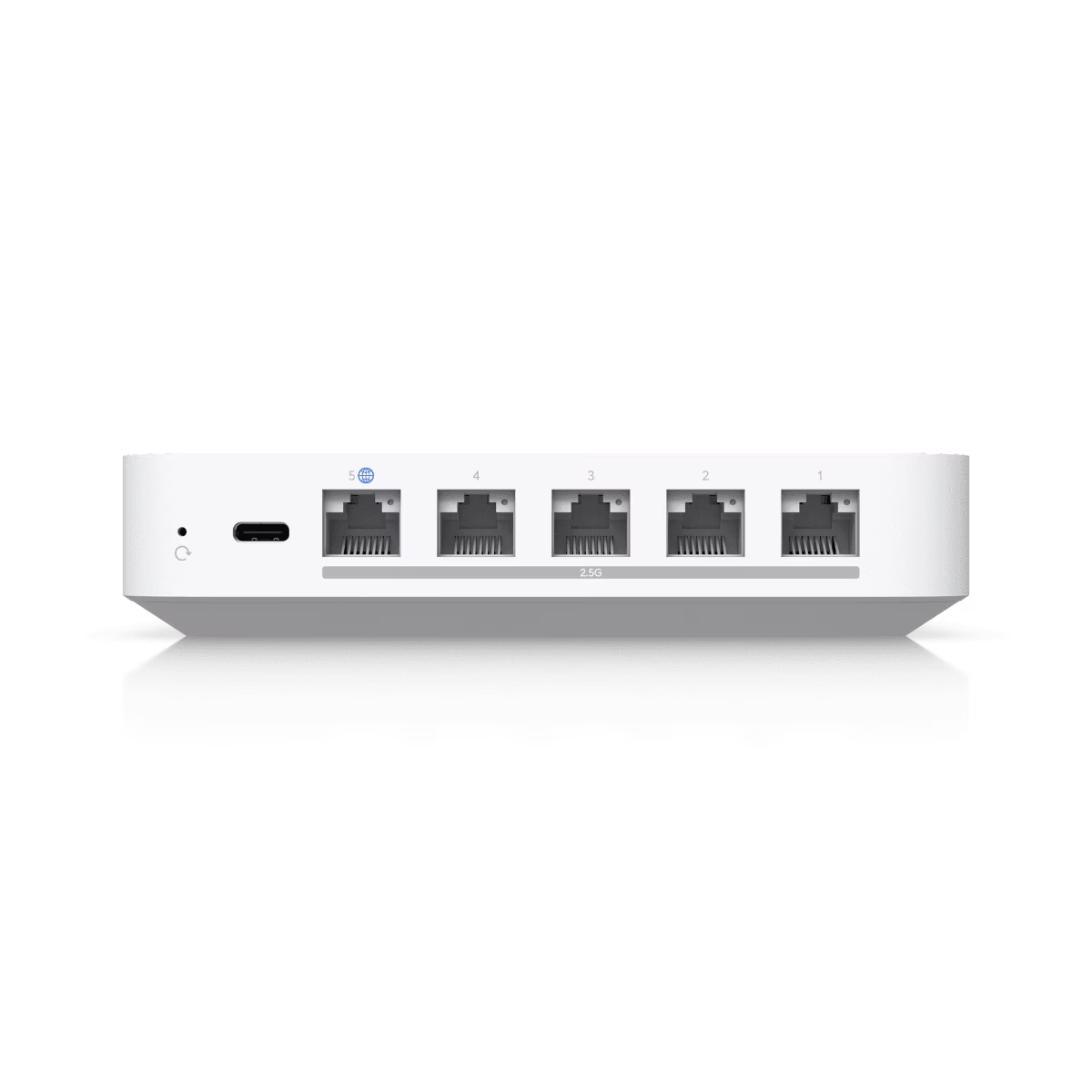

| Port Layout | 5 x 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall | ✓ (Regions, Domains, Apps) |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ (with CyberSecure) |
| VLAN/Subnet-based Segmentation | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic ✓ |
| IPsec / OpenVPN / L2TP | ✓ |
| VPN Server | ✓ (Identity Endpoint, Teleport, WireGuard) |
| VPN Client | ✓ (OpenVPN, WireGuard) |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing (OSPF) | ✓ |
| Advanced QoS / NAT / SNAT | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Integrated RADIUS / RadSec | ✓ |
| LTE Backup Support | ✓ |
| Internet Outage Reporting | ✓ |
| MAC Address Table Size | 2,000 |
| Policy-based WAN & VPN Routing | ✓ |
| Custom DHCP Server | ✓ |
| IPv6 ISP Support / IGMP Proxy | ✓ |
| Hardware | |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| Max. Power Consumption | 16.1W |
| Power Method / Supply | USB Type-C (5V DC/5A), Adapter included |
| Voltage Range | 100–240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 460 g (1 lb), With SSD: 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet ✓ |
| Button | 1x Factory-reset |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Operating Temp | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| Software | |
| Mobile App Requirement | UniFi iOS™ and Android™: Version 10.17.2 and later |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Network Products/Network Video Recorders/Unifi UCG-Max Compact 2.5G Cloud Gateway, 30+ UniF...
Similar Products
Hikvision DS-7108NI-Q1/8P/M 8-ch Mini 1U 8 PoE NVR, Up to 8-ch Network Camera Inputs (4x 1080p 2MP)
308.99
Hikvision DS-7104NI-Q1/4P/M 4-ch Mini 1U 4 PoE NVR, Up to 4-ch network Camera Inputs, (1080P 2MP Camera)
219.00
Hikvision DS-7716NI-M4/16P 16-ch 1.5U 16 PoE 8K NVR
1799.00
Hikvision DS-7732NXI-I4/VPro AcuSeek NVR, Up to 32-ch IP Camera, Facial Recognition AI by NVR, 4x SATA Interfaces, Non PoE
2529.00
Hikvision M Series 8K NVR DS-9616NI-M8, 16-Channel Video Surveillance Station, 32MP Resolution, H.265+ Compression, HDMI/USB Connectivity, Remote Management, Ethernet Support (1 Year Warranty)
2499.00
EZVIZ X5S Wireless High Performance 8 Channel NVR, HDMI & VGA Outputs, Up to 3K Video, Wi-Fi Range Up to 100 m, Supports ONVIF Conformant Camera, Up to 8TB Storage | CS-X5S-R100-8W
178.50
EZVIZ X5S Wireless High Performance 4 Channel NVR, HDMI & VGA Outputs, Up to 3K Video, Wi-Fi Range Up to 100 m, Supports ONVIF Conformant Camera, Up to 8TB Storage | CS-X5S-R100-4W
219.00
Hikvision DS-7608NI-K1/8P 8-ch 1U 8 PoE 4K NVR, Up to 8-ch IP camera inputs, Up to 80 Mbps incoming bandwidth, Human/Vehicle Analysis
489.00
Hikvision DS-7604NI-Q1 4-ch 1U 4K NVR, Up to 4-ch IP camera inputs, Up to 8 TB, 1 SATA interface, 80 Mbps Outgoing and 40 Mbps Incoming Bandwidth
220.50
Hikvision DS-7732NI-M4/24P Ultra Series, 32MP 32-Channel 320Mbps 1.5U 24-PoE, 4x SATA 8K NVR
2599.00
Hikvision DS-7616NXI-K2/16P AcuSense NVR, 16 (PoE) interfaces, 2 SATA, Up to 10 TB capacity for each HDD, Motion Detection, AI by Device, 1-ch 8 MP, Up to 160 Mbps incoming bandwidth
787.50

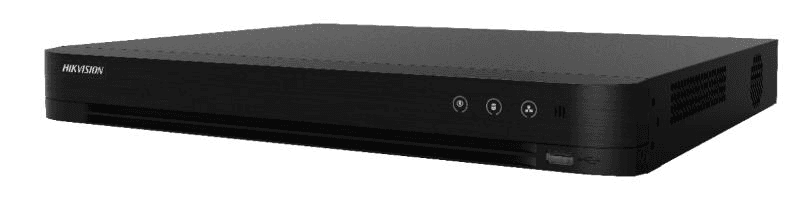

Hikvision iDS-7208HUHI-M2/S TURBO ACUSENSE DVR, 8 channels and 2 HDDs 1U AcuSense DVR, 2x SATA, Up to 16-ch IP camera inputs (up to 8 MP), 4x Human/Vehicle Analysis, Facial Detection And Capture, 32 Kbps to 10 Mbps, Dual-Stream Supports, H.265 Pro+
499.00
Hikvision DS-7608NI-M2/8P 8-ch 1U 8 PoE 8K NVR, Up to 8-ch IP Camera Inputs & 8-ch@8 MP Decoding, 128 Mbps Bandwidth, H.265+, 2 SATA, RJ-45 Ethernet, HDMI /VGA, USB 2.0 / USB 3.0, Black, Full POE NVR | DS-7608NI-M2/8P
1071.00

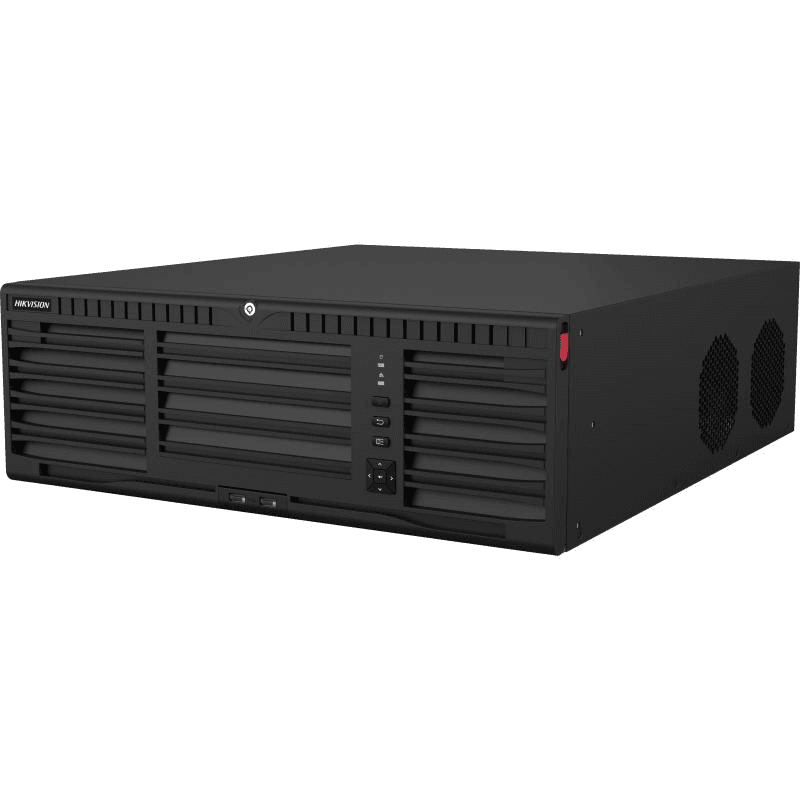

Hikvision DS-9664NI-M16 64-ch 3U 4K NVR, Up to 64-ch IP camera inputs, 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces, 2x HDMI, 2x VGA, 16x SATA, 1x eSATA, H.265+, Supports special cameras, 8K or dual 4K video outputs,
