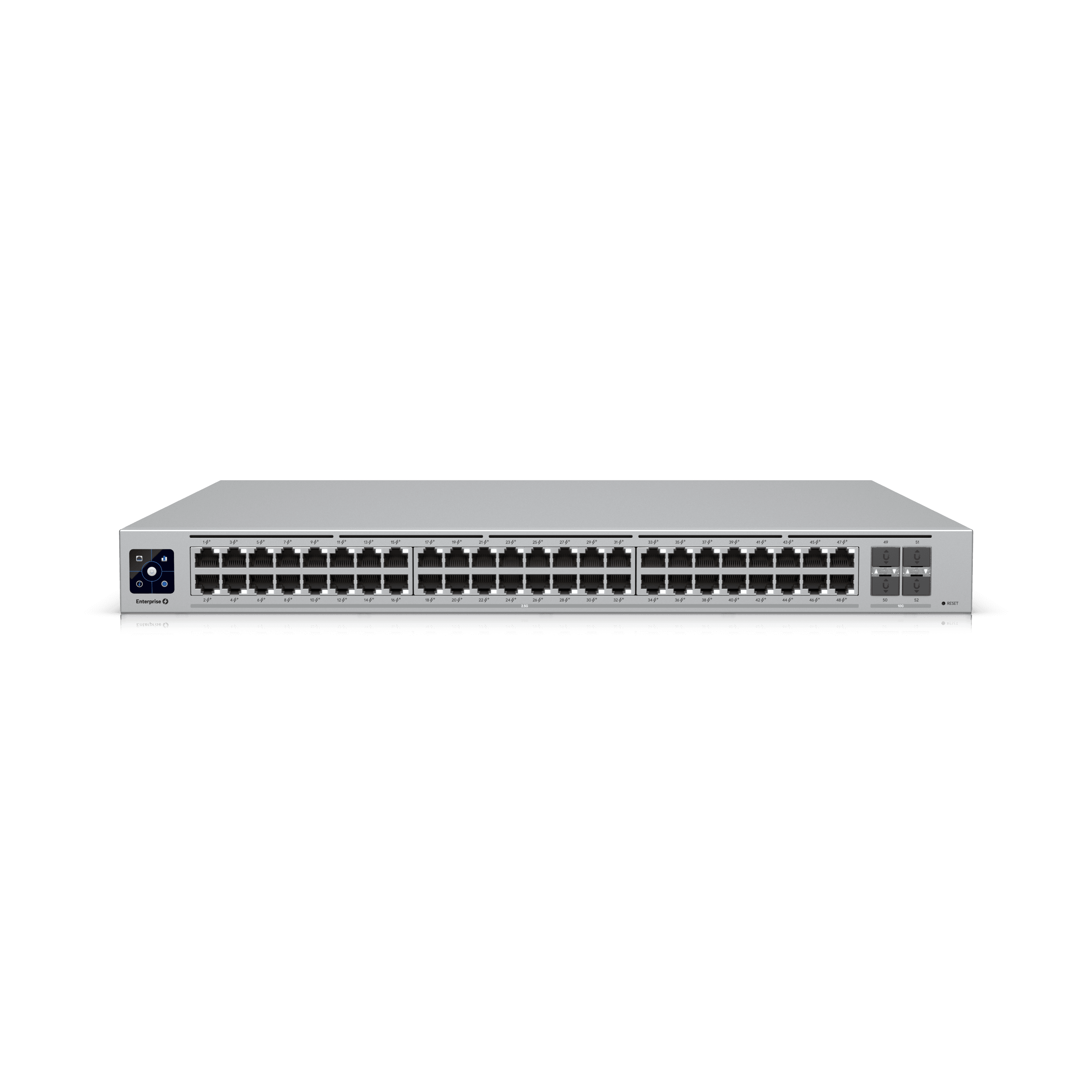

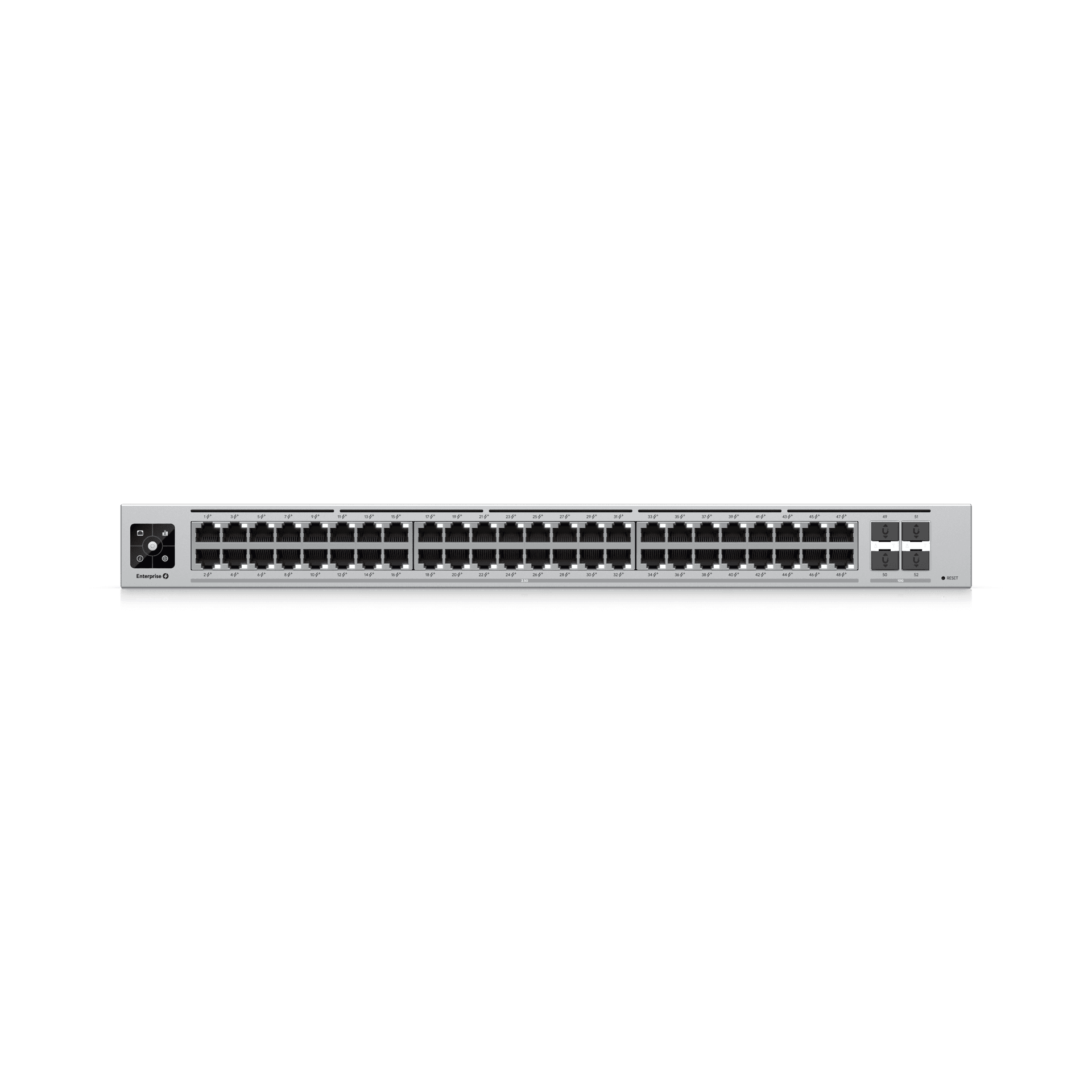

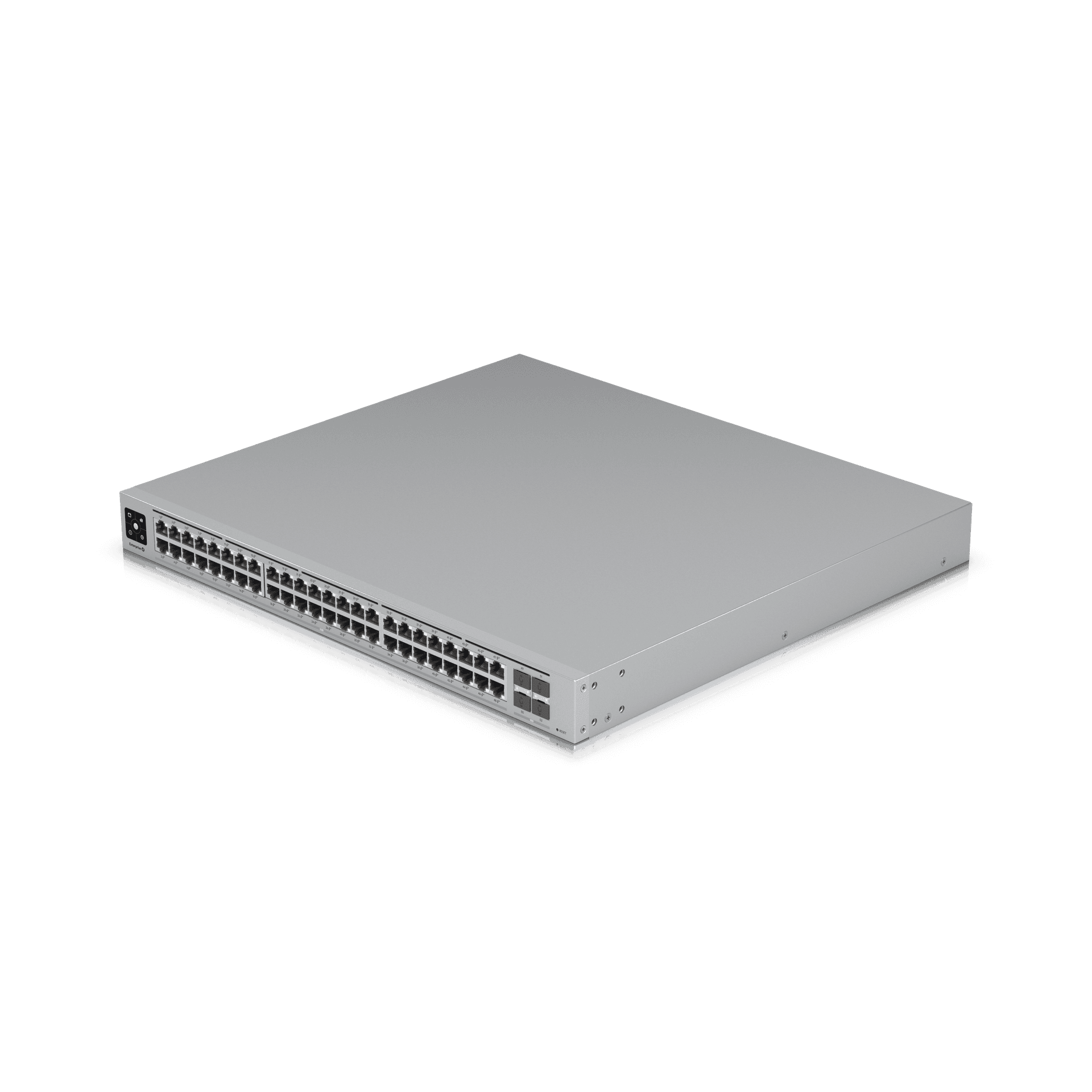

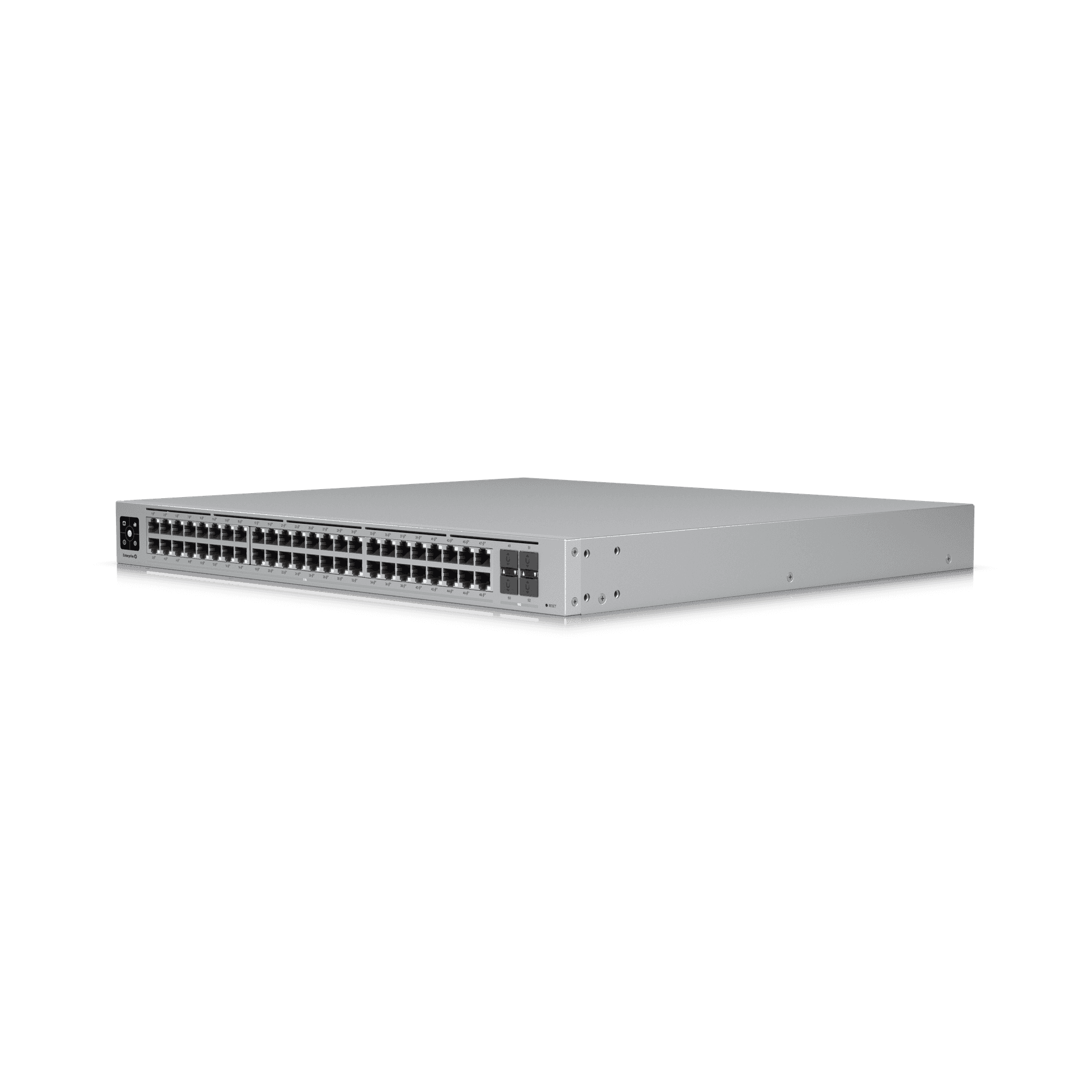

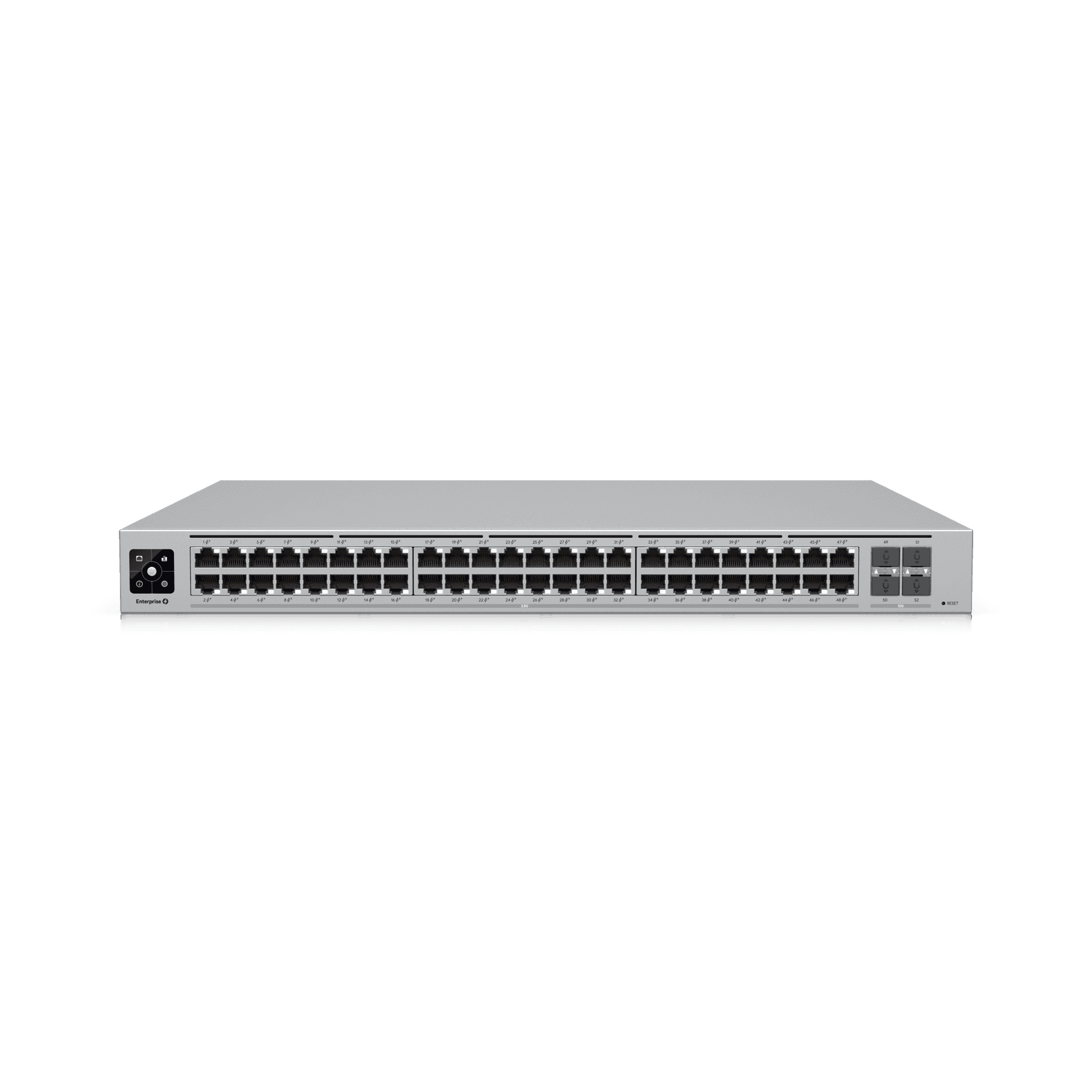

UniFi USW-Enterprise-48-PoE (Vintage) Switch, 48-Port 2.5 GbE PoE+, 4x 10G SFP+ Uplinks, Layer 3 Managed, 720W Budget | USW-Enterprise-48-PoE-EU

High-Density, High-Speed Power: UniFi USW-Enterprise-48-PoE Switch

The UniFi USW-Enterprise-48-PoE (Vintage) Switch provides the speed and power necessary for supporting modern, high-density networking environments, such as large corporate offices, hotels, or educational campuses. It integrates seamlessly into the UniFi Network Application for centralized management and monitoring.

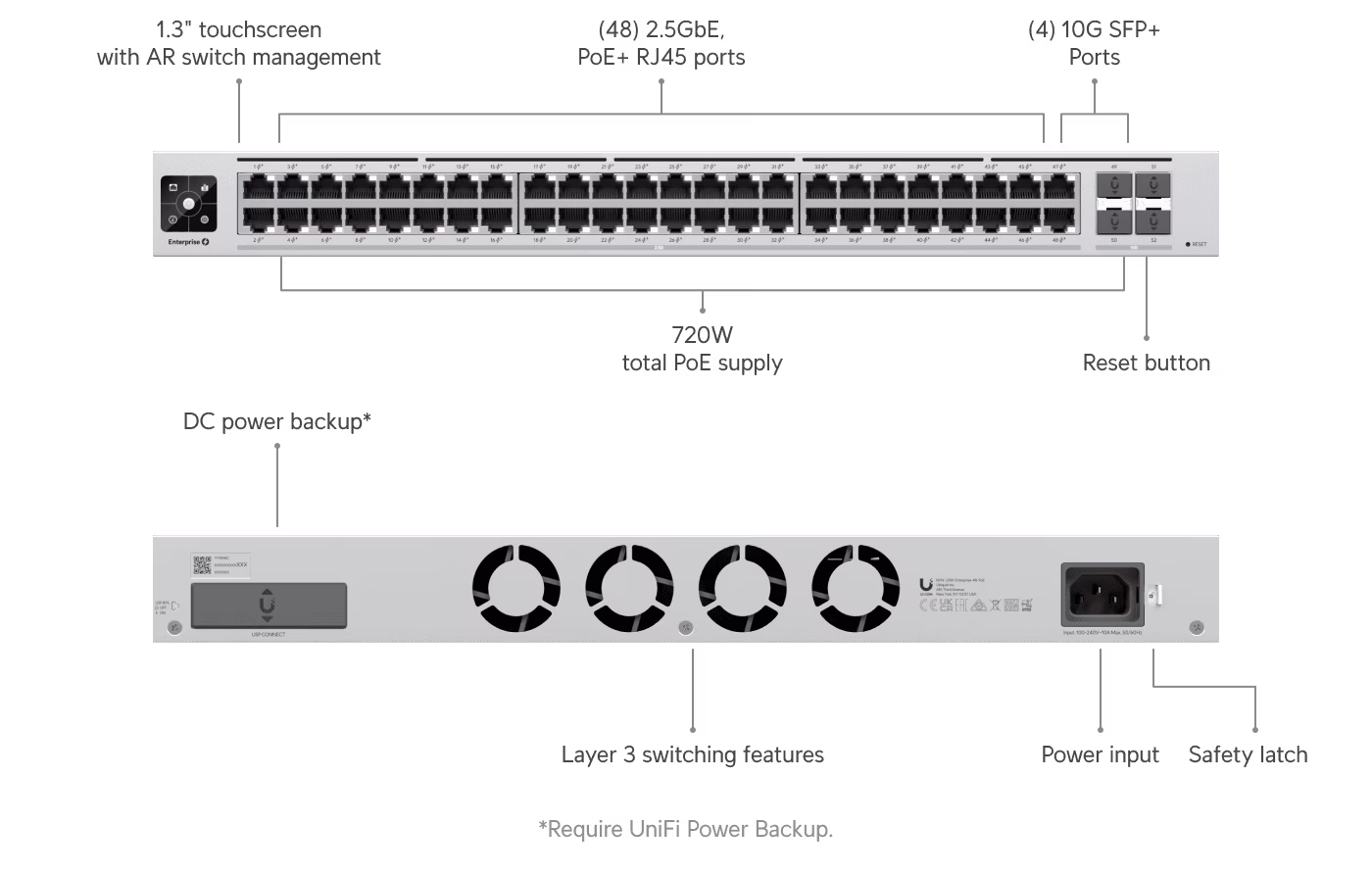

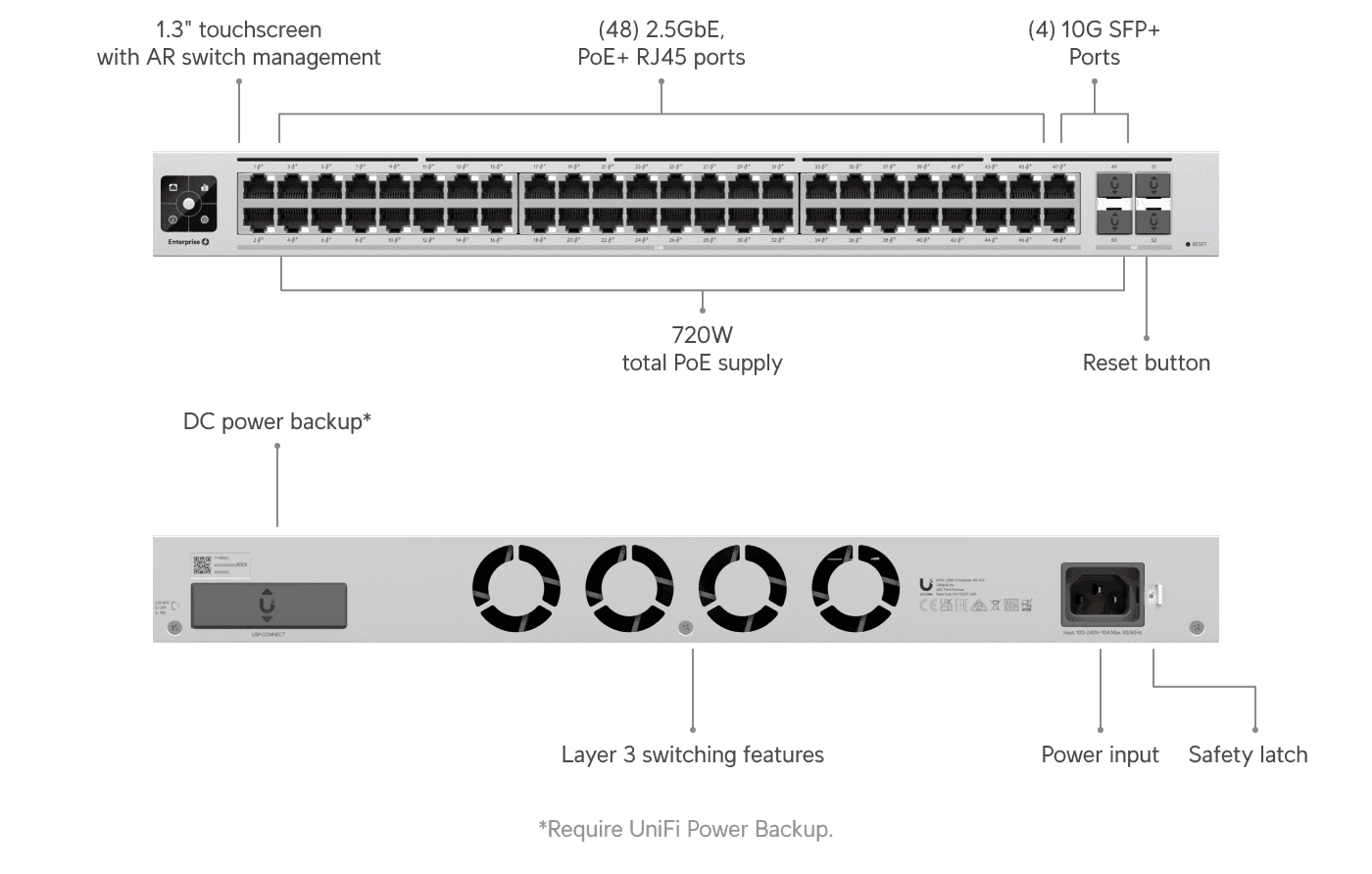

Enterprise-Grade Connectivity & Power:

• 48 x 2.5 GbE Ports: All 48 RJ45 ports support 2.5 GbE speeds, providing significantly higher throughput than traditional Gigabit switches, ideal for Wi-Fi 6/6E Access Points and high-bandwidth workstations.

• 720W PoE+ Budget: With 720W total PoE power across all 48 ports (max 32W per port), this switch is engineered to reliably power a large fleet of cameras, VoIP phones, and Access Points.





• 10G Fiber Uplinks: Features four 10G SFP+ ports for high-speed fiber connectivity to core networks, aggregation switches, or servers.

• Non-Blocking Throughput: Boasts a 160 Gbps total non-blocking throughput and a 160 Gbps switching capacity, ensuring zero bottlenecks even under high load.



Advanced Layer 3 Functionality:

• This is a full Layer 3 switch, providing essential routing capabilities for local networks, including:
  • DHCP Server and DHCP Relay
  • Inter-VLAN Routing
  • Static Routing
• Robust Layer 2 Features: Includes LACP, STP/RSTP, Advanced IGMP Configuration, Voice VLAN, QoS (DSCP), and comprehensive security features like DHCP Snooping & Guarding.
• Pro AV Profiles: Includes pre-configured settings for optimizing performance with Pro A/V protocols such as Dante, Q-SYS, NDI, and AES67.
