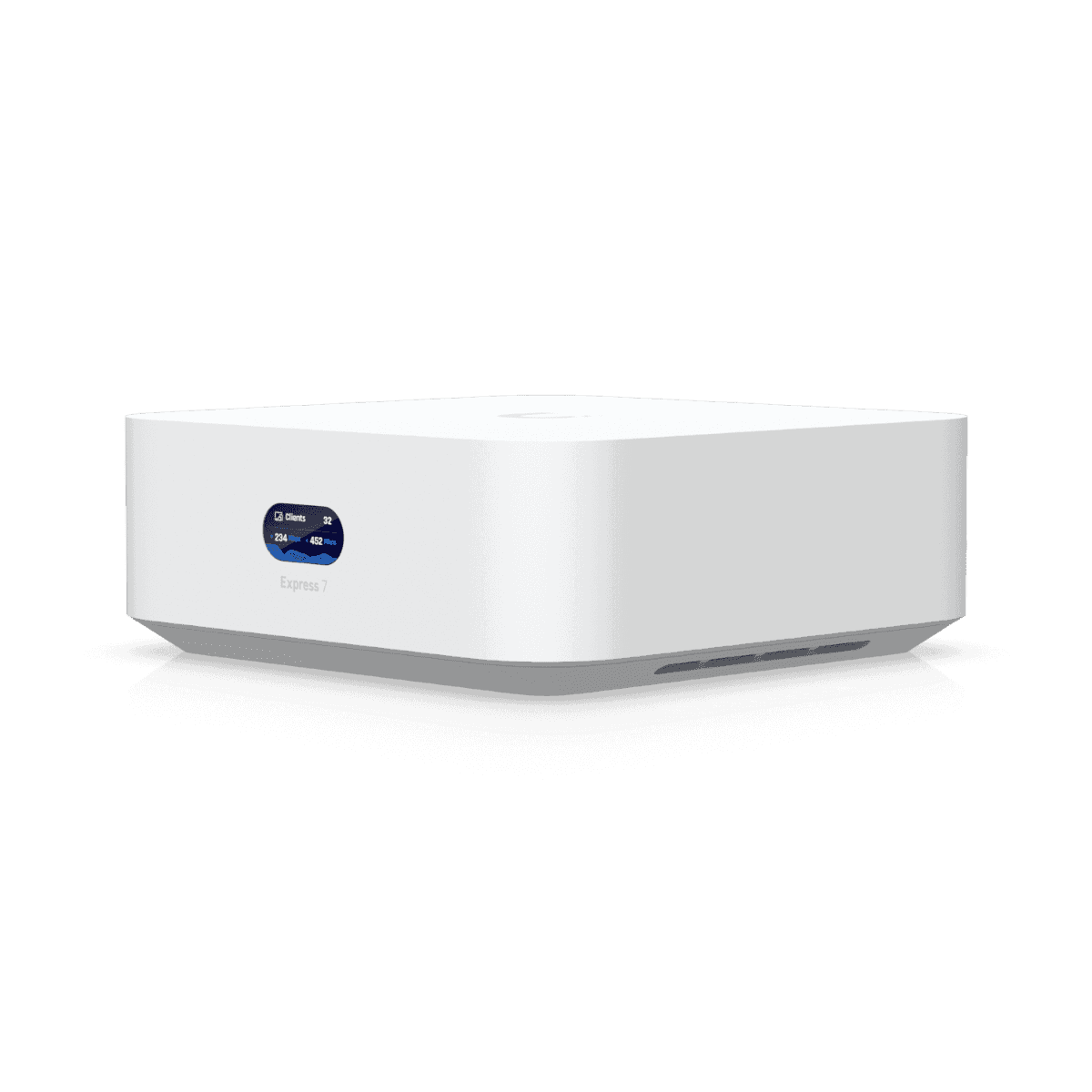

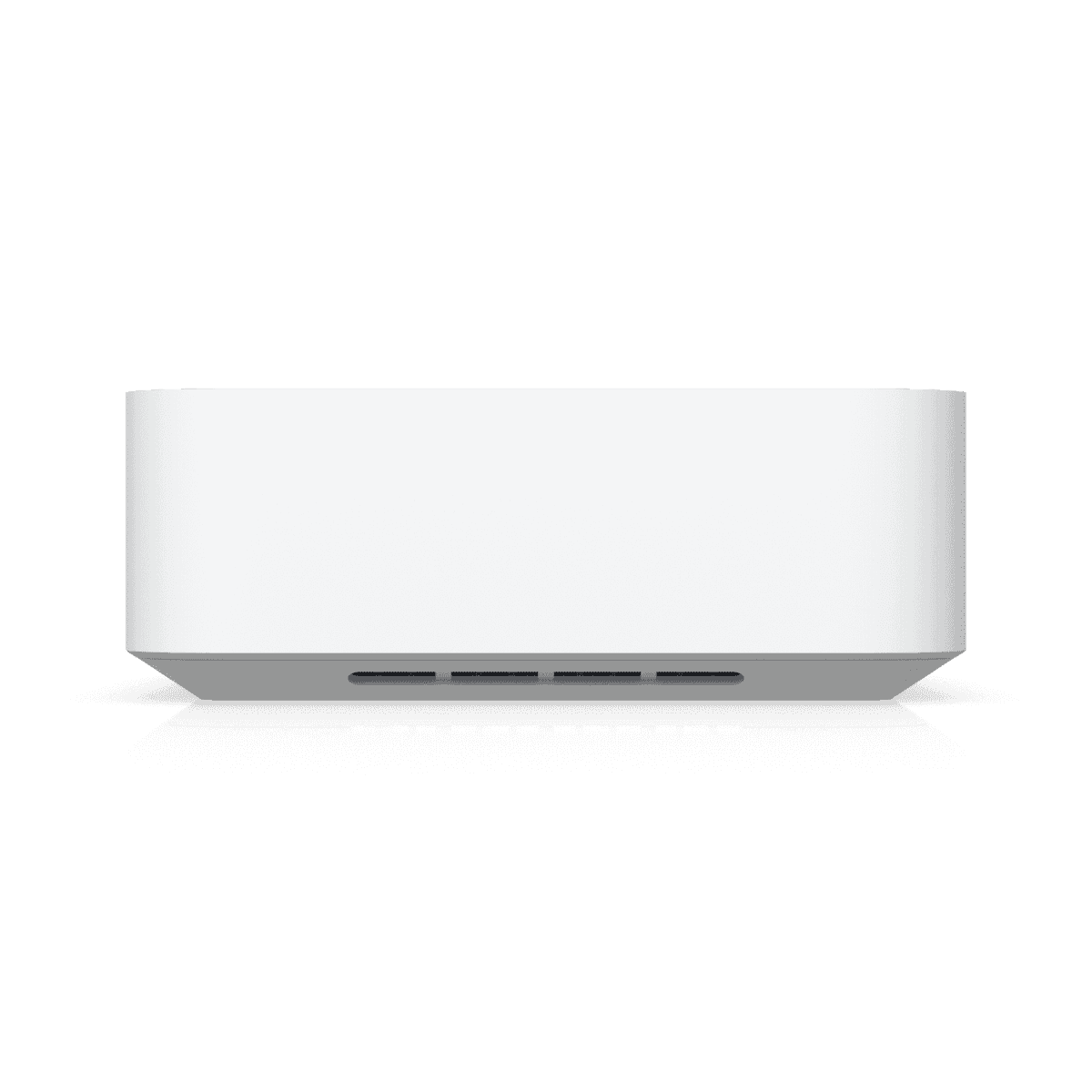

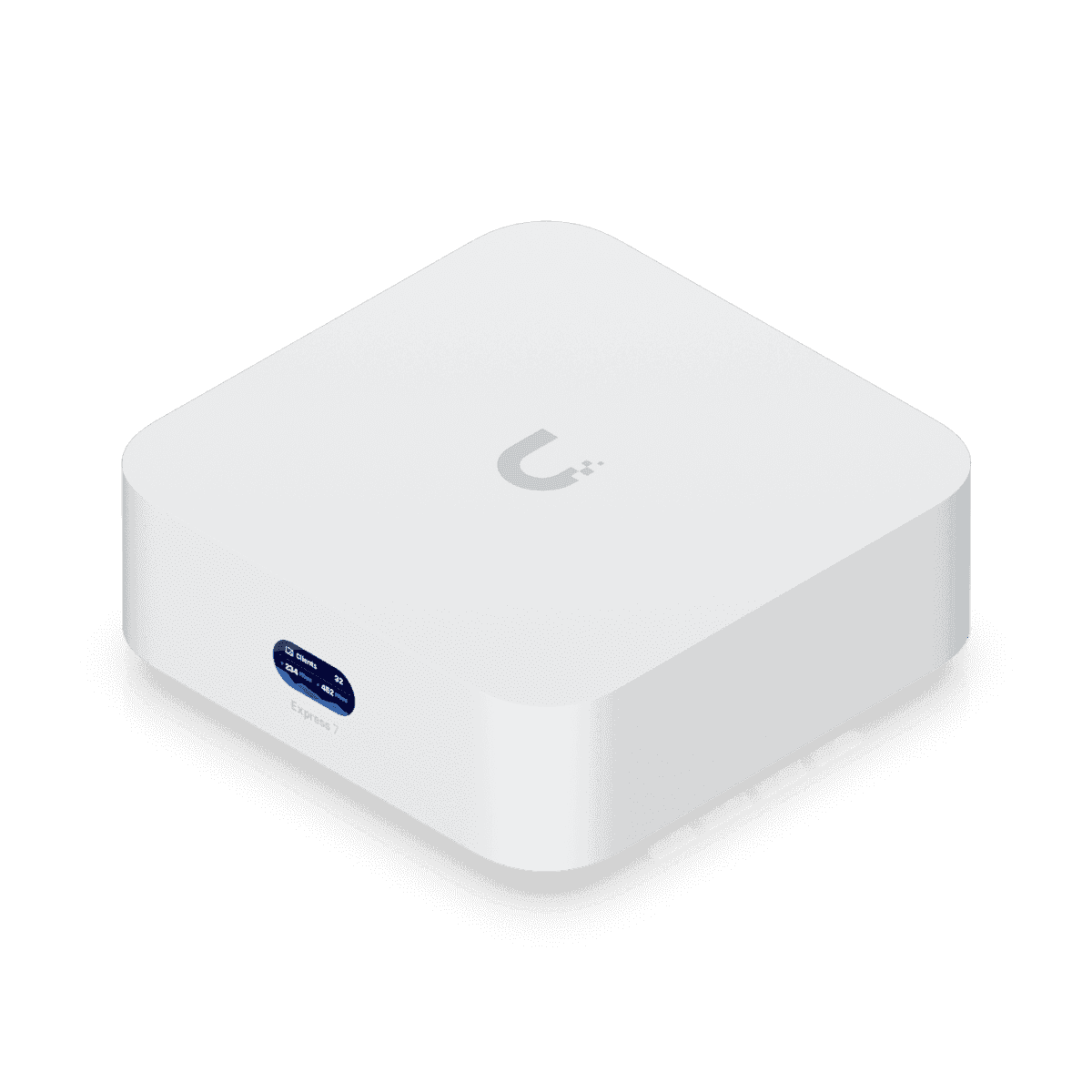

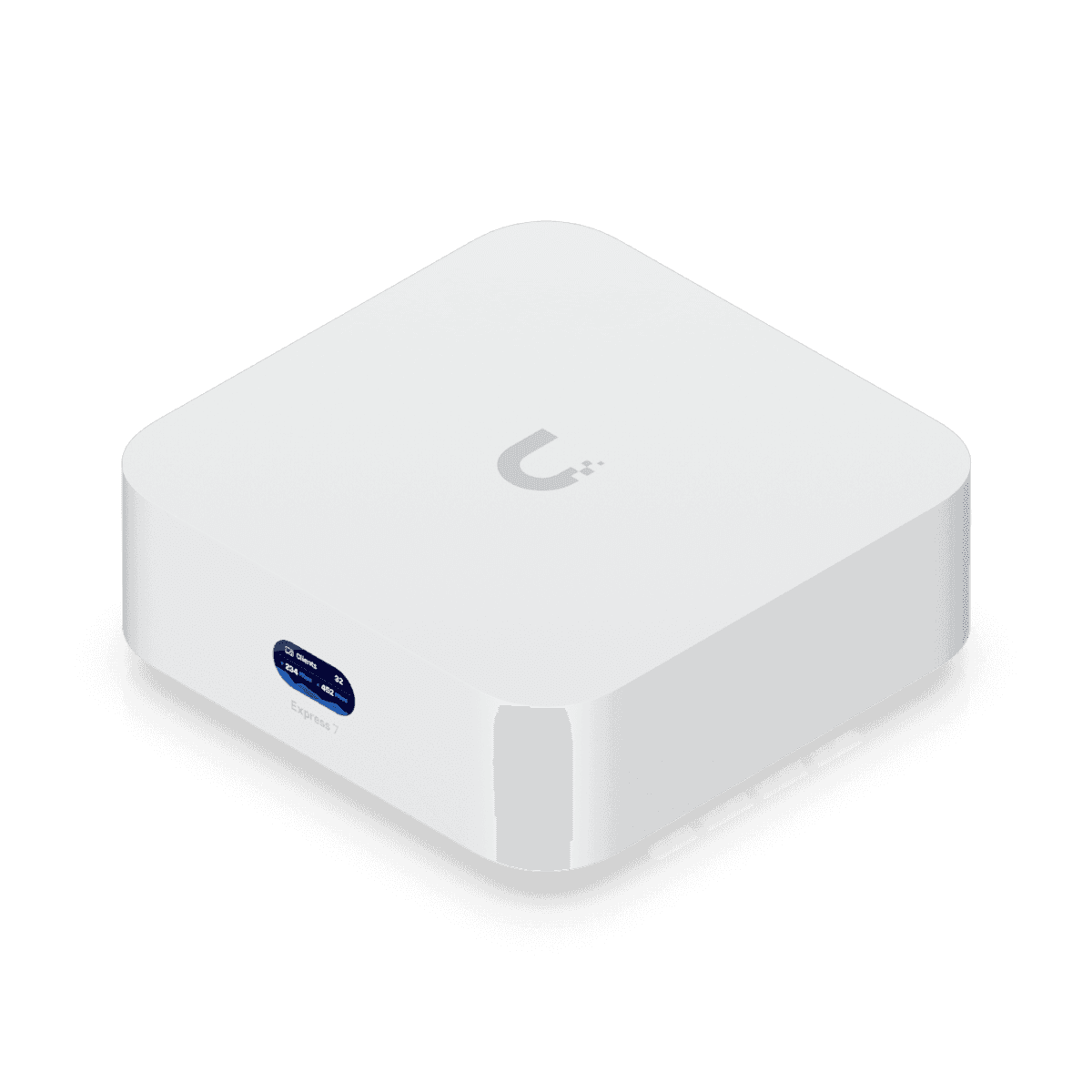

UniFi UX7 Express 7 Mesh-scalable, super-compact 10G Cloud Gateway, Integrated WiFi 7, 10 GbE RJ45 WAN Ports, 300+ Users | UX7
Model :
SKU : UNIFI UX7 EXPRESS7 10G
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
UniFi UX7 Express 7 Mesh-scalable, super-compact 10G Cloud Gateway, Integrated WiFi 7, 10 GbE RJ45 WAN Ports, 300+ Users | UX7 Specifications
| Dimensions (L x W x H) | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67") |
| UniFi Application Suite | Network ??? |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | 1 ?? 10 GbE RJ45 |

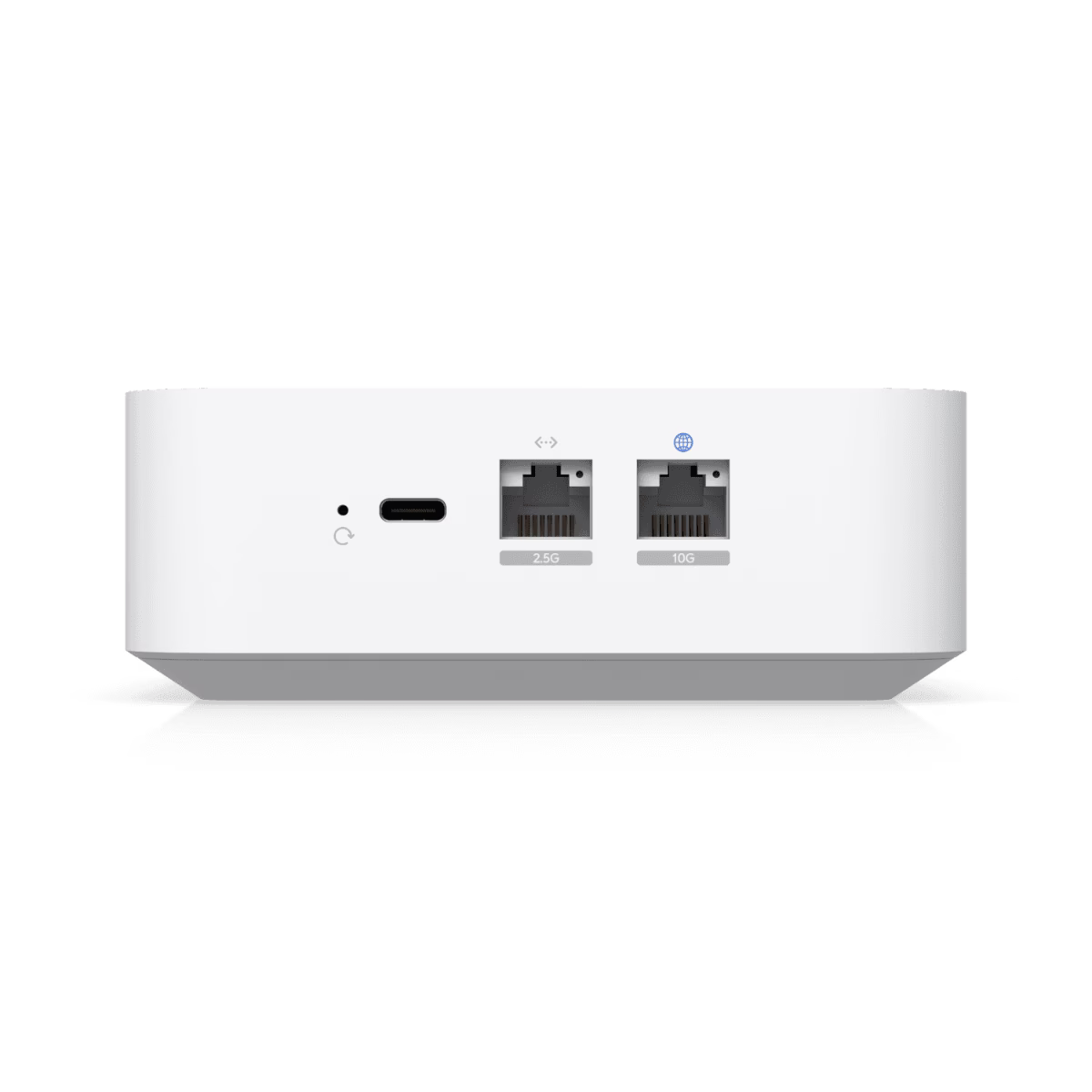

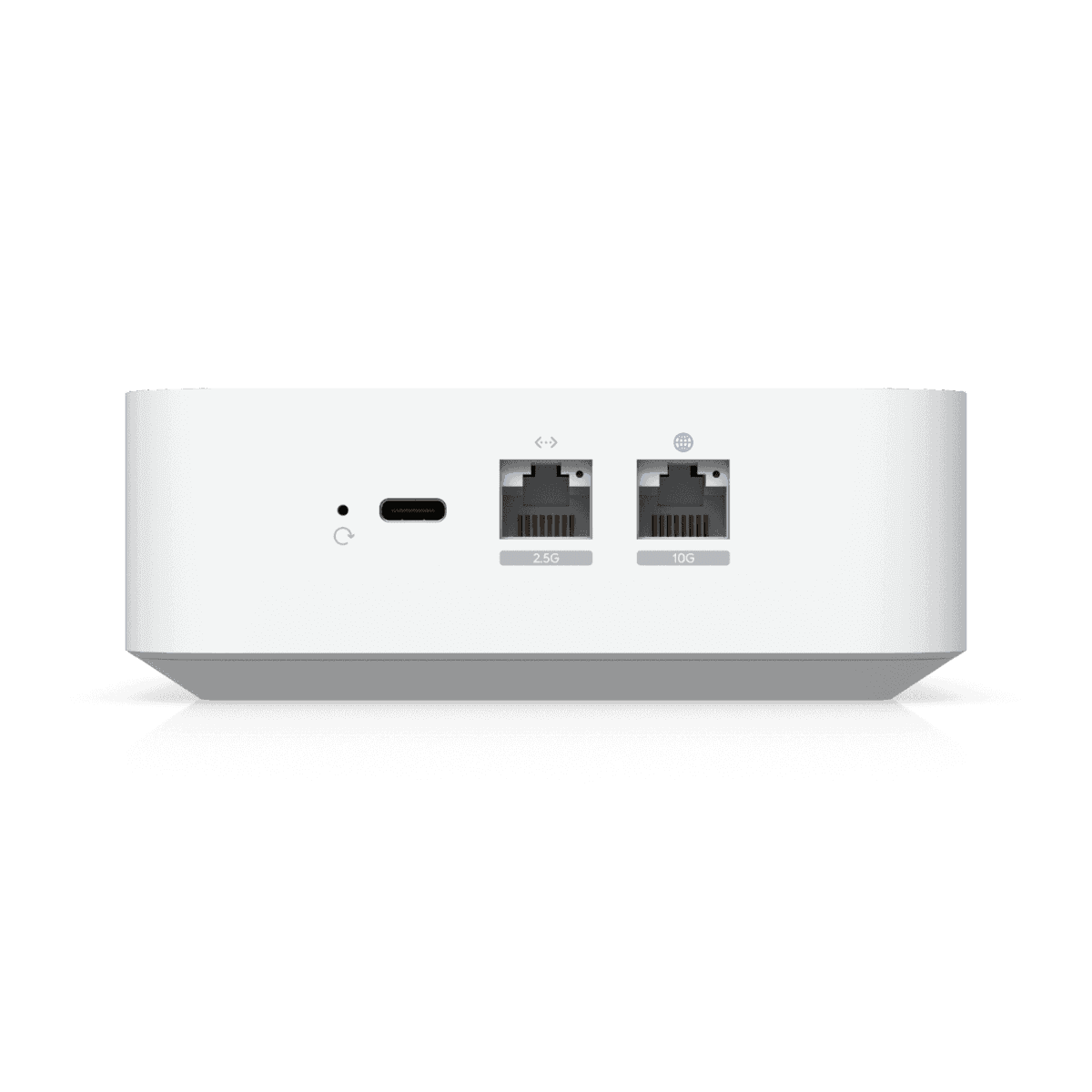

| Port Layout |
2.5 GbE RJ45 ?? 1 (2.5G/1G/100M/10M) 10 GbE RJ45 ?? 1 (10G/5G/2.5G/1G/100M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m?? (1,750 ft??) |
| Security Features |
Stateful Firewall ??? Layer 7 Firewall ??? DPI & Traffic ID ??? Zone-Based Firewall ??? Content Filtering ??? IPS/IDS ??? Ad Blocking ??? 20,000+ Signatures ??? VLAN/Subnet Segmentation ??? |
| VPN & SD-WAN |
License-Free SD-WAN ??? Site Magic VPN ??? IPsec ??? OpenVPN ??? WireGuard ??? L2TP ??? Identity Endpoint VPN ??? Teleport VPN ??? |
| Networking Features |
Dynamic Routing (OSPF) ??? Advanced QoS ??? Multicast DNS (mDNS) ??? Advanced NAT ??? Integrated RADIUS ??? RadSec (RADIUS over TLS) ??? UniFi LTE Backup Support ??? Internet Quality Reporting ??? Policy-based Routing ??? Custom DHCP Server ??? IPv6 ISP Support ??? IGMP Proxy ??? |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7) |
| WiFi Throughput |
6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| MIMO | 2 x 2 (DL/UL MU-MIMO) on all bands |
| Antenna Gain |
6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway/AP Mode) |
| Supported Data Rates |
802.11a/g: 6???54 Mbps 802.11b: 1???11 Mbps 802.11n: 6.5 Mbps ??? 300 Mbps 802.11ac: up to 1.7 Gbps 802.11ax: up to 2.4 Gbps 802.11be: up to 5.7 Gbps |
| Max. Power Consumption | 22W |
| Power Method | USB-C (5V DC / 5A) |
| Power Supply | USB-C (5V DC / 5A) (Adapter included) |
| Supported Voltage Range | 100???240V AC |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g (14.9 oz) |
| Enclosure Material | Polycarbonate |

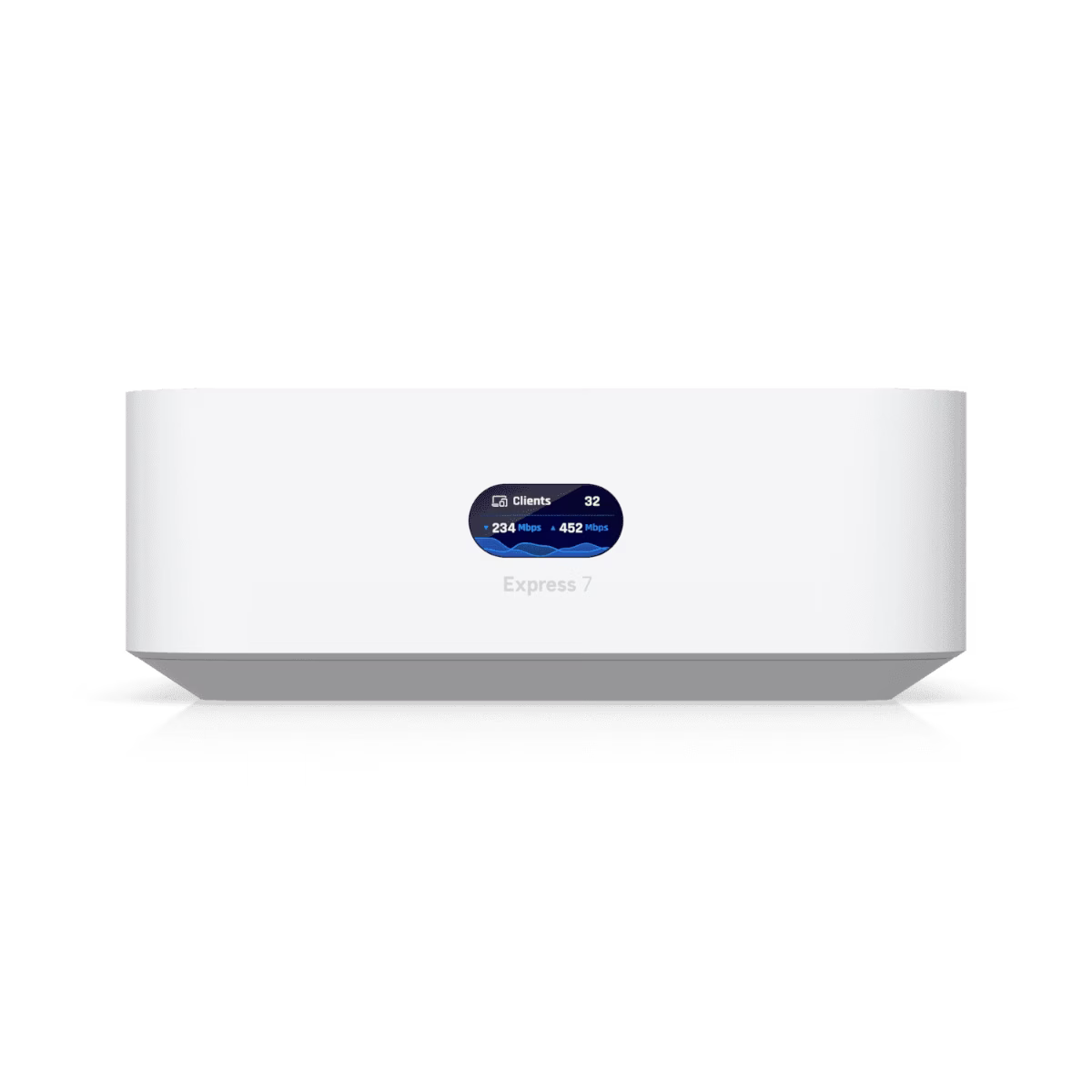

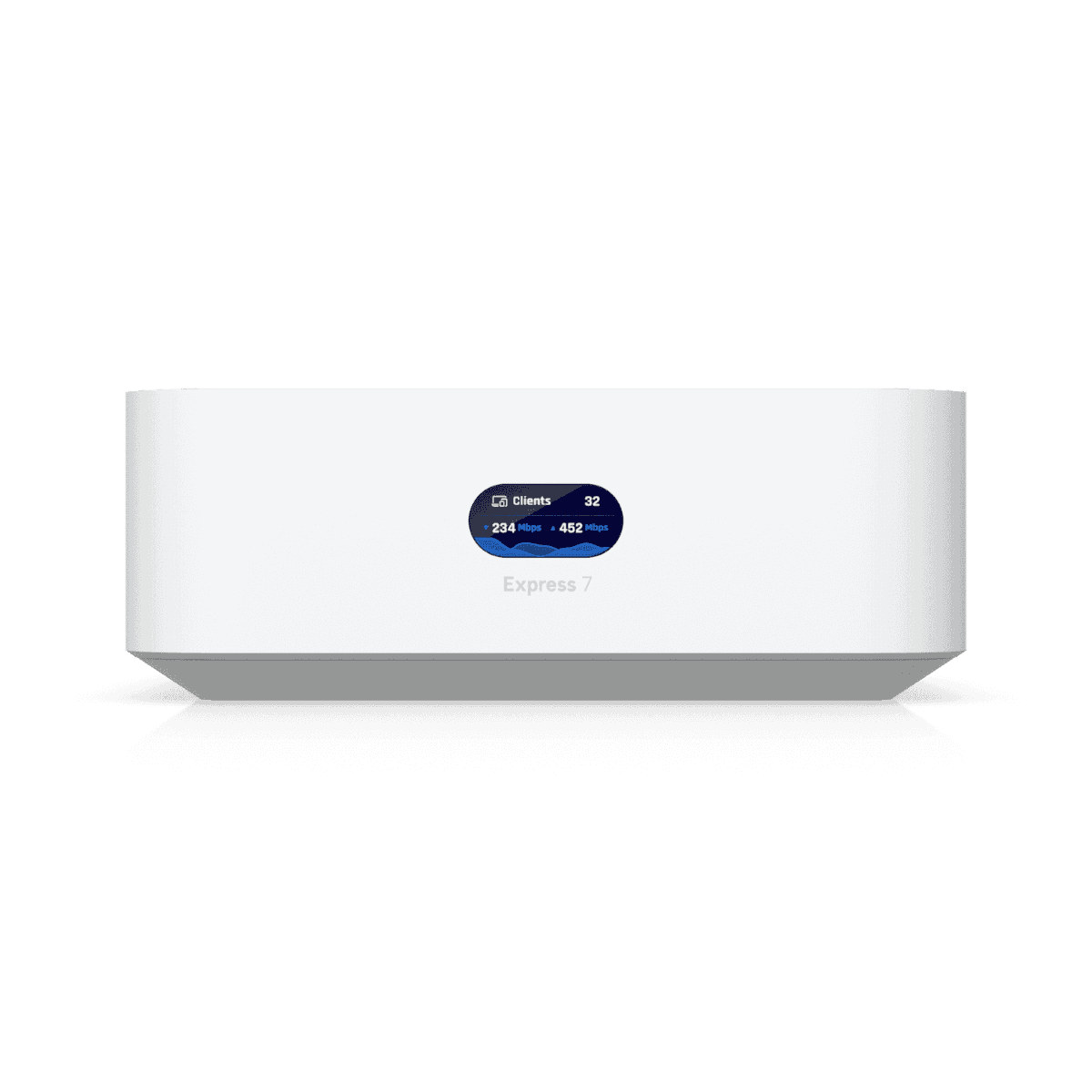

| LCM Display | 0.96" Status Display |
| Management Interfaces | Ethernet, Bluetooth |
| LED Indicators | Ethernet ??? |
| Button | 1 ?? Factory Reset |
| ESD/EMP Protection | Air: ??8kV Contact: ??4kV |
| Operating Temperature | -10 to 40??C (14 to 104??F) |
| Operating Humidity | 5 to 95% Noncondensing |
| NDAA Compliant | ??? |
| Certifications | CE, FCC, IC |
| Software Features |
VLAN 802.1Q ??? Guest Traffic Isolation ??? UniFi Network Version 9.0.108 or later required |
Specification
UniFi UX7 Express 7 Mesh-scalable, super-compact 10G Cloud Gateway, Integrated WiFi 7, 10 GbE RJ45 WAN Ports, 300+ Users | UX7 Specifications
| Dimensions (L x W x H) | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67") |
| UniFi Application Suite | Network ??? |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | 1 ?? 10 GbE RJ45 |
| Port Layout |
2.5 GbE RJ45 ?? 1 (2.5G/1G/100M/10M) 10 GbE RJ45 ?? 1 (10G/5G/2.5G/1G/100M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m?? (1,750 ft??) |
| Security Features |
Stateful Firewall ??? Layer 7 Firewall ??? DPI & Traffic ID ??? Zone-Based Firewall ??? Content Filtering ??? IPS/IDS ??? Ad Blocking ??? 20,000+ Signatures ??? VLAN/Subnet Segmentation ??? |
| VPN & SD-WAN |
License-Free SD-WAN ??? Site Magic VPN ??? IPsec ??? OpenVPN ??? WireGuard ??? L2TP ??? Identity Endpoint VPN ??? Teleport VPN ??? |
| Networking Features |
Dynamic Routing (OSPF) ??? Advanced QoS ??? Multicast DNS (mDNS) ??? Advanced NAT ??? Integrated RADIUS ??? RadSec (RADIUS over TLS) ??? UniFi LTE Backup Support ??? Internet Quality Reporting ??? Policy-based Routing ??? Custom DHCP Server ??? IPv6 ISP Support ??? IGMP Proxy ??? |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7) |
| WiFi Throughput |
6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps |
| MIMO | 2 x 2 (DL/UL MU-MIMO) on all bands |
| Antenna Gain |
6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway/AP Mode) |
| Supported Data Rates |
802.11a/g: 6???54 Mbps 802.11b: 1???11 Mbps 802.11n: 6.5 Mbps ??? 300 Mbps 802.11ac: up to 1.7 Gbps 802.11ax: up to 2.4 Gbps 802.11be: up to 5.7 Gbps |
| Max. Power Consumption | 22W |
| Power Method | USB-C (5V DC / 5A) |
| Power Supply | USB-C (5V DC / 5A) (Adapter included) |
| Supported Voltage Range | 100???240V AC |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g (14.9 oz) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" Status Display |
| Management Interfaces | Ethernet, Bluetooth |
| LED Indicators | Ethernet ??? |
| Button | 1 ?? Factory Reset |
| ESD/EMP Protection | Air: ??8kV Contact: ??4kV |
| Operating Temperature | -10 to 40??C (14 to 104??F) |
| Operating Humidity | 5 to 95% Noncondensing |
| NDAA Compliant | ??? |
| Certifications | CE, FCC, IC |
| Software Features |
VLAN 802.1Q ??? Guest Traffic Isolation ??? UniFi Network Version 9.0.108 or later required |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Security & Surveillance/Gateway/UniFi UX7 Express 7 Mesh-scalable, super-compact 1...
Similar Products
Unifi Cloud Gateway Fiber, Desktop 10G Cloud Gateway, Integrated 4-port 2.5 GbE switch, selectable NVR storage, Full UniFi Application Support | UCG-Fiber (30W) -Ubiquiti UCG-Fiber Cloud Gateway (UCG-Fiber)
1155.00

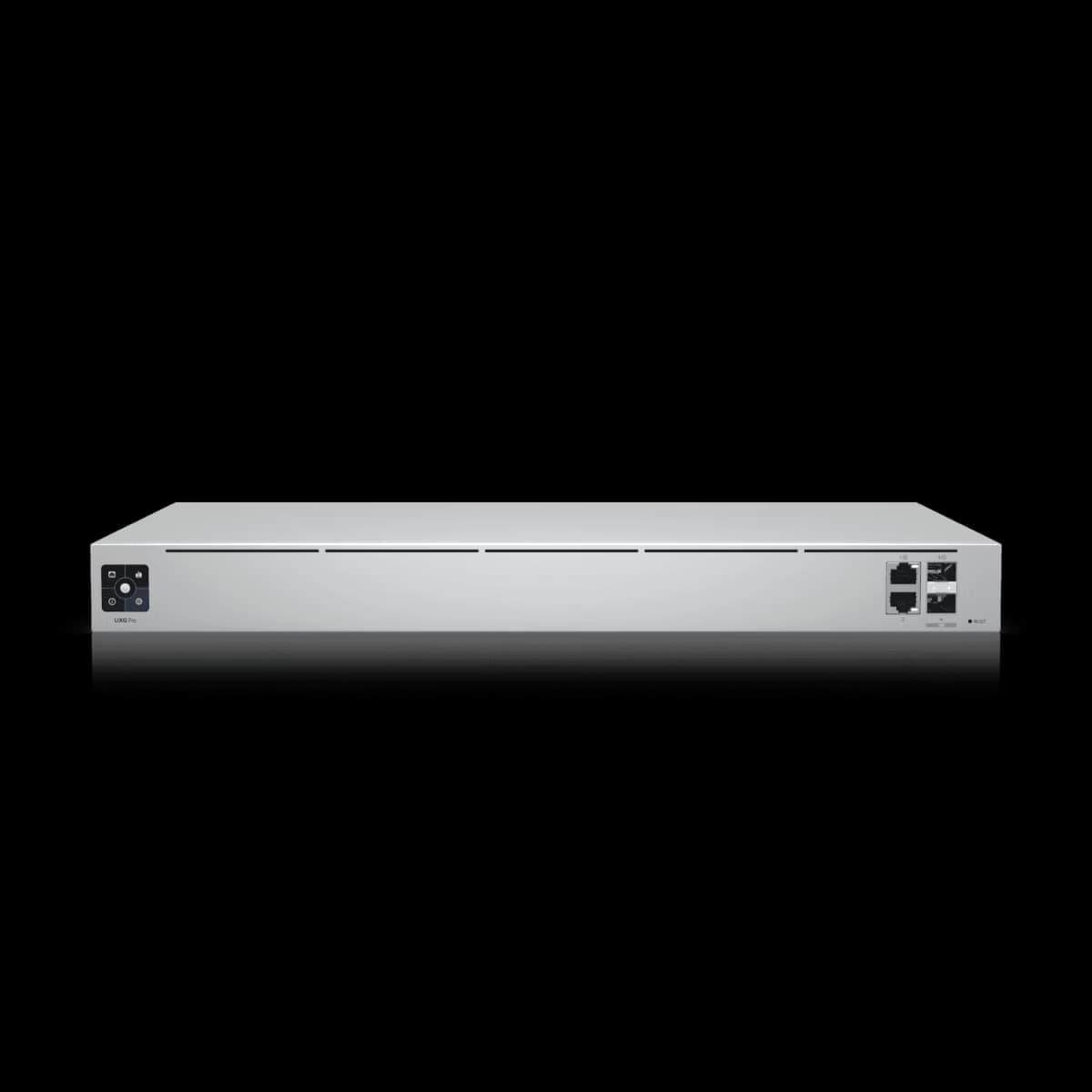

Unifi Gateway Pro 10G multi-WAN independent Gateway, UniFi Power Backup support designed to protect large-scale networks | UXG-Pro
