WD Purple Pro 12TB Smart Video Surveillance 3.5 Inch Hard Drive, 7200 RPM, 512MB Cache, AllFrame AI | WD122PURP-85CCFY0
Model :
SKU : HD-WD 12TB PURPLE WD122PU

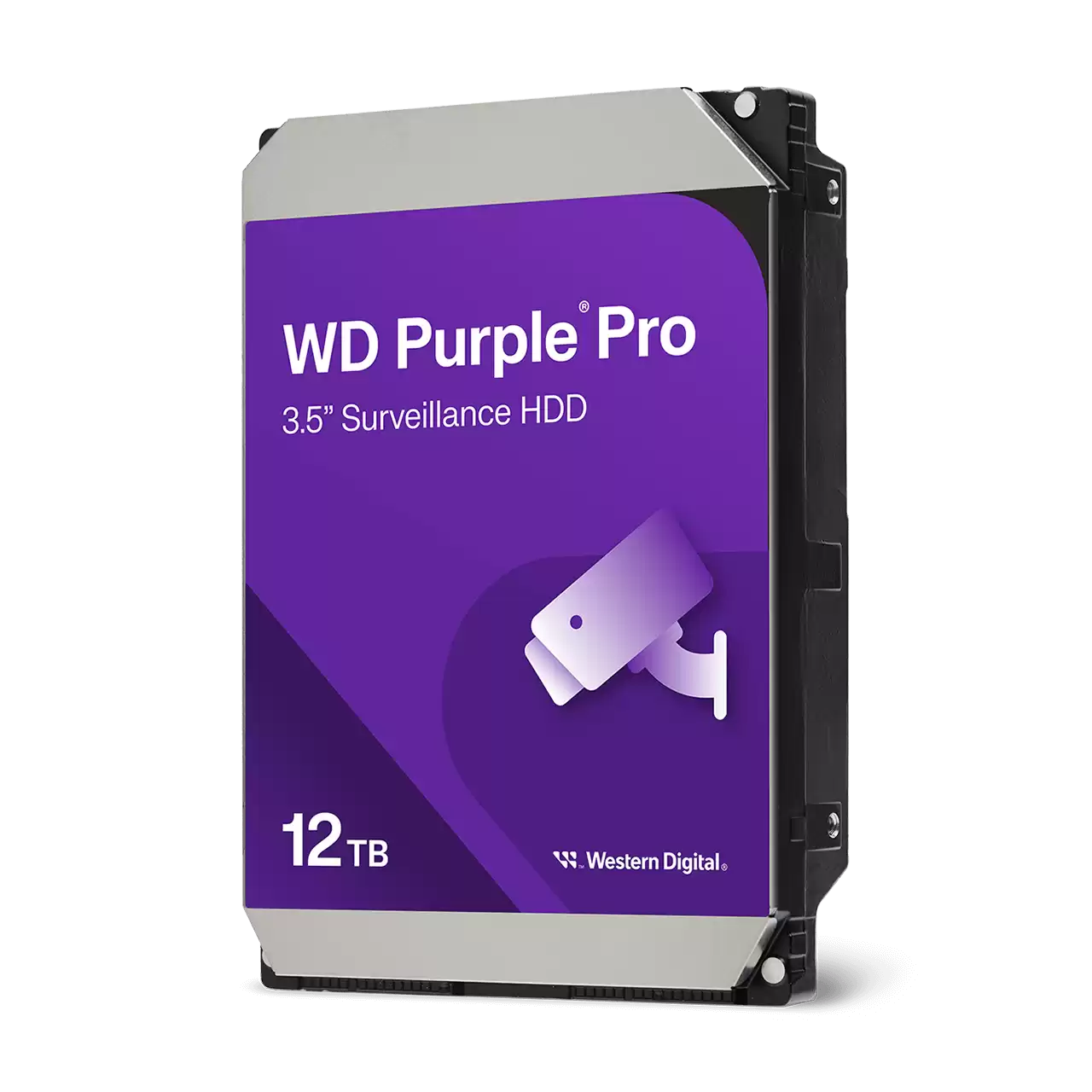

The WD Purple Pro 12TB HDD (Model: WD122PURP) is an enterprise-class 3.5-inch hard drive specifically engineered for advanced AI-enabled recorders, video analytics servers, and deep learning solutions. It features a high disk speed of 7200 RPM and a large 512MB cache to handle intensive workloads. Western Digital's exclusive AllFrame AI technology supports up to 32 concurrent AI streams for deep learning analytics, in addition to up to 64 single-stream HD cameras. Built for 24/7 operation with a robust 550TB/year workload rating, this drive offers the performance and reliability required for large-scale, smart video solutions.
Description
Advanced Storage for Smart Video Solutions: WD Purple Pro 12TB
The WD Purple Pro HDD delivers the next level of performance and capacity needed by modern smart video infrastructures. It goes beyond standard surveillance drives to meet the high demands of AI-driven video analytics and deep learning servers.
Optimized for AI and Analytics:
- AllFrame AI Technology: Supports up to 32 dedicated AI streams for running deep learning analytics within the recorder, minimizing frame drops and enabling smarter data-driven outcomes.
- Massive Stream Capability: Optimized to handle the dual demands of data capture, supporting up to 64 single-stream HD cameras concurrently with the AI streams.
High Performance Core: The 7200 RPM spindle speed and large 512MB cache ensure fast data transfer rates (up to 272MB/s), crucial for high-throughput video processing.
Enterprise-Grade Reliability:
- High Workload Rating: Designed for continuous 24/7 operation with a robust workload rating up to 550TB per year, suitable for intense data capture and analysis.
- Built for Endurance: Features a high MTBF (Mean Time Between Failures) of up to 2.5 million hours and includes tarnish-resistant components for reliable use in harsh, multi-bay RAID/JBOD enclosures.
- Proactive Management: Supports Western Digital Device Analytics (WDDA) to enable proactive drive health management on compatible systems.
- Long Warranty: Protected by a 5-Year Limited Warranty, confirming its professional-grade reliability.
Specification
| Capacity | 12TB |
| Form Factor | 3.5-Inch |
| Connector | SATA |
| Interface | SATA |
| Transfer Rate | Up to 272MB/s |
| Disk Speed (RPM) | 7200 RPM |
| Recording Technology | CMR |
| Cache Size | 512MB |
| Warranty | 1-Year Limited Warranty |
| Dimensions (L x W x H) | 147mm x 101.6mm x 26.1mm |
| Weight | 750gms |
| Model Number | WD122PURP |
| Operating Temperature | 0°C to 65°C |
| Non-Operating Temperature | -40°C to 70°C |
| Certifications | BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL |
| Product Features | Engineered for advanced AI-enabled recorders, video analytics appliances, deep-learning servers, and cloud-based storage (including RAID and JBOD). Designed with tarnish-resistant components for harsh environments and enhanced robustness for multi-bay enclosures. Supports up to 550TB/yr workload rate. |
| Compatibility | Up to 64 single-stream cameras |
| Model Numbers | 8TB, 256MB: WD8002PURP 10TB, 256MB: WD101PURP 10TB, 512MB: WD102PURP 12TB, 256MB: WD121PURP 12TB, 512MB: WD122PURP 14TB, 512MB: WD142PURP 18TB, 512MB: WD181PURP 22TB, 512MB: WD221PURP 24TB, 512MB: WD241PURP 26TB, 512MB: WD260PURP |
