DeepCool Gamerstorm PQ1000G 1000W ATX 3.1 Power Supply (PSU), PCIe 5.1 12V-2x6 (450W), Full Modular, 80 PLUS Gold, FDB (Fluid Dynamic Bearing), Black | R-PQA00G-FD1B-JGUK-V1
Model : PQ-G
SKU : PS-DEEPCOOL PQ1000G GOL B
Power (W) :
1000W
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Unwavering 1000W Power: DeepCool PQ1000G ATX 3.1 PSU
The DeepCool PQ1000G is the ultimate power solution for enthusiast gaming rigs and high-performance workstations. Engineered to handle extreme transient loads, this PSU offers future-proof stability and reliability for your most power-hungry hardware.
Next-Gen ATX 3.1 Power Management:
- Engineered for Power Spikes: Compliant with ATX 3.1, this PSU can provide 2.5 times the 12V CEM peak power for 0.1 ms, eliminating issues caused by random power spikes from high-end GPUs.
- PCIe 5.1 Perfection: Equipped with a high-grade, 105°C-resistant, 16AWG copper-core native 12V-2x6 cable, supplying dedicated power up to 450W for the latest NVIDIA graphics cards.
Extended Stability: The PQ1000G features a Hold Up Time of ≥ 16 ms under 100% full load, surpassing ATX 3.1 standards and ensuring consistent power during momentary outages.
Premium Quality and Efficiency:
- 80 PLUS Gold Certified: Achieves an efficiency of ≥90% at 50% load, minimizing heat waste and electricity costs. Further validated by the stringent Cybenetics PLATINUM/PPLP Gold certification.
- Full Japanese Capacitors: Built with premium full Japanese electrolytic capacitors, ensuring maximum reliability, stable performance, and a long lifespan.
Dynamic FDB Fan: The 120mm Fluid Dynamic Bearing (FDB) fan operates quietly and adjusts dynamically based on the internal circuitry's cooling needs, enhancing longevity (100,000 MTBF).
Design and Connectivity:

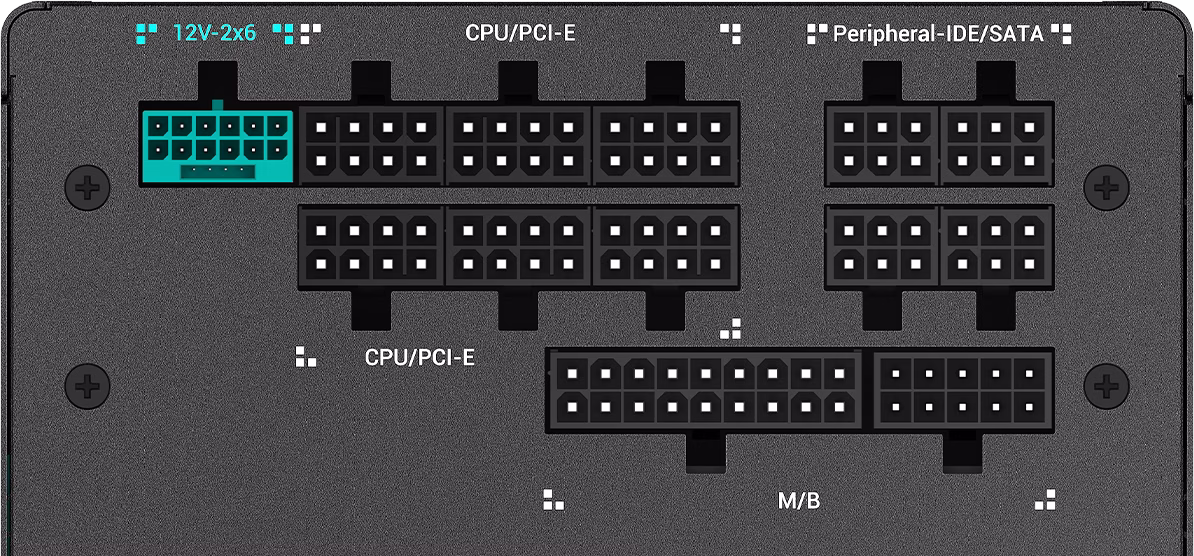

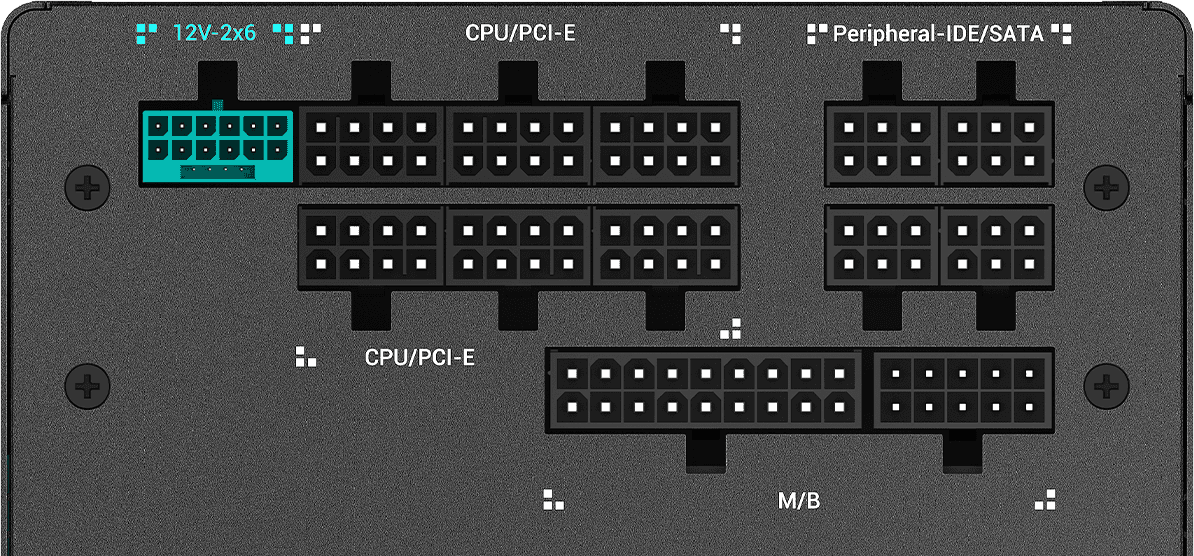

- Fully Modular: The full modular design simplifies cable management, enhances airflow, and allows you to use only the cables necessary for your build.
- Compact Design: At only 140 mm deep, the PQ1000G fits easily into the vast majority of ATX-compatible PC cases.
- Comprehensive Protection: Comes standard with a complete suite of safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Specification
| Total Output | 1000W |
| Type | ATX12V V3.1 |
| Product Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Efficiency Certification | 80Plus Gold / Cybenetics PLATINUM / PPLP Gold |
| Fan Size | 120 × 120 × 25 mm (W × L × H) |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |

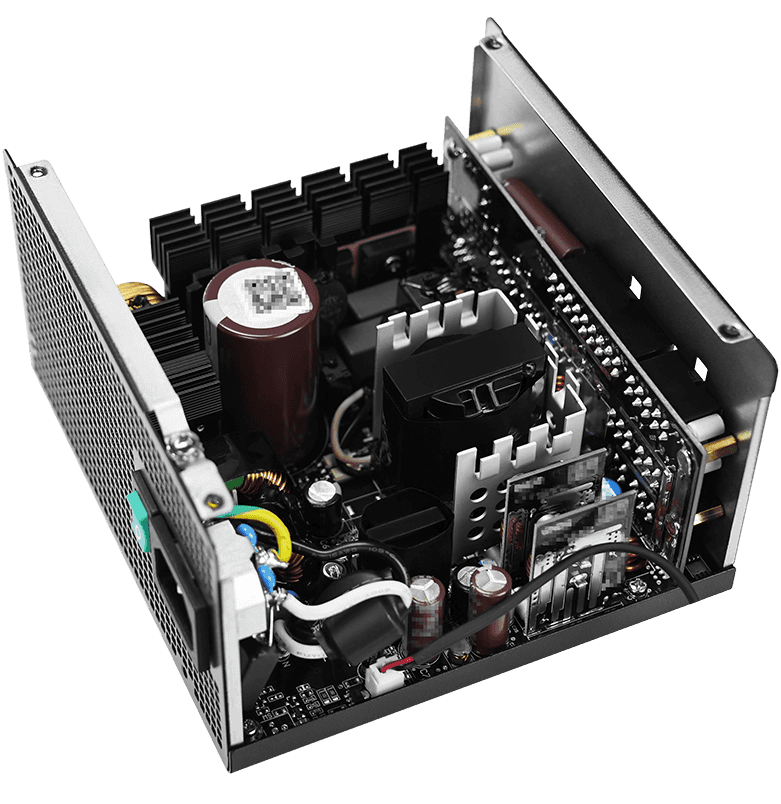

| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japanese Electrolytic Capacitors |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥ 16 ms (Full Load) |
| Efficiency | ≥ 90% under typical load (50% loading) |
| Protection | OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| Operation Temperature | 0 – 40 °C |
| Regulatory | EAC |
| ErP Regulation | ErP 2013 |
| Environment Protection | EAC |
| MTBF | 100,000 Hours |
