Home/Security & Surveillance/Fortinet FortiGate 100F Series FG-100F, AI/ML Secu...

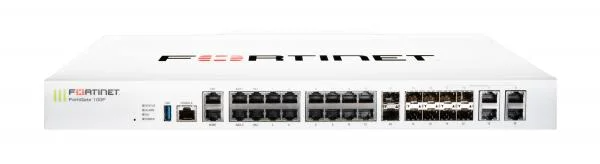

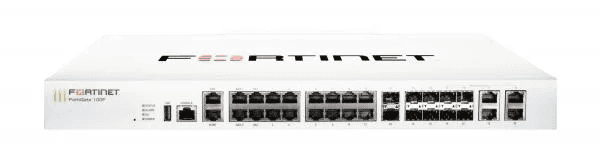

Fortinet FortiGate 100F Series FG-100F, AI/ML Security and Deep Visibility, 1 Gbps Threat Protection, 1.6 Gbps NGFW, 2.6 Gbps IPS, Enterprise Security, Security-Driven Networking, Multiple GE RJ45, GE SFP and 10 GE SFP+ slots | P24589-20-05
Model :
SKU : FORTIGATE 100F
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Fortinet FortiGate 100F Series FG-100F, AI/ML Security and Deep Visibility, 1 Gbps Threat Protection, 1.6 Gbps NGFW, 2.6 Gbps IPS, Enterprise Security, Security-Driven Networking, Multiple GE RJ45, GE SFP and 10 GE SFP+ slots
| Hardware Accelerated GE RJ45 Ports | 12 |
| Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports | 1 / 2 / 1 |
| Hardware Accelerated GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ | FortiLink Slots (default) 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports * | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Onboard Storage | 1x 480 GB SSD |
| Included Transceivers | 0 |
| IPS Throughput | 2.6 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1 Gbps |
| Firewall Throughput | 20 / 18 / 10 Gbps (1518 / 512 / 64 byte, UDP) |
| Firewall Latency | 4.97 ??s (64 byte, UDP) |
| Firewall Throughput (Packet per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput | 11.5 Gbps (512 byte) |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16 000 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput | 1 Gbps (IPS, avg. HTTPS) |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135 000 |
| Application Control Throughput | 2.2 Gbps (HTTP 64K) |
| CAPWAP Throughput | 15 Gbps (HTTP 64K) |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Weight | 7.25 lbs (3.29 kg) / 7.56 lbs (3.43 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1 RU |
| AC Power Supply | 100???240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 26.5 W / 29.5 W / 35.3 W / 39.1 W |
| Current (Maximum) | 100V / 1A, 240V / 0.5A |
| Heat Dissipation | 100.6 BTU/h / 121.13 BTU/h |
| Redundant Power Supplies | Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Operating Environment and Certifications | |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Storage Temperature | -31??F to 158??F (-35??C to 70??C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 40.4 dBA |
| Forced Airflow | Side to Back |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI, Certifications USGv6/IPv6 |
Specification
Fortinet FortiGate 100F Series FG-100F, AI/ML Security and Deep Visibility, 1 Gbps Threat Protection, 1.6 Gbps NGFW, 2.6 Gbps IPS, Enterprise Security, Security-Driven Networking, Multiple GE RJ45, GE SFP and 10 GE SFP+ slots
| Hardware Accelerated GE RJ45 Ports | 12 |
| Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports | 1 / 2 / 1 |
| Hardware Accelerated GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ | FortiLink Slots (default) 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports * | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Onboard Storage | 1x 480 GB SSD |
| Included Transceivers | 0 |
| IPS Throughput | 2.6 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1 Gbps |
| Firewall Throughput | 20 / 18 / 10 Gbps (1518 / 512 / 64 byte, UDP) |
| Firewall Latency | 4.97 ??s (64 byte, UDP) |
| Firewall Throughput (Packet per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput | 11.5 Gbps (512 byte) |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16 000 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput | 1 Gbps (IPS, avg. HTTPS) |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135 000 |
| Application Control Throughput | 2.2 Gbps (HTTP 64K) |
| CAPWAP Throughput | 15 Gbps (HTTP 64K) |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Weight | 7.25 lbs (3.29 kg) / 7.56 lbs (3.43 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1 RU |
| AC Power Supply | 100???240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 26.5 W / 29.5 W / 35.3 W / 39.1 W |
| Current (Maximum) | 100V / 1A, 240V / 0.5A |
| Heat Dissipation | 100.6 BTU/h / 121.13 BTU/h |
| Redundant Power Supplies | Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Operating Environment and Certifications | |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Storage Temperature | -31??F to 158??F (-35??C to 70??C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 40.4 dBA |
| Forced Airflow | Side to Back |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI, Certifications USGv6/IPv6 |
