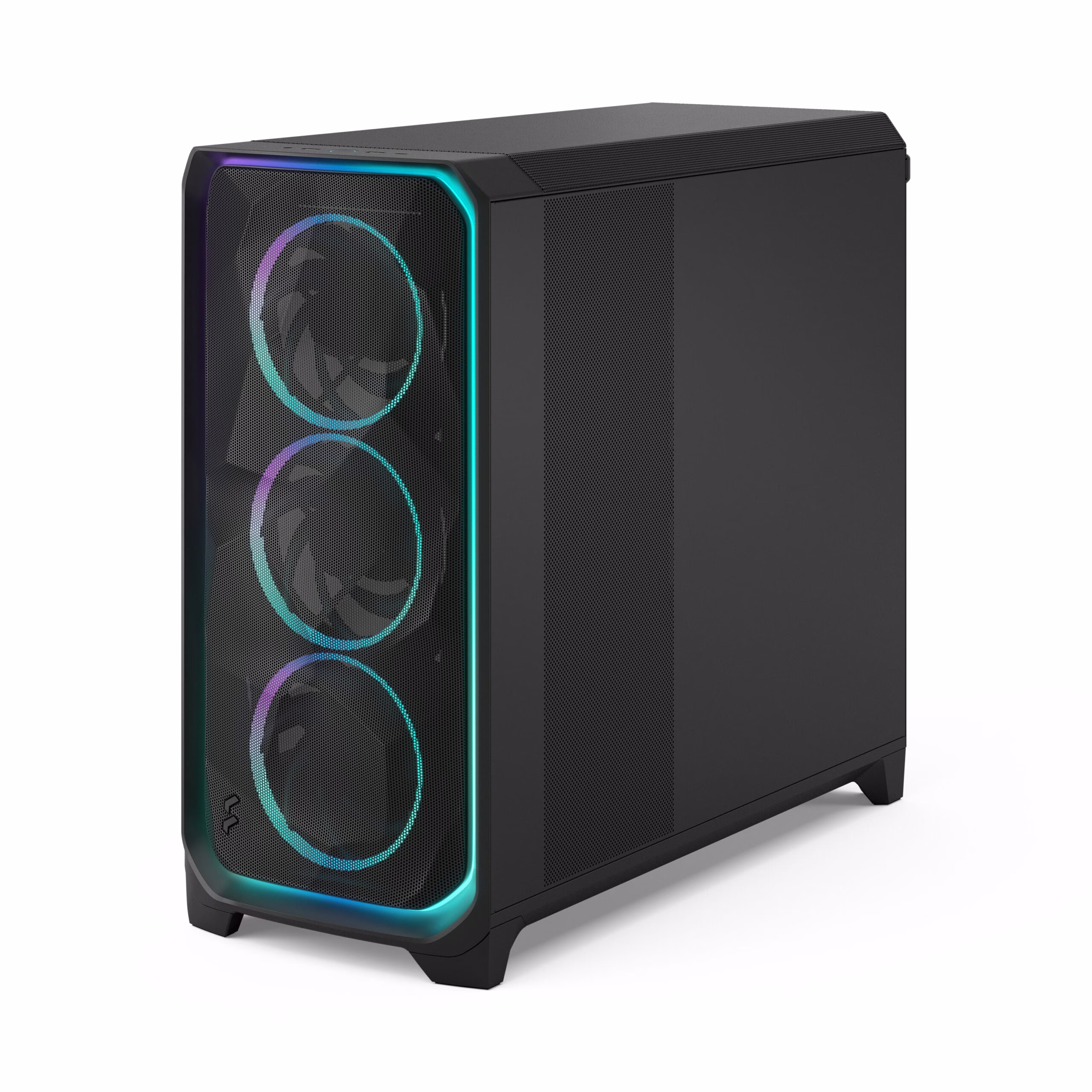

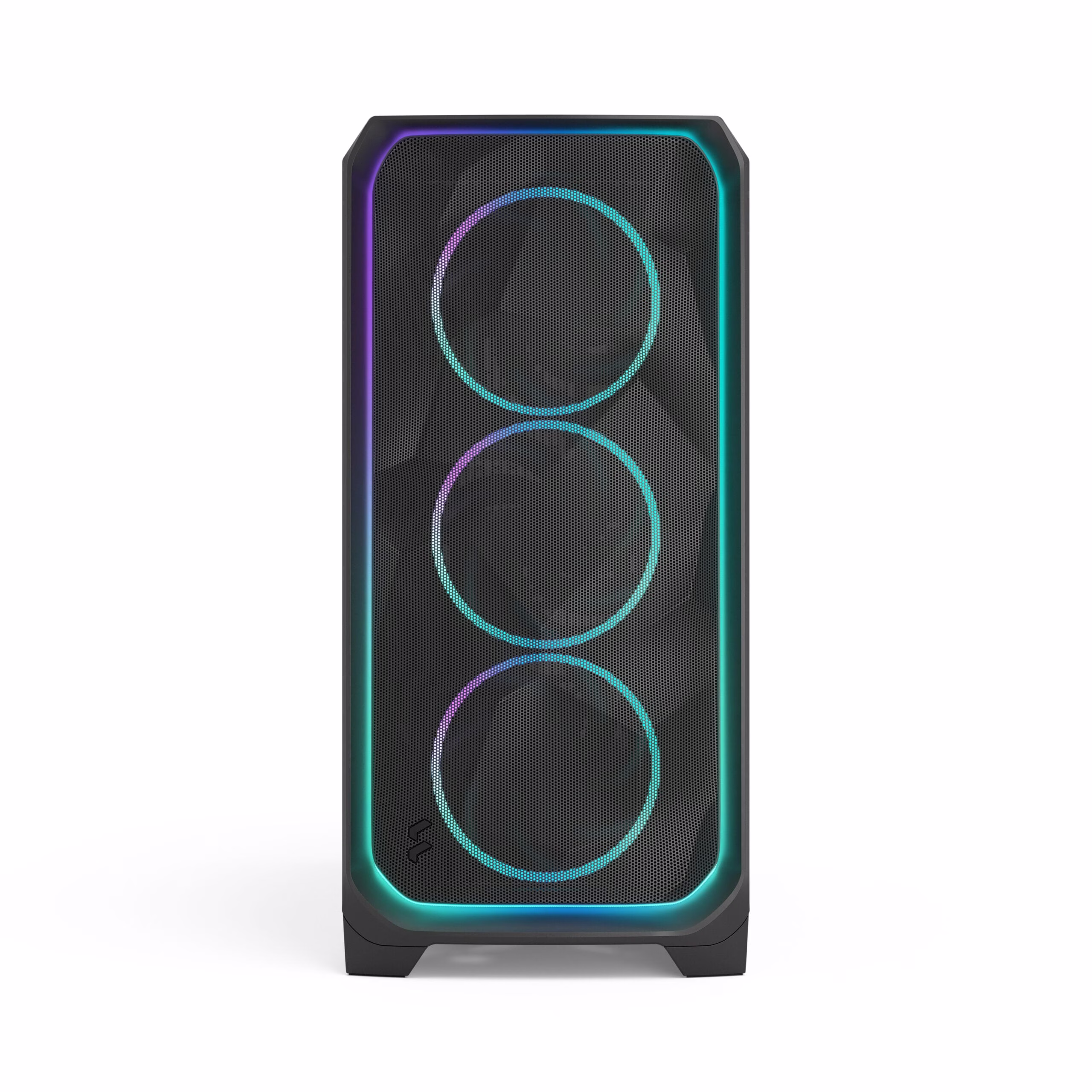

Fractal Design Meshify 3 XL Ambience Pro RGB Black, E-ATX & SSI-EEB Full-Tower Case, 3x Aspect 14 RGB Fans, USB-C 20Gbps, Black | FD-C-MES3X-03

Model :

SKU : ATX-FRACTAL AMB RGB BL

About this item

Fractal Design Meshify 3 XL Ambience Pro RGB Black
Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

Fractal Design Meshify 3 XL Ambience Pro RGB Black overview image
Fractal Design Meshify 3 XL Ambience Pro RGB Black product overview

The Fractal Design Meshify 3 XL (FD-C-MES3X-03) is designed for those who refuse to compromise. Retaining the signature angular mesh front for filtered high-airflow intake, this "XL" variant provides the thermal headroom and physical volume required for flagship hardware. Whether you are building a dual-socket workstation or a liquid-cooled gaming beast, the Meshify 3 XL delivers a refined, industrial aesthetic with the added flair of integrated RGB.



Performance: Ambience Pro and Aspect 14 Cooling
The Meshify 3 XL features the Ambience Pro lighting suite, which adds sophisticated, synchronized illumination to the chassis. To drive airflow, it includes three Aspect 14 RGB fans, known for their high efficiency and low noise. The case is a radiator powerhouse, capable of mounting up to a 480mm or 420mm radiator in the front and top simultaneously, ensuring that even the most heat-intensive CPUs and GPUs remain at optimal temperatures.



Versatility: Dual Layout Design
Adapt your case to your specific needs. The Meshify 3 XL features a dual-layout interior. Use the Open Layout for massive water-cooling reservoirs and extra-long graphics cards, or switch to the Storage Layout to support an incredible number of HDDs for server-grade storage capacity. The chassis supports GPUs up to 549mm (without front fans), making it compatible with every modern graphics card on the market.



Connectivity: Modern Top I/O
The top panel provides instant access to high-speed data. It features a USB 3.2 Gen 2x2 Type-C port (20Gbps), two USB 3.0 ports, and a dedicated RGB controller button. This ensures you can connect high-speed external NVMe drives or charge mobile devices at maximum speeds while managing your lighting effects without opening software.



Why This Case Stands Out
Massive Motherboard Support: Fits everything from Mini-ITX to workstation-grade SSI-EEB boards.

Extensive Radiator Support: Front and Top support up to 480/420mm radiators for extreme loops.

Ambience Pro Lighting: Integrated RGB ecosystem for a premium, unified glow.

Tool-less Panels: Bolt-free tempered glass and push-to-lock panels for effortless access.

Specification

3.5"/2.5" Drive Mounts2 / 4
Dedicated 2.5" Drive Mounts1
5.25" Drive MountsNone
Expansion Slots7
Adjust Pro HubIncluded in Ambience Pro RGB version
Ambience Case LightingAvailable in Ambience Pro RGB version
Ports1 x USB Type-C (20 Gbps)
2 x USB Type-A (5 Gbps)
1 x Audio Combo Jack
Power Button
Total Fan Mounts10 x 140 mm / 7 x 120 mm
Front Fan Support3 x 120/140 mm
2 x 180 mm
(3 x 140 mm Momentum fans included)
Top Fan Support3 x 120/140 mm
Rear Fan Support1 x 120/140 mm
Bottom Fan SupportNone
Side Fan Support3 x 140 mm (No 120 mm support without radiator)
Front Radiator280 / 360 mm
Top Radiator360 / 420 mm (Up to 475 mm)
Rear RadiatorUp to 120 / 140 mm
Side Radiator360 mm (with brackets)
PSU Max Length230 mm
GPU Max Length512 mm
GPU Max Height189 mm (7-slot, including cables)
CPU Cooler Max Height182 mm
Cable Routing Space37.5 mm
Cable CoverYes
Cable Organizers3 Hook-and-loop straps + 3 Cable Aligners
Tool-less Push-to-lockBoth Side Panels, Bottom Filter, Front Panel, Top Panel
Captive ThumbscrewsTop Radiator Bracket, Air Guide, PSU Bracket
Dust FiltersPSU (Bottom)
Left Side PanelIndustrial Steel (Solid) / Tempered Glass (TG/RGB/Ambience Pro RGB)
Right Side PanelIndustrial Steel
Power Supply TypeATX
Motherboard SupportE-ATX (330 mm)
ATX
mATX
ITX
EE-ATX
SSI-EEB
SSI-CEB
Case Dimensions (L × W × H)575 x 245 x 515 mm
Case (Without Feet/Protrusions/Screws)565 x 245 x 515 mm
Package Dimensions596 x 350 x 550 mm
Net Weight10.5 kg (Solid)
10.9 kg (TG / RGB)
11.4 kg (Ambience Pro RGB)
Gross Weight12.4 kg (Solid)
13 kg (TG / RGB)
13.3 kg (Ambience Pro RGB)
