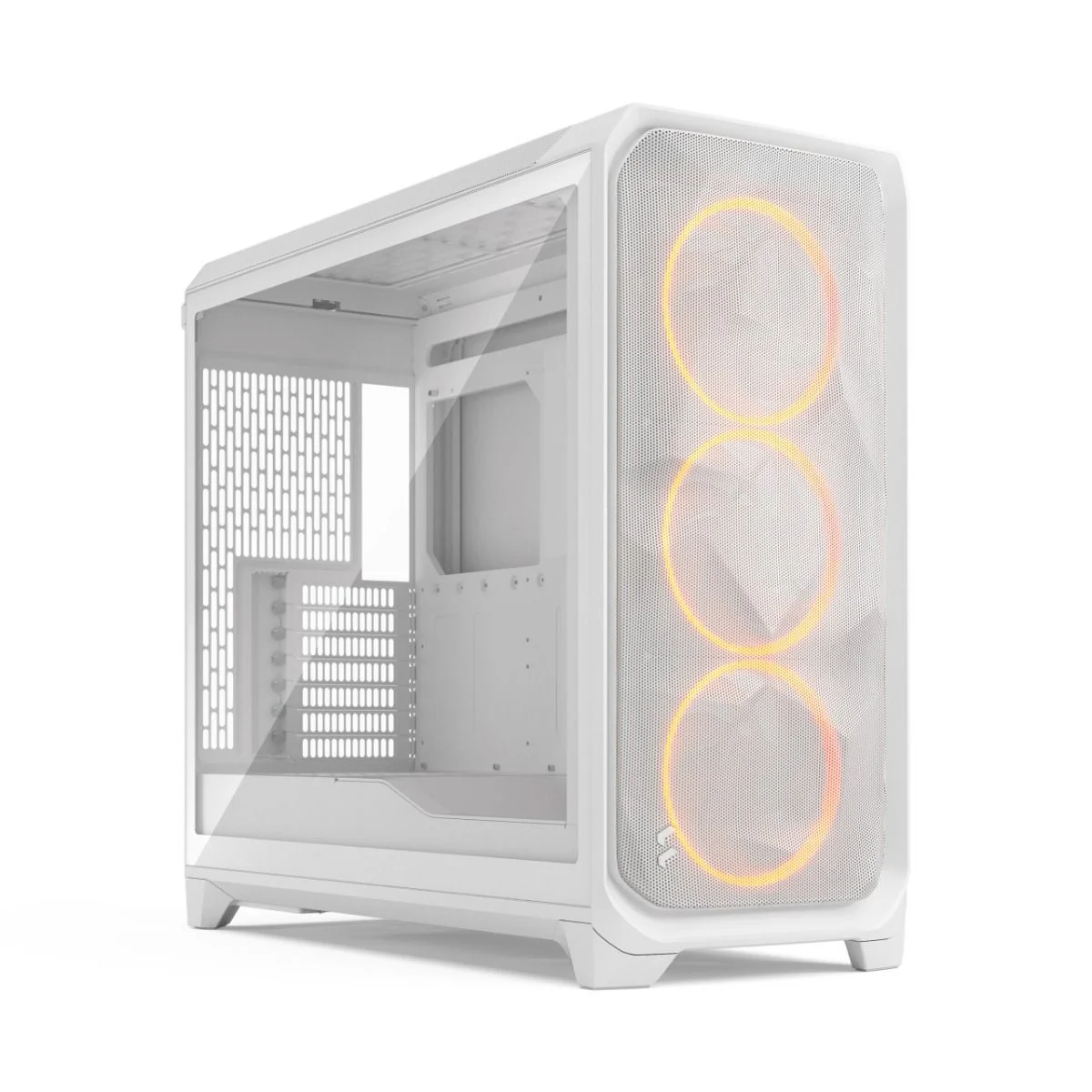

The Fractal Design Meshify 3 XL RGB White (FD-C-MES3X-06) is the ultimate canvas for "all-white" extreme builds. Scaled to meet the intense thermal and physical demands of enterprise-grade components, this full tower provides a colossal interior that simplifies the installation of complex systems. For builders in Abu Dhabi and Dubai looking to create a high-performance masterpiece, the Meshify 3 XL RGB White delivers a sophisticated blend of clinical cooling efficiency and vibrant, synchronized lighting.
Key Features
The standout feature of the Meshify 3 XL is its unparalleled modularity through the Dual-Layout design. You can effortlessly transition from an "Open Layout" for massive custom liquid cooling to a "Storage Layout" capable of housing up to 18 HDDs. This RGB edition comes pre-installed with four Aspect 14 RGB PWM White fans, ensuring out-of-the-box thermal dominance. The chassis fully supports SSI-EEB and E-ATX motherboards, making it perfect for multi-GPU setups and high-core-count professional platforms.
Performance / Technology

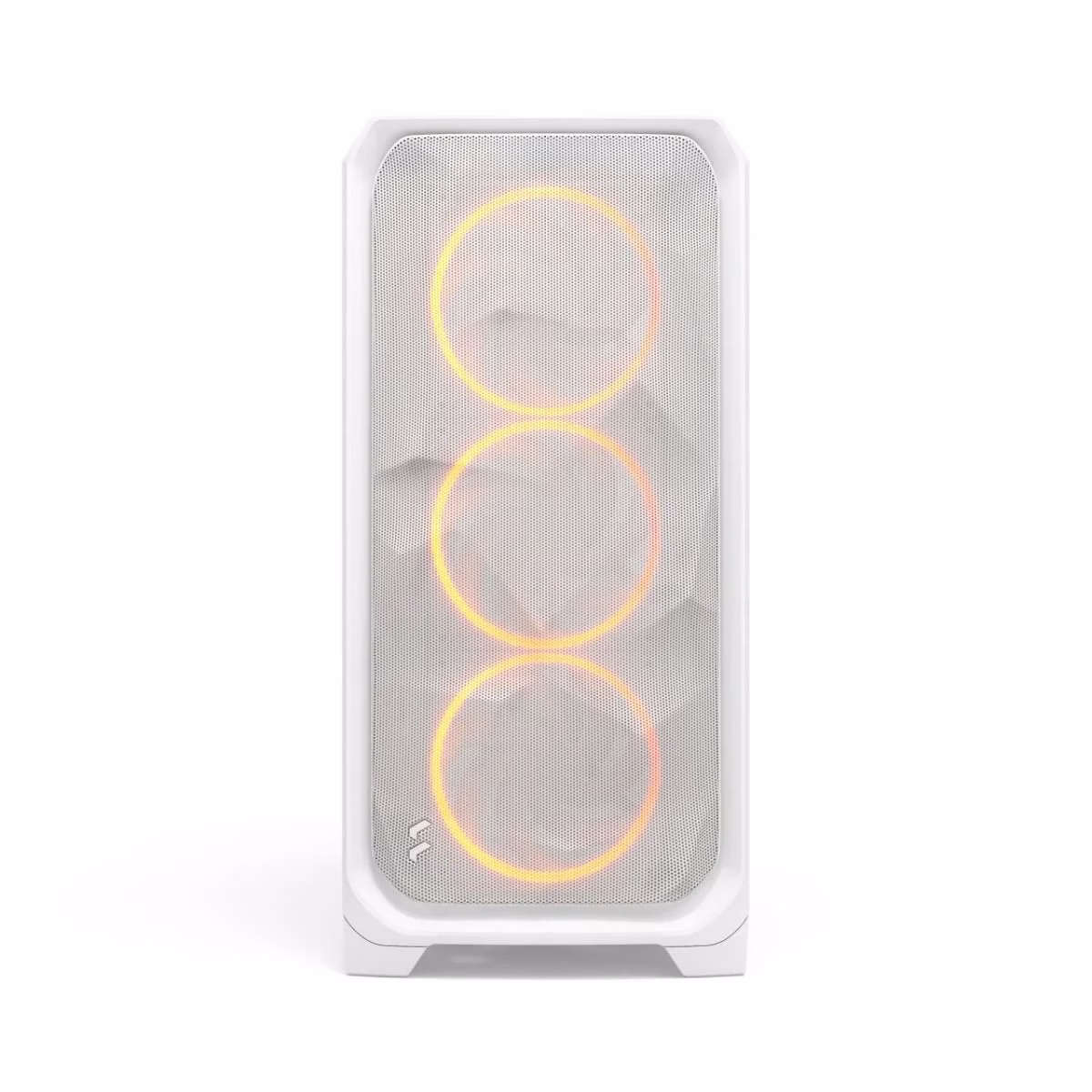

Performance is driven by the signature Aero-Flow 3D Mesh front panel, which facilitates unrestricted air intake to keep flagship components cool under sustained 24/7 loads. The XL frame allows for industry-leading radiator support, accommodating up to 480mm radiators in both the front and top positions simultaneously. To handle modern high-speed data needs, the front I/O features a USB 3.2 Gen 2x2 Type-C port, delivering blistering 20Gbps transfer speeds—essential for creators working with massive 8K video files or high-speed external storage.
Design & Ergonomics
Fractal has refined the builder's experience by offering a fully removable top radiator bracket, providing total access for the installation of massive motherboards and cooling loops. The clear-tinted tempered glass panel utilizes a tool-less, push-to-lock latching system, ensuring a clean, screw-free exterior that highlights your internal craftsmanship. Cable management is world-class, featuring a 35mm routing chamber, integrated white silicone grommets, and a pre-installed Nexus+ 3 fan hub to manage the full array of ARGB lighting.
Compatibility / Use Cases
This full tower is the ideal solution for AI development rigs, 3D rendering workstations, and flagship "All-White" gaming systems. It easily accommodates the largest modern graphics cards (up to 549mm) without compromise. Whether you are building a massive local storage server or an extreme liquid-cooled showcase rig, the Meshify 3 XL RGB White provides the structural integrity, thermal headroom, and modern connectivity required for a flagship 2026 experience.
Why This Product Stands Out
The Fractal Design Meshify 3 XL RGB White stands out by delivering industrial-grade scale in a stunning, minimalist Chalk White finish. While most "XL" cases focus solely on size, the Meshify 3 XL focuses on high-bandwidth airflow and 20Gbps data speeds. Its combination of massive radiator support, E-ATX compatibility, and iconic mesh design makes it one of the most powerful and visually captivating white chassis on the market today.
| 3.5"/2.5" drive mounts | 2 / 4 |
| Dedicated 2.5" drive mounts | 1 |
| 5.25” drive mounts | - |
| Expansion slots | 7 |
| Adjust Pro Hub | Included in Ambience Pro RGB version |
| Ambience Case Lighting | Ambience Pro RGB version |
| Front interface | 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button |
| Total fan mounts | 10 (140 mm) / 7 (120 mm) |
| Front fan | 3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included) |
| Top fan | 3x 120/140 mm |
| Rear fan | 1x 120/140 mm |
| Bottom fan | - |
| Side fan | 3x 140 mm (no 120 support without radiator) |
| Dust filters | PSU (Bottom) |
| Cable routing space | 37.5 mm |
| Cable cover | Yes |
| Cable organizers | 3 Hook-and-loop straps + 3 Cable Aligners |
| Tool-less push-to-lock | Both Side Panels, Bottom Filter, Front Panel, Top Panel |
| Captive thumbscrews | Top Radiator Bracket, Air Guide, PSU Bracket |
| Left side panel | Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB) |
| Right side panel | Industrial steel |
| Power supply type | ATX |
| Motherboard compatibility | E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB |
| PSU max length | 230 mm |
| GPU max length | 512 mm |
| GPU max height | 189 mm (7 slot) including cables |
| CPU cooler max height | 182 mm |
| Front radiator | 280 / 360 mm |
| Top radiator | 360 / 420 mm (up to 475 mm) |
| Rear radiator | Up to 120 / 140 mm |
| Side radiator | 360 mm (with brackets) |
| Case dimensions (LxWxH) | 575 x 245 x 515 mm |
| Case dimensions w/o feet/protrusions/screws | 565 x 245 x 515 mm |
| Package dimensions | 596 x 350 x 550 mm |
| Net weight | 10.5 kg (Solid) / 10.9 kg (TG and RGB) / 11.4 kg (Ambience Pro RGB) |
| Gross weight | 12.4 kg (Solid) / 13 kg (TG and RGB) / 13.3 kg (Ambience Pro RGB) |
| Package contents | Case, Accessory Box, Manual, Red Note |
| Accessory Box content (Solid/TG/RGB) | PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8 |
| Accessory Box content (Ambience Pro RGB) | PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable |
| EAN | Black Solid: 7340172707219 Black TG Light Tint: 7340172707226 Ambience Pro RGB Black TG Light Tint: 7340172707233 Black RGB TG Light Tint: 7340172709527 Ambience Pro RGB White TG Clear Tint: 7340172707240 White RGB TG Clear Tint: 7340172709534 |
| UPC | Black Solid: 843276107215 Black TG Light Tint: 843276107222 Ambience Pro RGB Black TG Light Tint: 843276107239 Black RGB TG Light Tint: 843276109523 Ambience Pro RGB White TG Clear Tint: 843276107246 White RGB TG Clear Tint: 843276109530 |
| Product Code | Black Solid: FD-C-MES3X-01 Black TG Light Tint: FD-C-MES3X-02 Ambience Pro RGB Black TG Light Tint: FD-C-MES3X-03 Black RGB TG Light Tint: FD-C-MES3X-04 Ambience Pro RGB White TG Clear Tint: FD-C-MES3X-05 White RGB TG Clear Tint: FD-C-MES3X-06 |
| Warranty | 2 Years |
