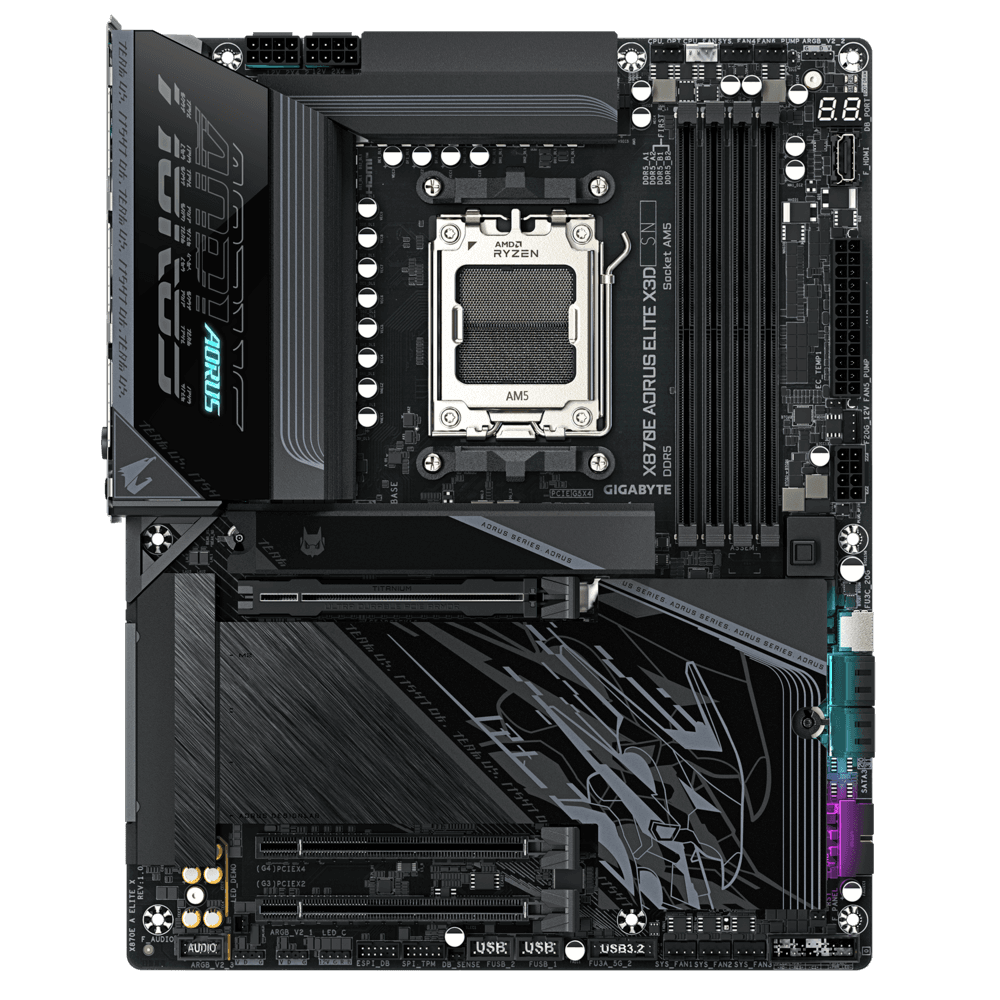

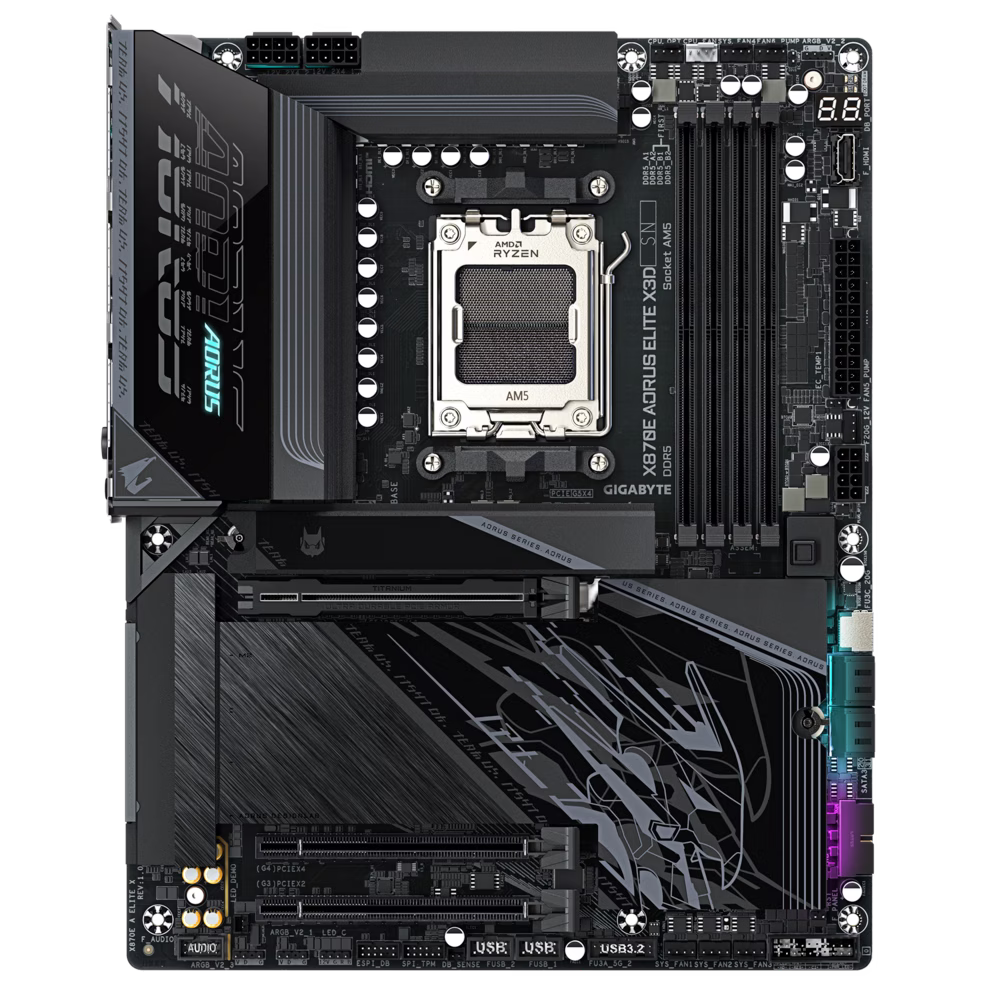

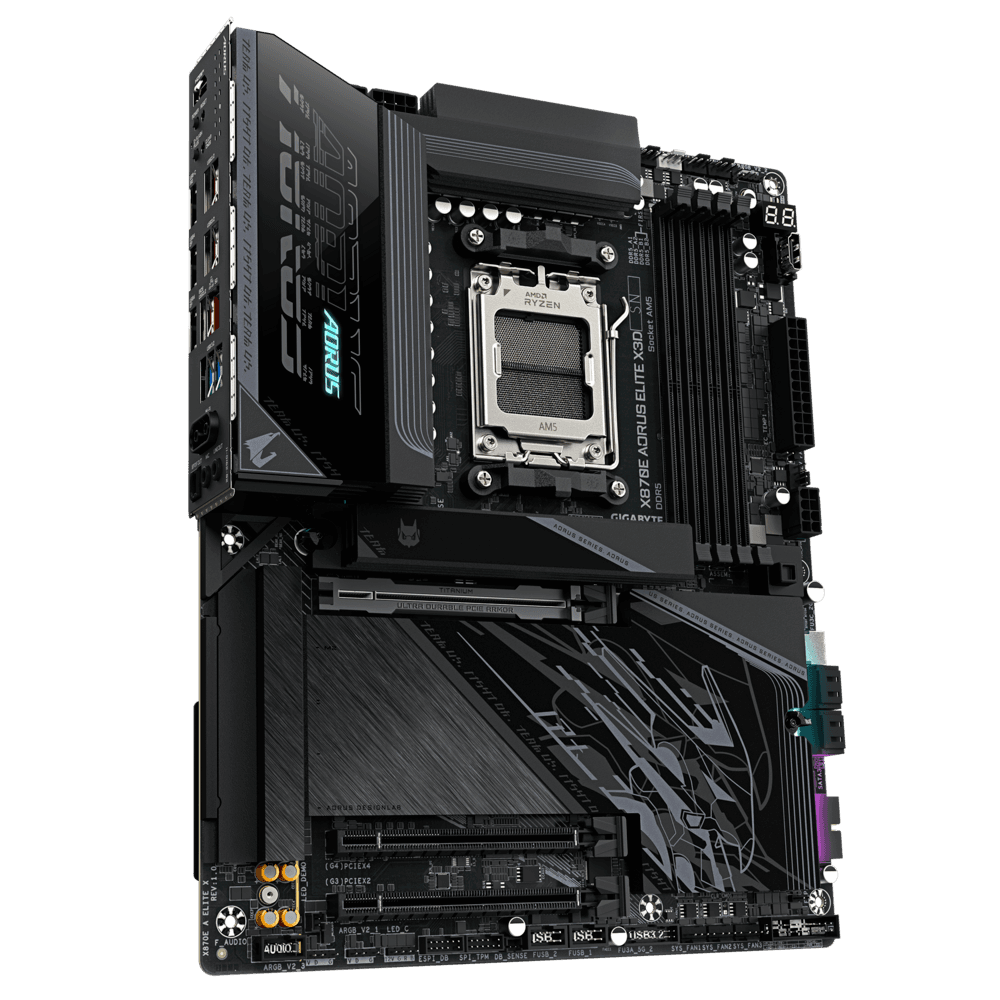

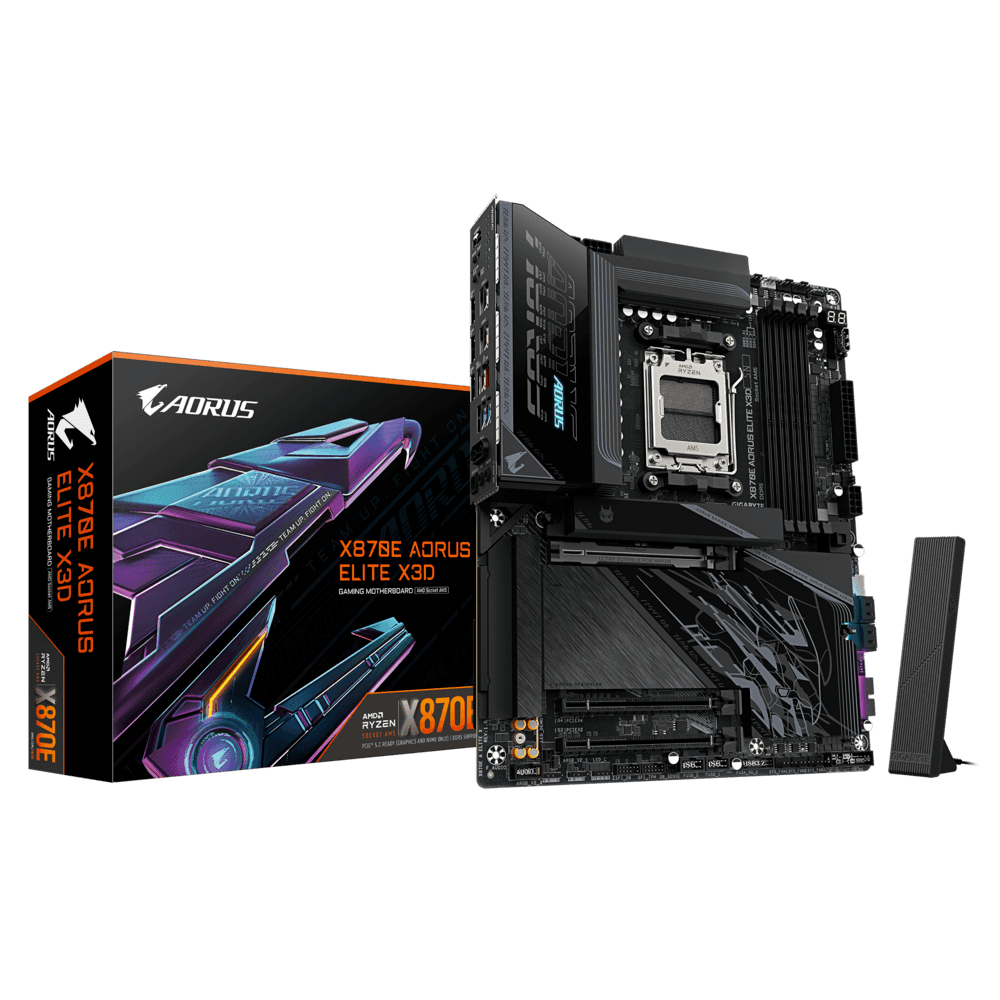

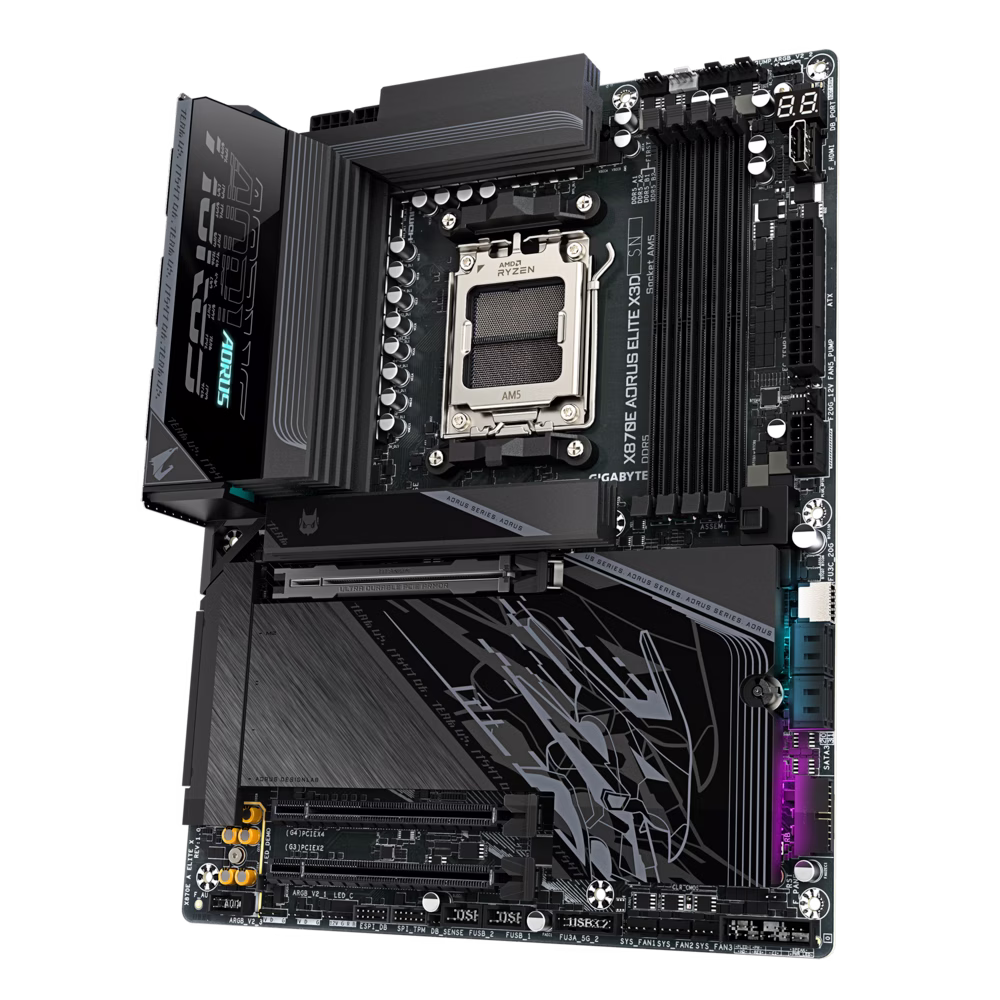

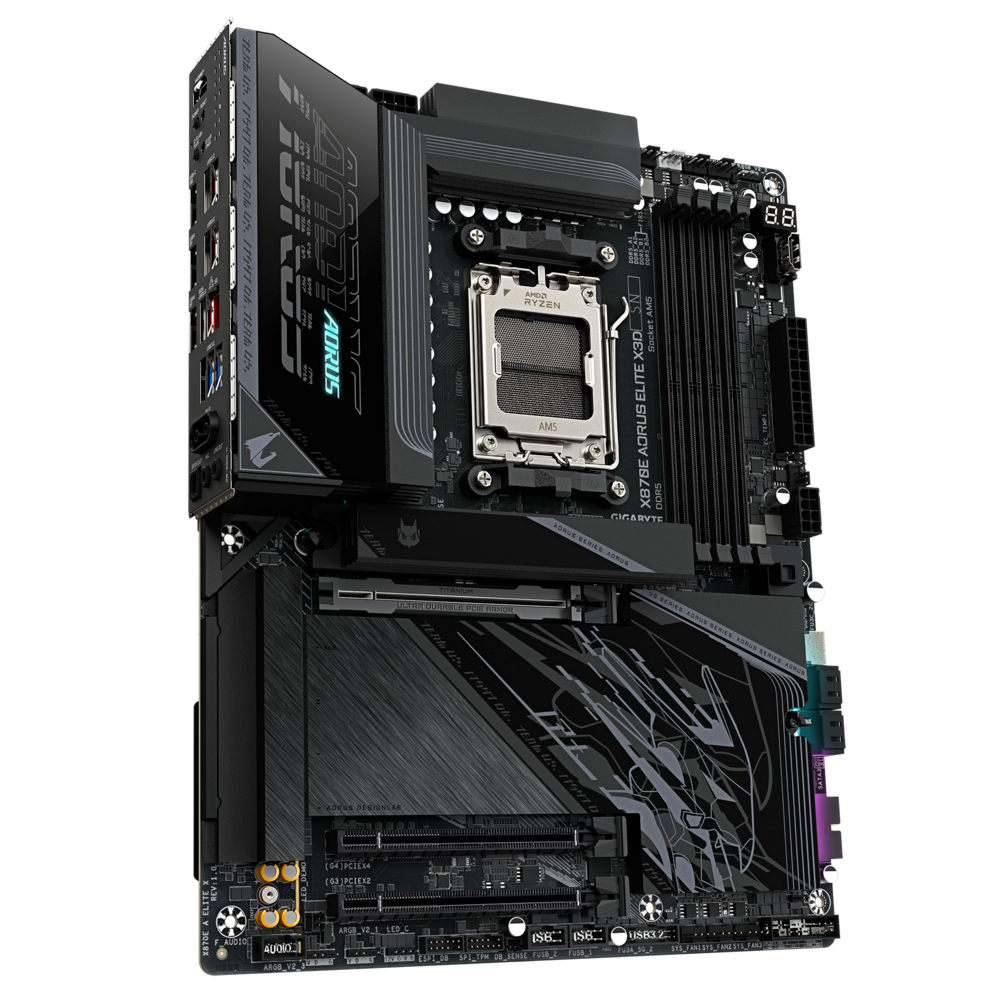

GIGABYTE X870E AORUS ELITE X3D Black AM5 Motherboard, Upto 9000MT/s DDR5 OC, 5GbE/Wi-Fi 7, PCIe 5.0 | X870E AORUS ELITE X3D
Model : X870E AORUS ELITE X3D
SKU : MB-AORUS X870E ELITE-X3D
Color :
Black
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description

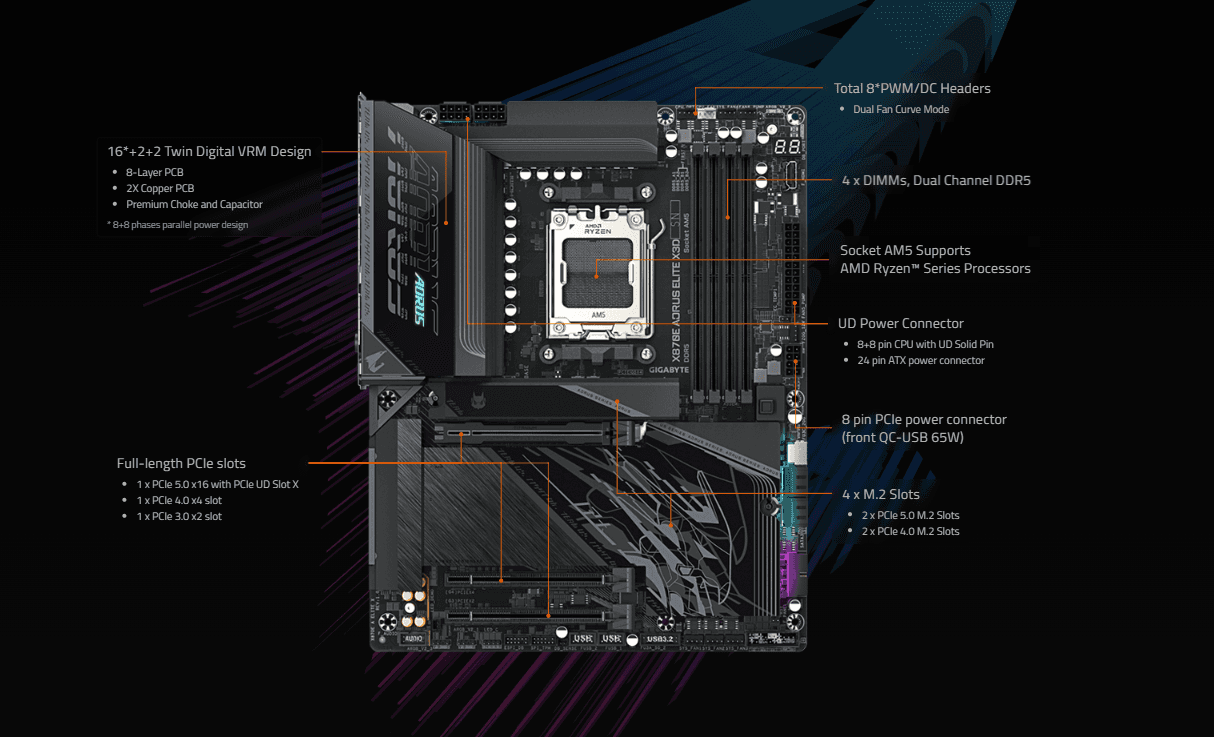

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

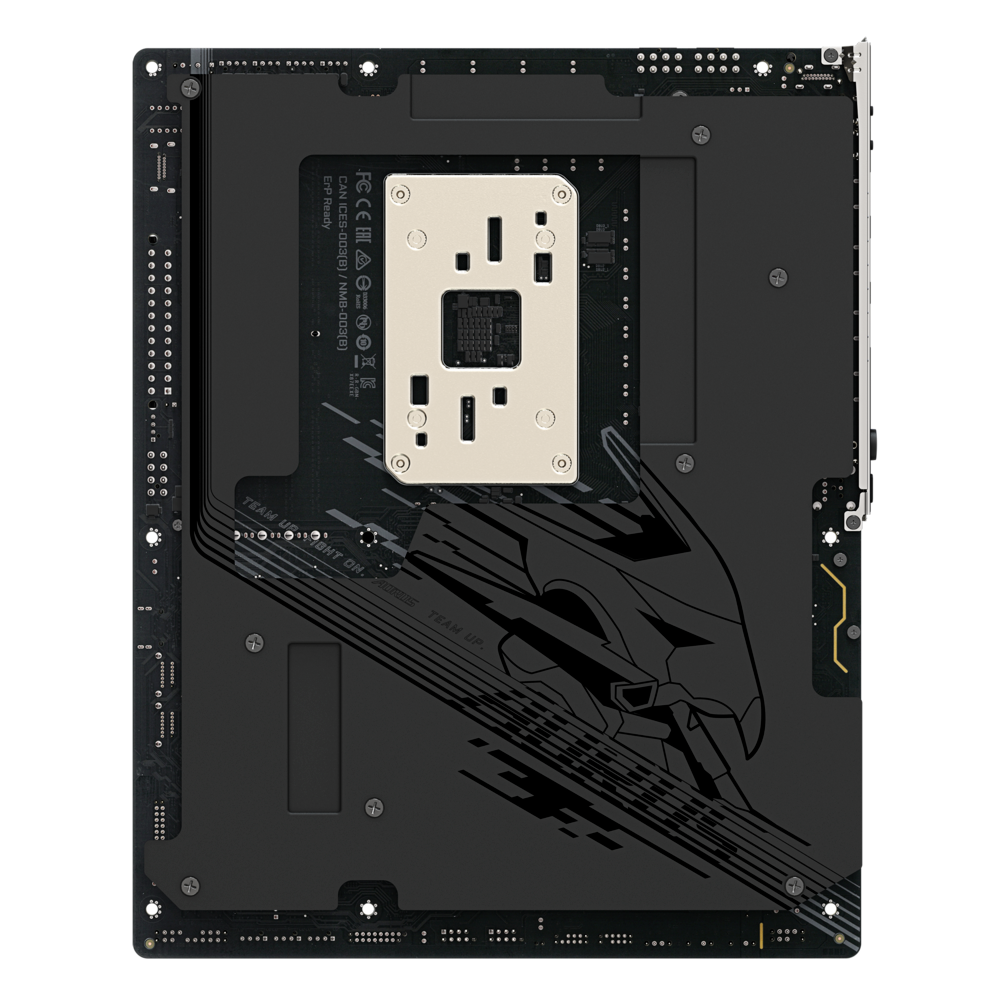

PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specification
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series / AMD Ryzen™ 8000 Series / AMD Ryzen™ 7000 Series Processors |
| CPU Note | Visit GIGABYTE website for the latest CPU support list. |
| Chipset | AMD X870E |
| Memory Support | DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s |
| Memory Slots | 4 × DDR5 DIMM sockets (up to 256GB) |
| Memory Architecture | Dual Channel |
| Memory Compatibility | Non-ECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 |
| Memory Profiles | Supports AMD EXPO™ and Intel XMP |
| Onboard Graphics — USB4 Type-C | 2 × USB4 Type-C ports, DisplayPort output, max 3840×2160@240Hz (DP 1.4 + HDR) |
| Onboard Graphics — HDMI | 1 × HDMI port, max 4096×2160@60Hz (HDMI 2.1, HDCP 2.3, HDR) |
| Onboard Graphics — Front HDMI | 1 × Front HDMI port, max 1920×1080@30Hz (HDMI 1.4) |
| Audio Codec | Realtek® ALC1220 |
| Audio Channels | 2/4/5.1/7.1-channel (configurable via software) |
| Audio Outputs | Supports S/PDIF Out |
| LAN | Realtek® 5GbE LAN (5G / 2.5G / 1G / 100M) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz) + Bluetooth® 5.4 |
| Expansion Slot — PCIEX16 | 1 × PCIe x16 (CPU): Ryzen 9000/7000 = PCIe 5.0 x16; Ryzen 8000 P1 = PCIe 4.0 x8; Ryzen 8000 P2 = PCIe 4.0 x4 |
| Expansion Slot — PCIEX4 | 1 × PCIe 4.0 x4 slot |
| Expansion Slot — PCIEX2 | 1 × PCIe 3.0 x2 slot |
| M.2 Slot M2A_CPU | Supports PCIe 5.0/4.0 x4/x2 drives up to 25110 length (depends on CPU) |
| M.2 Slot M2B_CPU | Supports PCIe 5.0 x4/x2 (bandwidth shared with USB4 controller) |
| M.2 Chipset Slots | 2 × PCIe 4.0 x4/x2 (22110/2280) |
| SATA | 4 × SATA 6Gb/s connectors |
| RAID Support | NVMe: RAID 0/1/5/10 (RAID 5 on Ryzen 9000 only); SATA: RAID 0/1/10 |
| USB — USB4 | 2 × USB4 Type-C (rear panel) |
| USB — Type-C Gen2 (rear) | 1 × USB Type-C (USB 3.2 Gen 2) |
| USB — Gen2x2 | 1 × USB Type-C (front panel) USB 3.2 Gen 2x2 (65W PD 3.0/QC4+) |
| USB — Gen2 | 5 × USB 3.2 Gen 2 Type-A (red) |
| USB — Gen1 | 3 × USB 3.2 Gen 1 (rear) + 4 × Gen1 (internal) |
| USB — USB 2.0 | 4 × USB 2.0 (internal) |
| Internal I/O | 24-pin ATX, 2× 8-pin CPU power, PCIe power, multiple fan/pump headers (CPU/SYS/WP), 3× ARGB Gen2, RGB, 4× M.2, 4× SATA, front panel, audio, TPM header, HDMI, reset jumper, clear CMOS, 2× temp sensors, noise detection |

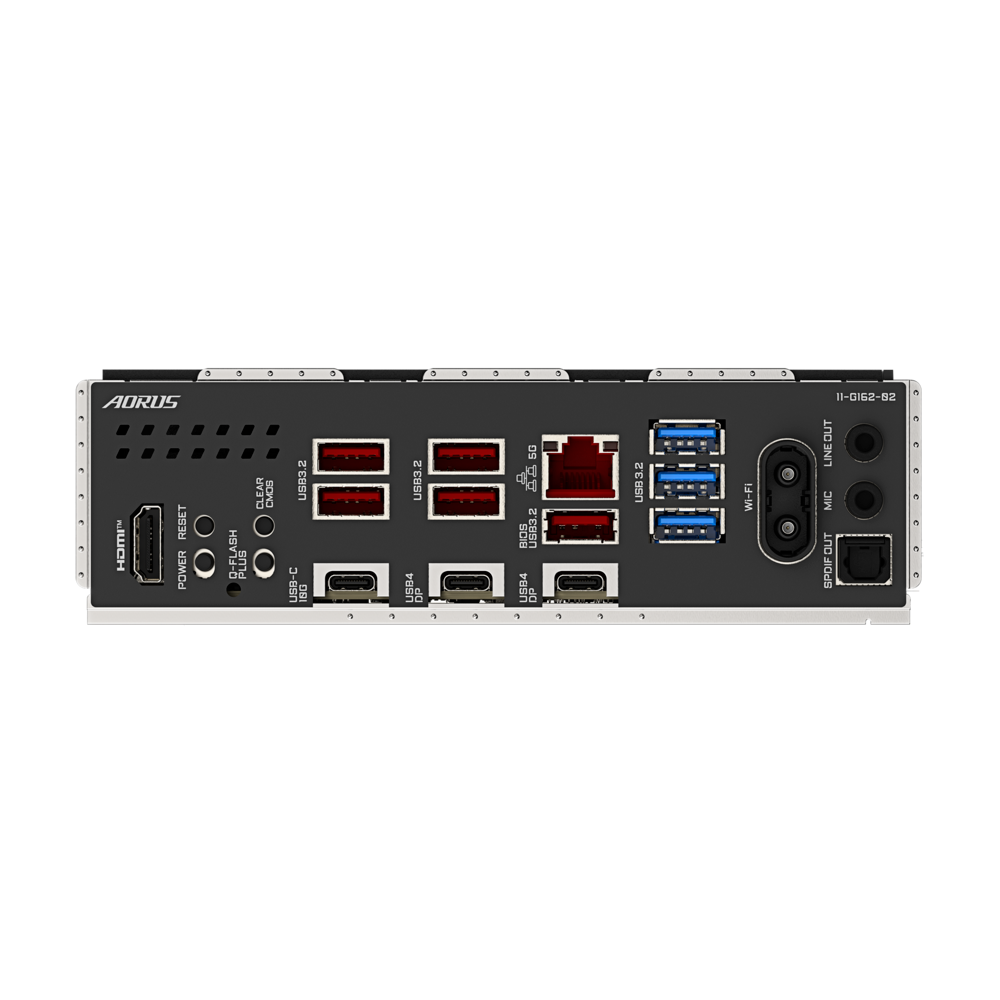

| Back Panel I/O | HDMI, Reset Button, Power Button, Clear CMOS, Q-Flash Plus, 5× USB 3.2 Gen2, 1× USB-C Gen2, 2× USB4 Type-C (DP), RJ-45, 3× USB 3.2 Gen1, 2× Wi-Fi antenna ports, 2× audio jacks, Optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan Speed, Water Flow, Noise Detection, Fan/Pump Speed Control |
| BIOS | 512 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton Internet Security (OEM) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX (30.5 × 24.4 cm) |
