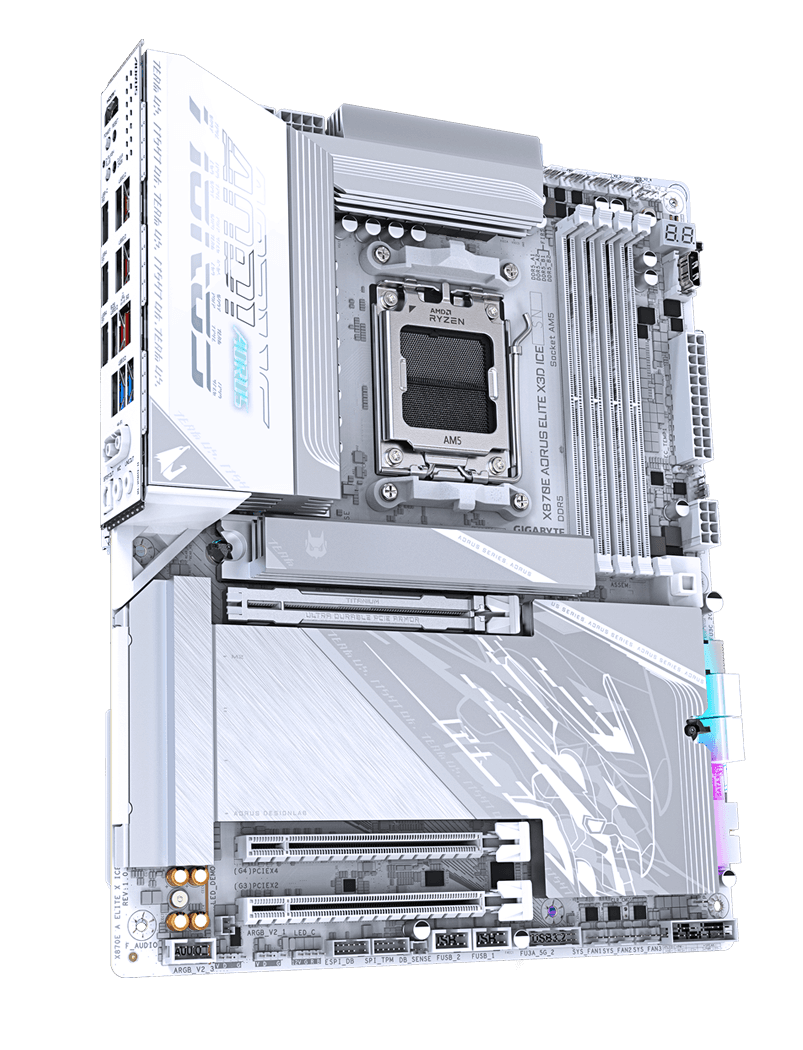

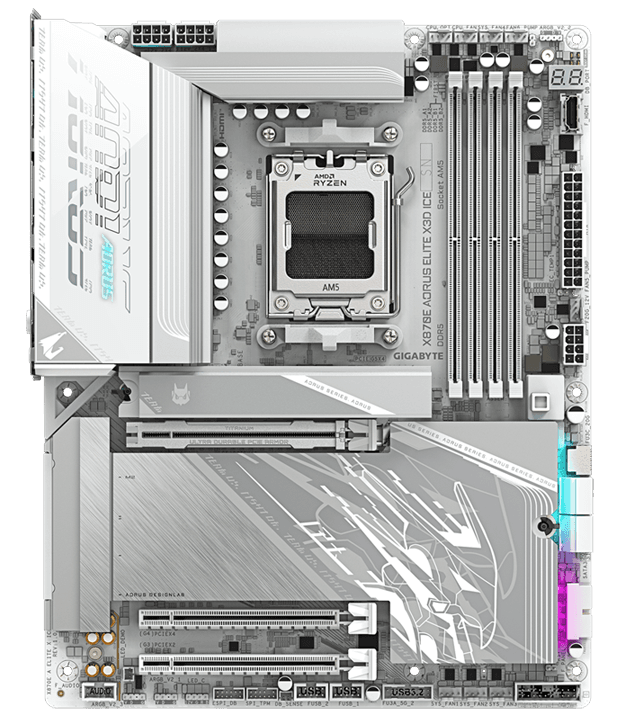

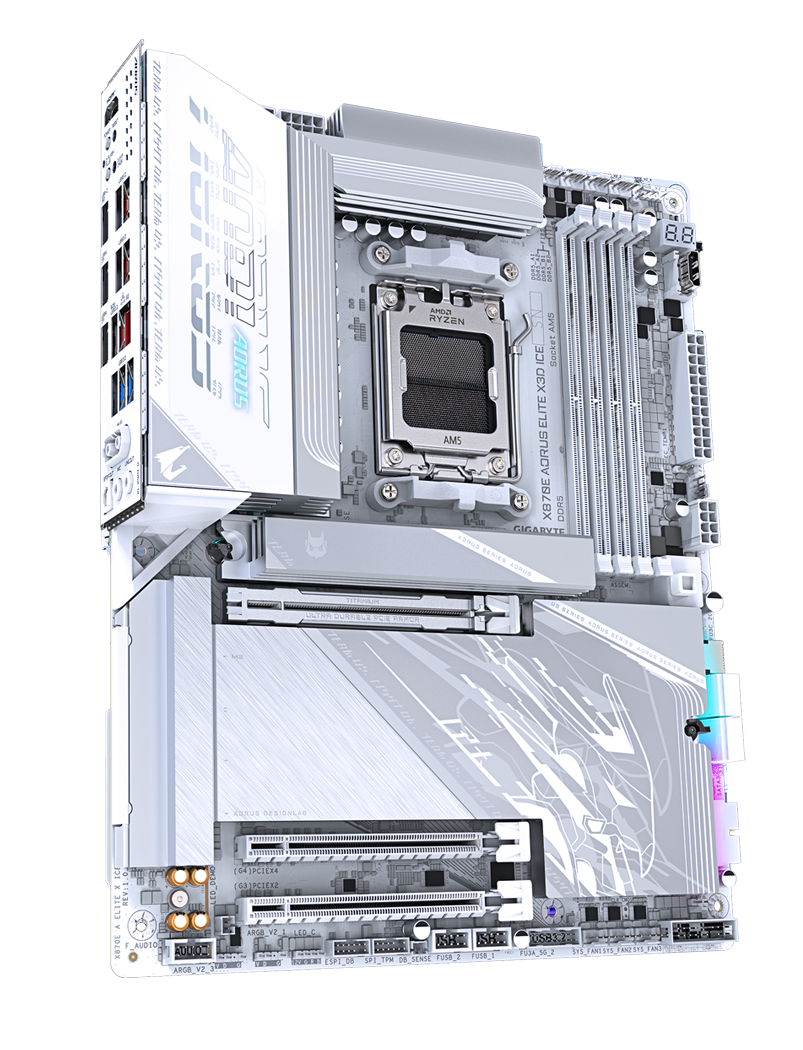

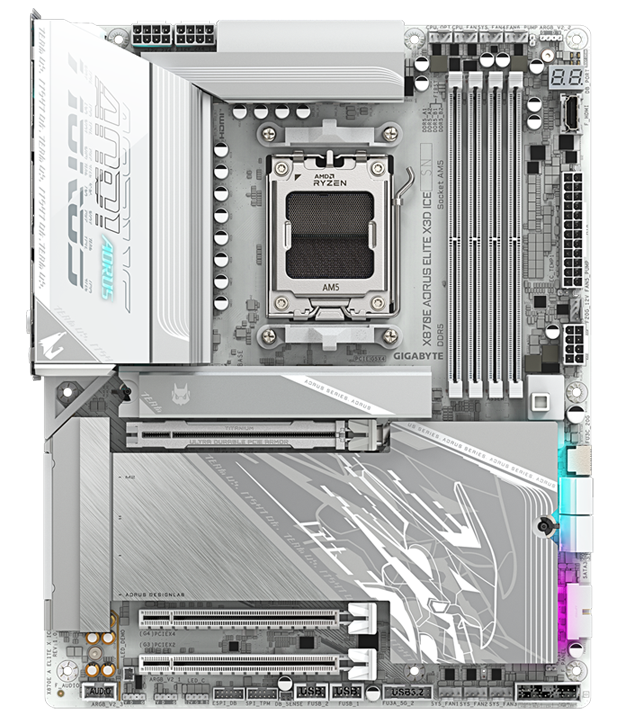

GIGABYTE X870E AORUS ELITE X3D ICE AM5 White ATX Motherboard, Upto 9000MT/s DDR5 OC, X3D Turbo Mode 2.0, 5GbE/Wi-Fi 7 | X870E A ELITE X ICE
Model : X870E AORUS ELITE X3D
SKU : MB-AOR X870E ELITE X3D IC
Color :
White
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

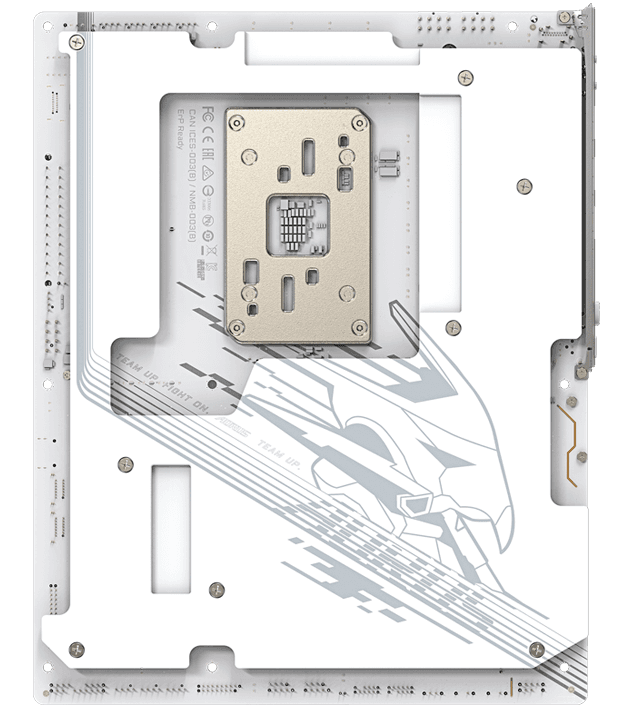

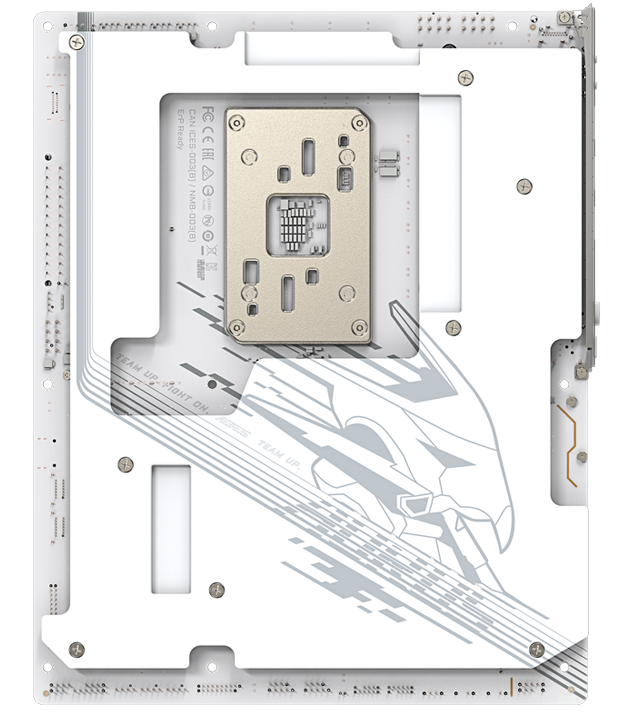

PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specification
| Socket | AMD Socket AM5, support for: - AMD Ryzen™ 9000 Series Processors - AMD Ryzen™ 8000 Series Processors - AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870E |
| Memory Support | DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s 4 × DDR5 DIMM sockets (up to 256GB, 64GB per DIMM) Dual-channel architecture Supports non-ECC Un-buffered 1Rx8 / 2Rx8 / 1Rx16 DIMMs Supports AMD EXPO™ & XMP profiles (Memory support depends on CPU and configuration.) |
| USB4 Display Output | Integrated Radeon™ Graphics + ASMedia USB4® Controller: - 2 × USB4 Type-C (DP output, 3840×2160@240Hz) Supports DP 1.4, HDR |
| HDMI (Rear) | 1 × HDMI (4096×2160@60Hz) HDMI 2.1, HDCP 2.3, HDR Supports native HDMI 2.1 TMDS compatible ports |
| HDMI (Front) | 1 × HDMI (1920×1080@30Hz) HDMI 1.4 |
| Audio Codec | Realtek® ALC1220 |
| Channels | 2/4/5.1/7.1-channel HD Audio Rear Line-Out supports DSD audio S/PDIF Out supported |
| Ethernet | Realtek® 5GbE LAN (5G/2.5G/1G/100M) |
| Wireless Module | Qualcomm® Wi-Fi 7 QCNCM865 802.11a/b/g/n/ac/ax/be (2.4/5/6GHz) Bluetooth® 5.4 Supports 11be 320MHz bandwidth Requires Windows 11 SV3 for proper Wi-Fi 7 support. |
| PCIEX16 (CPU) | Ryzen 9000/7000 → PCIe 5.0 ×16 Ryzen 8000 Phoenix 1 → PCIe 4.0 ×8 Ryzen 8000 Phoenix 2 → PCIe 4.0 ×4 Supports GPU or NVMe SSD only. |
| Chipset Slots | 1 × PCIe 4.0 ×4 (PCIEX4) 1 × PCIe 3.0 ×2 (PCIEX2) |
| M2A_CPU | PCIe 5.0 ×4/x2 (Ryzen 9000/7000) PCIe 4.0 ×4/x2 (Ryzen 8000) Supports 25110/22110/2580/2280 |
| M2B_CPU | PCIe 5.0 ×4/x2 (Ryzen 9000) Shares bandwidth with USB4 controller Unavailable on Ryzen 8000 Phoenix when USB4 is active. |
| M2C_SB / M2D_SB | PCIe 4.0 ×4/x2 (Chipset) |
| SATA | 4 × SATA 6Gb/s |
| RAID | NVMe RAID 0/1/5/10 RAID 5 only on Ryzen 9000 SATA RAID 0/1/10 |
| Rear USB4 | 2 × USB4 Type-C |
| Rear USB | 5 × USB 3.2 Gen2 Type-A (red) 1 × USB-C (USB 3.2 Gen2) 3 × USB 3.2 Gen1 |
| Internal USB | 1 × USB-C (USB 3.2 Gen 2x2, PD 65W/QC4+) 4 × USB 3.2 Gen1 4 × USB 2.0 internal |
| Power | 1 × 24-pin ATX 2 × 8-pin ATX 12V 1 × PCIe power connector |
| Cooling | 1 × CPU fan 1 × CPU/pump 4 × system fans 2 × SYS fan/pump 2 × temperature sensor headers 1 × noise detection header |
| RGB | 3 × ARGB Gen2 headers 1 × RGB header |
| Storage Connectors | 4 × M.2 (all Socket 3) 4 × SATA 6Gb/s |
| Other I/O | Front Panel Front Audio USB-C header 2 × USB 3.2 Gen1 headers 2 × USB 2.0 headers TPM header Reset jumper Clear CMOS jumper Front HDMI port |
| Buttons | Reset Power Clear CMOS Q-Flash Plus |

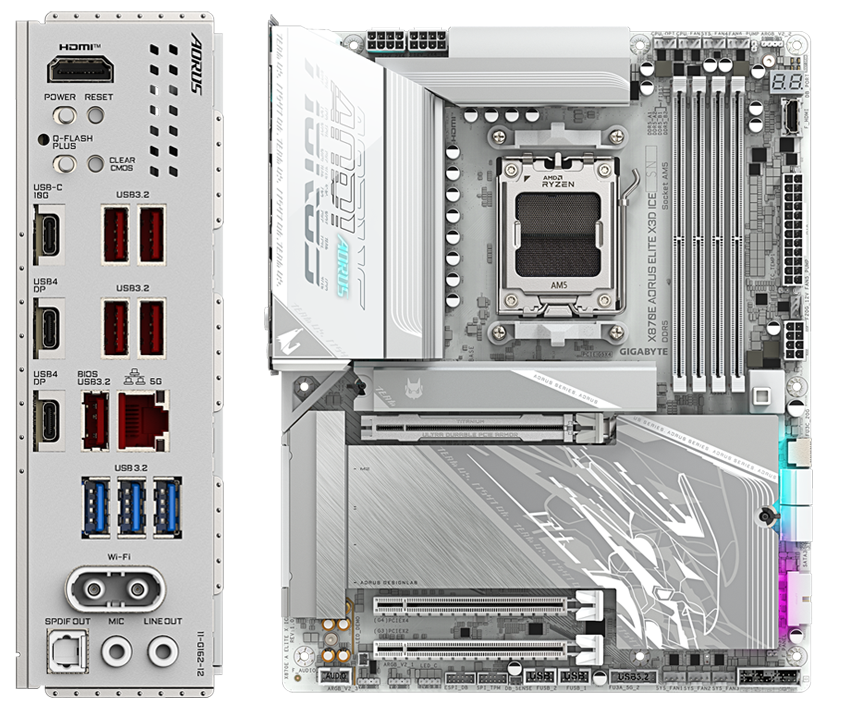

| Ports | 1 × HDMI 5 × USB 3.2 Gen2 Type-A (red) 1 × USB-C (USB 3.2 Gen2) 2 × USB4 Type-C (DP) 3 × USB 3.2 Gen1 1 × RJ-45 (5GbE) 2 × Wi-Fi antenna connectors 2 × audio jacks 1 × Optical S/PDIF Out |
| Controller | iTE® I/O Controller |
| Monitoring Features | Voltage/Temperature/Fan speed Water flow detection Fan fail warning Noise detection Fan/pump speed control |
| BIOS | 1 × 512Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Software | GIGABYTE Control Center (GCC) Q-Flash & Q-Flash Plus Smart Backup |
| Apps | Norton Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Size | ATX, 30.5cm × 24.4cm |
