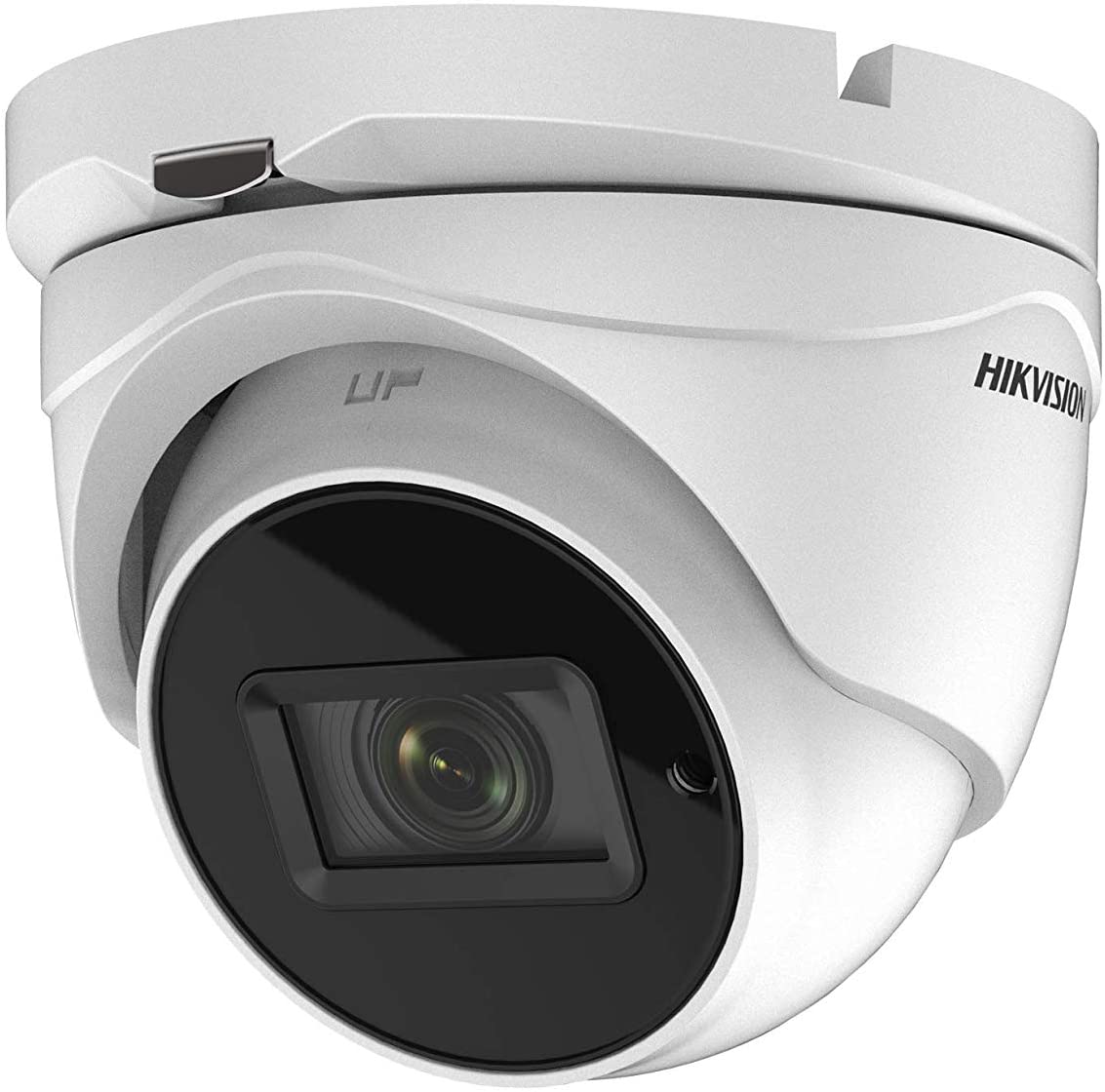

Hikvision Camera DS-2CE56H0T-IT3ZF Outdoor IR Turret 5MP 2.7-13.5mm EXIR2.0 IP67

Camera
Image Sensor5 MP CMOS image sensor
Max. Resolution2560 (H) ?? 1944 (V)
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0?? to 360??; Tilt: 0?? to 75??; Rotate: 0?? to 360??

Lens
Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
Focal Length & FOV95.7?? to 29.1??
Lens Mount?? 14

Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)DWDR
Image EnhancementBLC
White BalanceATW/MWB
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension123.86 mm ?? 134.3 mm ?? 110.11 mm (4.88" ?? 5.29" ?? 4.38")
WeightApprox. 580 g (1.28 lb.)
Operating Condition-40 ??C to 60 ??C (-40 ??F to 140 ??F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
Power Supply12 VDC ??25%
ConsumptionMax. 6.3 W
IR RangeUp to 40 m

Approval
ProtectionIP67
