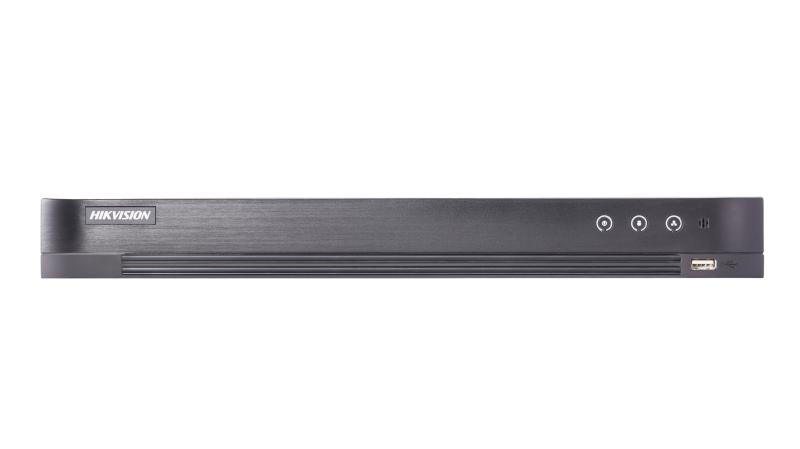

Hikvision DS-7208HUHI-K2 8 channel 5MP 2 HDDs 1U DVR, Efficient H.265 pro+, up to 8 MP @ 8 fps, 5 MP @ 12 fps, Up to 16 cameras, Dual stream
Model :
SKU : DS-7208HUHI-K2 5MP
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Video Compression and Recording System Specifications
| Recording | Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream: 8 MP@8fps, 5 MP@12fps, 4 MP@15fps, 3 MP@18fps, 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-Stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Dual Stream | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| IP Video Input | 8-ch (up to 16-ch), up to 8 MP resolution, support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection |
| AHD Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 K??) |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??) (using the first audio input) |
| Synchronous Playback | 8-ch |
| HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| VGA/HDMI Output | VGA: 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz HDMI: 1-ch, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ??) |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP???, HTTPS, ONVIF |
| Network Interface | 1 ?? RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary Interface | 2 ?? SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | 8/4 |
| USB Interface | Front panel: 1 ?? USB 2.0, Rear panel: 1 ?? USB 3.0 |
| Serial Interface | RS-485 (half-duplex) |
| Power Supply | 12 VDC |
| Working Temperature | -10 ??C to +55 ??C (+14 ??F to +131 ??F) |
| Working Humidity | 10% to 90% |
| Dimensions | 380 ?? 320 ?? 48 mm (15.0 ?? 12.6 ?? 1.9 inches) |
| Consumption (Without HDD) | ??? 20 W |
| Weight (Without HDD) | ??? 1.78 kg (3.9 lb) |
Specification
Video Compression and Recording System Specifications
| Recording | Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream: 8 MP@8fps, 5 MP@12fps, 4 MP@15fps, 3 MP@18fps, 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-Stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Dual Stream | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| IP Video Input | 8-ch (up to 16-ch), up to 8 MP resolution, support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection |
| AHD Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 K??) |
| Audio Output | 1-ch, RCA (Linear, 1 K??) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 K??) (using the first audio input) |
| Synchronous Playback | 8-ch |
| HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| VGA/HDMI Output | VGA: 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz HDMI: 1-ch, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, 1024 ?? 768/60Hz |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 ??) |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP???, HTTPS, ONVIF |
| Network Interface | 1 ?? RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary Interface | 2 ?? SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | 8/4 |
| USB Interface | Front panel: 1 ?? USB 2.0, Rear panel: 1 ?? USB 3.0 |
| Serial Interface | RS-485 (half-duplex) |
| Power Supply | 12 VDC |
| Working Temperature | -10 ??C to +55 ??C (+14 ??F to +131 ??F) |
| Working Humidity | 10% to 90% |
| Dimensions | 380 ?? 320 ?? 48 mm (15.0 ?? 12.6 ?? 1.9 inches) |
| Consumption (Without HDD) | ??? 20 W |
| Weight (Without HDD) | ??? 1.78 kg (3.9 lb) |
