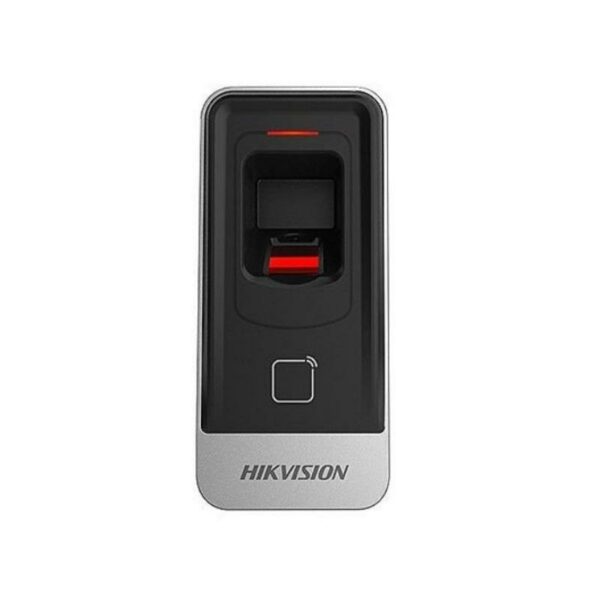

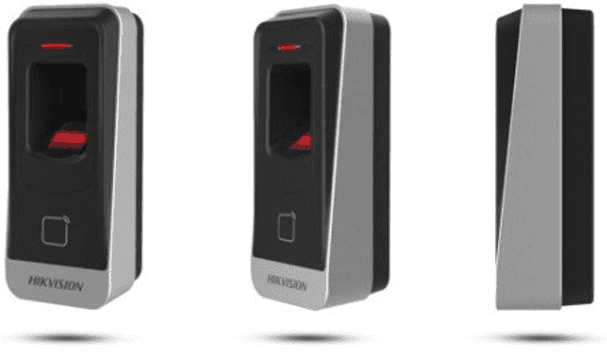

Hikvision DS-K1201AMF Fingerprint Reader & Card Reader, Built-in buzzer, Watchdog Program, Tamper-proof function
Model :
SKU : HIKVISION DS-K1201AMF
Description
Hikvision DS-K1201AMF Fingerprint Reader & Card Reader, Built-in buzzer, Watchdog Program, Tamper-proof function
- A group of messy code encrypted data for the security of fingerprint storage
- Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
- Supports M1 card reading
- Card induction distance is 30 mm to 100 mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Optical CMOS fingerprint module. The characters of the fingerprint can be export to the card reader
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1 1 s, 1:1000 1 s; FRR 0.01%, FAR 0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
- Built-in buzzer for status indication
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function
DS-K1201AMF Fingerprint Reader Specifications
| Interface | TAMPER |
| Authentication | Fingerprint module |
| Fingerprint Module Type | Optical fingerprint module |
| Fingerprint Comparing Mode | 1:1 / 1:N |
| Card Type | M1 card |
| Power Supply | 12 VDC ?? 10% |
| Power Consumption | ??? 1.6 W |
| Working Temperature | -40 ??C to 70 ??C (-40 ??F to 158 ??F) |
| Working Humidity | 10% to 90% (no condensing) |
| Dimensions | 62 mm ?? 132 mm ?? 44 mm (2.44" ?? 5.20" ?? 1.73") |
| Installation | Surface mounting |
| Buzzer | Support |
