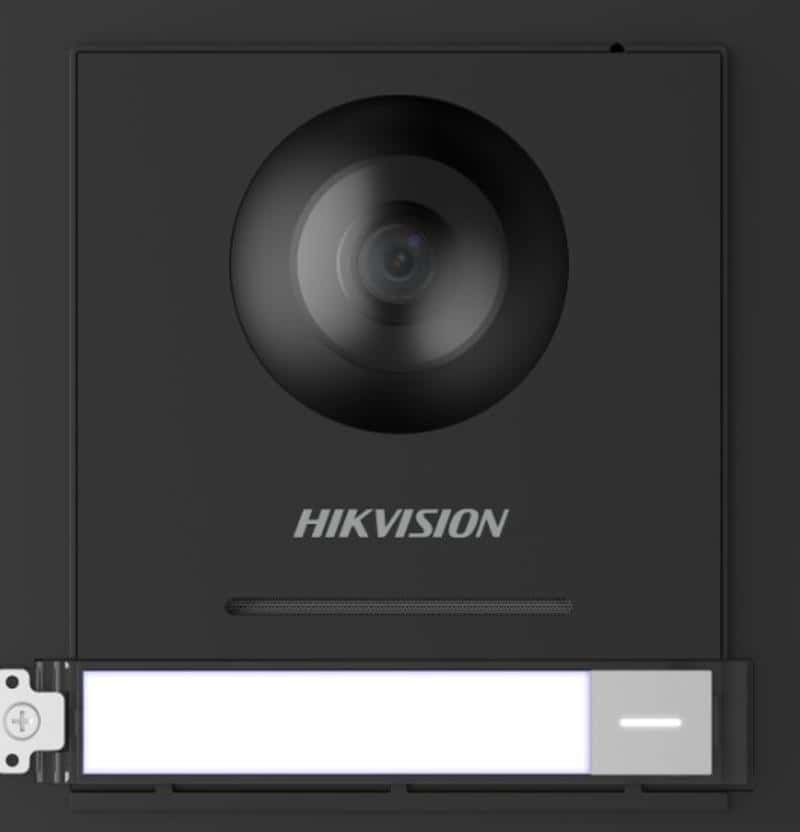

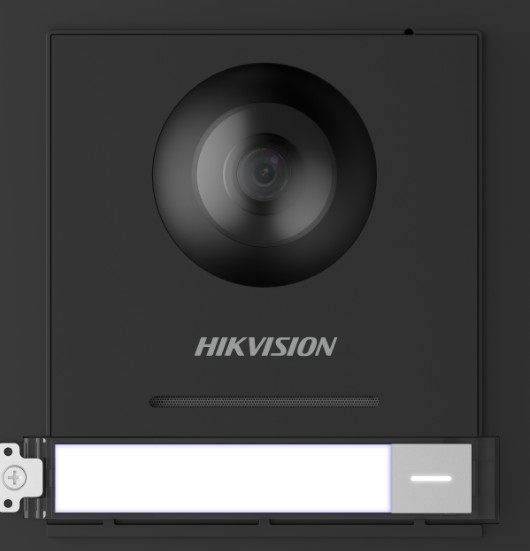

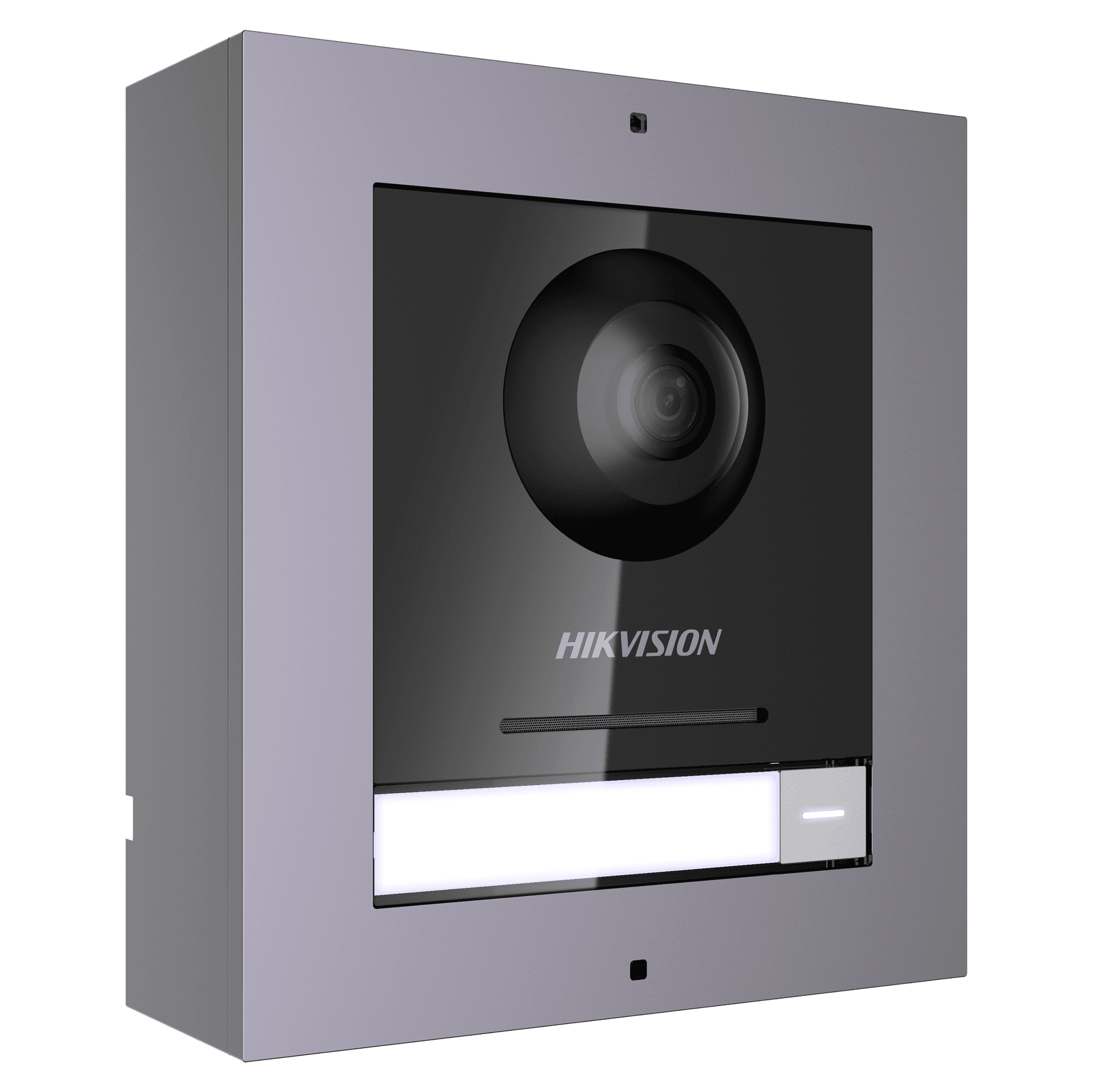

Hikvision DS-KD8003-IME1 KD8 Series Pro Modular Door Station With Brackets, 2MP HD Colorful Camera, Fish eye, IR Supplement, 1 Call physical Button, 2 lock relays, 4-ch alarm input, IP65, 12 VDC or standard PoE,
Model :
SKU : DS-KD8003-IME1/Surface
Description
Specification
| Processor | Embedded MCU Processor |
| Operating System | Embedded Linux Operation System |
Video Parameters
| Supplement Light | IR Supplement |
| Video Compression Standard | H.264 |
Audio Parameters
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker (More than 85 dB within 20 cm) |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
Network Parameters
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocol | TCP/IP, RTSP |
Device Interfaces
| Alarm Input | Tampering Alarm |
| I/O Input | 4 |
| I/O Output | 2 |
General
| Power Supply | 12 VDC/PoE (IEEE 802.3af) |
| Power Consumption | 4 W |
| Working Temperature | -40?? C to +55?? C (-40?? F to 131?? F) |
| Working Humidity | 10% to 95% |
| Protective Level | IP65 |
| Dimensions (L ?? W ?? H) | 98 mm ?? 99.8 mm ?? 43.9 mm (3.86" ?? 3.93" ?? 1.73") |
| Languages | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak |
