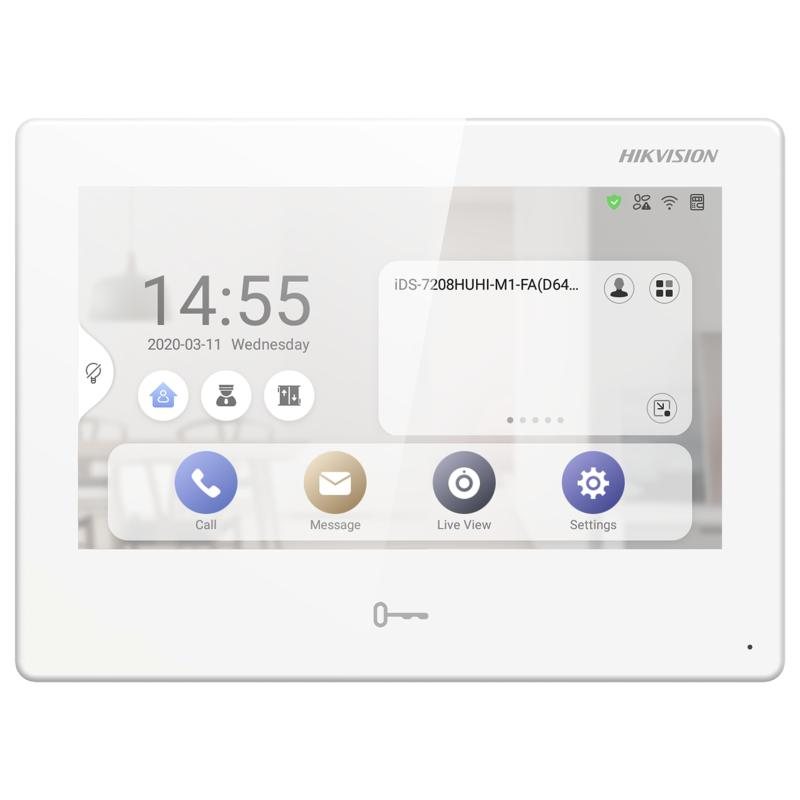

Hikvision DS-KH9310-WTE1 Video Intercom Network Indoor Station, 7-inch 1024 ?? 600 Colorful TFT Capacitive touch screen, 1 GB RAM, 4GB ROM, Android OS, Built-in microphone & loudspeaker
Model :
SKU : DS-KH9310-WTE1
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision DS-KH9310-WTE1 Video Intercom Network Indoor Station, 7-inch 1024 ?? 600 Colorful TFT Capacitive touch screen, 1 GB RAM, 4GB ROM, Android OS, Built-in microphone & loudspeaker
| Operating System | Embedded Android operation system |
| ROM | 4 GB |
| RAM | 1 GB |
| CPU | Embedded processor |
| Display Parameters | |
| Screen Size | 7-inch |
| Operation Method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 ?? 600 |
| Video Parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| WDR | / |
| Video Compression Standard | / |
| Focal Length | / |
| Audio Parameters | |
| Audio Compression Standard | G.711 U, G.711 A |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Event Capacity | 200 |
| Notice Capacity | 16 |
| Linked Indoor Station Capacity | 5 |
| Network Parameters | |
| Communication Protocol | TCP/IP, SIP, RTSP |
| Wired Network | Support |
| Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
| Bluetooth Version | / |
| 3G/4G Standard | / |
| Zigbee | / |
| Device Interfaces | |
| Alarm Input | 8 |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 |
| USB | For debug only |
| TF Card | Max to 32 G, SD 2.0 or lower version |
| Alarm Output | 2 |
| Power Interface | 1 |
| General | |
| Button | / |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Without package: 419.3 g With package: 694 g |
| Protective Level | / |
| Working Temperature | -10 ??C to 50 ??C (14 ??F to 122 ??F) |
| Working Humidity | 10% to 90% |
| Dimensions | 187 mm ?? 137 mm ?? 25.7 mm (7.36" ?? 5.39" ?? 1.01") |
| Battery | / |
| Power Supply | IEEE802.3af, standard PoE 12 VDC, 1 A |
| Application Environment | |
| Indoor | / |
| Power Consumption | |
| Power Consumption | ??? 8 W |
| Language | |
| Language | English, French, Spanish, German, Italian, Polish, Portuguese (Brazil), Russian, Turkish, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian |
Specification
