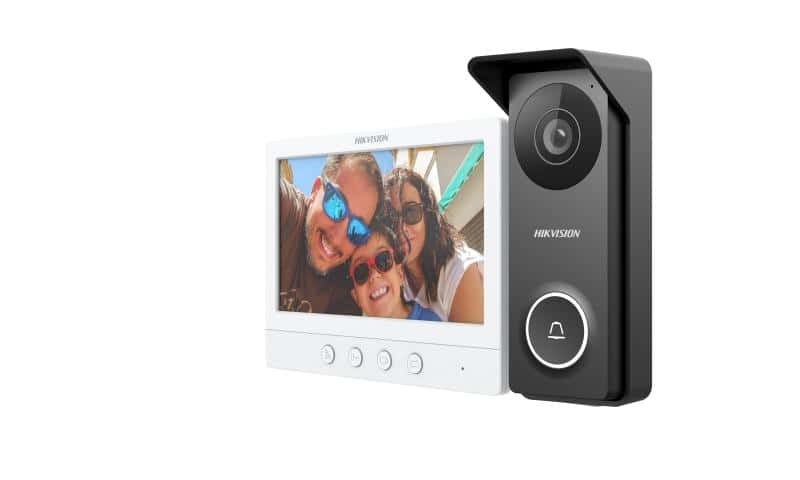

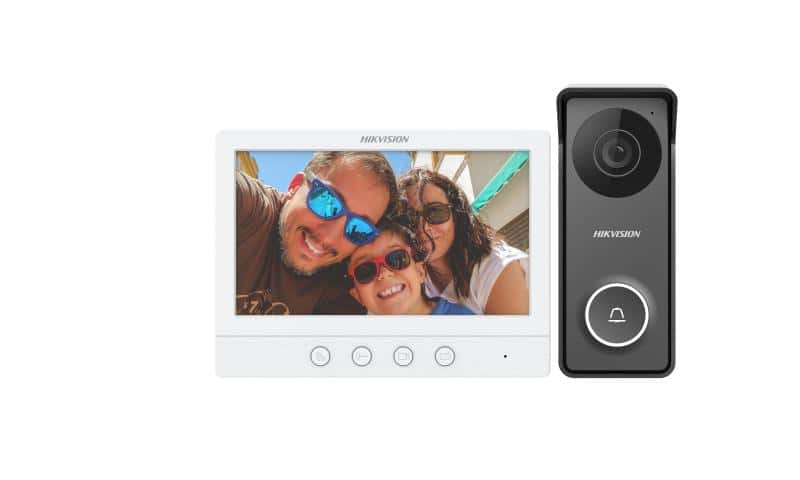

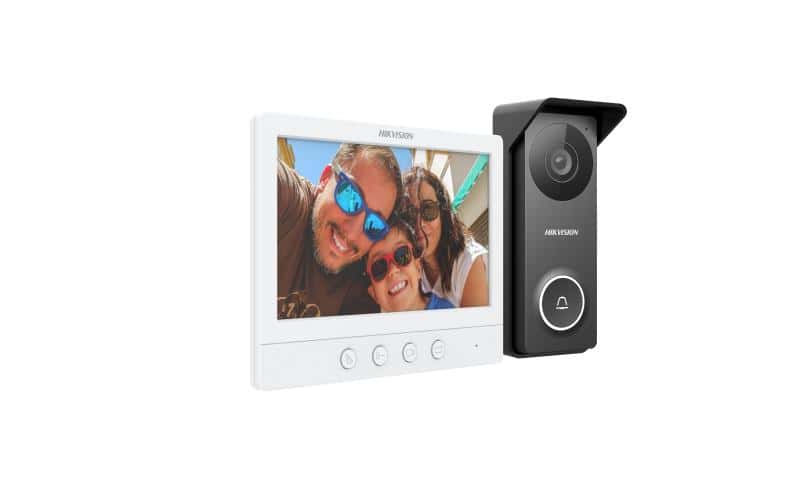

Hikvision DS-KIS213 4 Wire HD Kits Intercom System, 7" LCD TFT Screen, Built-In Omnidirectional Microphone & Loudspeaker, Supports Up to 1280 x 720 @ 60fps, Black & White

Hikvision DS-KIS213 4 Wire HD Kits Intercom System, 7" LCD TFT Screen, Built-In Omnidirectional Microphone & Loudspeaker, Supports Up to 1280 x 720 @ 60fps, Black & White Specifications

Door Station

Video Parameters

Supplement Light	IR light, up to 3 m
Resolution	Stream resolution: 1280 x 720@60fps
FOV	Horizontal: 117??, Vertical: 70??, Diagonal: 141??

Audio Parameters

Audio Input	Built-in omnidirectional microphone (???50 cm)
Audio Output	Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)

Device Interfaces

Lock Control	1 relay, max 30 V 1 A
Debugging Port	1
Four-wire	1 four-wire interface

General

Button	1 physical button(s)
Power Supply	12 VDC
Power Consumption	Max. 4 W
Working Temperature	-30 ??C to 60 ??C (-22 ??F to 140 ??F)
Working Humidity	10% to 90%
Dimensions	145 mm ?? 55 mm ?? 24 mm (5.71" ?? 2.17" ?? 0.94")
Application Environment	Outdoor
Installation	Surface mounting
Protective Level	IP65, IK08
Material	Metal

Indoor Station

Display Parameters

Operation Method	Physical button
Type	7-inch colorful TFT
Resolution	1024 x 600

Audio Parameters

Audio Input	Built-in omnidirectional microphone (???50 cm)
Audio Output	Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)

Capacity Parameters

Linked Indoor Extensions Capacity	2
Linked Doorphone Capacity	2
Linked Analog Camera	1

Device Interfaces

Power Supply Input	12V DC
Debugging Port	1
Four-Wire Interface	4, 2 for indoor extensions, 2 for doorphones
DIP Switch	1 Bit
BNC	1

General

Button	4 physical buttons
Power Supply	12 VDC
Power Consumption	???4 W
Working Temperature	-10?? C to + 55?? C (14?? F to 131?? F)
Working Humidity	10% to 90%
Dimensions (W ?? H ?? D)	178 mm x 132 mm x 19 mm (7.01" ?? 5.20" ?? 0.75")
Installation	Surface mounting
Application Environment	Indoor
