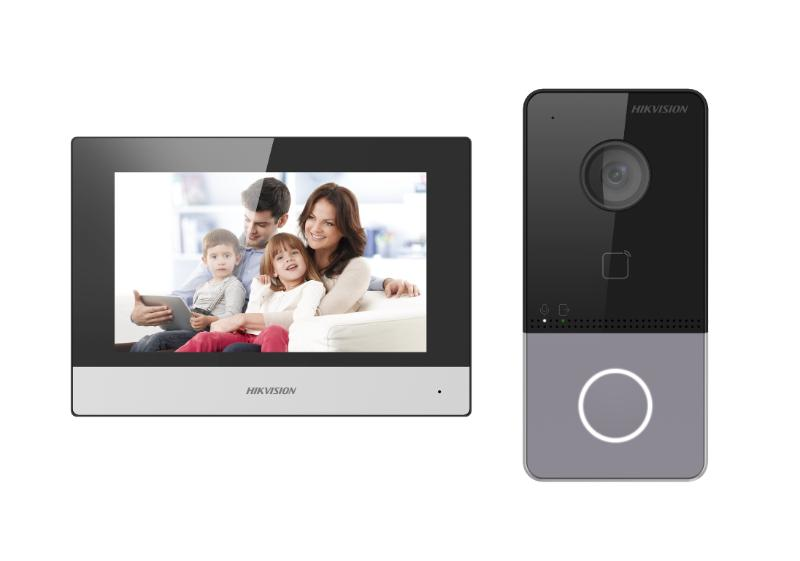

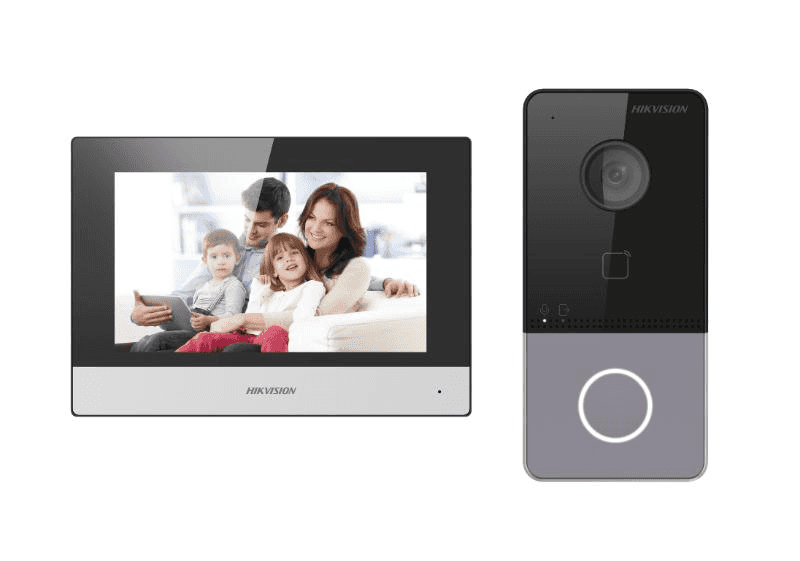

HIKVISION DS-KIS603-P hikvision Video Intercom Villa Door Station Bundle, 7-inch colorful touch screen with resolution 1024 ?? 600, Supports wireless network, Standard PoE

HIKVISION DS-KIS603-P hikvision Video Intercom Villa Door Station Bundle, 7-inch colorful touch screen with resolution 1024 ?? 600, Supports wireless network, Standard PoE

Operation System	Embedded Linux operation system
Flash	32 MB
RAM	128 MB

Door Station/Video Parameters

Camera	2MP HD camera
Night Vision	Low illumination IR supplement mode: 3 m
Backlight Compensation	Support
Digital Noise Reduction	Support
WDR	True WDR
Field Of View	Horizontal: 129?? Vertical: 75??
Video Compression Standard	H.264
Stream	Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
Motion Detection	Support
Flash-Avoid Frequency	50 Hz, 60 Hz

Door Station/Audio Parameters

Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Quality	Noise suppression and echo cancellation
Audio Compression Standard	G.711 U
Audio Compression Rate	64 Kbps
Audio Intercom	Two-way audio communication

Door Station/Network Parameters

Network Protocol	TCP/IP, RSTP
Wired Network	10/100 Mbps Ethernet

Door Station/Device Interfaces

RS-485	1
Alarm Input	4
Debugging Port	1
Grounding	1
TAMPER Switch	1

Door Station/General

Power Consumption	< 10 W
Working Temperature	-40?? C to 53?? C(-40?? F to 127.4?? F)
Working Humidity	10% to 95%
Dimension	138 mm ?? 65 mm ?? 27 mm
Installation	Surface mounting
Protection Level	IP65
Indicator	2
Power Supply	IEEE802.3af, standard PoE 12 VDC
