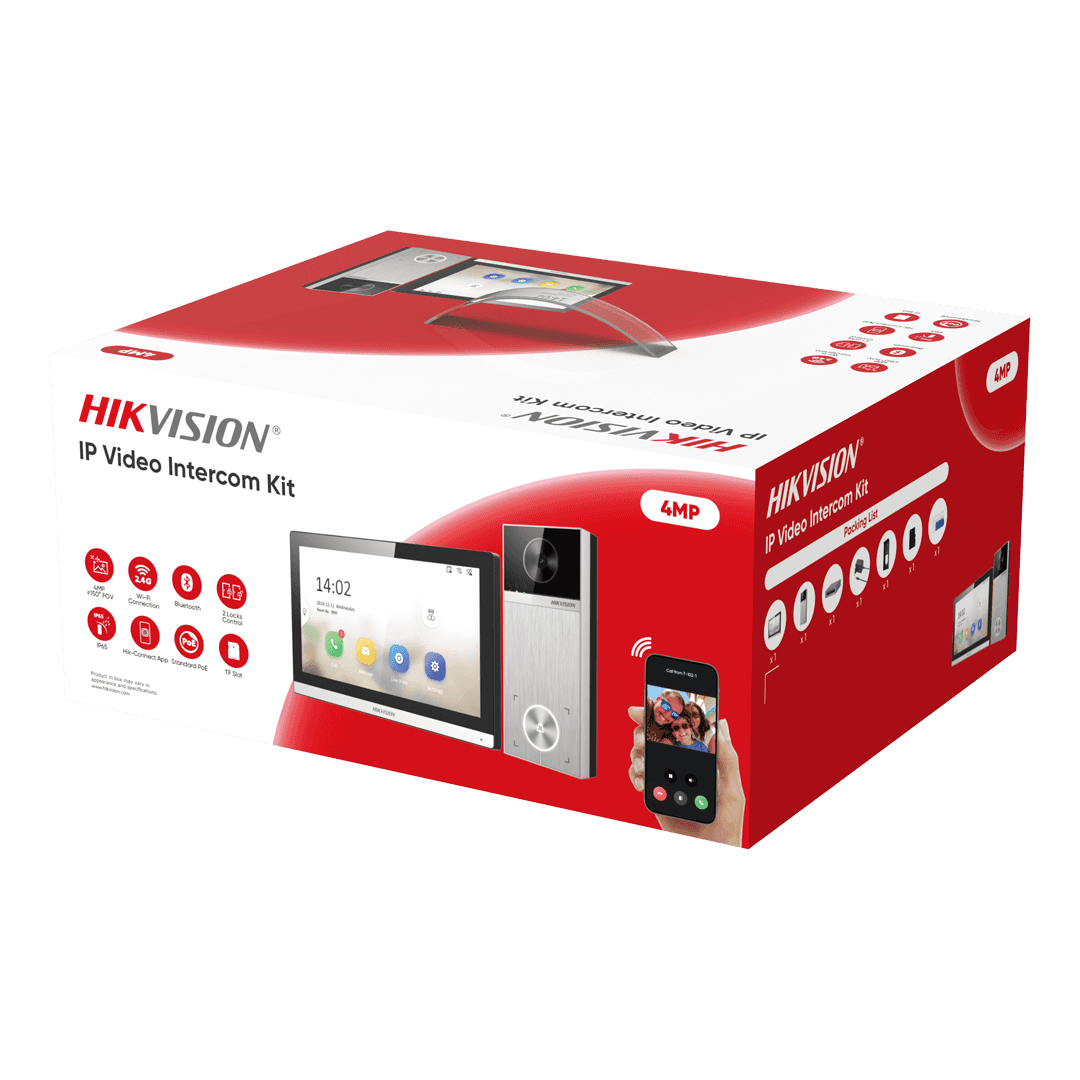

Hikvision DS-KIS611-S IP Video Intercom Kit: 4MP 150° Wide-Angle Door Station (DS-KV6114-MWBE1), 7" Touch Indoor Station (DS-KH6350-WTE1), 4-Port PoE Switch, Rain Shield (DS-KABV6114-RS), 32GB TF Card, PSU, Admin Card & 5x Key Fobs
Model :
SKU : DS-KIS611-S Intercom Kit
The Hikvision DS-KIS611-S is a comprehensive IP-based video intercom solution designed for modern residential and commercial entry management. Featuring a high-definition 4MP door station with a panoramic 150° viewing angle, it ensures every visitor is captured in crystal-clear detail. This all-in-one kit supports advanced unlocking methods, including Bluetooth and Hik-Connect mobile app control, providing a seamless and secure access experience powered by a single PoE connection
Description
Enhance your property’s security and convenience with the Hikvision DS-KIS611-S IP Video Intercom Kit. This premium bundle provides everything needed to establish a sophisticated front-door communication system for the 2026 digital home. By combining high-resolution video, two-way audio, and multiple access control technologies, the DS-KIS611-S allows you to screen visitors and manage deliveries from anywhere in the world using your smartphone or the included indoor touch station.
Key Features
- Superior 4MP Visual Clarity: The outdoor station (DS-KV6114-MWBE1) features an upgraded 4MP sensor, delivering significantly higher resolution than standard intercoms. The 150° wide-angle lens provides a panoramic view of your entrance, eliminating blind spots and ensuring you see exactly who is at the door.
- Flexible Access Control: Manage your entryway your way. This kit supports two-lock control and offers a variety of unlocking methods, including traditional IC cards, Bluetooth proximity unlocking, the Hik-Connect mobile app, and the indoor monitor.
- Mobile-First Connectivity: Never miss a visitor again. With full Hik-Connect integration, calls from the door station are pushed directly to your mobile device. You can see, hear, and speak to visitors, and even unlock the gate remotely, whether you are in the backyard or across the globe.
- Complete All-In-One Bundle: This kit is designed for immediate deployment. It includes a sleek 7-inch indoor touch station, a 4-port PoE switch for easy wiring, a rain shield (DS-KABV6114-RS), a 32GB TF card for video storage, and multiple key fobs for the whole family or office staff.
- Intelligent Recording & Playback: Keep a record of every interaction. The system supports video recording and playback directly through the indoor monitor or door station. With the included 32GB TF card, you can store snapshots and video clips of missed calls and suspicious activity.
Installation & Power The DS-KIS611-S utilizes Standard PoE (Power over Ethernet) technology. This simplifies installation by allowing both data and power to travel over a single network cable. The included PoE switch ensures that setting up your network is a "plug-and-play" experience, reducing the need for complex electrical wiring near the door.
Why This Product Stands Out The DS-KIS611-S stands out by offering a "no-compromise" feature set in a single box. While many kits offer only 2MP resolution or limited unlocking options, this system provides 4MP UHD video and Bluetooth connectivity. It is the ideal choice for those who want a future-proof, professional-grade intercom system that is as easy to use as a smartphone.
Specification
Door Station / System Specifications
| Operating System | Linux |
| Processor | Embedded high performance processor |
| RAM | 512 MB |
| ROM | 4 GB |
Door Station / Video Parameters
| Supplement Light | IR light, up to 3 m |
| Resolution | Main stream: 4MP (2688×1520), 2MP (1920×1080), 1MP (1280×720) Sub stream: 2MP (1920×1080), 1MP (1280×720), 0.3MP (640×480) |
| Lens | 1 |
| Field of View | Horizontal: 150° | Vertical: 75° |
| Video Compression | H.264 / H.265 / MJPEG |
Door Station / Audio Parameters
| Volume Adjustment | Adjustable |
| Audio Performance | 50 cm 80 dB (Max: 83 dB) |
Door Station / Capacity
| User Capacity | 2000 |
| Card Capacity | 10000 |
Door Station / Network
| Network Protocol | TCP/IP, SIP, RTSP, IPv6, ONVIF |
| Wi-Fi | 2.4 GHz (Wi-Fi 6) |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ax |
| Bluetooth | Supported |
Door Station / Authentication
| Authentication Mode | Card, Bluetooth, Indoor Station, Hik-Connect |
| Card Type | M1 Card (13.56 MHz) |
| Reading Distance | 2 – 2.5 cm |
Door Station / Smart Features
| Mobile App | Hik-Connect |
| Motion Detection | Supported |
| Playback | Supported |
| Call Elevator | Supported |
| Sound Classification | Scream, Glass Breaking, Crying (Recommended distance: 3 m) |
Door Station / Interfaces
| Network Interface | 1 × RJ-45 (10/100 Mbps) |
| Exit Button | 1 |
| Lock Control | 2 relays, Max 30 VDC / 2 A |
| RS-485 | 1 |
| Door Contact Input | 1 |
| Alarm Input | 4 |
| Tamper | 1 |
| TF Card | Up to 128 GB (FAT32 / exFAT) |
Door Station / General
| Buttons | 1 Physical Button |
| Indicators | 3 |
| Power Consumption | < 10 W |
| Operating Temperature | -40 °C to 60 °C |
| Operating Humidity | 10% – 90% (Non-condensing) |
| Application Environment | Outdoor |
| Dimensions (W×H×D) | 164 × 69 × 24.7 mm |
| Protection Level | IP65 |
| Installation | Surface Mounting |
| Weight | 273 g (without package), 431 g (with package) |
| Material | Plastic housing, Glass viewing panel |
| Power Supply | 12 VDC 1.2 A / IEEE 802.3at PoE |
| Power Output | Max 12 VDC, 1 A |
| Language Support | English, Arabic, French, Spanish, German, Italian, Russian, and more |
Indoor Station Specifications
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression & echo cancellation |
| Audio Codecs | G.711u/a, Opus, AAC-LD/LC, G.726, G.722.1 |
| Network | RJ-45 10/100 Mbps, Wi-Fi 2.4 GHz |
| Protocols | TCP/IP, SIP, RTSP |
| RS-485 | 1 (Half-duplex) |
| Alarm Input | 8-channel |
| Relay Output | 2 |
| TF Card | Up to 128 GB |
| Power Consumption | ≤ 5 W |
| Power Supply | 12 VDC 1 A / IEEE 802.3af PoE |
| Working Temperature | -10 °C to 50 °C |
| Dimensions (L×W×H) | 174.99 × 113.49 × 21 mm |
