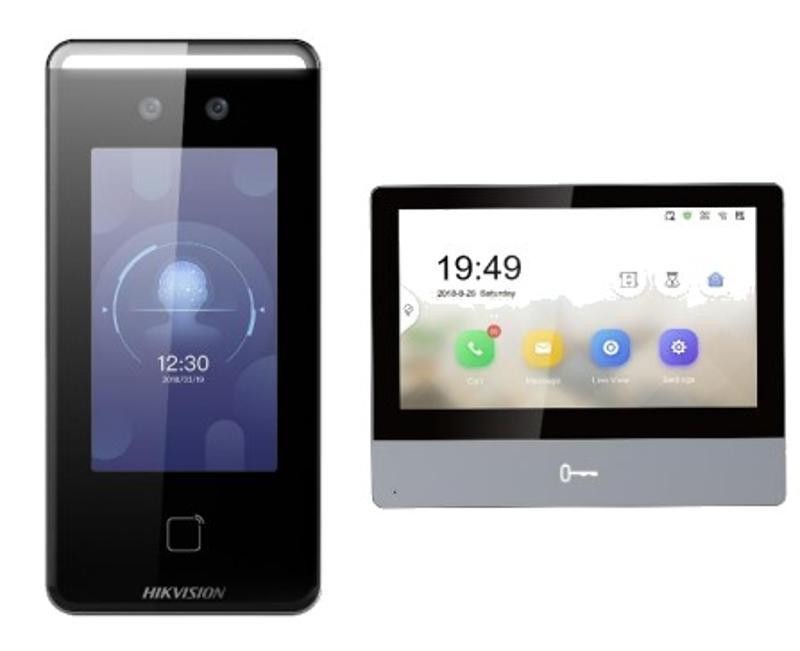

Hikvision DS-KIS901-P Facial Network Intercom Kit (Bundle), MinMoe face recognition terminal and indoor station bundle for villa or commercial, One call button for easier calls, Wi-Fi and PoE
Model :
SKU : DS-KIS901-P KIT
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Face Recognition Terminal and Indoor Station Specifications
Face Recognition Terminal/Audio
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Volume adjustment | Adjust via device or client |
Face Recognition Terminal/Authentication
| Card type | M1 card |
| Card reading distance | 0 to 3 cm |
| Card reading duration | < 1 s |
| Face recognition duration | < 0.2 s |
| Face recognition distance | 0.3 to 1.5 m |
Face Recognition Terminal/Camera
| Pixel | 2 MP |
| WDR | Support |
| Lens | 2 |
| Video standard | PAL (Default) and NTSC |
Face Recognition Terminal/Capacity
| Card capacity | 1500 |
| Face capacity | 1500 |
| Event capacity | 150000 |
Face Recognition Terminal/Function
| Face antispoofing | Support |
| Live view | Supports live view on the platform, H.264 |
| Face recognition | Supports face recognition in low illumination |
| Access control management | Support multiple authentication methods |
Face Recognition Terminal/General
| Protection level | IP65 |
| Power supply | 12 VDC, 2A |
| Working temperature | -30 ??C to 60 ??C (-22 ??F to 140 ??F) |
| Working humidity | 0 to 90% (No condensing) |
Face Recognition Terminal/Interfaces
| Network interface | 1, RJ45 |
| RS-486 | 1 |
| Wiegand | Wiegand 26 and Wiegand 34 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Power interface | 1 |
| TAMPER switch | 1 |
| USB | 1, USB 2.0 |
Face Recognition Terminal/Network
| Wired network | 10/100/1000 Mbps self-adaptive |
| Communication protocol | ISUP 5.0 |
Face Recognition Terminal/Screen
| Size | 4.3-inch |
| Resolution | 800 ?? 480 |
| Operation method | Capacitive touch screen |
Face Recognition Terminal/System parameters
| Operation system | Embedded Linux operation system |
Indoor Station/System parameters
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
Indoor Station/Display parameters
| Display screen | 7-inch colorful IPS LCD |
| Display resolution | 1024 ?? 600 |
| Operation method | Capacitive touch screen, physical button |
Indoor Station/Audio parameters
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
Indoor Station/Network parameters
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Alarm input | 8-ch alarm inputs |
| I/O output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
Indoor Station/General
| Power supply | IEEE802.3af, standard PoE 12 VDC/1 A |
| Power consumption | ??? 7 W |
| Working temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 180 mm ?? 140 mm ?? 22.4 mm (7.09" ??5.51" ?? 0.88") |
| Power supply via detector | 12 V, 200 mA |
| Weight | 899 g (with packaging) 355 g (without packaging) |
??? MinMoe face recognition terminal and indoor station bundle for villa or commercial
??? One call button for easier calls
??? Supports Wi-Fi and PoE power supply for easy installation
??? Including: DS-K1T341AM ?? 1, DS-KH8350-WTE1 ?? 1, PSU ?? 2, 16GB TF card ?? 1
??? Power adapter included in the package
Specification
Face Recognition Terminal and Indoor Station Specifications
Face Recognition Terminal/Audio
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Volume adjustment | Adjust via device or client |
Face Recognition Terminal/Authentication
| Card type | M1 card |
| Card reading distance | 0 to 3 cm |
| Card reading duration | < 1 s |
| Face recognition duration | < 0.2 s |
| Face recognition distance | 0.3 to 1.5 m |
Face Recognition Terminal/Camera
| Pixel | 2 MP |
| WDR | Support |
| Lens | 2 |
| Video standard | PAL (Default) and NTSC |
Face Recognition Terminal/Capacity
| Card capacity | 1500 |
| Face capacity | 1500 |
| Event capacity | 150000 |
Face Recognition Terminal/Function
| Face antispoofing | Support |
| Live view | Supports live view on the platform, H.264 |
| Face recognition | Supports face recognition in low illumination |
| Access control management | Support multiple authentication methods |
Face Recognition Terminal/General
| Protection level | IP65 |
| Power supply | 12 VDC, 2A |
| Working temperature | -30 ??C to 60 ??C (-22 ??F to 140 ??F) |
| Working humidity | 0 to 90% (No condensing) |
Face Recognition Terminal/Interfaces
| Network interface | 1, RJ45 |
| RS-486 | 1 |
| Wiegand | Wiegand 26 and Wiegand 34 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Power interface | 1 |
| TAMPER switch | 1 |
| USB | 1, USB 2.0 |
Face Recognition Terminal/Network
| Wired network | 10/100/1000 Mbps self-adaptive |
| Communication protocol | ISUP 5.0 |
Face Recognition Terminal/Screen
| Size | 4.3-inch |
| Resolution | 800 ?? 480 |
| Operation method | Capacitive touch screen |
Face Recognition Terminal/System parameters
| Operation system | Embedded Linux operation system |
Indoor Station/System parameters
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
Indoor Station/Display parameters
| Display screen | 7-inch colorful IPS LCD |
| Display resolution | 1024 ?? 600 |
| Operation method | Capacitive touch screen, physical button |
Indoor Station/Audio parameters
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
Indoor Station/Network parameters
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Alarm input | 8-ch alarm inputs |
| I/O output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
Indoor Station/General
| Power supply | IEEE802.3af, standard PoE 12 VDC/1 A |
| Power consumption | ??? 7 W |
| Working temperature | -10 ??C to 55 ??C (14 ??F to 131 ??F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 180 mm ?? 140 mm ?? 22.4 mm (7.09" ??5.51" ?? 0.88") |
| Power supply via detector | 12 V, 200 mA |
| Weight | 899 g (with packaging) 355 g (without packaging) |
??? MinMoe face recognition terminal and indoor station bundle for villa or commercial
??? One call button for easier calls
??? Supports Wi-Fi and PoE power supply for easy installation
??? Including: DS-K1T341AM ?? 1, DS-KH8350-WTE1 ?? 1, PSU ?? 2, 16GB TF card ?? 1
??? Power adapter included in the package
