Adarc Computer established in the year 2007, has emerged as a major constituent of the IT Re-distribution industry in every part of UAE. Currently, Adarc Computer is the authorized dealer of global leading brands.
Connect us:
Shop by Category
Model :

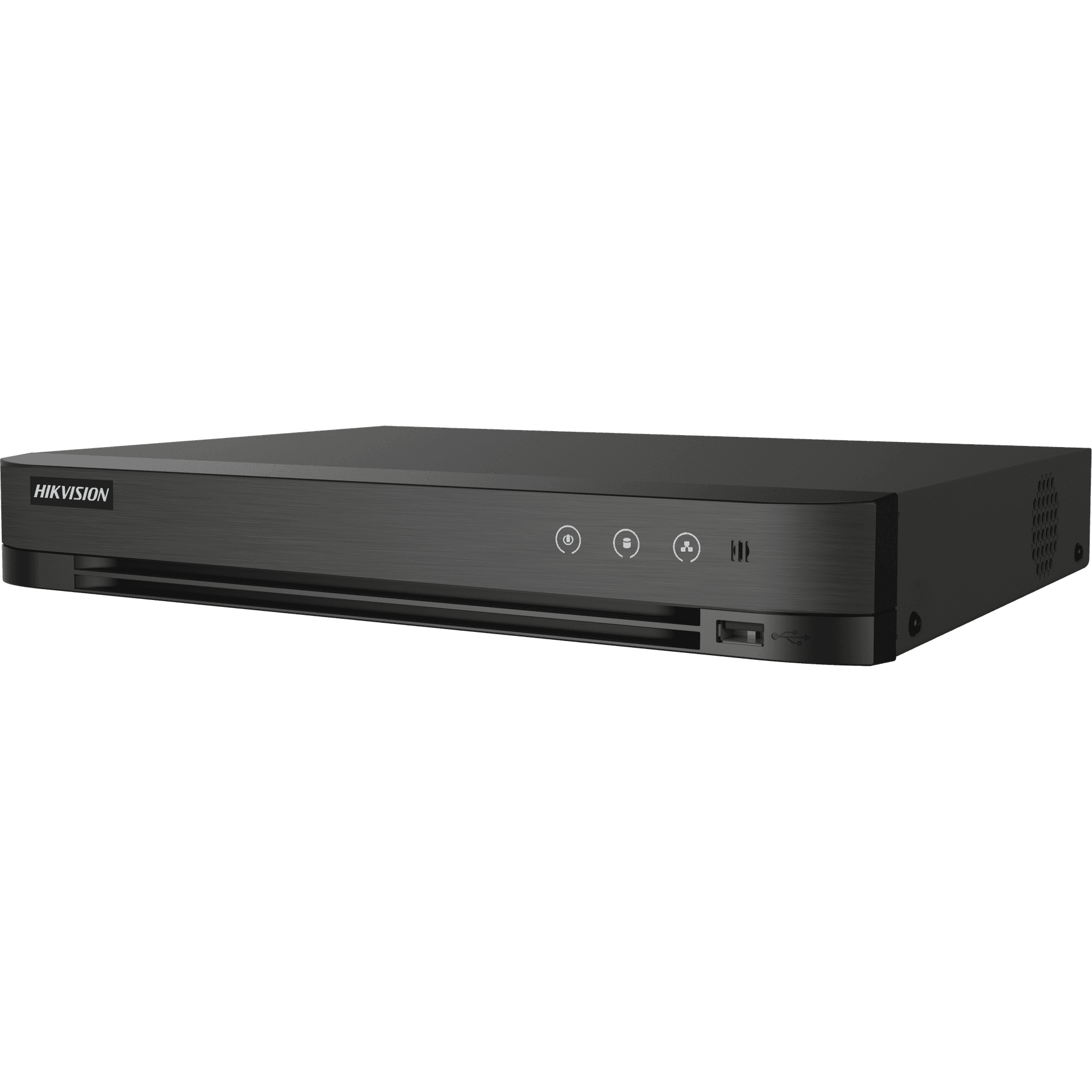

SKU : iDS-7208HQHI-M1/XT 3K/5MP
| Perimeter Protection | Human/Vehicle Analysis up to 4 channels |
| Analytics Limitation | Face picture comparison, Motion Detection 2.0, and Perimeter Protection cannot be enabled simultaneously. Enabling one function disables the other two. |
| Facial Recognition | Up to 16 face picture libraries Supports face picture comparison and face picture search 2-channel face comparison alarm for HD analog camera |
| Motion Detection 2.0 | Deep learning-based human and vehicle classification for all analog channels. Reduces false alarms caused by leaves, lights, and similar objects. Supports quick search by object or event type. |
| IP Video Input | 4 IP channels (expandable up to 12 channels) Supports up to 6 MP resolution |
| Analog Video Input | 8 channels BNC interface (1.0 Vp-p, 75 Ω) Supports coaxitron connection |
| HDTVI Input | 3K @25/20 fps 2K @20 fps 5 MP @20 fps 4 MP @25/30 fps 1080p @25/30 fps 720p @25/30 fps |
| AHD Input | 5 MP @20 fps 4 MP @25/30 fps 1080p @25/30 fps 720p @25/30 fps |
| HDCVI Input | 3K @20/25 fps 5 MP @20 fps 4 MP @25/30 fps 1080p @25/30 fps 720p @25/30 fps |
| CVBS Input | PAL / NTSC |
| HDMI Output | 1-channel 1920×1080/60Hz 1280×1024/60Hz 1280×720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-channel 1920×1080/60Hz 1280×1024/60Hz 1280×720/60Hz HDMI/VGA simultaneous output |
| CVBS Output | 1-channel BNC PAL: 704×576 NTSC: 704×480 |
| Audio Input | Up to 8-channel RCA audio input depending on variant Supports audio over coaxial cable |
| Audio Output | 1-channel RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-channel RCA using first audio input |
| Synchronous Playback | 8 channels |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding Resolution | 3K Lite / 5 MP Lite / 4 MP Lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF Supports 1080p Lite mode |
| Main Stream Frame Rate | 3K Lite: 12 fps 5 MP Lite: 12 fps 4 MP Lite: 15 fps 1080p: 15 fps 720p and below: up to 25/30 fps |
| Sub Stream | WD1 / 4CIF @12 fps CIF @25/30 fps |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual Stream | Supports main stream or sub stream |
| Stream Type | Video / Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Remote Connections | 64 users |
| Total Bandwidth | 96 Mbps |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| Wi-Fi Support | Supports USB Wi-Fi dongle |
| Serial Interface | RS-485 (half-duplex) |
| Storage | 1 × SATA interface Supports up to 10 TB per HDD |
| Alarm In/Out | Variants available: 8/4, 4/1, or optional N/A |
| USB Interface | Front: 1 × USB 2.0 Rear: 1 × USB 2.0 |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 18 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) |
| Weight | ≤ 1.78 kg (without HDD) |
